Connect the primary control terminal to the battery’s positive lead via a 10A fuse–this prevents overloads during cranking. The auxiliary contact should link to the solenoid’s activation coil, ensuring minimal voltage drop. Use 14-gauge wire for signal paths and 12-gauge for power feeds to handle startup surges without overheating.
Ground the return terminal directly to the chassis using a dedicated bolt–avoid daisy-chaining with other components. Corrosion at this point causes intermittent failures, so apply dielectric grease before securing the connection. Test continuity with a multimeter set to 200 ohms; readings above 0.5Ω indicate worn contacts or loose connections.
Label each wire at both ends to prevent misrouting during reassembly. If the system draws over 30A during cranking, upgrade the fuse to a 15A slow-blow type to accommodate momentary spikes. Replace any connectors showing green oxidation–clean with a wire brush and flux-cored solder for reliable conductivity.
For auxiliary functions (e.g., dashboard lights), split the power feed after the fuse but before the control module. Use a relay rated for 40A if adding high-draw accessories like heated seats or aftermarket audio. Never tap into the starter feed for these additions; it overloads the circuit and risks fire.
Understanding the 4-Contact Key Mechanism Layout
To wire a 4-contact key mechanism correctly, connect the starter solenoid wire to the B+ terminal–typically marked with a bold “30” or “+B” label–using 10-gauge wire rated for 30A. The accessory lead (labeled “ACC” or “15”) powers non-essential systems (radio, lights) and should route through a 15A fuse directly to the battery’s positive post. The ignition lead (“IGN” or “50”) activates the fuel pump and ignition coil; use 12-gauge wire fused at 20A for this path. Ground the fourth contact (often marked “GND” or “31”) to the chassis with a minimum 8-gauge wire, ensuring a resistance below 0.1Ω to prevent voltage drop.
| Terminal | Wire Gauge | Fuse Rating | Primary Load |
|---|---|---|---|
| B+ (30) | 10 AWG | 30A | Starter solenoid |
| ACC (15) | 16 AWG | 15A | Radio, interior lights |
| IGN (50) | 12 AWG | 20A | Fuel pump, coil |
| GND (31) | 8 AWG | N/A | Chassis ground |
Test the completed setup with a multimeter: voltage at B+ should match battery voltage (±0.2V) when the key rotates to “start,” while ACC and IGN should drop no more than 0.5V under load. If resistance exceeds 0.2Ω on any path, clean contact points with a wire brush and re-tighten to 12 Nm torque. For vehicles with push-button start, replace the IGN lead with a relay triggering the engine control module (ECM) at 12V, using a 30/40A relay to handle inrush current.
Determining the Role of Each Terminal in a 4-Position Keyed Connector
Start by examining the manufacturer’s documentation–most automotive brands label ports B+ (battery positive), ACC (accessory), IGN (ignition feed), and ST (starter). If no labels exist, use a multimeter set to continuity mode: turn the key to the “off” position and probe each contact while observing readings. The terminal showing direct connection to the battery cable (often thicker, 10-12 AWG) is the main power input.
Test for accessory activation by rotating the key to the first position–one port should deliver 12V when accessories (radio, lights) engage. This is typically the thinnest wire (16-18 AWG) and may show a slight voltage drop under load. The next rotation should energize the ignition-controlled outputs, powering the fuel pump, injectors, and coils; expect a 12V spike here, sometimes fused separately.
Locate the starter solenoid trigger by turning the key fully–this terminal momentarily bridges to ground, completing the solenoid circuit. It’s usually the only contact that draws heavy current (4-6 AWG) briefly during cranking. If the engine cranks but accessories fail, suspect a faulty ACC or IGN trace; reverse-engineer the wiring harness by back-probing connectors with a test light.
Check for intermittent failures by wiggling the harness near the connector–corrosion (green/white deposits) or loose crimps often disrupt signals. Replace the entire assembly if resistance exceeds 0.5 ohms between terminals, as internal wear can cause voltage drops that mimic battery issues. Some European models integrate an immobilizer line; verify this with a scan tool if the engine stalls after initial crank.
Label each wire with heat-shrink tubing before reassembly–use B+ (red), ACC (yellow), IGN (brown), and ST (purple) for consistency. Avoid relying solely on wire color; cross-reference with a factory service manual, as aftermarket modules may repurpose terminals for auxiliary functions like heated seats or turbo timers.
Step-by-Step Wiring Guide for 4-Contact Key Assembly Installation

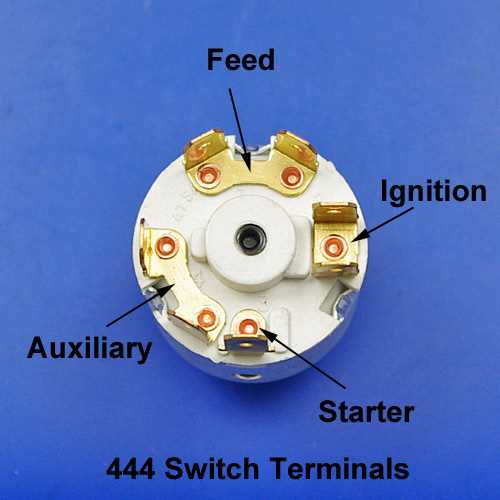

Identify the terminal labels on the rear of the keylock–typically marked B, ACC, IGN, and ST. Confirm these correspond to battery, accessory, engine activation, and starter relay respectively by referencing the vehicle’s service manual.
Disconnect the negative battery cable first to prevent shorting. Label existing wires with masking tape–note their original positions if the harness is intact–to avoid misconnection later.
- B (Battery): Connect this lead directly to the primary positive feed of the vehicle’s power source, usually via a 10-gauge fuse link. Use a 30A fuse for standard setups.
- ACC (Accessory): Route this to devices requiring power without engine start–radio, lights–via a 15A fuse for protection.
- IGN (Engine Activation): Attach this to fuel pump relays, ECU, and ignition coils. Verify polarity matches the existing harness; reverse results in immediate electrical damage.
- ST (Starter Relay): Connect last to the solenoid trigger wire. Use a relay if the existing wire gauge is below 12 AWG to prevent voltage drop.
Secure all connections with solder and heat-shrink tubing–twisting and taping causes corrosion and intermittent failures. Crimp connectors are acceptable only with a ratcheting tool, not pliers.
Test continuity with a multimeter before reattaching the battery. Set meter to 200 ohms and probe between each contact and its designated wire–readings should be 0.1–0.5 ohms; higher values indicate faulty solder or crimping.
- Reconnect the negative battery terminal cautiously–sparking at this stage signals a live short.
- Rotate the keylock to OFF and verify all accessories and engine systems are inactive.
- Turn to ACC–only accessories should activate. Check voltage at the fuse box (12.6V±0.2V).
- Proceed to IGN; ensure the fuel pump primes (audible hum) and the tachometer rises briefly.
- Engage ST–the engine should crank immediately. If cranking persists after release, revisit the solenoid wiring.
Install a dielectric grease layer over all terminals post-testing to prevent oxidation. Reinspect the locking mechanism for proper engagement–binding suggests misalignment in the housing, requiring re-setting of the barrel within the column sleeve.
Troubleshooting Misfires
If the engine stalls upon cranking:
- Check IGN wire for continuity–intermittent breaks cause ECU resets.
- Examine solenoid voltage during crank–readings below 9V indicate a weak battery or undersized starter cable.
- Verify the keylock’s internal spring tension–wear causes incomplete circuit closure.
For accessory circuits failing to energize, isolate the ACC lead and test voltage drop across each device–excessive draw suggests a shorted component, not a wiring fault. Replace affected modules before proceeding.
Common Wire Color Codes and Their Functions in Vehicle Activation Systems
Always verify connections by cross-referencing manufacturer documentation–standardized color schemes often vary between brands, but key conductors follow predictable patterns. The red (12V constant) cable delivers uninterrupted power from the battery, critical for memory retention in ECUs and security modules. Disconnecting it without backup power risks resetting adaptive fuel maps or anti-theft codes. For Japanese models, yellow may replace red, while German vehicles sometimes use brown/red striped for permanent live feeds.
- Black/dark green: Primary ground, typically bolted to the chassis or engine block–test continuity with a multimeter (below 0.5 ohms resistance). Poor grounding causes voltage drops, leading to erratic sensor readings or failed module initialization.
- White/orange: Starter solenoid trigger–momentary 12V pulse engages the flywheel. On Ford systems, this may be purple/yellow; GM often uses pink. A weak signal prevents cranking even with full battery voltage.
- Blue or blue/white striped: Accessory power relay control, energized when the key moves to the “on” position. In dual-relay configurations, this wire may split into red/blue (primary accessories) and light blue (secondary circuits like heated seats).
Aftermarket installations frequently repurpose colors, but factory harnesses adhere to these conventions:
- Brown/yellow (VW/Audi): Fused ignition feed for injectors and coils–directly linked to the ECU. Disconnecting during engine run risks fuel pump prime cycles and hydraulic delay.
- Gray (Toyota): Tachometer signal from the coil–interference disrupts RPM readings. Soldered repairs must use shielded cable to prevent RF noise.
- Violet (Chrysler): Security module data line. A short circuit here triggers immobilizer lockout, requiring manufacturer-specific scan tools for reset.
Probe wires with a non-powered test light before direct connection–LED indicators obscure true voltages. For hybrid systems, orange denotes high-voltage interlocks (300V+); never cut or splice without isolating the main battery pack. European vehicles may encode additional functions–green/black on BMWs activates the electric steering pump, while red/black on Porsches triggers turbo spool timers.
