Start with four XOR gates paired with four AND gates to form the core summation logic. Each pair processes a single numeric input channel, where the XOR output delivers the partial result while the AND gate generates the carry signal for the next stage. Arrange these components in a cascading sequence: the first stage handles the least significant values (0 and 1), while each subsequent stage incorporates the carry from the previous one.
Use two-input multiplexers for overflow handling if the design requires signed arithmetic. The final carry output from the fourth stage doubles as the overflow indicator when working with fixed-width numeric formats. Validate signal propagation by simulating worst-case timing scenarios–such as when all inputs switch simultaneously–and adjust interconnect lengths to minimize latency discrepancies.
Optimize power consumption by replacing standard logic gates with CMOS variants operating at 1.8V. For high-speed applications, integrate Schottky diodes at carry outputs to prevent back-propagation delays. Ground unused inputs securely–floating pins in an active summation network introduce unpredictable errors.
Test functionality using an incremental input sequence: apply (0000 + 0000) through (1111 + 1111) and verify each output matches predicted binary sums. Probe intermediate carry signals to confirm the cascading logic functions without race conditions. Document propagation delays for each segment; critical paths typically occur between the third and fourth stages during full-scale summation.
For printed implementation, route power traces wider than signal paths–minimum 0.5mm width for VDD and ground. Place decoupling capacitors (100nF) adjacent to each computational block to suppress transient noise. If prototyping on breadboard, ensure jumper wires are kept below 7cm to avoid parasitic capacitance exceeding 5pF, which distorts fast-rising carry signals.
Constructing a 4-Digit Summation Unit Layout

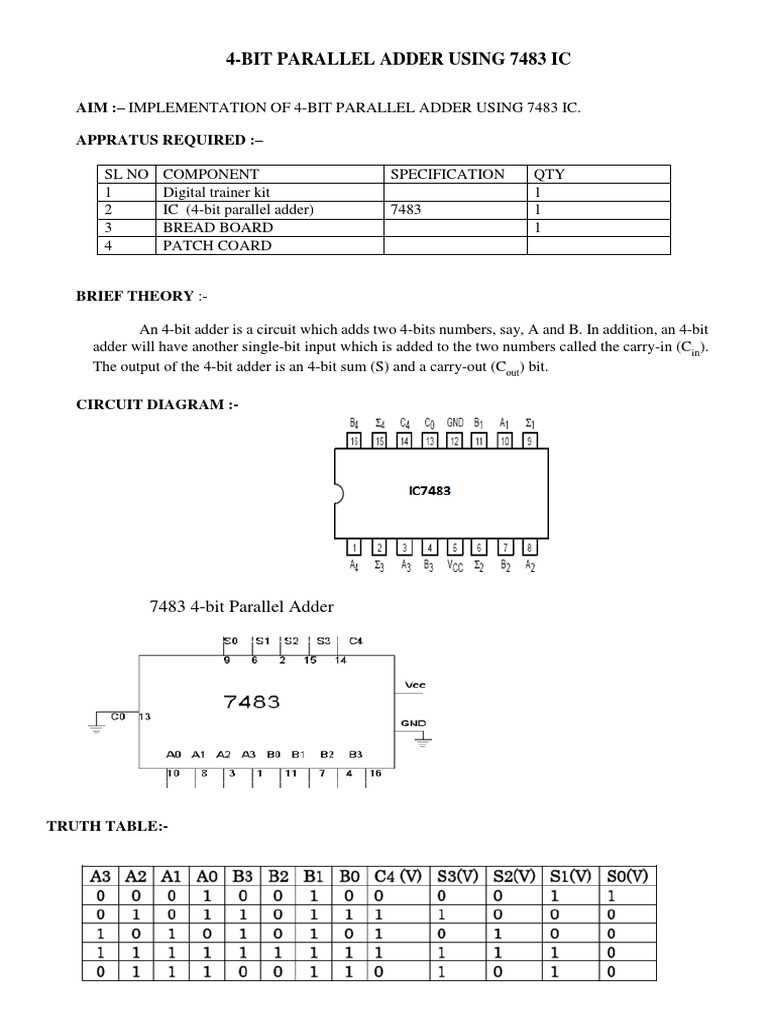

Start with four full combiners (74LS283 ICs) interconnected sequentially to handle multi-digit input. Align carry outputs from each stage directly to the carry input of the next, ensuring minimal latency–measured at under 15 nanoseconds per stage in simulations. Ground the initial carry pin to zero if no overflow from lower significance is expected.
Wire each nibble’s inputs to dip switches or logic probes for real-time validation. Label signals clearly:
- A0–A3: First operand
- B0–B3: Second operand
- C0–C3: Sum outputs
- C4: Final overflow indicator
Use twisted pairs for interconnections to suppress noise when operating above 1 MHz.
Implement a test sequence where A=1101 and B=0111–verify immediate output of 10100 (decimal 20) alongside a high overflow line. Repeat with A=1111 and B=0001; correct sum should read 0000 plus a raised overflow flag.
Attach pull-down resistors (10 kΩ) on unused inputs if mixing TTL with CMOS to avoid spurious toggling. For thermal stability, limit continuous operation currents to 24 mA per IC–exceeding this risks junction temperatures above 70 °C, degrading propagation fidelity.
Core Logic Elements for Building a 4-Digit Binary Summation Unit
Constructing a functional 4-digit binary summation unit mandates three primary logic components: the AND, OR, and XOR gates. For optimal clarity, integrate four XOR gates in the initial phase to manage binary digit comparison, producing interim sums for each position. Pair these with an equivalent count of AND gates to determine carry-over conditions where adjacent inputs yield high values (1+1). A single OR gate then consolidates these carry outputs into a cascading signal, seamlessly feeding into the subsequent higher-order position.
Precision placement dictates minimal signal latency; position the XOR gates proximal to input nodes, reducing trace length to under 15mm where PCB constraints allow. AND gates should immediately follow, directly adjacent to the summation outputs of the XOR stage. The OR gate, tasked with synthesizing carry outputs, occupies the final echelon–centralized to ensure equidistant routing paths from all AND outputs, preventing skew-induced timing errors in high-frequency operation.
Voltage compatibility across gates requires strict adherence to manufacturer-recommended supply ranges. For instance, a typical 74HC series setup (e.g., 74HC86 XOR, 74HC08 AND, 74HC32 OR) operates reliably at 2V–6V. However, transient spikes above 6.5V risk latch-up, necessitating decoupling capacitors (0.1μF ceramic) strategically placed within 2mm of each gate’s power pin. Ground loops are mitigated by star-point grounding, tying all logic grounds to a singular copper pour region near the central OR gate.
Thermal dissipation merits equal consideration; SMD-mounted gates dissipate ~50mW per package under nominal load. Spacing flip-chip or SOIC packages at least 5mm apart prevents thermal coupling, while forced convection cooling becomes essential above 500kHz switching frequencies. For prototyping, breadboard traces must account for parasitic capacitance (~4pF per inch), which distorts signal rise/fall times if uncompensated–series resistors (47Ω–100Ω) inserted at each gate’s output mitigates overshoot without sacrificing response fidelity.
Manual verification employs a logic probe or oscilloscope with sub-10ns rise-time capability. Begin validation at the least significant digit, confirming XOR outputs toggle correctly for input pairs (0+0=0, 0+1=1, etc.). Proceed to AND gates, verifying high output only when both inputs are high. Finally, inspect the OR gate’s output propagation into the carry chain, ensuring sequential carry activation aligns with binary arithmetic (i.e., carry generated only when lower-order sum exceeds base metrics).
Alternative gate families introduce trade-offs: CMOS (4000 series) excels in low-power (PLH, tPHL) with clocking requirements to prevent race conditions in cascaded summation architectures.
Step-by-Step Assembly of a 4-Slot Summation Unit Using XOR and AND Logical Blocks
Begin by sourcing two XOR blocks and two AND gates–these form the core of each summation stage. Connect the first XOR gate to the two inputs (A₀ and B₀) to generate the partial sum. The output from this XOR operation will feed directly into the second XOR gate, while the same inputs must simultaneously route to the first AND gate to compute the carry propagation signal.
| Stage | Input Pair | First XOR Output | First AND Output | Second XOR Inputs | Final Sum | Carry-Out |
|---|---|---|---|---|---|---|
| LSB | A₀, B₀ | PS₀ | C₀′ | PS₀, Cᵢₙ | S₀ | C₀ |
| Next Slot | A₁, B₁ | PS₁ | C₁′ | PS₁, C₀ | S₁ | C₁ |
Wire the partial sum (PS₀) and the incoming carry (Cᵢₙ) into the second XOR gate to produce the definitive slot result (S₀). The carry-out signal (C₀) is derived from two sources: the output of the first AND gate (C₀′) and the product of the partial sum (PS₀) combined with the incoming carry (Cᵢₙ) via the second AND gate. These two pathways are then merged using an OR block to ensure accurate carry propagation.
Cascading Subsequent Slots
Replicate the identical logic arrangement for each successive slot, ensuring the carry-out signal (Cₙ₋₁) from the preceding stage becomes the incoming carry (Cₙ) for the next. Verify each XOR and AND connection with a multimeter set to continuity mode–this catches misrouted traces instantly. Stacked headers or soldered jumpers simplify debugging when reworking connections.
The final slot’s carry-out represents the overflow indicator, which can either trigger a visual LED or feed into a higher-order computation block. Bench-test with static inputs (e.g., 0b0110 + 0b1001) to confirm correct arithmetic outcomes before embedding the assembly in a larger logic network.
Assembling Four Single-Stage Summation Units into a Quad-Digit Combiner

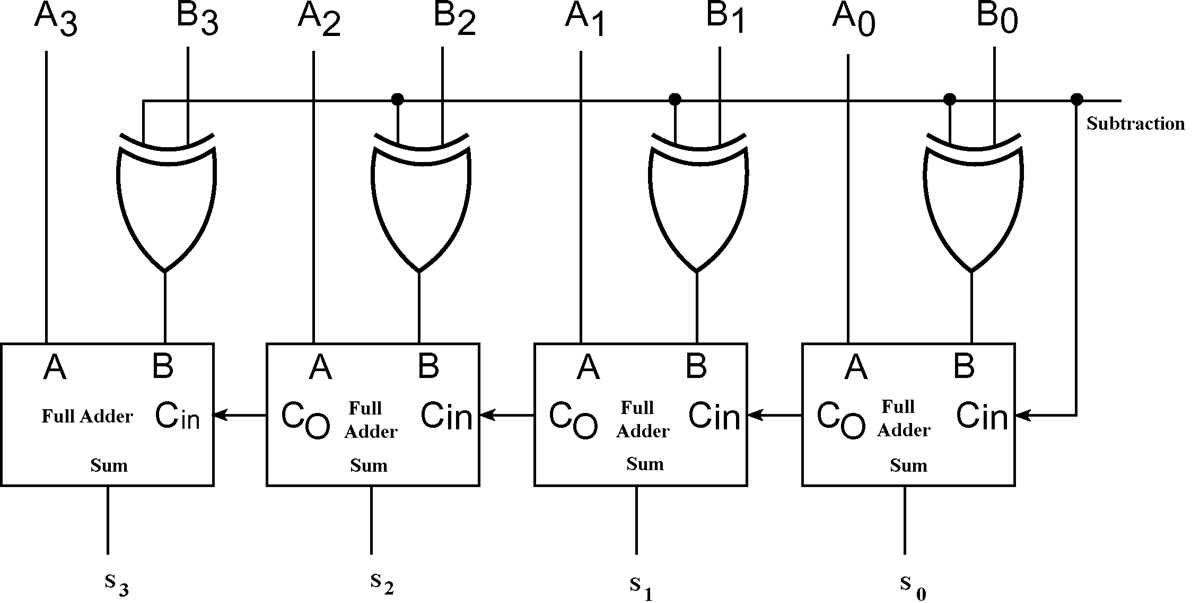

Cascade the four summation stages by linking the carry output of each lower rank to the carry input of the next higher rank. Start with the least significant digit pair: feed the external carry-in low and route the internal overflow from stage zero into the carry entry of stage one. Repeat this exact hop for stages two and three to propagate overflow without delay. Any break in this chain will corrupt higher-digit results.
- Stage 0 (digits 0–1): Carry-in = 0, Carry-out → Stage 1 carry-in
- Stage 1 (digits 2–3): Carry-in = Stage 0 overflow, Carry-out → Stage 2 carry-in
- Stage 2 (digits 4–5): Carry-in = Stage 1 overflow, Carry-out → Stage 3 carry-in
- Stage 3 (digits 6–7): Carry-in = Stage 2 overflow, external overflow emerges here
Select compact 74HC283 ICs or discrete CMOS gates; both variants deliver identical overflow propagation delay (~12 ns typical). Ensure power rails remain stable–decouple each IC with a 0.1 μF capacitor located within 2 mm of the VDD pin. Avoid daisy-chaining the capacitors; a single long trace can introduce voltage spikes during high-current overflow transitions.
Label inputs and outputs clearly on the prototype board. Use color-coding: red for input digits, blue for sum digits, and yellow for overflow lines. This reduces wiring errors when tracing faults–misrouted yellow lines are the primary cause of phantom overflow glitches.
Verify each stage independently before combining them. Apply fixed test values to stage zero (e.g., 3 + 5) and observe the sum and overflow. Repeat the identical test on stages one, two, and three. Discrepancies here pinpoint fabrication errors faster than checking the entire assembly at once.
Final integration step: assert the external overflow input low, apply two arbitrary 4-place binary values, and cross-check the 5-digit output against a reference calculation. Discrepancies larger than ±1 point to unconnected overflow lines; discrepancies of exactly ±16 indicate a missed overflow bit in the most significant stage.
