Start by disconnecting the battery pack entirely before inspecting or modifying connections. Use a multimeter set to 20V DC to verify voltage at each terminal–readings should increment by 6V per cell (6V, 12V, 18V, 24V, 30V, 36V). If deviations exceed ±0.5V, test individual batteries for sulfation or internal resistance. Replace any unit pulling below 5.8V under load.
Locate the speed controller and trace its 3-wire harness: red (positive), black (ground), and yellow (throttle signal). Crimp 14-gauge ring terminals onto all stripped wires, ensuring insulation fully covers copper strands. Secure connections with anti-corrosion paste before tightening bolts to 8-10 Nm torque. Avoid twist-on connectors–vibration loosens them within 50 operational hours.
Inspect the solenoid: a 36V coil should draw 3-4 amps during activation. If clicking occurs without engagement, test resistance across coil terminals (typically 4-7 ohms). Replace if readings exceed 10 ohms. Route all cables away from exhaust manifolds or sharp edges, using loom tubing for sections longer than 12 inches.
For charger ports, use Anderson SB50 connectors rated for 50 amps. Confirm polarity with a voltmeter before plugging in–reverse input destroys rectifiers instantly. Add a 40-amp slow-blow fuse inline between the charger and battery bank to prevent thermal runaway.
When testing acceleration, monitor voltage sag at the controller input. Sag below 32V under 75% throttle indicates weak cells; isolate and replace. Label every component with heat-shrink tags to simplify future diagnostics. Reconnect the battery pack last, ensuring case ground bolts are free of paint or oxidation.

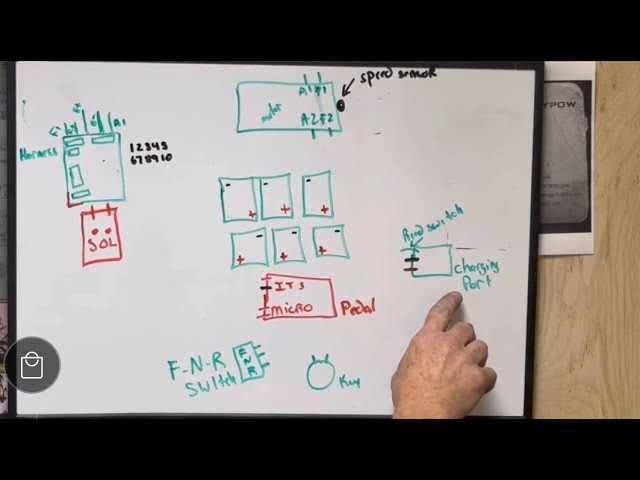

Electrical Schematic for 36-Volt Utility Vehicle Systems
Begin by disconnecting the battery pack entirely before examining or modifying connections. Use a multimeter set to DC voltage to verify each battery’s charge level–ideal readings should be between 6.0 and 6.3 volts per unit. Identify the main positive and negative terminals on the controller; erroneous attachments here can fry the motor or speed regulator. Label wires with colored tape during disassembly to streamline reassembly and prevent crossed lines.
Component Layout and Key Connections
Locate the solenoid–this cylindrical switch activates the system when the throttle is engaged. Ensure its small control wire (typically purple or yellow) connects to the ignition switch without breaks. Check the motor’s field and armature wires; they must match the controller’s output terminals exactly. Misalignment here causes erratic acceleration or no movement. Trace the reverse switch wires (often red and black) to confirm they terminate correctly at the microswitch behind the pedal assembly.
Inspect the fuse holder–most 36-volt variations use a 200-amp fuse as critical overcurrent protection. Replace blown fuses immediately with the identical rating; undersized replacements risk fire hazards. Examine the charging port wiring; loose connections here lead to incomplete charging cycles or battery overheating. Secure the yellow wire from the charger directly to the positive battery pack terminal, avoiding intermediate splices that increase resistance.
Test the throttle potentiometer by rotating it through its full range while observing voltage changes on a multimeter–consistent linear progression between 0.5 and 4.5 volts confirms proper function. Clean corroded contacts on the accelerator pedal with a wire brush and dielectric grease to maintain signal integrity. For vehicles with regenerative braking, confirm the diode pack is installed correctly; reversed polarity causes erratic braking behavior during deceleration.
Reassemble the wiring harness systematically, securing each connection with heat-shrink tubing to prevent moisture intrusion. Route cables away from moving parts and high-heat zones like the motor housing. Perform a final voltage check across the entire setup before reattaching the battery pack–partial power-up during wiring can damage sensitive components. Record the placement of each wire for future troubleshooting reference.
Key Elements of a 48-Cell Electric Vehicle Power Network
Begin by identifying the battery pack as the core energy reservoir–most recreational electric transports rely on six 8V cells wired in series to deliver the required voltage. Verify each cell’s electrolyte levels monthly; distilled water should cover the lead plates by 6–12 mm. Overlooking maintenance here reduces pack lifespan by up to 40% and triggers premature sulfation.
Locate the solenoid–a cylindrical relay actuated by the ignition key–positioned near the controller. Test its functionality using a multimeter: with the key in the “on” position, probe between the small and large terminals; a click should coincide with 48V reading. If absent, clean the contacts or replace the unit–faulty solenoids drain standby current, leading to parasitic power loss.
The speed controller determines acceleration characteristics by moderating current flow to the traction motor. Select a model with heat-dissipating aluminum fins; digital controllers with regenerative braking recover 15–25% of energy during deceleration. Ensure proper calibration: adjust the potentiometer settings to match the motor’s rated RPM to avoid overspeed or sluggish response.
| Component | Voltage Range | Failure Symptoms | Maintenance Interval |
|---|---|---|---|
| Rechargeable pack | 46V–52V | Slow cranking, dim lights | Every 30 days |
| Controller | 48V ±2V | Erratic speed, overheating | Annually or post-error |
| Traction motor | 40V–50V | Burnt odor, torque loss | Every 200 hours |
Traction motors typically employ series-wound DC configurations, ideal for frequent start-stop cycles. Inspect brushes every 150 operating hours–worn brushes expose commutator segments, causing arcing and reduced efficiency. Measure brush length: replace if less than 10 mm to prevent irreversible rotor damage.
Fuses and circuit breakers protect the system from overloads–verify the main fuse matches the controller’s peak current draw, usually 200–300 amps for standard drives. Install bolt-down fuse holders; blade-style holders can vibrate loose during operation. For branch circuits, use slow-blow fuses rated at 125% of the expected steady-state current to accommodate inrush spikes.
Chargers should output 10–15 amps at a constant voltage of 54V for optimal cell balancing. Avoid fast chargers exceeding 20 amps–they shorten pack life and risk thermal runaway. Monitor temperature during charging: disconnect if cells exceed 45°C (113°F). Correct storage involves maintaining a 50–70% state of charge; fully discharged cells sulfater within weeks.
Step-by-Step Guide to Interpreting an Electric Vehicle Circuit Blueprint
Locate the power source symbols first–battery banks in this context are typically represented by parallel lines, with thicker lines indicating higher voltage capacity. Identify the series connections by tracing straight lines between cells; these dictate the 36-volt system’s cumulative output. Cross-reference any numerical labels (e.g., “B+” or “M1”) with the legend or component key to confirm lead placement, avoiding misreads that could damage controllers or motors.
Break the schematic into functional zones: propulsion, charging, and accessory circuits. The propulsion section will show the motor’s linkage to solenoids, often marked with coil symbols (circles with loops), and speed regulators, which appear as variable resistors. Verify polarity by following arrowheads or “+/-” annotations–reverse connections here will prevent forward motion. Charging circuits include rectifiers (triangle shapes) and fuses (zigzag patterns), where incorrect placement risks overcurrent.
Critical Verification Steps
- Trace ground paths to a single reference point, usually the vehicle’s frame–disconnected grounds cause erratic behavior.
- Check for interrupt switches (dotted lines crossing components) which act as safety cutoffs; test their continuity with a multimeter.
- Highlight high-current routes (thicker traces) to prioritize inspection of connectors for corrosion–poor contact here reduces efficiency.
- Note any color-coded wires in the legend; match these to physical harnesses during troubleshooting to isolate faults quickly.
Common Pitfalls to Avoid
- Assuming all arrows indicate current flow–some mark signal direction instead. Cross-check with voltage labels (e.g., “12V” vs. “high side”).
- Ignoring dashed lines: these often denote optional or secondary components like reverse beepers or brake light switches. Skipping them may leave safety features inoperable.
- Overlooking small capacitors (paired parallel lines) near controllers; failed capacitors cause voltage spikes and premature motor burnout.
Diagnosing Electrical Faults in Low-Voltage Electric Vehicles
Begin by isolating the battery bank from the motor controller–disconnect the main cables at the solenoid to rule out deep-cycle battery failure. Verify voltage across each cell with a digital multimeter; readings below 1.9V per cell indicate sulfation or internal shorting. Clean oxidized terminals with a wire brush and apply dielectric grease to prevent future corrosion, which causes intermittent power loss.
Test the solenoid by activating the throttle while monitoring voltage at the large terminals. If the meter reads full pack voltage but the vehicle fails to engage, replace the solenoid–its contacts may be pitted or welded shut. For cooperative models, inspect the coil resistance (typically 20-40 ohms); values outside this range confirm a defective unit.
Check the directional switch by rotating it through all positions while measuring continuity between the output terminals. Inconsistent readings reveal worn contacts or a broken mechanism, often caused by accumulated dirt or burnt plastic from arcing. Disassemble the switch, clean surfaces with electronic contact cleaner, and reassemble–if corrosion persists, replace the entire assembly.
Examine the speed controller for overheating signs: discolored housing or melted solder joints. Use an infrared thermometer to measure surface temperature after 10 minutes of operation; readings above 85°C suggest inadequate cooling or internal failure. Inspect the heat sink for dust buildup and ensure the cooling fan (if equipped) spins freely–obstructed airflow accelerates component degradation.
Trace the harness for chafed insulation or exposed wires near sharp edges or suspension components. Bend suspect sections while watching for voltage drops; intermittent shorts typically occur at stress points like axle mounts. Repair damaged wiring with solder and heat-shrink tubing–electric tape degrades over time and fails to prevent moisture intrusion. For stubborn faults, use a tone generator and probe to identify breaks in the circuit path.
Inspect the charger port for loose connections or melted plastic, which indicates a faulty charger or improper amperage draw. Measure output voltage at the port terminals with a load applied (e.g., a 50W bulb); readings deviating ±0.5V from nominal suggest a defective onboard charger or battery imbalance. Replace the port if corrosion or burn marks are visible–compromised connections cause incomplete charging cycles.
Evaluate the brake interlock switch by verifying continuity when the pedal is depressed. A faulty switch prevents engagement by cutting power to the controller, often misdiagnosed as motor failure. Adjust the switch position or replace it if testing confirms failure–misalignment from frequent use is a common issue.
For vehicles equipped with regenerative braking, monitor battery voltage during deceleration. A sudden voltage spike exceeding 44V indicates a failing brake resistor bank, which requires immediate replacement to prevent damage to the controller. If no spike occurs, the regenerative system may be inactive due to controller settings or a defective brake switch–consult the service manual for reset procedures.
Quick Reference Checklist for Fault Isolation
- Measure individual cell voltages (target: 1.9V–2.2V per cell).
- Test solenoid continuity and coil resistance.
- Verify directional switch operation across all positions.
- Inspect harness for chafing, especially near moving parts.
- Check charger port under load (nominal voltage ±0.5V).
- Validate brake interlock switch continuity.
- Monitor regenerative braking voltage spikes.
- Assess controller heat sink temperature (
Advanced Diagnostic Tools
- Load tester: Confirms battery health under actual draw conditions.
- Oscilloscope: Detects micro-arcing in switches or loose connections.
- Voltage drop meter: Pinpoints high-resistance joints in the circuit.
- Thermal camera: Identifies hotspots in controllers or wiring harnesses.
