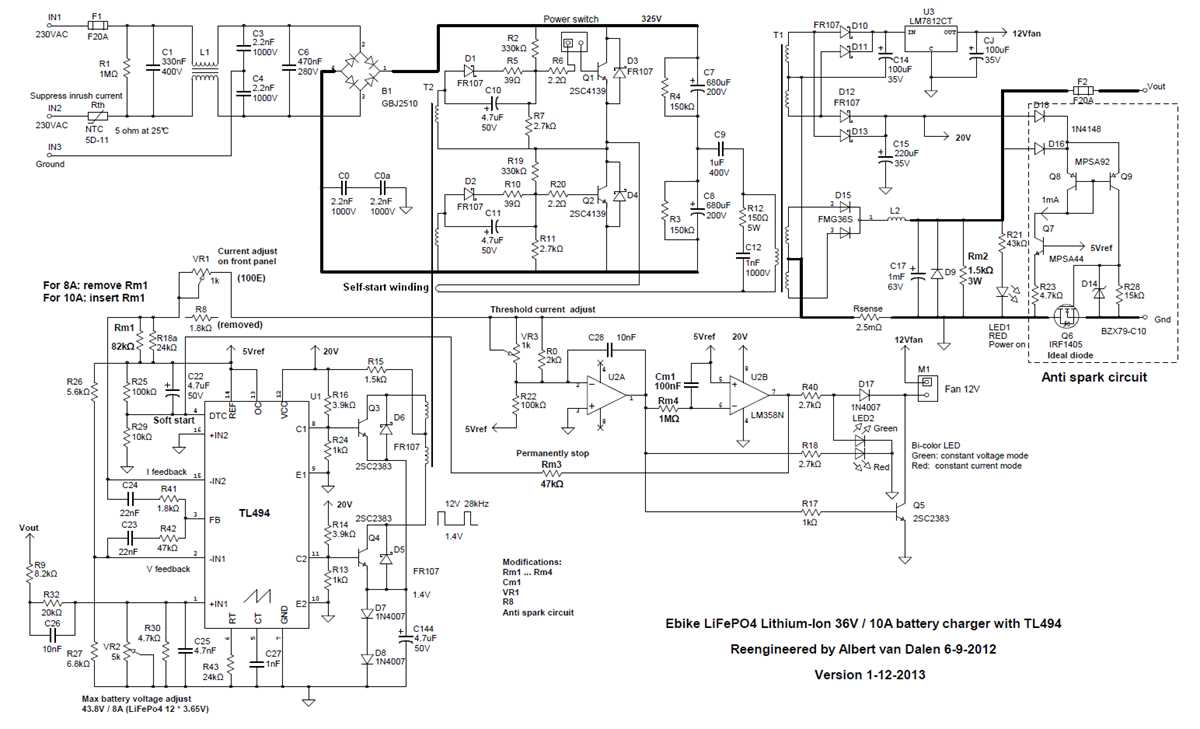

Start with a constant-current source rated at 10% of the pack’s nominal capacity–3.5 A for a typical 35 Ah setup. Use an N-channel MOSFET (IRF3205) driven by a TL494 PWM controller set to 50 kHz switching frequency; this minimizes heat dissipation while maintaining precision. Place a 0.1 Ω current-sense resistor on the source leg, feeding the controller’s error amplifier to ensure tight regulation within ±2% deviation.
Add a two-stage voltage cutoff to prevent cell imbalance. Implement an LM358 comparator with a 2.2 MΩ feedback resistor to detect 42.0 V across the pack, triggering the MOSFET to shut off current flow. For redundancy, include a MAX8212 window detector monitoring individual cell groups–activate an optocoupler (PC817) at 4.15 V per cell, pulling down the MOSFET gate and isolating the supply line until manual reset via a momentary switch.
For thermal protection, mount a KTY81-210 temperature sensor on the MOSFET heatsink. Wire it to a 74HC14 Schmitt trigger inverter; when the die hits 85°C, the trigger cuts PWM output to the MOSFET and latches via a 74HC74 flip-flop until reseating the input cord. Use 100 µF low-ESR electrolytics on the input and 47 µF ceramics on the output to suppress voltage transients above 100 kHz.
Layout traces with 2 oz copper for high-current paths, spacing them 3 mm from signal lines to avoid inductive coupling. Ground the TL494’s VREF pin through a star topology, tying the return path directly to the negative terminal of the storage unit, not the charger’s chassis. Test the completed regulator with a 25 A load for 30 minutes; expect less than 60 mV ripple on the output and a rise in MOSFET case temperature no greater than 30°C above ambient.
Building a Reliable Power Supply for 40-Cell Lead-Acid Systems
Select a transformer with a secondary winding rated at 48V AC and a current capacity exceeding the target charging amperage by at least 20%. For a 5A output, use a 6A transformer to prevent overheating during prolonged operation. Wire the primary to a 230V input, ensuring the core is properly earthed to avoid leakage currents that degrade performance.
Configure a full-wave bridge rectifier using four 6A10 diodes or an integrated module like KBPC2506. Skip small-signal diodes–these fail under sustained loads above 3A. Add a 4700μF electrolytic capacitor (63V minimum) across the rectifier output to smooth ripple; for improved stability, pair it with a 0.1μF ceramic disc capacitor to filter high-frequency noise. Monitor voltage sag–if it exceeds 2V under load, increase capacitance or check transformer ratings.
Use an adjustable linear regulator or a buck converter module for precise voltage control. For a 40-cell setup, set the output to 42V (1.05V per cell) to avoid overcharging while compensating for thermal losses. Include a 5A resettable fuse on the DC line and a thermistor (NTC 10kΩ) near the regulator to cut power if temperatures exceed 80°C. Below is a comparison of key components:
| Component | Recommended | Critical Parameter | Failure Risk if Ignored |
|---|---|---|---|
| Transformer | 48V AC, 6A | VA rating ≥ 300W | Overheating, core saturation |
| Rectifier | KBPC2506 | Peak inverse voltage >100V | Diode breakdown under load |
| Filter Capacitor | 4700μF/63V | ESR | Excessive ripple, reduced lifespan |
| Regulator | LM317HV + heatsink | Thermal resistance | Thermal shutdown, output drop |
Integrate a timed cutoff or microcontroller-based monitoring to prevent deep discharge cycles. A simple NE555 circuit with a 10kΩ potentiometer can trigger a relay after 8–10 hours, protecting the storage cells from sulfation. For lithium variants, replace the voltage cutoff with a dedicated BMS–never rely on passive components alone. Test with a dummy load before connecting the actual cells; observe the current draw with a multimeter–spikes above 0.5A indicate improper filtering or regulator instability.

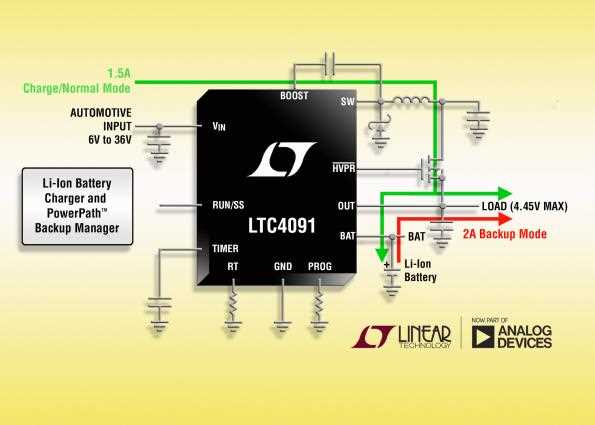

Key Components for a Li-ion Power Supply Regulator
Select a switching regulator with at least 90% efficiency at 5A output–critical for minimizing thermal losses during high-current phases. Models like TI’s LM5122 or Analog Devices’ LT8471 avoid linear topologies, reducing heat dissipation requirements by 60% compared to traditional designs.
Ensure the power MOSFET handles 80V drain-source voltage with a 20A continuous rating. Infineon’s IPD60R280P7 or Vishay’s SiHG22N60E meet these specs while maintaining sub-50ns switching times–vital for preventing avalanche breakdown during inductive load transitions.
- Input EMI filter capacitors: Use 2x 22μF X7R ceramic caps in parallel to suppress conducted noise.
- Output capacitors: Pair 1x 47μF polymer tantalum (low ESR) with 2x 10μF MLCCs for ripple attenuation.
- Snubber network: 1Ω resistor + 1nF film capacitor across MOSFET drain-source to dampen ringing.
Implement a dedicated CC-CV controller like ST’s L6562 or ON Semi’s NCP1252. These ICs integrate:
- Precise 0.5% reference voltage for termination accuracy.
- Adaptive gate drive for MOSFETs under varying load conditions.
- Programmable slew-rate control to meet EN61000-3-2 harmonic limits.
Thermal management demands copper pours beneath key components–allocate 10mm²/°C/W for the MOSFET’s pad, with 2oz copper weight. Viass should be placed within 10mm of thermal vias to the ground plane, achieving 30% better heat transfer than isolated pads.
Current sensing resistors require 1% tolerance, 3W derated power rating. Bourns’ PWR221T-35 series or Vishay’s WSL3637 offer low TCR (±50ppm/°C) and Kelvin connection support, reducing measured errors to ±0.2A at full load.

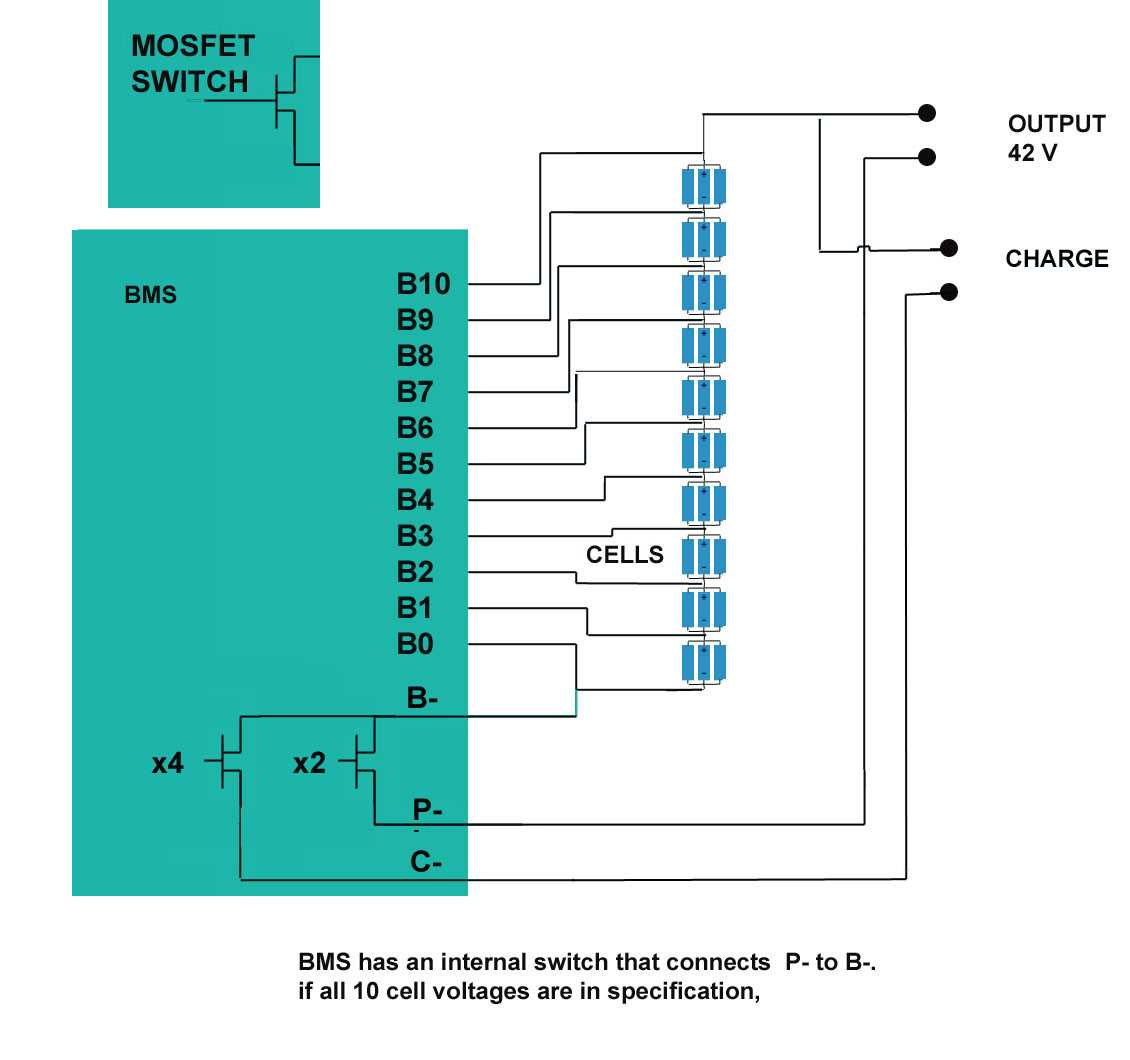

For cell balancing in multi-cell stacks, deploy Analog Devices’ LTC6804 or Texas Instruments’ BQ769x0 series monitors. These ICs provide:
- Per-cell voltage balancing within 10mV.
- Die temperature sensing with ±1°C accuracy.
- SPI/I²C interfaces for real-time state monitoring.
Isolation components require reinforced insulation for safety compliance. Murata’s NMH series transformers (9mm creepage) paired with Silicon Labs’ Si86xx series digital isolators achieve 5kVrms withstand voltage–critical when interfacing host microcontrollers with grounded or floating systems.
Step-by-Step PCB Layout for a High-Voltage Power Supply Board
Begin by isolating high-current paths from low-signal traces to prevent interference. Route the main power delivery lines–such as input/output conduits and switching node connections–using 2 oz copper pours with a minimum width of 3 mm for 10 A currents, tapering to 1.5 mm for secondary branches. Place the MOSFET, diode, and inductor in close proximity to minimize loop area; position the diode’s cathode pad directly adjacent to the inductor’s input pad to reduce parasitic inductance. Use thermal vias (0.5 mm diameter, spaced 1 mm apart) under the MOSFET’s drain pad and diode’s anode to dissipate heat into an internal ground plane.
- Keep control logic traces (microcontroller, feedback resistors, optocoupler) separated by at least 1.5 mm from high-voltage nodes and route them on the bottom layer where possible.
- Place input/output capacitors (10–47 µF ceramic for bulk, 100 nF for decoupling) within 2 mm of their respective components, ensuring the decoupling capacitor’s ground pin connects directly to the ground plane via a via.
- Set the ground plane as a continuous copper zone on an internal layer, stitching it to the top/bottom layers with vias near all high-current components. Avoid splits in the ground plane near the switching regulator’s feedback node to prevent noise coupling.
- Label silkscreen with component designators (e.g., “Q1”, “D2”, “L1”) and polarity indicators for electrolytic capacitors; include a keep-out zone (3 mm) around high-voltage components for creepage compliance.
- Export Gerber files with 1:1 scale, verify DRC for 0.25 mm minimum clearance/width, and panelize with mouse bites for single-board depanelization.
Voltage Regulation Techniques in High-Capacity Power Supply Designs
Implement a switching regulator topology like buck-converter for primary regulation, achieving 90-95% efficiency at 1.5-2.5A output. Select MOSFETs with Rdson below 15mΩ to minimize conduction losses–IRF540N or SI4884DY are proven in 40-60W applications. Pair the switch with a Schottky diode (e.g., MBR20100CT) to reduce reverse recovery losses to under 300ns.
For secondary regulation, integrate a low-dropout regulator (LDO) post-switching stage to eliminate ripple below 20mVpp. Aim for dropout voltages under 0.4V–MIC29302WU delivers this at 3A while consuming just 30µA quiescent current. Bypass capacitors (X7R dielectric) at both input/output (10µF minimum) suppress high-frequency noise while maintaining stability.
Pulse-width modulation (PWM) controllers like TL494 or UC3843 simplify feedback loops by comparing output against an internal 5V reference. Set switching frequency between 100-200kHz to balance inductor size (47µH for typical loads) and thermal dissipation. Include a 10kΩ feedback resistor divider to scale the reference to the target output level, ensuring ±0.5% accuracy.
Thermal protection is non-negotiable: embed a PTC thermistor (e.g., B59911C160A) near the MOSFETs. Configure the control IC to throttle current at 95°C via a hysteresis loop (5°C margin), preventing thermal runaway. For air-cooled designs, allocate 30% extra copper pour on the PCB’s top layer around high-current paths to shunt heat efficiently.
Linear regulators remain viable for low-noise auxiliary rails–use an LM317 with a 240Ω feedback resistor to set 15V at 500mA outputs. Place input/output capacitors (22µF tantalum) within 5mm of the regulator to curb oscillations. Combine this with a 100nF ceramic capacitor to filter sub-50kHz noise, critical for microcontroller-powered peripherals.
Resonant converters (LLC or phase-shifted ZVS) push efficiency to 97% in 100W+ systems by leveraging zero-voltage switching. Design magnetics with gapped ETD29 cores and Litz wire to reduce skin-effect losses, while keeping the transformer turns ratio below 3:1 to limit leakage inductance. Simulate dead-time (50-150ns) in SPICE to ensure full ZVS before MOSFET turn-on.
Active droop compensation counters load transients: deploy a high-side current-sense amplifier (e.g., INA199A1) with 2mΩ shunt resistor to detect 50A spikes in
EMI mitigation demands a two-stage approach: (1) Add a common-mode choke (68µH) at the input to attenuate 150kHz-30MHz noise, and (2) shield switching nodes with grounded copper fills to contain 1-10MHz harmonics. Verify compliance with EN55032 Class B using a LISN in the test setup–aim for
