For a 32-ampere 3-contact power interface, use 4 mm² copper conductors (or 6 mm² aluminum) as the absolute minimum. The line (L) wire connects to the right terminal when facing the socket–this is non-negotiable for compliance with IEC 60309 and regional electrical codes. The neutral (N) attaches to the left terminal, while the earth (⏚) links to the center pin or U-shaped contact. Verify polarity with a multimeter before energizing; reversed L/N will trip RCDs or damage equipment.
For high-power tools or temporary setups, bond the protective conductor to the metal chassis within 50 mm of the connection point–discounting this risks voltage leaks under fault conditions. If using flexible cable, ensure the strain relief grips the outer sheath, not the individual wires, to prevent insulation damage. Crimp terminals must be ring or spade types, never solder alone; vibration in industrial environments can loosen soldered joints over time.
Color codes vary by region, but standard IEC practice dictates:
- Brown – Line (L)
- Blue – Neutral (N)
- Green/Yellow – Earth (⏚)
In North American setups, black (L), white (N), and green/bare (⏚) apply. Cross-referencing with a torque screwdriver (set to 0.8–1.2 Nm for terminal screws) prevents overheating from loose connections. Test continuity between earth and chassis post-installation; resistance should measure <0.1 Ω.
For permanent installations, use IP44-rated enclosures in damp or outdoor environments. If extending cable runs beyond 25 meters, upgrade to 6 mm² copper to compensate for voltage drop–failure to do so may reduce equipment efficiency by 5–10%. Always disconnect the power supply at the source before working; 32-ampere circuits carry lethal current even at idle.
Connecting a High-Current 3-Terminal Connector Safely
First, verify the cable cross-section: for a 32-amp rating, use 6 mm² copper conductors. Larger gauges like 10 mm² reduce voltage drop over long runs. Strip exactly 15 mm of insulation from each wire–excess exposes live parts, while too little weakens the connection. Crimp ring terminals if the device lacks screw terminals; choose tinned copper for corrosion resistance. Label conductors before insertion: brown (live) to terminal L, blue (neutral) to N, and green/yellow (earth) to the central slot marked ⏚ or E. Tighten screws to 1.2 Nm with a torque screwdriver–loose connections cause arcing and overheating.
Voltage and Load Considerations
Ensure the supply matches the connector’s specifications: 230–240V single-phase or 400V three-phase, depending on the regional grid. For inductive loads like motors, derate the maximum current by 15% to account for inrush surges. Use a residual current device (RCD) rated at 30 mA upstream–standard circuit breakers alone won’t protect against fatal shock. Test continuity between earth and the appliance’s metal chassis with a multimeter; readings above 0.1 ohms indicate a fault in the grounding path.
Before energizing, inspect for physical damage: cracked housings, discolored terminals, or bent contacts signal potential failure. For outdoor installations, apply dielectric grease to terminals to prevent moisture ingress. In industrial settings, secure cables with gland assemblies at entry points to meet IP44 ingress protection. Replace connectors immediately if resistance between live and earth exceeds 0.5 ohms–this suggests internal degradation. Store spare connectors in dry conditions; humidity accelerates oxidation on brass terminals.
Common Errors and Troubleshooting
Crossed conductors (e.g., neutral and live) will trip RCDs but may damage sensitive equipment if undetected. Verify wiring with a polarity tester before final closure. Fibrous cable strands caught between the terminal and screw head create intermittent faults–twist strands tightly and fold back excess. Over-tightening cracks ceramic insulators; under-tightening causes thermal stress. If the connector feels warm during operation, disconnect immediately–normal operating temperature should not exceed 60°C under full load.
Essential Equipment for Connecting a High-Current 3-Terminal Connector
Begin with a heavy-duty cable rated for 400V and 32A capacity–look for H07RN-F or similar flexible rubber-insulated cables with a cross-section of 6 mm² for safe current handling. Verify the conductor count matches the terminal configuration: two live wires (brown/black), one neutral (blue), and an earth (green/yellow striped). Multicore cables simplify installation, but split cores allow customization if terminal spacing requires adjustment.
Core Installation Instruments
- Wire strippers: Select a model with adjustable jaw sizes to cleanly remove 1.5–2 mm of insulation without nicking copper strands–precision avoids short circuits.
- Crimping tool: Use a ratcheted crimper for 6 mm² ferrules to ensure gas-tight connections; cheap pliers cause oxidation and loose fits.
- Insulated screwdrivers: Flat-head (4 mm shaft) with insulated shafts to IEC 60900 standards–prevents accidental shorts during terminal tightening.
- Cable glands: Choose PG16 or M20 glands with IP66+ ingress protection to seal entry points against moisture and dust in industrial environments.
Thermal imaging cameras (60°C–120°C range) help detect hotspots post-installation–ideal for validating connections under load. For high-vibration applications, apply thread-locking adhesive to terminal screws but avoid over-tightening (torque: 1.2–1.8 Nm). Keep a multimeter nearby to confirm absence of continuity between live and earth before powering.
Heat-shrink tubing (polyolefin, 10 mm diameter) provides strain relief for spliced cables–apply with a heat gun at 120°C until tubing conforms tightly. Silicone grease prevents corrosion on terminals exposed to outdoor conditions, while nylon cable ties (150 mm length) organize internal wiring neatly and reduce electromagnetic interference in sensitive circuits.
- Sort tools by task sequence: stripping → terminating → sealing → testing.
- Prioritize IEC/EN-compliant components–CE-marked connectors guarantee 1,000+ mating cycles.
- Store unused cables coiled with 150 mm minimum bend radius to prevent strand breakage.
Step-by-Step Guide to Connecting Conductors to a 32A 3-Terminal Connector
Shut off the power supply at the circuit breaker before handling any live components. Use a voltage tester to confirm the absence of current in the cable–faulty assumptions here risk severe electrical shock. Strip 15mm of insulation from each conductor core, ensuring no exposed copper extends beyond the terminal clamp. Over-stripping weakens grip strength; under-stripping prevents proper contact.
Identify the terminal assignments by color and position: the upper slot (L) accepts the brown live wire, the lower-left slot (N) takes the blue neutral, and the lower-right slot (⏚) connects to the green-and-yellow earth. Tighten each screw with a torque of 2.5Nm using an insulated screwdriver–loose connections create resistance, leading to heat buildup. Verify grip by tugging each core firmly; if it slips, re-strip and re-secure.
| Terminal | Color Code | Conductor Gauge (mm²) | Tightening Torque |
|---|---|---|---|
| L (Line) | Brown | 4.0 | 2.5Nm |
| N (Neutral) | Blue | 4.0 | 2.5Nm |
| ⏚ (Ground) | Green/Yellow | 4.0 | 2.5Nm |
Fold the excess conductor into the housing to prevent interference with the cover. Align the cover’s locking tabs with the body’s grooves and press until it snaps shut. Misalignment here can expose live parts. Re-energize the circuit and measure voltage between L-N (230V), L-⏚ (230V), and N-⏚ (0V) with a multimeter. Deviations indicate reversed polarity or broken ground–disconnect and inspect immediately.
Troubleshooting Errors
If the device fails to power on, check for continuity in each conductor with a multimeter. A reading above 0.5 ohms suggests corrosion or a loose joint–clean terminals with emery cloth or replace the connector. If the circuit trips instantly, the ground and live conductors are likely swapped; correct the sequence and test again. Persistent issues may stem from damaged cable insulation–replace the entire lead rather than splicing.

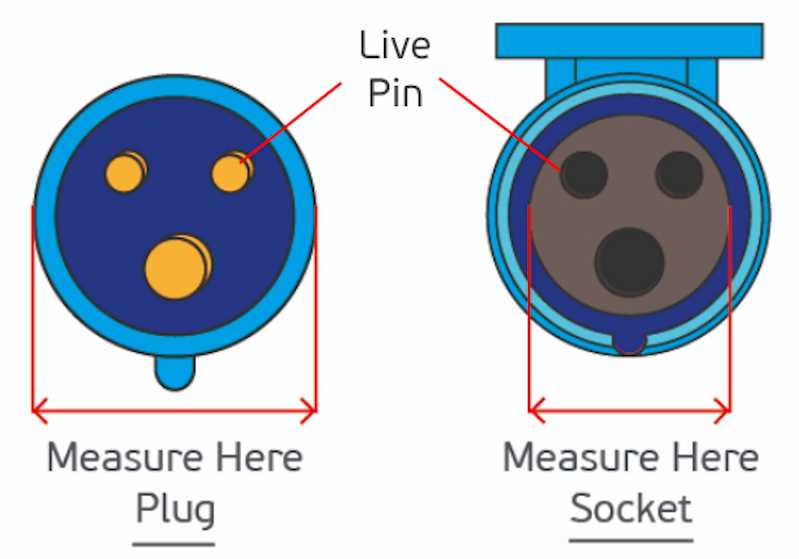

Color Coding and Terminal Positions for 32-A High-Current Connectors
Always verify the live conductor connects to the brown wire, positioned at the top right terminal of the connector when viewed from the rear. This terminal is typically marked “L” and must withstand the full load without overheating. Failure to secure this connection properly risks arcing.
The blue neutral wire attaches to the bottom left terminal, designated “N”. This terminal’s contact surface should be clean and free of oxidation–use a wire brush if necessary. Cross-threading this screw will compromise conductivity and may cause intermittent faults under load.
Earth Conductor Requirements
The green/yellow striped earth wire must terminate at the central, longest terminal, labeled “⏚” or “E”. This connection demands the highest integrity; torque the screw to 1.2 Nm to prevent loosening from vibration. A loose earth connection renders protective systems ineffective, violating safety standards.
Check the cable entry clamp orientation–it must grip the outer sheath, not the individual cores. If the sheath is damaged, trim back 10 mm of insulation to prevent stress on the terminals. Never bundle excess wire inside the housing; this restricts airflow and accelerates heat buildup.
For industrial applications, confirm compliance with IEC 60309 standards. The brown conductor carries phase one only–using it for neutral or earth will trip protective devices. If replacing a cable, match the core diameter to the terminal’s capacity: 4 mm² minimum for 32-A circuits, with 6 mm² recommended for sustained loads.
Testing Protocol
After assembly, measure continuity between the earth terminal and metal casing–resistance should read below 0.1 Ω. Apply a 500 V insulation test between each conductor and earth; readings above 1 MΩ confirm no shorts. If values deviate, inspect for nicked cores or misaligned terminal screws.
Label the rear of the housing with installation date and torque values. This prevents future technicians from guessing specifications, reducing maintenance errors. Store spare connectors in a dry environment–even slight corrosion on terminals can halve current capacity over time.
