Use a 10-gauge copper conductor for the main feed when connecting a 30-current branch distribution unit to a primary service box. The wire must support the full load without overheating–check NEC Table 310.16 for verification. Install a 30-current double-pole breaker in the main box rated for 75°C to match the conductor’s capacity. Label each wire before disconnecting power to avoid cross-wiring mistakes.
Mount the secondary enclosure within 6 feet of the primary service box to comply with NEC 225.30. Secure the box to a structural surface using #10 screws–drywall alone won’t hold the weight. Feed the conductors through a ¾-inch conduit, leaving 6 extra inches inside each box for termination. Remove no more than ½ inch of insulation for connections; longer exposed conductors increase short-circuit risk.
Wire the branch breakers in the following order: neutral bus to the left, ground bus to the right, then load wires. Torque all terminal screws to 12 inch-pounds–loose connections cause arcing. Test continuity with a multimeter before energizing: 0 ohms between hot and neutral, infinite resistance to ground. If resistance exceeds 1 ohm, recheck splices for gaps or oxidation.
Seal unused knockout holes with knockout plugs to keep out debris and moisture. Apply a weatherproof cover if the box is outdoors–NEMA 3R rated. Before final inspection, verify the breaker trip curve matches the wire gauge; a mismatch can delay overload protection. Document the circuit mapping on the door for future modifications.
Electrical Branch Circuit Setup for 30 Rating: Key Schematic Details
Install a double-pole breaker rated 30 in the main service box, sized to match the 10 AWG copper conductors used throughout. Connect the feeder lines directly to the breaker terminals–no splices near the main enclosure–to maintain consistent current flow and reduce voltage drop. Ensure the breaker’s trip rating matches the conductor size: 30 capacity requires 10 AWG copper or 8 AWG aluminum.
Run feeder cables from the main box to the auxiliary unit in rigid metal conduit or flexible armored cable, depending on local code requirements. For indoor installations, use THHN/THWN-2 wires; for outdoor or wet locations, opt for XHHW-2 or USE-2 insulated conductors. Pull three wires: two live conductors (black, red) and a neutral (white), plus a grounding conductor (green or bare) if the conduit doesn’t serve as ground.
Feeder Cable Routing Specifications
- Conduit Fill: ½” EMT accommodates 10 AWG copper wires; upsize to ¾” for longer runs to comply with 40% fill limits.
- Voltage Drop: Keep voltage drop below 3% for the downstream circuit. For a 50-foot run, 10 AWG copper at 30 load results in ~1.8% drop–acceptable but verify using the formula VD = (2 × K × I × L) / CM.
- Grounding: Install an 8 AWG bonding jumper from the auxiliary unit’s grounding bus to the main enclosure’s ground bar if metallic conduit is absent.
At the auxiliary unit, terminate the live conductors on a double-pole disconnect or breaker matching the feeder’s 30 rating. Neutral must connect to a dedicated busbar, isolated from the grounding bus. Grounding conductors from downstream circuits splice here, bonded to the enclosure via a 10-32 machine screw. Avoid common neutral-ground bonds–this creates parallel paths and violates NEC 250.142.
For downstream circuits, use 12 AWG copper for 20 loads or 14 AWG for 15 loads, each protected by a single-pole breaker sized accordingly. Distribute loads evenly across the live legs to balance the supply; avoid exceeding 24 units on a single leg. Include a 15 or 20 branch circuit breaker for lighting, separated from motor-driven equipment to prevent voltage sag.
Critical Code Compliance Checks
- Label all feeder and branch circuit breakers clearly–describe loads (e.g., “Workshop Tools” vs. “Lighting”).
- Verify torque settings on all terminations using a calibrated screwdriver (NEC 110.14). Loose connections create hot spots and risks tripping.
- Test continuity of the grounding path–resistance between the auxiliary unit’s ground bus and the main service ground must be ≤0.1Ω.
- Seal conduit openings with duct seal compound to block moisture and pests when routing through exterior walls.
Before energizing, perform a final inspection with a non-contact voltage tester. Check each terminal for stray strands or insulation damage. Use a megohmmeter to test insulation resistance (>1 MΩ) between live conductors and ground. If values are low, re-examine splices and terminals for moisture or contamination.
Selecting the Proper Conductor Size for a 30-Circuit Branch Installation
Use 10 AWG copper conductors for a 30-circuit branch installation when the run length does not exceed 50 feet. This gauge handles 30 thermal units at 75°C under NEC Table 310.16, providing a 25% safety margin above the continuous load threshold. For aluminum, opt for 8 AWG, which maintains the same current capacity while weighing less but requires anti-oxidant compound at terminations.
For runs up to 100 feet, increase copper to 8 AWG to compensate for voltage drop, which should not exceed 3%. Calculate drop using VD = (2 × K × I × L) / CM, where K is 12.9 for copper and 21.2 for aluminum, I is 24 thermal units (derated from 30), and CM is circular mils from NEC Chapter 9 Table 8. An 8 AWG copper conductor yields approximately 2.1% drop over 100 feet, remaining within code compliance.
When burying conductors, select direct burial rated products like USE-2 or XHHW-2 insulation. These handle 90°C wet locations per NEC Table 310.104(A). For conduit installations, THHN/THWN-2 suffices, but ensure conduit fill does not exceed 40% for three conductors (NEC Chapter 9 Table 1). Use 1/2-inch Schedule 40 PVC for 10 AWG copper or 3/4-inch for 8 AWG to meet fill requirements.
Environmental and Derating Factors
Adjust conductor size if ambient temperatures exceed 30°C. NEC Table 310.15(B)(1) mandates derating: 8 AWG copper drops to 28 thermal units at 40°C, requiring upsizing to 6 AWG. For installations with more than three current-carrying conductors in conduit, derate per NEC Table 310.15(C)(1). Four to six conductors need a 80% multiplier, reducing 10 AWG copper to 24 thermal units–use 8 AWG instead.
Grounding conductors follow separate rules. For a 30-circuit branch, use 10 AWG copper or 8 AWG aluminum for the equipment grounding path (NEC Table 250.122). Neutrals in balanced 120/240V circuits may be downsized to 12 AWG for runs under 20 feet but retain full size if shared with ungrounded legs. Always verify local amendments, as some jurisdictions mandate larger grounds for parallel paths.
Terminations dictate minimum conductor size. Devices rated 30 thermal units at 75°C, including breakers and lugs, permit 10 AWG copper. If terminations are rated only 60°C, upsize to 8 AWG. Aluminum requires one size larger than copper for the same current, but never use smaller than 8 AWG at terminations due to cold flow risks. Apply listed connectors like tin-plated lugs and torque to manufacturer specifications.
Alternative Materials and Special Circumstances
In high-corrosion environments, consider tinned copper or ETP (Electrolytic Tough Pitch) conductors. While not explicitly required by NEC, these resist oxidation better than bare copper. For underground feeds subject to mechanical damage, use rigid metal conduit or intermediate metal conduit rather than PVC. If using flexible metal conduit, ensure conductors are rated for the wet location.
For long runs exceeding 150 feet, perform a detailed voltage drop calculation. Use 6 AWG copper for 2.3% drop at 30 thermal units or 4 AWG for 1.5% drop. Parallel conductors in separate conduits may be used for very long feeds but require identical length, material, and cross-sectional area (NEC 310.10(H)). Label each conduit with circuit identification and maintain access points for future inspection.
Step-by-Step Guide to Connecting a 30-Rated Branch Circuit Breaker to Primary Power
Shut off the primary breaker at the main distribution box before handling any high-power connections. Verify zero voltage using a non-contact tester on both incoming and outgoing terminals. Route 8 AWG copper conductors–rated for 75°C and minimum 4800W continuous load–from the main box to the secondary enclosure. Secure feeder wires in rigid metal conduit (EMT or RMC) if exceeding 6 feet of exposed length indoors; flexible conduit (LFNC) is only permissible for short, protected runs. Torque all terminal connections to manufacturer specifications (typically 20 in-lbs for 8 AWG copper) to prevent overheating.
| Conductor Size | Maximum Continuous Load | Minimum Conduit Size (ID) | Grounding Conductor |
|---|---|---|---|
| 8 AWG Cu | 4800W | ½” EMT | 10 AWG Cu |
| 6 AWG Cu | 6000W | ¾” EMT | 8 AWG Cu |

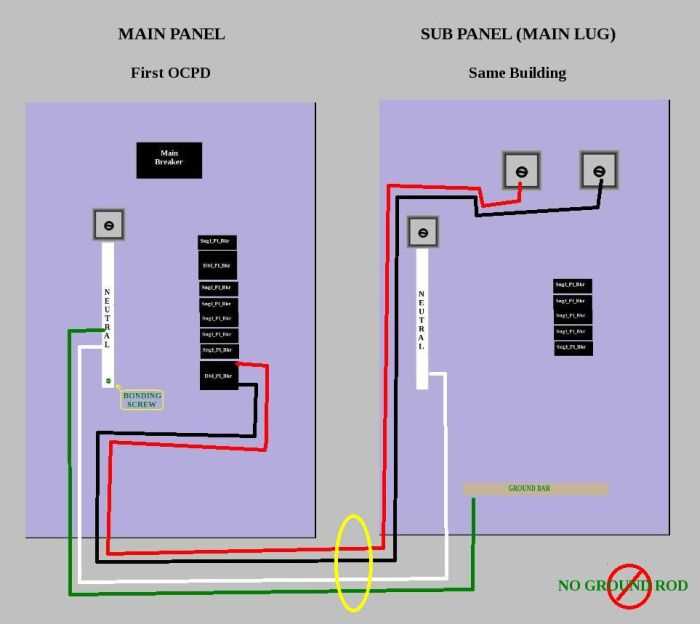

Install a 30-rated two-pole breaker in the primary distribution box, matching the same brand and series as existing breakers to ensure compatibility. Connect the red and black feeder wires to the breaker terminals, ensuring they originate from opposite bus phases (L1/L2). Land the neutral conductor on the isolated neutral busbar in the secondary enclosure–never bond it to the ground bus at this location. Terminate the grounding conductor to the dedicated ground busbar in the secondary enclosure, which must remain separate from the neutral bus. Re-energize the primary breaker only after verifying all connections with a multimeter–measure 240V across feeder terminals and 0V between neutral and ground in the secondary box.
