Begin by identifying the power source, control switch, and indicator unit terminals. Power lines–positive and negative–must connect to corresponding terminals on the signal unit. The third conductor serves as the trigger input and requires direct linkage to a switch or automated relay. Use 18-22 AWG cables rated for 600V insulation to prevent voltage leaks. For DC setups, attach the positive lead to the signal’s marked input; for AC, ensure polarity compatibility with the attached load.
Critical steps for stable operation:
Solder or crimp junctions at all terminal points–oxidation disrupts continuity. Heat-shrink tubing applied post-termination prevents short circuits. If integrating into 12V or 24V systems, verify the signal device’s voltage tolerance to avoid burnout. For pulsed outputs, a solid-state relay or transistor-rated 2A+ should mediate control input to protect low-current switches from arcing.
Fault diagnosis:
No illumination upon activation? Confirm ground integrity first–intermittent grounds cause erratic flashing. Confirm trigger voltage matches switch output (e.g., 3-32V DC for most units). A multimeter detecting open circuits indicates a broken lead or faulty crimp. Over-bright or dim outputs suggest incorrect voltage or a failing component–replace immediately to prevent thermal damage.
Mounting considerations dictate cable routing: avoid sharp bends (minimum 1.5x diameter loop radius) or proximity to high-frequency noise sources (signal interference corrupts control pulses). Outdoor setups require IP65-rated enclosures; corrosion-proof connectors (PTFE-coated) extend service life in humid or saline environments. Test continuity post-assembly: disengage power, attach the multimeter probes to signal terminals, and verify sub-0.5Ω resistance.
Connecting a Three-Lead Signal Device: Step-by-Step Guide

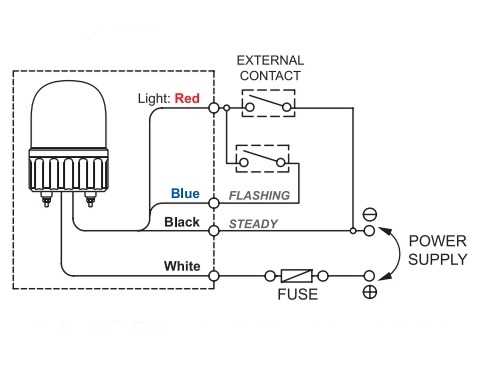

Start by identifying the terminal functions on your indicator: the positive lead (often red), the ground lead (black or bare), and the trigger lead (typically blue or white). The trigger connection activates the unit when linked to a switched power source, while the positive and ground handle continuous supply. Ensure compatibility with your system’s voltage–most industrial alert systems operate at 12V or 24V DC; using incorrect voltage risks damaging the component or poor performance.
Verify the power supply’s capacity before attaching leads. A standard strobe or rotating lamp draws 0.5A to 2A depending on brightness and flash rate. If the circuit includes other loads (e.g., alarms, sensors), sum the current requirements to prevent overloading. Fuses should match the calculated total–common values are 5A for low-draw setups and 10A for high-intensity units. Install the fuse as close to the power source as possible to protect the entire pathway.
Use stranded copper conductors with a cross-section of at least 0.75 mm² for low-current setups; increase to 1.5 mm² for distances over 5 meters to minimize voltage drop. Tinned copper resists corrosion, making it ideal for outdoor or marine installations. Secure connections with crimp terminals or solder, then insulate with heat-shrink tubing to prevent shorts. Avoid twist-and-tape methods, which degrade over time and invite moisture ingress.
Grounding and Trigger Circuit Configuration
Attach the ground terminal directly to the chassis or a dedicated busbar–never daisy-chain it through other devices. Poor grounding causes erratic operation, flickering, or failure to activate. For mobile setups (e.g., vehicles), use the battery’s negative terminal or a clean chassis point free of paint or rust. Remove oxidation with a wire brush if corrosion is present to ensure a solid connection.
The trigger lead requires connection to a switched source, typically an ignition-fed circuit or a relay-controlled output. For manual activation, wire it to a momentary switch rated for at least 3A. Automatic triggering can tie into door switches, pressure sensors, or PLC outputs–ensure the voltage matches (e.g., 12V trigger on a 12V system). Use a diode (1N4007) across inductive loads (like relays) to suppress voltage spikes that could damage the indicator.
Test the setup before finalizing connections. Apply power and verify the device activates only when intended–no flickering at idle, consistent brightness, and immediate response to triggers. If faults occur, isolate sections: disconnect the trigger lead first (should default to off), then check power continuity with a multimeter. Measure voltage drop across each lead; values above 0.2V suggest resistance issues, often from loose terminals or undersized conductors.
For high-noise environments (e.g., factories with heavy machinery), add a 0.1 µF capacitor between positive and ground near the device to filter electrical interference. Locate the indicator within 50 cm of the intended viewer for visibility–obstructions like fog or direct sunlight reduce effectiveness. In hazardous areas, use explosion-proof models with glass lenses and sealed housings; standard units may not comply with safety regulations.
Document the setup: note voltage ratings, conductor sizes, fuse values, and connection points. Label the leads at both the device and power source ends to simplify future troubleshooting. Periodically inspect terminals for corrosion or heat damage, especially in outdoor applications where thermal cycling causes expansion/contraction. Replace the indicator if lenses crack or seals fail, as moisture ingress leads to internal shorts or LED failure.
Key Elements of a Tri-Line Signal Device Setup
Start with a regulated power source delivering 12–24V DC to ensure stable operation–fluctuations beyond ±10% risk damaging the lamp or control module. Verify polarity before connecting; reversing the leads will render the unit inoperable without fuse protection.
The control module, typically a relay or solid-state switch, dictates flash patterns. Select a model compatible with your voltage range and desired activation method (momentary switch, timer, or sensor). Incorporate a 2A fuse inline with the positive lead to prevent overloads.
Choose a lamp housing rated for outdoor use if environmental exposure is expected. Polycarbonate lenses with UV resistance last 2–3x longer than acrylic alternatives. For hazardous locations, look for ATEX or UL Class I Division 2 certifications.
Ground the third conductor directly to the chassis or mounting surface using a minimum 14 AWG braided strap. Improper grounding can cause erratic flashing or radio frequency interference. Avoid daisy-chaining grounds–each unit should have its own dedicated path to earth.
- Voltage drop considerations:
- 5% max drop over 50 ft using 18 AWG copper.
- 3% max drop for sensitive applications (e.g., marine navigation).
- Color-coded conductors prevent misconnection:
- Red: positive input.
- Black: return path.
- White/green: chassis reference.
- Terminal block types:
- Screw-down: best for permanent setups.
- Spring-loaded: ideal for quick field adjustments.
Test the flash rate at full voltage before final installation. Most industrial strobes cycle 60–90 times per minute; adjust the RC timing circuit if synchronization with other devices is required. Document the exact flash interval for future troubleshooting.
For pulsed DC applications, use a Schottky diode across the lamp terminals to clamp voltage spikes. Standard silicon diodes introduce a 0.7V drop, reducing brightness by ~12% at 12V. Calculate the reverse recovery time based on your strobe’s duty cycle–values below 50ns prevent missed flashes.
Seal all connections with adhesive-lined heat shrink tubing or dielectric grease if operating in high-humidity environments. Avoid electrical tape, which deteriorates within 12–18 months when exposed to UV light. Label each conductor at both ends with heat-resistant sleeves; Sharpie markings fade in under 6 months outdoors.
Integrate a manual override switch in parallel with automated controls. This allows immediate activation during maintenance or emergencies. Position it within 3 feet of the primary access point–industrial safety standards (OSHA 1910.305) mandate operator accessibility without tools.
Step-by-Step Guide to Connecting Power Supply in a 3-Lead Signal Device

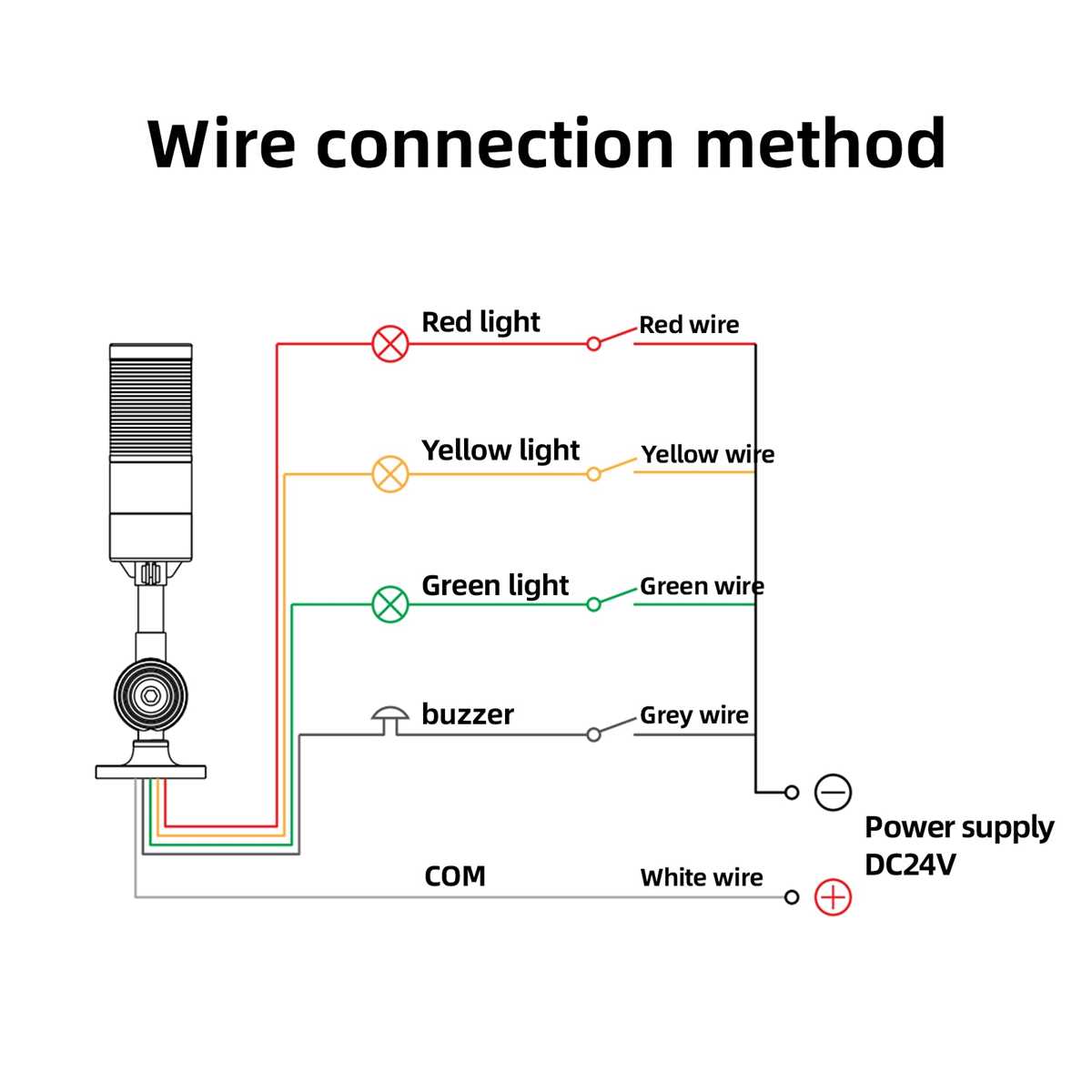

Identify the positive, negative, and control terminals on the signaling unit before making connections. Most industrial signal towers label these as L (+), N (-), and C (trigger). Confirm polarity using a multimeter if labels are unclear–incorrect polarity risks damaging the device or causing erratic operation. For DC-powered units, ensure the voltage matches the manufacturer’s rating (typically 12V, 24V, or 48V); AC models usually accept 110V or 230V.
Prepare the power source by verifying its output stability. Use a regulated supply–unregulated adapters may introduce voltage spikes, reducing the device’s lifespan. If integrating with a PLC or relay system, connect the C terminal to the switching output (e.g., a transistor or MOSFET). For standalone operation, link the C terminal to a manual switch or timer module to enable on-demand activation.
| Terminal | Connection Type | Typical Source | Voltage Range |
|---|---|---|---|
| L (+) | Power input | PSU, battery, or bus bar | 12–48V DC / 110–230V AC |
| N (-) | Ground/common | PSU return, chassis ground | 0V reference |
| C | Trigger input | PLC output, relay, toggle switch | 5–24V (logic level) |
Splice leads using tinned copper conductors sized for current draw–undersized cables overheat. For 12V units drawing 500mA, use 22 AWG; 24V/1A requires 18 AWG. Secure joints with solder or crimp connectors, then insulate with heat-shrink tubing. Twist exposed strands to prevent fraying, which can cause short circuits. Avoid daisy-chaining multiple devices unless each has dedicated conductors back to the power source–shared returns create voltage drops.
Mount the device on a metal bracket or DIN rail, ensuring the enclosure meets IP65+ ratings for outdoor use. Route conductors through conduit or armored cable if exposed to mechanical stress–vibrations can loosen connections over time. Test the setup with a load (e.g., an LED module) before full installation to confirm illumination intensity and trigger responsiveness. For flashing modes, refer to the datasheet: some units use a single C input for both steady and blinking states, while others require a separate pulse generator.
Integrate surge protection if the setup operates near inductive loads (motors, solenoids). Install a flyback diode for DC circuits or a varistor for AC to clamp transient voltages. For remote control, pair the C terminal with a wireless module (e.g., Zigbee or LoRa) and configure the logic low/high thresholds–most industrial controllers output 24V for activation, but some use 5V TTL. Always cross-reference the signaling unit’s specifications: mismatched trigger voltages can either fail to engage the device or burn out internal circuitry.
Troubleshooting Common Issues
If the device fails to energize, check for reversed polarity, open circuits (test with a continuity meter), or voltage drops exceeding 0.5V between the source and device. Flickering often indicates insufficient current–verify the power supply’s amperage rating exceeds the unit’s draw by at least 20%. For intermittent operation, inspect terminals for oxidation (clean with contact cleaner) and tighten screws to 0.8 Nm torque. Replace conductors if insulation shows cracking, as this compromises dielectric strength.
