Before starting any electrical work, shut off power at the circuit breaker and verify absence of voltage using a non-contact tester. For a rotary three-speed controller installed with an overhead light fixture, use 14-gauge or 12-gauge copper wire rated for at least 20 amps. Common configurations require a single-pole or double-throw setup; confirm the regulator’s label shows compatibility with inductive loads up to 1.5 FLA.
Identify the incoming hot wire (black in most North American installations) and connect it to the regulator’s common terminal. Split the output into three paths: attach the high-speed wire (red) to the first terminal, the medium-speed wire (blue) to the second, and the low-speed wire (yellow) to the third. Cap all unused conductor ends with appropriately sized wire nuts (minimum 22-gauge rating).
Route the neutral conductor (white) directly to the light fixture, bypassing the regulator. For ground integrity, bond the bare copper or green wire to the device’s grounding screw and extend it to the fixture’s ground terminal. Secure all connections with terminal screws torqued to 10–12 inch-pounds; overtightening risks thread damage.
Test each speed setting sequentially after restoring power. If the unit hums excessively or fails to respond, confirm continuity across the regulator’s contacts with a multimeter–readings below 0.5 ohms indicate a defective switch requiring replacement. Ensure ambient temperature remains below 50°C to prevent premature thermal degradation of internal resistors.
For dual-zone setups, duplicate the wiring sequence on a second box using a tandem controller. Label every conductor at both ends for future servicing compliance with NEC Article 110.12(B). Avoid mixing 120V and 240V circuits–cross-wiring violates UL 508 listing and creates fire hazards.
Electrical Configuration for Dual-Control Ventilator Regulators
First, identify the common terminal on both control points–it’s typically marked darker or labeled *COM*. Connect the line (hot) wire from the power source directly to this terminal on the primary regulator. Use a 14-gauge conductor rated for 15 amps or a 12-gauge for 20-amp circuits to ensure compliance with NEC standards.
Attach the traveler wires–usually red and black–to the remaining terminals on each controller. These conductors must run uninterrupted between the two control units; splices or junctions at intermediate boxes degrade signal integrity and violate code. Secure connections with wire nuts, twisting clockwise until resistance is felt, then wrap with electrical tape to prevent oxidation.
For the load side, splice the ventilator’s motor feed wire to the common terminal on the secondary control unit. Ensure the second conductor from the motor is linked to the neutral bus in the junction box. Grounding is non-negotiable: bond all metal components–housing, control plates, and pull chains–to the circuit’s grounding conductor with a 10-gauge bare copper wire.
Test configuration before finalizing: energize the circuit, toggle both regulators, and verify the ventilator responds to commands from either location. If the device operates erratically, recheck traveler continuity with a multimeter, setting the dial to continuity mode. A reading above 0.5 ohms indicates faulty splicing or damaged conductors requiring replacement.
Label all wires with heat-shrink tubing printed with circuit function (*L1*, *T1*, *Neutral*). Color-code traveler pairs in red and black for consistency; avoid deviations that confuse future maintenance. Use a torque screwdriver (12–15 in-lbs) to tighten terminal screws to manufacturer specifications–loose connections generate heat and risk fire.
Isolate the circuit at the main panel before servicing. Follow OSHA 1910.333 for lockout/tagout procedures: apply a personal lock, verify absence of voltage with a non-contact tester, and retain the key. Never rely on a single regulator’s OFF position–current can still flow through traveler wires, creating a hidden hazard.
How to Determine Conductors in a Dual-Control Overhead Rotary Device Installation

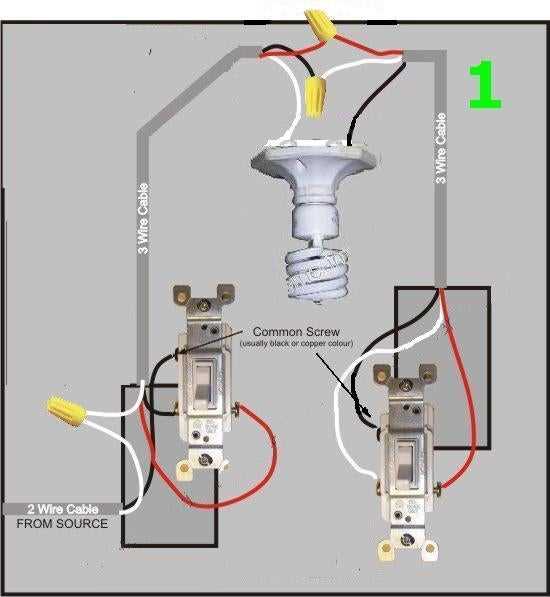

Begin by labeling each conductor with masking tape or a marker to avoid confusion. The common terminal (typically darker or brass-colored) carries the primary current from the power source–confirm its identity by checking for continuity with a multimeter while toggling the control. The two traveler terminals (often lighter in hue) alternate the circuit path; trace each to its corresponding wall unit to ensure proper pairing. Ground conductors should be bare or green-sheathed–verify they terminate to the metal chassis or grounding screw.
Use a non-contact voltage tester to identify the hot conductor at the fixture box first. The supply line will register on the device even when controls are off. If both travelers show voltage, one of the controls is closed–cycle through positions to isolate the active path. Remember: the neutral conductor (white or gray) remains constant across all configurations and should never connect to a traveler or common terminal in a standard setup. Cross-reference colors against local electrical codes, as some regions mandate specific hues for each function.
Test each configuration by temporarily connecting the common to one traveler, then cycling the controls. The rotary device should light up or spin only in one position if wired correctly. If both positions activate it, swap one traveler–this indicates reversed travelers. Double-check splices for secure, insulated connections to prevent intermittent failures or shorts.
Step-by-Step Connections for Standard and Auxiliary Terminals
Identify the power source cable entering the first control box. Strip 1/2 inch of insulation from the black (hot), white (neutral), and bare copper (ground) conductors. Verify voltage with a multimeter–expect 120V between black and white, 0V between white and ground.
Connect the black conductor from the power source to the dark-colored terminal screw on the primary control. Secure firmly with a screwdriver, ensuring no exposed wire extends beyond the screw head. Twist excess bare copper strands into a solid bundle for ground attachment.

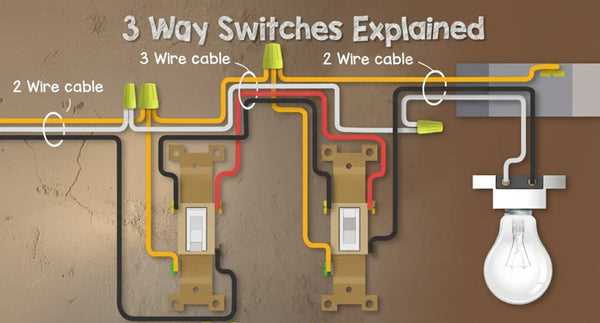

Locate the pair of lighter-colored screws on both controls–these are the auxiliary terminals. Attach a red or differently colored jumper cable between these screws on the first control. Route this cable through the conduit to the second unit, matching the same screws.
| Terminal Color | Assigned Conductor | Wire Gauge |
|---|---|---|
| Dark | Line (black) | 14 AWG |
| Light (pair) | Travelers (red/blue) | 14 AWG |
| Silver | Neutral (white) | 14 AWG |
Link the white neutral wires–power source, load, and both units–using a wire nut rated for at least three 14-gauge conductors. Tighten until secure, then wrap electrical tape around the joint twice for strain relief. For ground connections, bond all bare copper wires to the green grounding screw in each box.
At the second unit, connect the incoming auxiliary jumper to the matching lighter screws. Attach the remaining red or auxiliary wire to the same screws if a third control location is planned. Ensure no strands cross between terminals to prevent short circuits.
Before restoring power, cap any unused wires with a wire nut and tuck them into the box. Test functionality by toggling either control–both should independently operate the attached fixture. If misfires occur, recheck auxiliary terminal continuity with a multimeter, probing between the lighter screws on each unit.
Complete the installation by securing the faceplates with provided screws. Label each control box with its purpose (e.g., “Primary Power” or “Hallway Remote”) using adhesive tags. Document the circuit in a panel schedule for future reference, noting breaker assignment and conductor roles.
Resolving Incorrect Multi-Control Circuit Connections
Begin by isolating the power at the breaker panel–confirm with a non-contact voltage tester before handling any terminals. Miswired configurations often reveal themselves through inconsistent behavior: one control may operate lights while the other fails entirely, or both toggles work only partially. Verify each conductor’s role: the common terminal (typically darker) must connect to the live feed or the load, while the traveler pairs (usually brass) alternate signal between controls.
Check for swapped travelers–a frequent error in dual-toggle setups. If both controls exhibit the same response when flipped (e.g., illumination activates on “up” position at both ends), the travelers are likely crossed. Use a multimeter in continuity mode: probe each brass terminal against the panel’s neutral while cycling the toggles. Correct traveler pairs will show alternation (open/closed) between switches; swapped wires will mirror identical readings.
Examine the grounding path if flickering or intermittent failures occur. Loose or improperly terminated earth wires can disrupt signal flow, particularly in older installations without dedicated grounding. Secure all green or bare copper wires to the device’s grounding screw–never twist them with neutral conductors. If grounding is absent, retrofit a grounding conductor from the nearest bonded source or install a ground fault circuit interrupter for safety.
- Verify terminal labels: “COM” or “LINE” typically marks the common side; confusion here can reverse control logic.
- Inspect backstabs if present–they’re prone to poor contact; use screw terminals for reliability.
- Test load-side connections last: connect a known-working device (e.g., a plug-in lamp) to confirm power delivery before reattaching fixtures.
Incorrect polarity at the fixture can mimic wiring errors. If the illumination dims or buzzes when set to “on,” the neutral and live wires may be reversed. Probe the fixture’s socket while powered: light sockets should read 120V between the outer shell (neutral) and the center tab (live). Reverse the connections if readings deviate–this also resolves overheating hazards from improper current paths.
For three-element circuits with independent lighting and rotation toggles, ensure each function’s conductors remain separate. Cross-pollinated wires between the speed regulator and light adjustment causes erratic speed control or failed illumination. Trace each wire’s path from the device box to the junction–use colored tape to mark segments if the original wiring lacks differentiation. Reconnect per manufacturer’s color codes: speed control wires are often red/black, light wires blue/white, and neutral white.
- Label all conductors before disassembly to avoid reassembly guesswork.
- Replace any cracked or brittle insulation–exposed wires invite shorts.
- Check torque specs: overtightened screws crush conductors; undertightened ones loosen over time.
If troubleshooting fails, bypass intermediate toggles temporarily. Connect the live feed directly to the load–if functionality restores, the error lies in one of the control elements. Reintroduce toggles one by one to isolate the defective pair. For persistent issues, consult the manufacturer’s schematic; some devices integrate relays requiring specific phasing. In modern smart variants, miswiring may trigger overload protection protocols–reset or reconfigure these via companion apps after correcting the physical connections.
