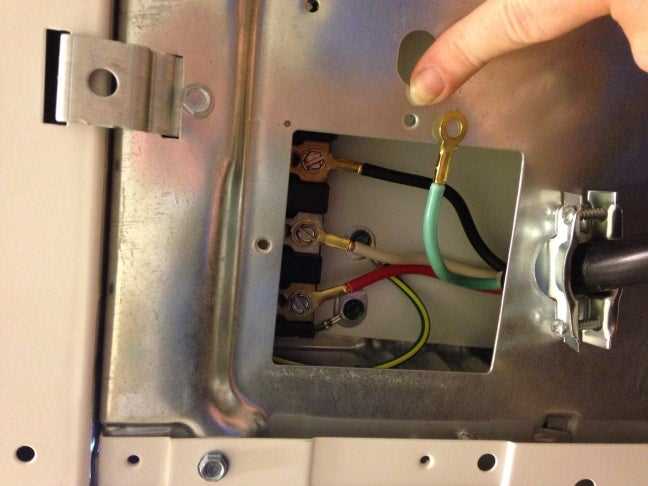

Begin by identifying the terminal block inside the machine housing. Most standard residential units use a three-terminal configuration: one neutral (center) and two hot legs. Verify the wire colors–typically white (neutral), black (hot), and red (hot)–though older installations may deviate. Always confirm with a multimeter before proceeding to avoid incorrect pairing, which risks equipment damage or fire.
Strip the cable sheath to expose ¾ inch of conductor. Securely fasten the neutral wire to the center screw–this is non-negotiable. The remaining two wires attach to the outer terminals; polarity between them is irrelevant for 240V circuits, but consistency ensures clarity for future maintenance. Use #10 AWG copper wire for 30-amp circuits or #8 AWG for 40-amp setups to meet NEC requirements.
After tightening all connections, wrap each terminal with electrical tape to prevent accidental contact. Close the access panel and test operation with a circuit tester. If the unit fails to power on, recheck the connections–loose screws are the leading cause of malfunction. Never bypass the grounding conductor in older systems; retrofit to a four-wire setup if possible to comply with modern safety standards.
For installations with aluminum wiring, apply antioxidant compound to terminals and use aluminum-compatible connectors. Ensure the outlet matches the machine’s plug configuration–NEMA 10-30 for three-wire versus NEMA 14-30 for four-wire. Mismatches void manufacturer warranties and violate electrical codes.
How to Connect a Three-Terminal Laundry Appliance Cord
Attach the neutral center terminal to the white wire in the junction box using a UL-listed wire nut, ensuring no bare strands remain exposed. Secure the ground strap–typically a bare or green wire from the appliance–to the neutral terminal block; some older installations merge these paths for safety. Verify the connection with a multimeter: measure between the outer terminals at 240V and between either outer terminal and center at 120V.
Strip 3/8 inch of insulation from each conductor before inserting into the plug terminals. The left flat pin connects to the black hot wire, the right to the red, and the rounded base to the white or ground wire–polarity matters for motor rotation and timer function. Tighten terminal screws to 15 inch-pounds torque; loose connections overheat and trip breakers after repeated cycles.
Replace the access panel only after confirming no tools or debris remain inside the terminal cavity. Label the circuit breaker “Laundry 30A” with a permanent marker; older homes often lack proper documentation, complicating future diagnostics.
How to Locate and Recognize Your Appliance’s Three-Pin Cable and Connection Panel
Start by unplugging the unit and accessing the rear panel–most models have a removable cover secured with two to four screws near the power inlet. The three-pin cable connects to a brass or steel terminal block behind this panel; look for three distinct slots or screws labeled L (live), N (neutral), and G (ground). The L slot typically sits on the left when facing the block, while N occupies the center, and G–often distinguished by a green screw or grounding symbol–is on the right.
Check the cable’s insulation: the L wire usually has smooth black or red sheathing, N features smooth white or gray, and G is either bare copper or wrapped in green. If the cord appears frayed or the terminal block shows corrosion, replace both immediately to prevent shorts. Measure wire gauge–10 AWG is standard for 30-amp circuits–thinner wires risk overheating. Secure each conductor tightly under its terminal, ensuring no stray strands touch adjacent screws.
Verify compatibility by matching voltage: North American units require 240V for heating elements and 120V for controls, while some older European configurations use 220V exclusively. If the cord lacks a grounding strap linking the neutral screw to the chassis, confirm the outlet provides a true ground–adapters or missing grounds create shock hazards. Never assume markings are correct; use a multimeter set to continuity to test each slot’s function before handling exposed conductors.
Safe Installation of a 3-Terminal Appliance Connector
Shut off the circuit breaker supplying the outlet before handling any cables. Verify absence of voltage using a non-contact tester–hold the probe 1 cm from each conductor for 3 seconds to confirm zero reading. Strip insulation from the ends of the three wires: leave ¾ inch bare on the two outer (hot and neutral) leads and ½ inch on the central (ground) conductor. Insert each wire into the corresponding terminal slot–brass screws secure the live wires (black to X, red/white to Y), while the green screw fastens the bare copper ground (Z). Tighten screws to 12 in-lbs torque; over-tightening risks snapping strands.
Critical Connection Checks
| Wire Color | Terminal | Max Resistance (Ω) |
|---|---|---|
| Black | X | 0.1 |
| Red/White | Y | 0.1 |
| Bare Copper | Z | 0.5 |
After securing connections, wrap a layer of electrical tape clockwise around the plug body, covering all terminal screws. Snap the cover shut, ensuring the strain relief clip grips the cable jacket ¼ inch from the plug base. Energize the circuit, then measure voltage between each pair: X-Y should read 240V, X-Z and Y-Z 120V. If readings deviate, immediately disconnect and re-inspect terminals for loose strands or reversed polarity.
Common Mistakes When Connecting a 3-Wire Appliance Receptacle
Swapping the ground and neutral terminals is the most frequent error, causing immediate safety risks. The neutral wire (typically white) must connect to the center post, while the bare or green grounding conductor should never carry current under normal operation. Reversing these can energize metal chassis during use, creating a shock hazard even if the machine appears operational. Measure continuity between the neutral screw and grounding strap with a multimeter–resistance should exceed 1 megohm when properly separated.
Using undersized conductors or loose terminal connections generates heat and degrades performance. 10 AWG copper is the minimum for 30-amp circuits; anything smaller risks overheating. Ensure terminal screws are torqued to 12-15 inch-pounds–loose connections increase resistance, potentially melting insulation over time. Verify each connection with a infrared thermometer after 15 minutes of operation; temperatures above 90°F indicate problems requiring rework.
Color Coding and Conductor Sizing for 3-Terminal Appliance Circuits
Use these color assignments for 3-terminal appliance connections: the neutral terminal must attach to a white or gray conductor, while the two hot terminals require an ungrounded conductor marked with either black or red insulation. Local codes may permit alternative colors if the entire length of the wire is first re-striped with approved colored tape at both ends, but never rely on plain copper or green for current-carrying paths.
- 10 AWG minimum for 30 A circuits carrying continuous loads (see NEC Table 250.122)
- 125 % of the appliance nameplate rating determines the required ampacity
- Stranded conductors preferred to reduce voltage drop over runs exceeding 6 ft
- Aluminum conductors require one size larger gauge than copper for equivalent current capacity
Verify each terminal block is listed for the maximum wire size and torque specifications; typical residential lugs call for 8–10 AWG at 15–20 lb-in. Always crimp spade connectors on stranded ends before insertion to prevent stray strands from contacting adjacent terminals. Label every conductor at both ends with permanent markers matching the schematic legend before energizing the circuit.
