Start by identifying the three distinct states: off, accessory, and start. Each state demands precise connections to prevent malfunctions. The first terminal (commonly marked 30) serves as the primary power input, typically linked directly to the battery’s positive terminal via a fuse rated between 10–20 amperes. Avoid thinner gauge wires–16 AWG or thicker ensures reliable power delivery without voltage drops.
For the accessory stage, route a wire from terminal 15 to components like radios or interior lights. This line must pass through an inline fuse (5–10 amperes) to protect devices from surges. Use crimp connectors with heat-shrink tubing to prevent corrosion, especially in high-moisture environments. The start terminal (50) requires a heavier-duty relay if driving a high-compression engine–standard solenoid connections may overheat under repeated cranking.
Color-coding is non-negotiable. Industry standards dictate red (power), yellow (accessory), and black/white stripe (start). Cross-verifying with a multimeter before finalizing connections eliminates guesswork. For older vehicles, inspect the back of the assembly for worn traces–replace the entire unit if resistance readings exceed 0.5 ohms between terminals. Ground faults at the activation module often mimic failed starters; always check the chassis ground first.
Relay integration improves longevity. Connect the control side to the start terminal (50), with the load side bridging the starter motor. Use 8 AWG cable for the high-current path; anything thinner risks melting under sustained draw. For push-button retrofits, add a latching circuit to prevent accidental engagement. Test each stage independently–accessory mode should power devices without engaging the starter, while the start sequence must disengage immediately after engine turnover.
Solder joints outlast crimps but require rosin-core flux to prevent oxidation. Avoid electrical tape–use adhesive-lined heat shrink for exposed connections. If retrofitting a modern security system, wire the immobilizer output in series with the start terminal to prevent hot-wiring. Always disconnect the battery before making changes; a single misrouted wire can fuse contacts irreversibly.
Electrical Lock Mechanism Connection Schematics

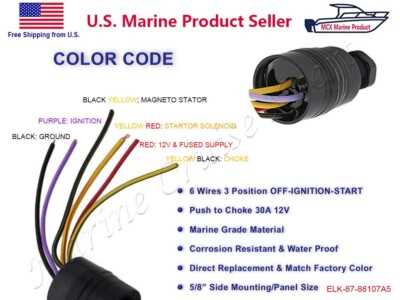

Connect the accessory terminal to a fused circuit rated at 10A with 18-gauge wire for standard radio or lighting loads. For rotary selector systems with momentary off configuration, use the following color-coded sequence:
- Red wire: Battery power (hot at all times)
- Black/Yellow stripe: Starter solenoid (intermittent 3-5 second engagement)
- Purple: Accessory feed (controlled by selector)
- Brown: Ignition feed (powers ECM/fuel pump)
Splice connections should use crimp connectors with adhesive-lined heat shrink tubing; solder joints require minimum 60/40 rosin-core for vibration resistance. Test continuity between terminals with a multimeter at 20Ω range before finalizing connections.
For push-to-start conversion kits, replace the traditional barrel with a three-stage relay module. The relay pinout must include:
- 85: Ground through momentary pushbutton
- 86: Fused power (15A) from battery
- 30: Heavy-gauge output to starter
- 87a: Accessory relay control (closes only during accessory stage)
Isolate the starter relay coil from the accessory circuit using a diode rated for 1A minimum current to prevent feedback voltage spikes that can damage microcontrollers in modern ECUs.
Verify all ground points with a load test: attach a 12V test lamp between each terminal and chassis ground. The accessory and ignition circuits should illuminate the lamp when engaged; failure indicates corroded battery cables or inadequate chassis grounding requiring 10-gauge minimum copper bonding straps.

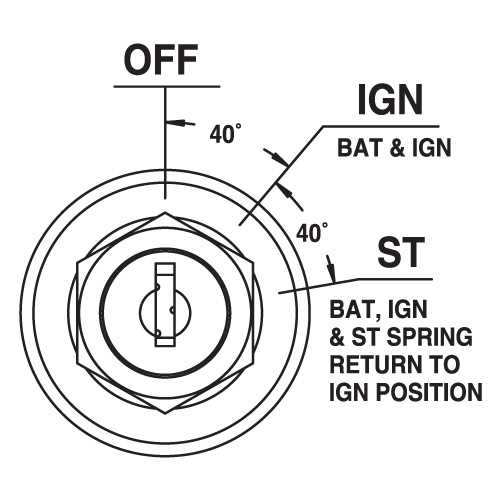

Identifying Terminal Connections on a 3-Way Key Control

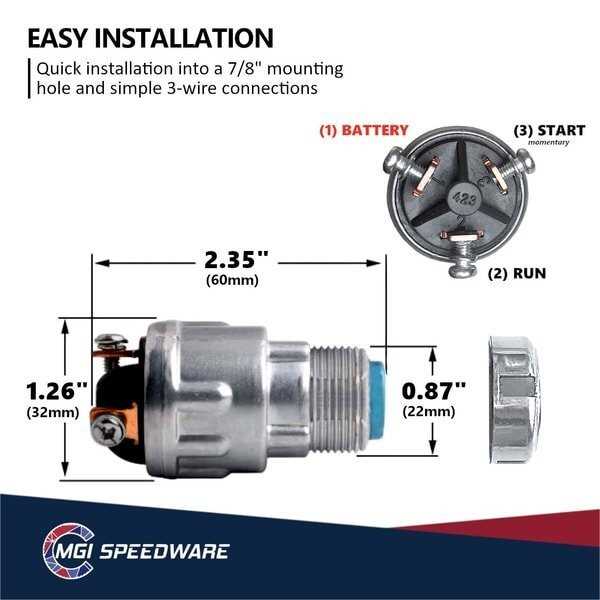

Locate the battery feed (usually marked “B+” or “30”)–this terminal supplies continuous power regardless of rotary selector state. Test continuity with a multimeter between this contact and the accessory output (“ACC” or “15”) in the first toggle stage: absence of connection confirms correct sequencing. The middle contact often handles starter engagement (“50”) and must show zero resistance only in the transient crank mode; verify by rotating to that slot briefly while monitoring voltage drop.
Verifying Ground and Accessory Outputs
Attach the probe’s negative lead to chassis ground and measure each contact in all toggle states. The accessory slot (“ACC”) should read system voltage (12–14V) in one setting, zero in others–any stray current indicates a shorted solenoid. For lighting or aux circuits (“15A”), expect identical voltage only when toggled to auxiliary mode; isolate faults by tracing wire colors (red for constant, yellow for switched) back to fuse links.
How to Connect an Automotive Control Module with Three Functional States
Begin by identifying the battery’s positive terminal and route a heavy-gauge cable–at least 10 AWG–to the central contact of the rotary selector. This cable will serve as the primary power feed for both auxiliary circuits and engine activation. Secure the connection with a crimp connector rated for 20 amperes, ensuring the lug is properly insulated to prevent short circuits.
Next, attach a 16 AWG wire to the auxiliary output terminal, linking it directly to the vehicle’s radio, lighting, or power outlets. Add an inline fuse holder with a 10-amp fuse within six inches of the selector to protect the circuit. Ground the fuse holder’s chassis side to the nearest unpainted metal surface using a star washer for optimal conductivity.
Completing the Engine Activation Circuit
Run a separate 14 AWG wire from the starter relay input to the selector’s cranking output. Strip 5 mm of insulation from the wire end and twist it into a tight loop before inserting it into the relay’s spade terminal. Tighten the terminal screw to 3 Nm–avoid overtightening to prevent thread damage. Verify the relay clicks audibly when energized; if silent, replace it before proceeding.
For older models with manually operated solenoids, bypass the relay and connect the selector’s cranking terminal directly to the solenoid’s small contact. Use dielectric grease on all connections to minimize corrosion, especially in humid climates. Test the circuit with a multimeter: voltage should drop to below 0.2V when engaged, confirming minimal resistance.
Finish by splicing a 5 AMP diode onto the wire feeding the dashboard warning lights, oriented to block reverse current. This prevents false illumination when auxiliary devices are active. Label all wires with heat-shrink tubing marked in high-contrast colors (red for power, green for auxiliary, yellow for cranking) to simplify future troubleshooting.
Standard Conductor Hues and Roles in Engine Activation Circuits
Begin troubleshooting by isolating the red (+12V constant) lead–this powers critical modules like the ECU and memory retainers. A multimeter reading below 11.8V on this wire indicates a failed battery or corroded junction. For older vehicles (pre-2000), verify the purple accessory circuit; it often bypasses the main relay and drains the battery if left active. Modern harnesses integrate a yellow/red stripe for starter solenoid engagement–never splice or bypass this conductor, as it triggers instant surge risks.
Key Circuit Color Mappings Across Manufacturers
| Conductor Hue | Primary Function | Secondary Role | Common Failure Symptoms |
|---|---|---|---|
| Black | Ground reference | ECU shielding | Intermittent stalling, radio interference |
| White/Blue | Ignition feed (run/start) | Fuel pump relay trigger | No-crank, fuel cutoff at high RPM |
| Green/White | Accessory power | Dashboard illumination | Flickering gauges, no radio power |
| Orange | Battery + (unfused) | Alternator excitation | Slow cranking, dim lights at idle |
Always cross-reference hues with factory schematics–Japanese models (Toyota, Honda) frequently swap white/green (fuel pump) and red/white (ECU backup), while European variants (VW, BMW) employ brown/yellow for immobilizer signals. Strip 6mm of insulation from black/white jumpers when testing ground paths; solderless connectors corrode within 18 months. For high-current draws (starter relays), use 14-gauge wire minimum–smaller gauges melt under 40A loads.
Diagnosing Common Issues in a Three-Stage Control Circuit
Start by isolating the power source–verify voltage at the input terminal using a multimeter. A reading below 11.5V suggests a weak battery, corroded cables, or a faulty alternator. If voltage is stable, proceed to check the output terminals under load; inconsistent readings (e.g., voltage drops when engaging) indicate loose or oxidized contacts.
Inspect the harness for frays, melted insulation, or pinched wires, particularly near the connector. Use a continuity tester to confirm breaks–zero resistance means a healthy path, while an open circuit points to a severed wire or disconnected joint. Pay attention to ground connections; a high-resistance ground (above 0.2 ohms) causes erratic behavior even with intact power delivery.
Test each stage individually: engage the mechanism while monitoring the corresponding terminal for voltage. A silent click or missing output signals a burned relay, failed solenoid, or internal break. Swap the relay with a known-good one if available–identical symptoms confirm the original component is defective.
Corrosion buildup on terminals mimics intermittent failures. Scrub contacts with a brass brush and apply dielectric grease to prevent future oxidation. For stubborn residue, use contact cleaner but avoid excessive liquid near plastic housings–it can warp materials and worsen conductivity.
Check for mechanical wear: a sticking plunger or misaligned camshaft sensor disrupts operation. Lubricate moving parts sparingly with silicone spray–petroleum-based products attract dust and accelerate grime accumulation. If the actuator hesitates, manually rotate the shaft while listening for binding or unusual resistance.
For chronic issues, trace the schematic back to the fuse box–burnt traces or a blown fuse (often overlooked) reset the problem when replaced. Always label wires before disconnecting to avoid confusion during reassembly. If troubleshooting leads to the control module, consider professional diagnostics–internal faults rarely show obvious external signs.
