For a standard TRS (Tip-Ring-Sleeve) connector in a 3.5mm audio interface, wire the tip to the left channel, the ring to the right channel, and the sleeve to the ground. This configuration ensures stereo sound without interference. Use 24-28 AWG shielded cable for minimal signal loss–avoid solid core wire, as flexing will cause breaks.
If the plug is intended for a balanced mono setup (common in microphones or line-level signals), assign the tip to the positive (+), the ring to the negative (-), and the sleeve to ground. Verify polarities with a multimeter before soldering–reverse connections degrade audio quality. For shielding, twist the signal wires tightly (8-10 turns per inch) to cancel electromagnetic interference.
When soldering, keep heat exposure under 3 seconds per joint to prevent insulation melt or terminal damage. Use a 25-30W iron with a conical tip for precision. Apply flux to the pads before soldering; oxidization will weaken conductivity. After assembly, test continuity with a 1kHz sine wave–clipping or distortion indicates poor connections. If grounding issues persist, check for short circuits between the ring and sleeve.
For split-channel setups (e.g., headset microphones), the tip carries left audio, the ring handles the mic signal, and the sleeve remains ground. Confirm compatibility with the device–some systems require CTIA (tip-left, ring-right+microphone) or OMTP (tip-microphone, ring-left) standards. Mismatches result in dead channels or phantom noise.
Understanding TRS Audio Connector Circuit Layouts
Begin by identifying the three contact points on a 3.5mm TRS plug: the tip carries the left channel signal, the ring delivers the right channel, and the sleeve serves as the common ground. For mono compatibility, wire the tip to both left and right outputs before routing to the ground sleeve. Always use shielded cable to prevent interference, especially for longer runs over 1 meter.
When soldering, ensure each connection is secure with minimal exposed wire–stranded copper cores should be tightly twisted and tinned before attaching. For devices expecting a microphone input, the sleeve may split into separate paths; verify your target device’s pinout (Apple products often combine ground and mic inputs differently than Android).
Test each channel independently using a multimeter set to continuity mode. Probe from the plug’s tip to the corresponding contact pad; repeat for the ring. If both channels register identical resistance (typically 16–32 ohms for dynamic drivers), proceed. If readings differ by more than 5%, recheck solder joints for cold connections or shorts.
For volume control integration, locate the potentiometer’s outer lugs and middle wiper. Connect one outer lug to the left channel, the other to right, and route the wiper to ground. This creates a balanced stereo attenuation. Avoid cheap potentiometers–their carbon tracks degrade unevenly, causing channel imbalances over time.
Shielding should terminate at a single point, preferably at the plug’s ground sleeve. Daisy-chaining ground connections increases noise susceptibility. If hum persists, add a ferrite bead near the plug or replace the cable with one using individually insulated grounds. Oxygen-free copper reduces resistance by ~20% compared to standard copper.

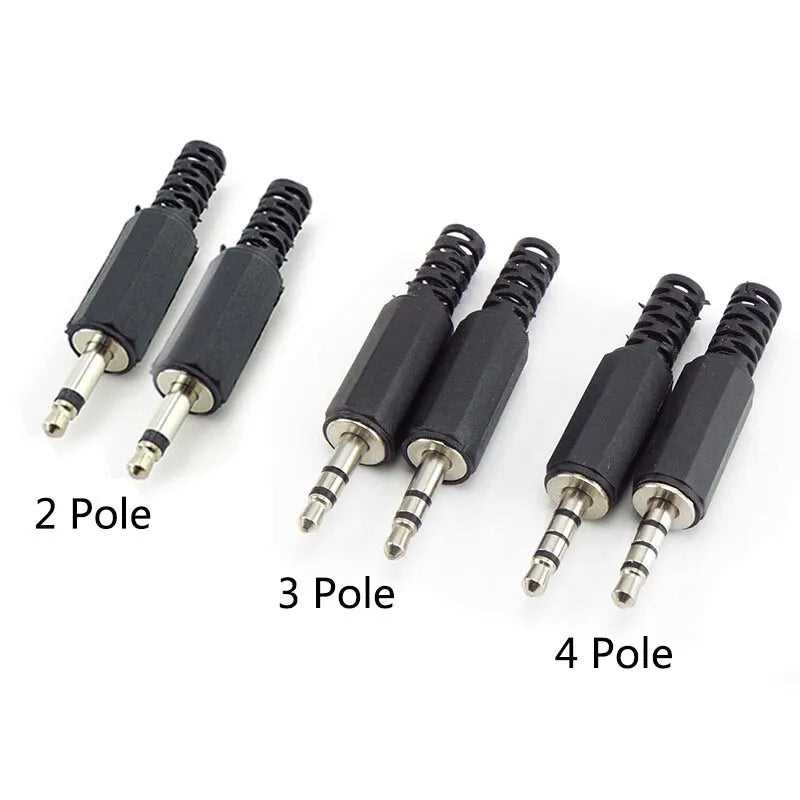

Adapter compatibility varies: TRRS (4-contact) devices repurpose the sleeve for microphone input. To convert TRS to TRRS, split the ground sleeve into two paths–one to ground, one to the microphone input pad–using a resistor (typically 2.2kΩ) to simulate DC bias. Skip capacitors unless the device explicitly requires AC coupling.
For custom earpieces, impedance matching is critical. Low-impedance drivers (under 50Ω) require thicker wire gauges (28 AWG minimum) to prevent signal attenuation. High-impedance (over 200Ω) designs benefit from thinner wire but demand careful insulation to avoid channel bleed. Pair high-impedance sources (e.g., tube amps) with equally high-impedance drivers for optimal frequency response.
Final verification involves a listen test with known-good reference tracks. Play alternating left/right test tones–any crossover suggests miswiring. If bass frequencies seem weak, the ground sleeve may be improperly connected; if mid/high frequencies distort, check for solder bridges between tip and ring.
Identifying Connector Leads in a Standard Audio Plug
Examine the sleeve first–it’s always the longest segment at the base. This ground line typically appears as bare copper or green-shielded wire, often wrapped in a clear or translucent insulator. Use a multimeter set to continuity mode; touch one probe to the sleeve’s metal collar and the other to the audio device’s chassis–the meter should beep.
Tip ring lies between the sleeve and the barrel, covered in red or white insulation. Connect one multimeter probe to this middle segment and the other to the right earpiece; if the tone plays only in the right channel, this lead carries the right signal. If the left earpiece sounds, the wire serves the left channel instead.
Inspect the barrel, the narrowest section closest to the plug’s tip. Its insulation usually matches the tip ring’s color but differs in hue: green, blue, or yellow. Clip the multimeter probe here and tap the left earpiece; a continuous tone confirms this is the left-channel wire. No tone suggests a switch in channel roles–check both earpieces again.
Label each wire immediately after identification to prevent mix-ups: sleeve (GND), tip (L), middle (R). Twist corresponding strands together and apply heat-shrink tubing or electrical tape around splices to avoid short circuits. Verify connections by playing stereo audio; both channels should sound clear without crosstalk or distortion.
If colors differ from expected standards, refer to manufacturer schematics–common deviations include purple for ground, orange for right, and black for left. Always test with a known audio source before finalizing wiring to confirm channel assignment.
Step-by-Step Soldering Guide for TRS Connector
Begin by stripping 3–4 mm of insulation from the audio cable’s leads using precision wire strippers–avoid nicking the delicate copper strands. For stranded cores, twist the exposed ends tightly to prevent fraying during soldering. A 22–24 AWG wire gauge is optimal for most applications; thicker wires risk poor fitment in the connector housing.
- Pre-tin the soldering iron tip with a thin layer of rosin-core solder to improve heat transfer. Apply temperature between 300–350°C (572–662°F) for lead-free solder, 280–320°C (536–608°F) for lead-based variants.
- Hold the connector in a vise or third-hand tool to stabilize it–vibration during soldering causes cold joints. Secure the cable’s strain relief sleeve by sliding it onto the wire before soldering begins.
- Identify the terminal assignments: tip (left channel), ring (right channel), and sleeve (ground). Verify with a multimeter’s continuity mode to prevent cross-connections.
Apply the iron’s tip directly to the terminal for 1–2 seconds before introducing solder. Feed solder into the joint, not the iron, to create a concave fillet–convex bulges indicate excess solder. For the sleeve terminal, ensure the entire circumference bonds uniformly to the wire; inconsistency here increases grounding noise.
Trim excess wire flush with the connector housing using flush-cut pliers to prevent shorting. Insulate each terminal with 2.5 mm of heat-shrink tubing or liquid electrical tape, overlapping by 1 mm to seal gaps. Slide the strain relief sleeve over the assembly and crimp it to the cable’s outer jacket using pliers–this prevents flex-induced wire fatigue at the joint.
- Test continuity for each channel using a multimeter in resistance mode (Ω). A clean signal should read ~0 ohms; readings above 2 Ω indicate a weak joint.
- Check for shorts between channels–resistance should approach infinity (measuring above 100 kΩ).
- Plug into an audio source and listen for distortion, noise, or channel imbalance at low volume–these symptoms point to incomplete solder defects.
Coat the soldered joints with conformal coating spray for moisture resistance if the connector will be exposed to humidity. For field repairs, carry spare 3.5 mm connectors with pre-attached 6 mm pigtails–this allows quick swaps without full re-termination.
Frequent Errors in Connecting a TRS Connector
Reversing ground and signal paths causes distorted audio or no sound at all. Check color codes before soldering: tip (left channel) is typically white or green, ring (right channel) red or blue, and sleeve (common ground) black or bare wire. Verify with a multimeter in continuity mode to confirm pinout before attaching any leads.
Insufficient solder joints create intermittent connections. Apply enough heat to flow solder smoothly without bridging adjacent contacts. Use rosin-core solder designed for electronics–avoid acid-core types, as they corrode traces over time. Clean the iron tip between joints to prevent oxidation buildup.
- Ignoring cable shield integrity leads to interference. Twist bare strands tightly and solder them firmly to the sleeve terminal. Leave no loose strands that could short to other conductors.
- Overheating the connector damages internal insulation. Use a temperature-controlled iron set to 350°C, and limit contact to 3 seconds per joint.
- Fail to strain-relieve the cable invites wire breakage near the plug. Secure the cable with heat-shrink tubing or a cable tie inside the connector housing before final assembly.
Assuming all cables follow the same color scheme risks incorrect channel mapping. Always trace each conductor back to its origin with a continuity tester. Some cables use colored stripes or transparent jackets with visible copper strands–identify these variations case by case.
Overlooking connector size mismatches wastes components. A 3.5mm TRS plug won’t seat properly in a 2.5mm socket, and forcing it may bend internal contacts. Measure the receptacle diameter with calipers before selecting plugs or adaptors.
Neglecting polarity in some devices introduces phase cancellation. Ensure tip carries the positive signal in active circuits–swap wires if audio sounds hollow or instruments vanish from the mix. Test with a mono source first to isolate channel crosstalk issues.
