Use a three-conductor balanced cable (male end) to unbalanced coaxial connection (phono plug) by soldering the primary conductor (hot) to the signal terminal of the phono plug and the secondary conductor (cold) to the ground terminal. Leave the shield connection on the balanced side unconnected–this prevents ground loops while ensuring signal integrity. If noise persists, verify the cable impedance: 600 ohms for professional audio equipment is ideal, but 150–300 ohms works for most consumer applications.
For stereo setups, repeat the process for the second channel, ensuring consistent polarity–mismatched connections will cancel frequencies below 200–400 Hz. Avoid using adapter cables directly; instead, assemble a custom harness with oxygen-free copper wire (gauge 22–24 AWG) for minimal signal loss. If hum occurs, insert a 1:1 isolation transformer (e.g., Jensen JT-11P-1) between the connections to block common-mode noise without affecting frequency response.
Test the setup with a sine wave at 1 kHz; measure output voltage with a multimeter–expect -10 dBV (consumer level) or +4 dBu (professional level) within ±0.5 dB tolerance. For DJ or PA use, ensure the phono side’s input impedance matches the balanced output (>10 kΩ for line-level signals). If distortion appears, check for DC offset on the unbalanced side–use a capacitor (e.g., 10 µF non-polarized) in series if necessary.
In environments with interference (e.g., near power cables or RF sources), use twisted-pair shielded cable and keep the harness under 3 meters to maintain signal clarity. For temporary setups, a DI box with ground lift (e.g., Radial ProDI) simplifies the conversion while adding flexibility. Always terminate connectors with heat-shrink tubing to prevent short circuits in high-vibration scenarios.
Connecting Balanced Audio to Unbalanced Interfaces: A Practical Guide
Use a dedicated transformer-based adapter for optimal signal integrity when bridging balanced and unbalanced connections. Direct soldering without isolation risks ground loops, hum, and signal degradation, especially in professional audio environments where interference can corrupt recordings.
For a reliable conversion, connect the hot conductor (typically terminal 2) to the central contact of the unbalanced plug, while the cold conductor (terminal 3) should merge with the shield at the unbalanced end. The balanced connector’s ground (terminal 1) must terminate to the unbalanced plug’s outer sleeve, ensuring proper shielding continuity.
Avoid passive direct connections unless absolutely necessary–they may introduce impedance mismatches, leading to weak output or distortion. If using a passive method, test with a 1 kHz sine wave at -10 dBV to verify signal strength before critical use.
Essential Components for Safe Conversion
Select a high-quality isolation transformer rated for the appropriate frequency range (20 Hz–20 kHz minimum). Cheap alternatives often introduce phase shifts or roll off low-end response, degrading audio fidelity. For temporary setups, a DI box with ground lift capability can serve as an alternative.
Solder joints must be clean and secure–excess flux or cold joints can cause intermittent signal drops. Use heat-shrink tubing to insulate connections, preventing short circuits in high-movement environments like live performances or touring setups.
Always verify polarity after assembly. Reverse polarity can invert waveforms, causing cancellation effects when summed with other audio sources. A simple polarity tester or oscilloscope ensures correct wiring before deployment.
Common Pitfalls and Solutions
Ground loops are the most frequent issue–symptoms include a persistent 50/60 Hz hum. Mitigate this by lifting the ground at the unbalanced end or using a ground isolator if the setup allows. Never disconnect grounding entirely; it compromises safety and increases shock hazards.
If signal levels are too weak, check impedance matching. Balanced outputs typically expect 600 Ω loads, while unbalanced inputs may present higher impedances. A buffer amplifier or impedance-matching network can resolve mismatches without signal loss.
Tools and Materials Needed for Professional Audio Cable Conversion
Begin with a multimeter capable of measuring continuity and resistance. A model like the Fluke 17B+ ensures accuracy for verifying connections before soldering. Avoid budget alternatives under 20 USD–poor calibration risks signal distortion.
Use rosin-core solder with a diameter between 0.5mm and 0.8mm. Lead-free options require higher heat (350°C+) but comply with safety regulations. Pair it with a temperature-controlled soldering iron like the Hakko FX-888D, adjusting between 300°C–375°C depending on the solder type.
Shielded cable with two inner conductors (one for signal, one for ground) is critical. Brands like Mogami W2534 or Canare L-4E6S minimize interference with a 95% coverage braided shield. Avoid stranded wire thinner than 22 AWG–signal degradation occurs over lengths exceeding 5 meters.
Heat-shrink tubing in 4mm and 6mm diameters provides insulation and strain relief. Polyolefin options resist abrasion better than PVC. Apply a dual-layer approach: a thin inner sleeve for connectors and a thicker outer layer for the joint.
Compression crimp connectors (gold-plated, 2mm barrel) secure connections without solder if preferred. The Neutrik NC3MX series offers durability, but ensure crimping tools like the IWISS SN-2546 exert 30–50 kg of force for a gas-tight seal. Loose crimps introduce noise.
For connectors, choose nickel-plated brass over zinc alloy–it corrodes slower under prolonged contact. The Switchcraft A3F (female) and Rean NYS373-2 (male) mate reliably with a 15 N insertion force. Verify compatibility with your equipment’s current rating (typically 5–7 A).
Include a desoldering pump and flux pen in your kit. The Engineer SS-02 removes excess solder efficiently, while rosin flux (e.g., MG Chemicals 8341) prevents oxidation during reheating. Store completed cables coiled with a minimum 10cm radius to avoid shield damage.
Step-by-Step Balanced-to-Unbalanced Adapter Assembly

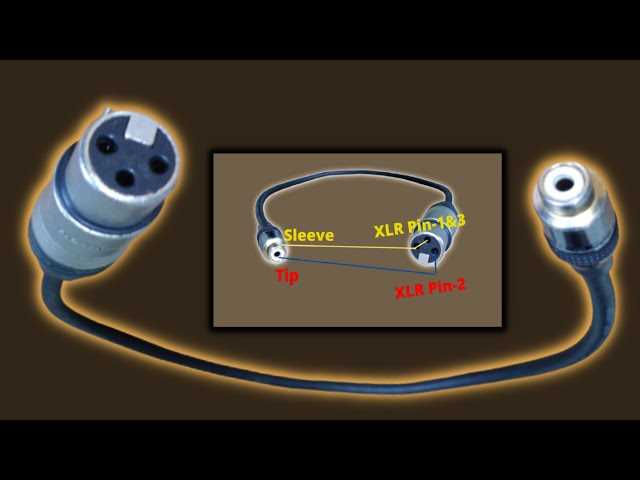

Connect the signal lead from connector A’s terminal 2 (hot) directly to the center conductor of the coaxial plug, ensuring a secure, polarity-preserving link. Ground the shell of connector A’s terminal 1 (cold) and terminal 3 (shield) together, then route them to the coaxial plug’s outer barrel–this eliminates ground loops when interfacing low-impedance sources with high-impedance loads. Use a multimeter to verify continuity before soldering; a reading below 0.5 ohms confirms proper contact.
| Source Contact | Destination | Signal Type | Insulation Requirement |
|---|---|---|---|
| Terminal 2 (hot) | Coaxial center | Balanced (+) | Shielded twisted pair |
| Terminal 1 + 3 (cold/shield) | Coaxial barrel | Ground | Heat-shrink tubing |
Trim excess cable length to 8 cm or shorter to preserve signal integrity; longer runs invite RF interference. Apply ferrite beads near both ends if hum persists, especially in environments with fluorescent lighting or switch-mode power supplies. Test the finished assembly with an audio tracer or amplifier–distortion-free output at -10 dBV verifies correct phasing.
Color Coding and Contact Assignments for Audio Connections
Use industry-standard color schemes to ensure consistency: white for left-channel signals, red for right-channel, and black or green for ground references. This applies to both balanced three-contact interfaces and unbalanced coaxial jacks. Deviating from these conventions risks signal inversion or short circuits when connecting equipment from different manufacturers.
For balanced lines, the first contact carries the positive phase (hot), the second the negative phase (cold), and the third the reference shield. Verify these assignments with a multimeter before soldering–misalignment can introduce hum or phase cancellation. Unbalanced coaxial jacks consolidate the signal and shield into two terminals: the central tip for the audio path and the outer ring for ground.
- Male three-contact plugs: hot (+) = contact 1, cold (−) = contact 2, shield = contact 3
- Female three-contact jacks: mirror male assignments for correct polarity
- Coaxial plugs: tip = signal, sleeve = ground
- Cabling: twisted pair (hot/cold) plus drain wire for balanced; single conductor plus shield for unbalanced
Label cables immediately after assembly–masking tape with permanent marker resists wear better than printed heat-shrink labels. Store spare adapters in separate bins by color/connection type to prevent mispairs during quick swaps. Test every new build with a continuity checker to confirm insulation integrity and proper termination.
When adapting balanced three-contact lines to unbalanced coaxial jacks, connect hot to the tip and cold to the shield–never merge cold and shield; this creates a ground loop. Terminate unused cold connections with a resistor matching the equipment’s input impedance to maintain circuit stability. Use gold-plated connectors for low-impedance signals to minimize oxidation-related signal degradation.
Common Mistakes to Avoid When Soldering Professional Audio Connectors
Avoid overheating the contact points during assembly, as excessive heat degrades insulation and weakens mechanical bonds. Keep the soldering iron at 350°C (662°F) for lead-based alloys and no higher than 380°C (716°F) for lead-free variants. Apply heat for no longer than three seconds per joint; prolonged exposure melts internal wire coatings and compromises signal integrity.
Neglecting strain relief causes premature cable failure. Secure the outer sheath 15–20 mm from the connector housing using heat-shrink tubing or clamps–loose connections invite intermittent shorts. Test with a gentle tug; a properly relieved assembly withstands 5 kg of force without displacement.
Improper grounding introduces hum and interference. Connect shield strands exclusively to the designated ground terminal; intermixing with signal leads breaches noise rejection. Measure continuity between shell and ground lug with a multimeter–resistance should register below 0.5 ohms. Any deviation indicates incomplete bonding.
Ignoring polarity misaligns audio channels, inverting phase. Confirm wiring sequence before finalizing joints: hot signals (tip) must correspond to terminal one, cold (ring) to terminal two, earth to the sleeve. Crossed connections invert stereo imaging, yielding unnatural spatial resolution.
Using undersized conductors restricts current flow, attenuating high frequencies. Adhere to AWG 22 minimum for signal paths; thinner gauges exhibit measurable roll-off above 10 kHz. Verify diameter with calipers–standard tolerance allows ±0.05 mm variation; exceedance reduces headroom and dynamic range.
Skipping post-assembly verification invites undetected faults. Patch the completed assembly into a preamp and sweep frequencies from 20 Hz to 20 kHz; amplitude should remain flat (±0.1 dB). Any peaking or dropout mandates rework–uncorrected anomalies persist as audible distortions under load.
