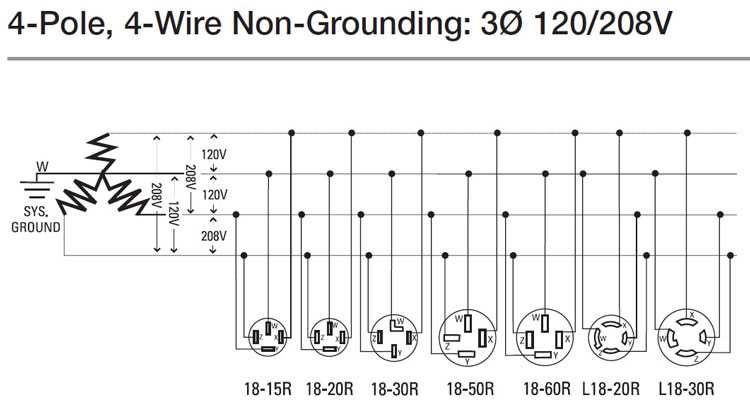

Use a 4-wire NEMA L14-30R receptacle for 240V split-power setups with a dedicated neutral. This configuration handles 30A loads across two live conductors (L1, L2) and a ground–critical for machinery requiring balanced current distribution. For 208V systems, opt for a NEMA L21-30 or IEC 60309 3P+N+E connector, ensuring the neutral pin aligns with the panel’s busbar to prevent overheating. Check torque specs: 12–15 lb-ft for copper terminals, 18–22 lb-ft for aluminum.
Label conductors before termination–black (L1), red (L2), blue (L3), white (neutral), green/yellow (ground)–to match EU/US hybrid layouts. Strip insulation precisely: 0.5″ for AWG 10 wire, 0.75″ for AWG 6. Avoid nicking strands–even a 10% cross-section reduction increases resistance by 31%. Use crimp lugs (non-insulated) for AWG 4 and larger; soldering weakens copper under cyclic loads. Test continuity with a low-ohm meter set to 200Ω range–values should not exceed 0.1Ω per connection.
In delta configurations, omit neutral but verify line-to-line voltages–208V, 240V, or 480V–as voltage imbalances above 3% degrade motor efficiency. For plug-and-socket pairs, match IEC 60309 coding: 6h (208V), 9h (240V), 3h (480V). Replace any connector with cracked housings–arc faults in damaged casings account for 18% of industrial switchgear failures. Secure plugs with locking rings (not set screws) to prevent vibrational loosening; torque to manufacturer specs, typically 8–12 Nm.
For mobile equipment, use CEE 17 or Pin-and-Sleeve connectors rated for 60A continuous–verify IP44 ingress protection if exposed to spray. Grounding pins must extend 1–2mm beyond live pins to ensure safety disconnect under fault conditions. Never daisy-chain neutrals; use a dedicated return path for each circuit to prevent circulating currents. Document all terminations with thermal imaging before closing panels–hot spots above 70°C indicate compromised connections.
Connecting Industrial Power Connectors: A Practical Guide
For 400V three-line systems, use a 5-pin CEE connector with a PE ground: L1, L2, L3 on pins 1-3 (400V between any two), N on pin 4, and PE on pin 5. Verify pinouts with a multimeter before mating–neutral-to-ground must read 0V, hot-to-ground 230V, and hot-to-hot 400V. Deviations signal miswiring; correct immediately to prevent equipment damage.
Secure the cable with a cord grip rated for 1.5× the circuit’s maximum current–32 A for 7.5 kW loads. Tighten clamps to 2.5 Nm; loose connections cause arcing and oxidation. Replace connectors with scorch marks or discolored terminals; NEMA L21-30 plugs handle 30 A at 480V but lack the PE pin–avoid for new installations.
Common Mistake Prevention
Before energizing, test insulation resistance between each conductor and ground–minimum 1 MΩ at 500 VDC. Connect a 10 A breaker for 6 mm² cables; larger cross-sections require proportional upsizing (16 mm² needs 25 A). Align the locking ring groove with the shroud’s index tab–incorrect alignment bends pins, risking intermittent faults.
Label each cable at both ends with voltage, amperage, and machine ID (e.g., “Mixer-400V-16A”). Color-code: brown (L1), black (L2), grey (L3), blue (N), yellow-green (PE)–no exceptions. Non-compliance voids IEC 60309 certification; inspect annually for compliance.
For temporary setups, use IP44-rated connectors with integrated sealing gaskets. Water ingress causes 20% of failures; test with 3 kPa air pressure–leaks above 30 cm³/min mandate replacement. Store spares at 18-25°C and
How to Identify Terminals on a Three-Conductor Industrial Connector
Inspect the connector shell for embossed or engraved markings near each contact. Most manufacturers label terminals L1, L2, L3 for the live conductors and N for neutral when present, while the protective earth (PE) is marked with a symbol–either a horizontal line with three downward prongs or the letters PE. These identifiers are typically found adjacent to the insertion point and may also appear on the mating side of the socket.
Measure voltage between each terminal pair with a multimeter set to AC volts to confirm function. Between any two live contacts, you should read approximately 400V for a 400V system–this variation confirms the sequence. Neutral-to-live contacts will show 230V, while PE should register zero volts when referenced against any live or neutral terminal. Record readings in a table for clarity:
| Terminal Pair | Expected Voltage (400V System) |
|---|---|
| L1 – L2 | 400V |
| L2 – L3 | 400V |
| L3 – L1 | 400V |
| L1 – N | 230V |
| L2 – N | 230V |
| L3 – N | 230V |
| PE – L1/L2/L3/N | 0V |
Trace the connector plug body for color-coded sleeves or stripes on the conductors themselves. European IEC 60446 specifies brown (L1), black (L2), grey (L3), blue (N), and green/yellow striped (PE). North American NEMA configurations differ–black (L1), red (L2), blue (L3), white (N), and green (PE). Verify local standards before relying solely on color cues.
Check the connector pin arrangement against the manufacturer datasheet. Four-pole connectors (L1, L2, L3, N) often arrange contacts in a square or trapezoidal pattern, whereas five-pole variants (adding PE) introduce an offset central pin or larger ground contact. Dimensional spacing can indicate function: protective earth contacts are commonly oversized or positioned asymmetrically to prevent misalignment.
Troubleshooting Mislabelled Terminals
If terminals lack markings or show inconsistent voltage readings, isolate the socket from power and conduct a continuity test between suspected live contacts and a known reference point downstream–typically the distribution block or motor winding terminals. The PE terminal should maintain uninterrupted low-resistance connection to chassis ground at every downstream junction. Document unexpected variances immediately to prevent equipment mismatch during energization.
Step-by-Step Assembly for Tri-Current Connector Configurations

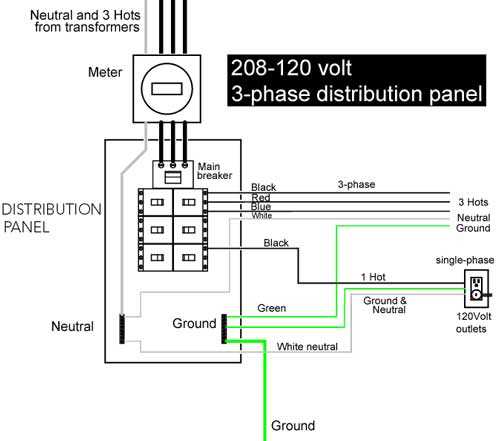

Identify the conductor sequence first. A standard tri-current system uses L1, L2, L3 for power lines, a neutral (N) if present, and an earth (⏚) terminal. Verify the supplier’s color codes–EN/IEC standards designate brown (L1), black (L2), grey (L3), blue (N), and green/yellow (⏚). North American systems may use black, red, blue for lines, white for neutral, and green for earth. Mismatched colors risk reversed polarity or short circuits.
Strip cables to a precise length–typically 12–15 mm for 16–32 A connectors. Use calibrated wire strippers to avoid nicking strands. Twist stranded wires lightly to prevent fraying, then crimp with a terminal lug sized for the socket’s clamping screws. For 63 A or higher, use bootlace ferrules to maintain strand integrity under torque. Ensure no loose strands protrude; they can cause arcing under load.
Match each conductor to its terminal before securing. On NEMA L21-30R receptacles, orient live conductors counterclockwise: L1 (brass screw), L2 (silver), L3 (next silver), N (white or lighter screw), ⏚ (green). IEC 60309 plugs assign pin positions: earth at 6 o’clock, L1/L2/L3/N at 9/12/3/5 o’clock respectively. Double-check torque values–loose connections overheat; overtightening distorts threads.
Test continuity before energizing. Set a multimeter to ohms mode; probe between each line terminal and earth. Expect near-infinite resistance. Probe line-to-line–balance should read consistent impedance (e.g., 0.1–0.3 Ω for 10 m lengths of 16 mm² cable). If readings fluctuate, re-examine crimps or insulation damage. Repeated testing after 10 minutes of operation catches thermal expansion gaps.
Seal the enclosure once verified. Use IP44-rated gaskets for outdoor setups; IP67 for submerged pumps. Route cables through strain-relief glands to prevent tension on terminals. Label each core at both ends with heat-shrink tags–color-coded sleeves prevent misidentification during maintenance. Snap the plug’s locking ring securely; partial engagement risks vibration-induced disconnects.
Energize in stages. Start with the neutral and earth bonded at the supply panel, then energize L1 alone. Verify 230 V (line-to-neutral) with a true RMS meter. Add L2–confirm 400 V (line-to-line). Finally, engage L3 and check all permutations: L1-L2, L2-L3, L3-L1. Record readings for future reference. If any line reads outside ±5% of nominal, investigate supply imbalance or upstream faults immediately.
Common Errors in 3-Pin Industrial Connector Configurations
Misidentifying conductor sequences leads to immediate motor burnout or erratic operation. L1, L2, and L3 must align with the equipment’s terminal blocks–reversing any two swaps rotational direction, while swapping all three retains it but disrupts synchronization. Verify color codes: brown (L1), black (L2), gray (L3) in IEC standards, or black (L1), red (L2), blue (L3) in North American conventions. Cross-check with a multimeter set to AC voltage; readings between pairs should match the supply line voltage (e.g., 400V for 380V systems).
Omitting strain relief causes vibrations to loosen connections, accelerating arcing. Secure cables with cable glands rated for the environment–IP67 for outdoor use, IP44 for indoor dry areas. Use crimped ferrules on stranded conductors to prevent fraying under screw terminals; avoid solder alone, as thermal cycling weakens joints. Tighten terminal screws to manufacturer torque specs (typically 2.5–3.5 Nm for M6 screws)–overtightening strips threads, undertightening risks overheating.
- Ignoring grounding integrity: A missing or undersized earth wire (green/yellow, 10 AWG minimum) violates safety standards and increases fault current hazards. Test continuity between the plug’s earth pin and the equipment chassis–resistance should not exceed 0.1 ohms.
- Mixing voltage ratings: Plugging a 230V device into a 400V circuit without step-down transforms guarantees failure. Check nameplate specs; NEMA L14-30 connectors are for 120/240V split-phase, while IEC 60309 “red” plugs indicate 400V.
- Skipping polarity checks: Neutral (blue, or white in North America) must not carry current in balanced loads. Verify with a clamp meter–any neutral current above 2% of line current signals imbalance.
Incorrect pin housing selection damages connectors over time. Nylon-based housings degrade under UV exposure, while polyamide withstands 120°C but cracks under mechanical stress. Match plug ratings to cable size: 16A plugs fit 1.5 mm² cables, while 32A plugs require 4 mm² minimum. Exceeding ampacity melts insulation, shorting adjacent pins–derate cables by 40% in high-ambient-temperature settings (e.g., 50A cable in 60°C environments performs as 30A).
Neglecting phase rotation verification causes irreversible equipment damage. Use a phase rotation meter before energizing motors–reversing two conductors flips direction in inductive loads (pumps, compressors), risking overheating. For generators, follow counter-clockwise rotation (viewed from shaft end) unless the datasheet specifies otherwise. Record rotation at installation; swapping later requires isolating the system to avoid backfeeding.
- Improper cable entry: Sharp edges on metal enclosures slice insulation–use grommets or file edges smooth. Seal unused conduit openings with expandable foam or knockout plugs to prevent rodent ingress.
- Disregarding harmonic distortion: Non-linear loads (VFDs, welders) generate harmonics that overheat neutral wires. Install K-rated transformers or line reactors to mitigate; measure THD (total harmonic distortion) below 5% for safe operation.
- forgetting torque retention checks: Re-torque all connections after 100 hours of operation and annually thereafter. Thermal cycling causes metal creep, loosening terminals–use thread-locking compounds (medium-strength) on earth screws only.
Incompatible connector materials corrode in harsh environments. Tin-plated contacts oxidize in salty air, raising resistance–gold-plated (for signals) or silver-plated (for power) handle moisture better. Lubricate threads with antioxidant grease to prevent seizure in aluminum housings. For outdoor installations, use connectors with rubber gaskets; silicone-based lubes resist water ingress but degrade PVC insulation over time.
