Begin by verifying the motor’s nameplate rating matches local voltage requirements–typically 208V, 230V, or 480V for industrial-grade submersibles. Connect the line leads (L1, L2, L3) to a dedicated three-pole circuit breaker sized at 125% of the motor’s full-load current. For a 10 HP unit, this translates to a 30A breaker for 230V or 15A for 480V. Ground the system via a bare copper conductor to the enclosure’s grounding lug; never rely on neutral as a substitute.
Wire the starter in a delta configuration for low-voltage setups (230V) or wye for high-voltage (480V). Use THHN conductors rated for 75°C minimum–#10 AWG for 30A circuits, #8 for 40A. Label each conductor at both ends (L1/L2/L3, T1/T2/T3) to prevent misalignment during maintenance. Install overload relays sized at 110–125% of the motor’s nameplate current; bypass them only during initial testing with manual reset protection engaged.

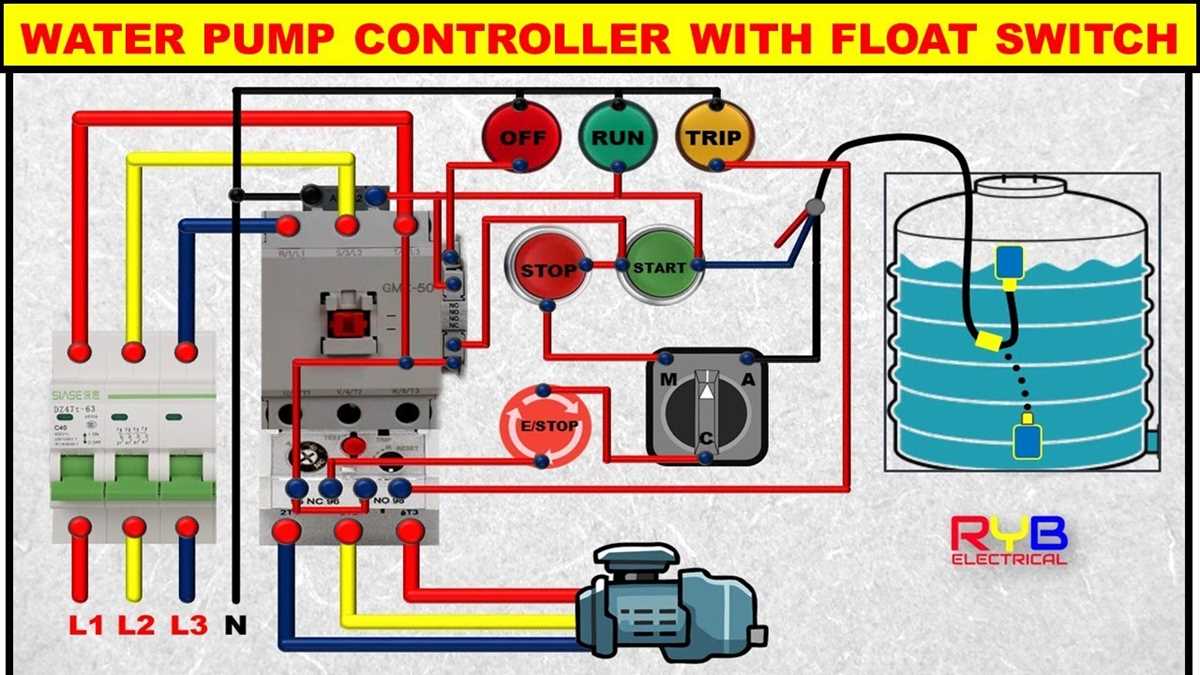

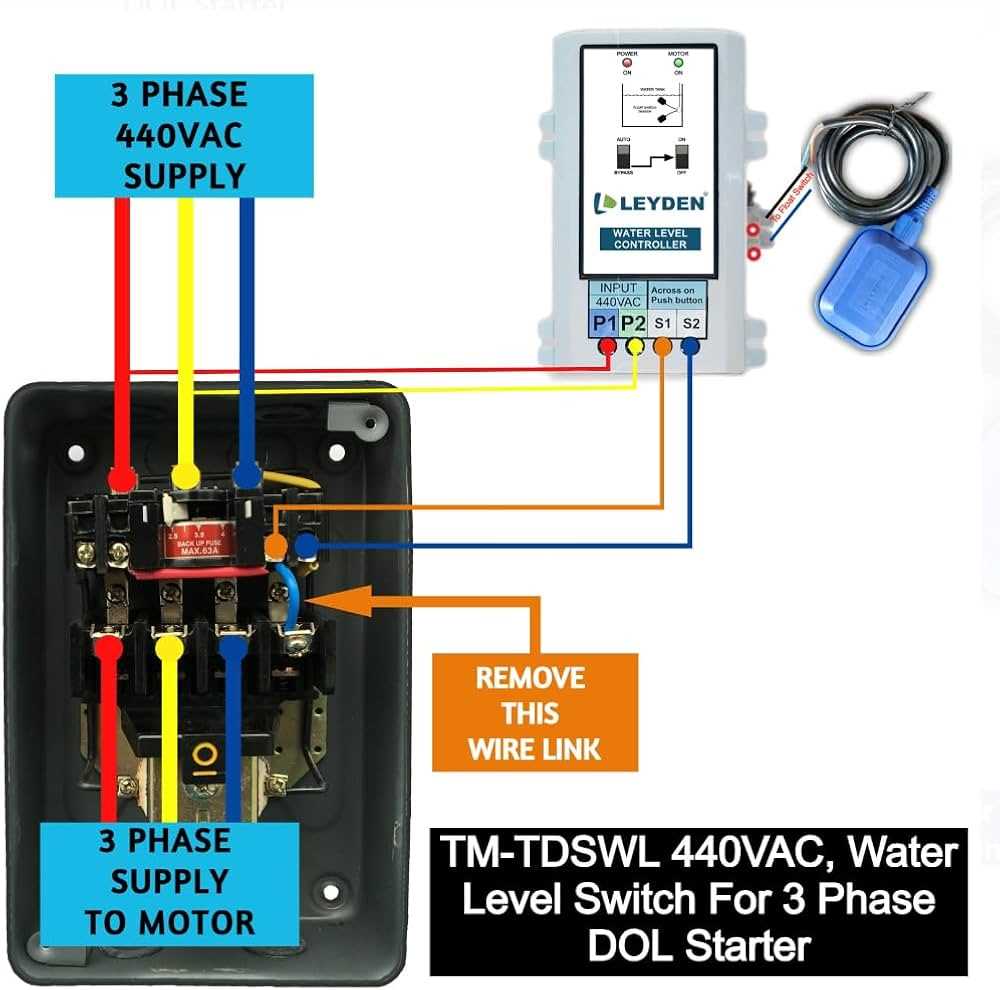

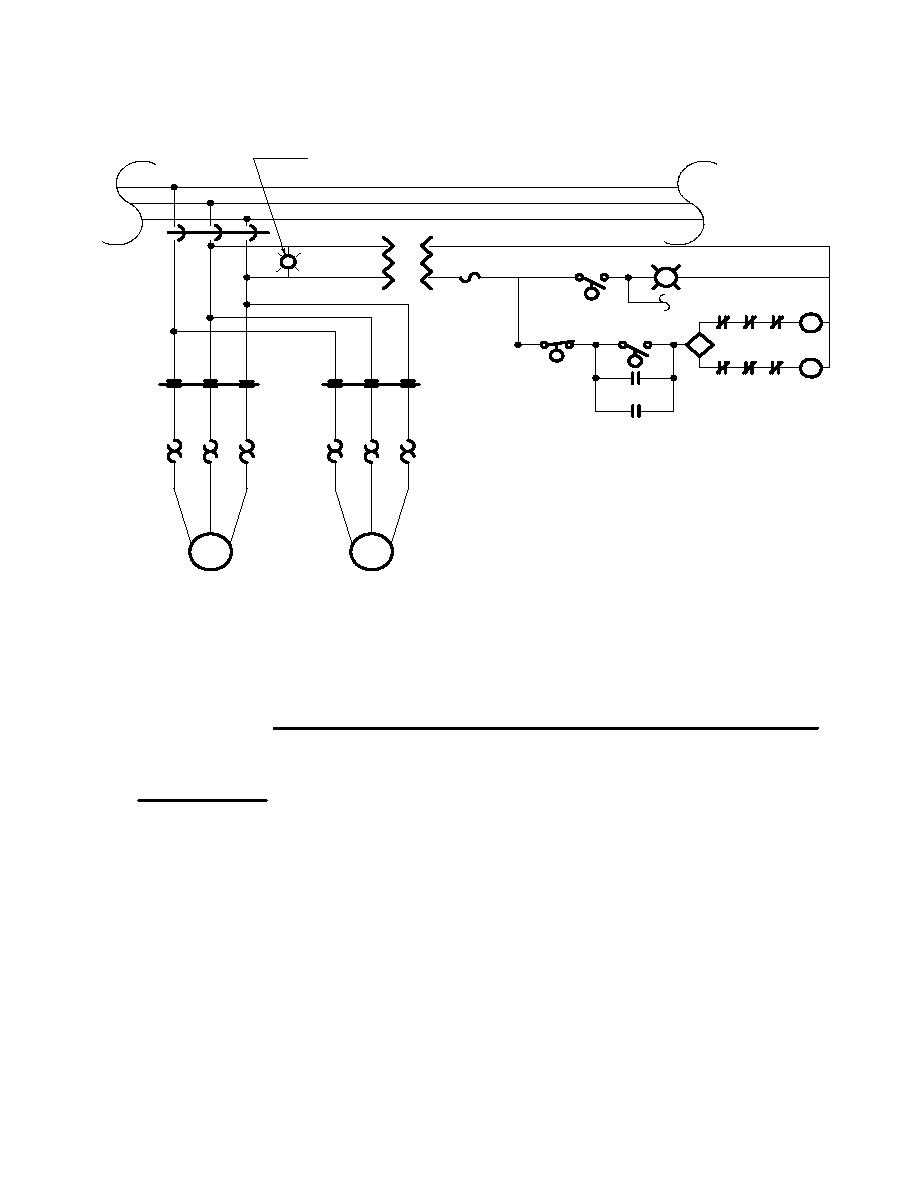

Route the control circuit through a float switch rated for submerged use–avoid mechanical varieties prone to sediment fouling. Connect the switch in series with the starter coil; test operation by simulating water rise before sealing the enclosure. For fail-safe redundancy, add a second switch set 6–12 inches above the primary. Seal all conduit entries with liquid-tight fittings to IP68 standards; use anti-condensation breathers if humidity exceeds 60%.
Finalize by verifying rotation direction–reverse any two line conductors if the impeller spins backward. Document the circuit with an as-built layout indicating breaker size, conductor gauge, and switch setpoints. Store schematics on-site in a waterproof case for service technicians.
Electrical Setup for Industrial Tri-Circuit Submersible Units
Begin by verifying the motor nameplate data–match the voltage rating (e.g., 208V, 460V) with the power supply. Connect the three live conductors to the terminal block in sequence: L1, L2, L3. Incorrect pairing risks burnout. Use a multimeter to confirm phase rotation; reverse any two leads if rotation is incorrect to prevent reverse operation, which damages impellers.
Install an overload relay rated for 125% of the motor’s full-load current. For a 10-horsepower unit drawing 15A, select a 19A relay. Size conductors at 12 AWG for runs under 100 feet; upsize to 10 AWG for longer distances to minimize voltage drop. Secure all terminations with crimped lugs and torque wrenches–loose connections create hotspots.
Include a dedicated circuit breaker sized to the motor’s service factor. For 460V systems, use a 30A magnetic breaker; thermal breakers introduce nuisance tripping. Run conduit–rigid metal or liquidtight–for exterior installations. Ground the enclosure separately with 6 AWG bare copper bonded to the neutral bus at the panel.
Test the setup under load before operational deployment. Monitor current draw across all three circuits with a clamp meter; imbalance exceeding 10% indicates miswiring or faulty components. If the unit kicks on erratically, swap the control float’s NO/NC contacts–most setups require normally closed for high-level activation.
For variable-speed applications, add a variable-frequency drive (VFD) upstream. Program the VFD with ramp-up times of 5 seconds to reduce inrush current. Bypass capacitors protect against harmonic distortion–install 1μF/440V caps across each line for 460V systems. Ensure the VFD enclosure meets NEMA 4X standards if installed outdoors.
Label all terminals clearly: “Motor,” “L1/L2/L3,” “Ground,” “VFD Input/Output.” Use heat-shrink tubing on wire nuts for corrosion resistance. Document the setup in a one-line schematic filed with maintenance teams–include conductor types, breaker sizes, and torque specifications to avoid future rewiring errors.
Choosing the Proper Overcurrent Protection for Tri-Voltage Dewatering Systems
Install a circuit breaker with a trip rating 125% above the motor’s full-load current (FLC) to comply with NEC Article 430. For a 5 HP, 460V tri-voltage dewatering unit drawing 7.5A, this means a minimum 9.4A breaker–round up to the next standard size, a 10A device. Avoid exceeding 250% of FLC to prevent nuisance tripping during startup, as inrush currents for these motors typically reach 6–8 times FLC for up to 3 seconds.
Pick inverse-time thermal-magnetic breakers rated for industrial duty, explicitly listed for motor protection per UL 489. Verify the breaker’s interrupting capacity meets or exceeds the available fault current–common 480V installations require 10kA or 14kA IC for most commercial buildings. For outdoor or damp locations, specify NEMA Type 4X or IP66 enclosures to resist corrosion and moisture ingress.
Sizing and Performance Considerations
Compare breaker curves against motor acceleration times: Class 10A breakers react too quickly for most 3–5 HP units, risking false trips under normal operational surges. Use Class 20 or Class 30 inverse-time curves to allow brief overloads while still protecting against sustained faults. Chart the breaker’s time-current curve alongside the motor’s starting and running characteristics to confirm a safe margin.
For dual-voltage configurations (230V/460V), confirm the breaker is derated for the lower voltage setting–manufacturers often specify adjusted trip currents. Example: a 15A breaker tested at 460V may require derating to 12A at 230V due to increased sustained current during single-voltage operation. Verify coordination with upstream fuses to ensure selective tripping–place the breaker closest to the load device for fast isolation.
Test the installation with a megohmmeter before energizing: resistance between windings and ground should exceed 1MΩ. After sealing the enclosure, perform a manual trip test to verify the breaker’s mechanical latch releases cleanly. Periodically exercise the breaker every six months by switching it off and on under no-load conditions to prevent stiction, especially in dust-prone environments.
Step-by-Step Terminal Hookup for Industrial Alternating Current Motors
Begin by verifying the motor’s voltage rating matches the supply lines. For a 230V setup, connect terminals U1-V1-W1 directly to the corresponding line conductors (L1, L2, L3). For 400V, use U2-V2-W2 and jumper the opposite ends of each winding set. Confirm correct rotation direction–swap any two conductors if reversal occurs. Label all connections before securing to avoid misalignment during reassembly.
Attach the protective earth (PE) conductor to the motor’s grounding terminal without exception. Follow the IEC 60034-1 standard for conductor sizing: 2.5 mm² for currents up to 16A, scaling to 10 mm² for 63A circuits. Strip insulation precisely–10 mm for screw terminals, 12 mm for crimp connectors–using calibrated wire strippers. Torque all terminal screws to 2.5 Nm for M6 fasteners to prevent loosening under vibration.
- For dual-voltage motors, jumper the star/delta windings as follows:
- Star (low-voltage): Link U2-V2-W2 together; connect U1-V1-W1 to supply.
- Delta (high-voltage): Connect U1-W2, V1-U2, W1-V2; attach remaining terminals to supply.
- Use heat-shrink tubing for splice protection–standard polyolefin shrinks at 120°C. Wrap exposed conductors with liquid electrical tape for moisture resistance in submerged environments.
- Bypass starters require contactors rated for 120% of full-load current. For 15 kW motors, specify a 32A AC-3 rated device.
Test insulation resistance with a 500V megohmmeter. Minimum acceptable value: 1 megohm between winding and frame, 0.5 megohm between windings. For readings below threshold, dry the motor at 80°C for 24 hours before retesting. Document all measurements–compare against manufacturer specifications for troubleshooting.
Finalize connections by securing conductors with plastic conduit clamps spaced every 300 mm. Route cables away from moving parts–minimum clearance: 50 mm. Apply warning labels near terminal boxes: “3~ 400V 50Hz Imax=28A“. Verify operation with a load test: monitor current draw at 10-second intervals; expect transient spikes within 10% of rated current during startup.
How to Identify and Label L1, L2, L3 Conductors in Heavy-Duty Power Systems
Start by verifying the voltage between each pair of conductors using a calibrated multimeter. In a balanced three-line system, L1-L2, L2-L3, and L3-L1 should read equal potential–typically 400V AC in European systems or 480V AC in North American industrial setups. Any deviation exceeding 5% suggests mislabeling, fault conditions, or unbalanced loads. Record measurements in a tabular format for verification:
| Conductor Pair | Expected Voltage (V AC) | Measured Voltage (V AC) | Deviation (%) |
|---|---|---|---|
| L1-L2 | 400/480 | ||
| L2-L3 | 400/480 | ||
| L3-L1 | 400/480 |
Trace the conductors back to the main breaker or distribution panel. Labels often degrade over time; use a wire marker or heat-shrink tubing to permanently tag L1, L2, and L3 at both ends. Color-coding follows IEC 60446 (L1: brown, L2: black, L3: gray) or NFPA 79 (L1: black, L2: red, L3: blue). If insulation is faded or non-standard, strip a small section and apply a wrap of colored tape matching the region’s code. Ensure no two lines share identical markers within the same circuit.
Check for consistent labeling across transformers, motors, and control cabinets. Mismatched tags at different points create hazards during maintenance. For example, if a motor’s terminal box shows L1 paired with a brown wire but the upstream panel lists the same conductor as black, re-label immediately. Use a label printer for legibility; handwritten tags risk misinterpretation. Include the voltage rating (e.g., “L1 – 400V”) on tags for added clarity.
Verify phase rotation with a dedicated tester. Connect the tester’s probes to L1, L2, and L3 in sequence. Correct rotation displays “ABC” or “1-2-3”; reverse rotation indicates swapped lines and requires swapping any two conductors at the source. Incorrect rotation damages motors and compressors, causing overheating or tripped protection devices. Document the rotation sequence in the system manual for future reference.
For underground or conduit-bound conductors, use a tone generator to trace lines without excavation. Attach the generator’s lead to one unmarked wire at the panel, then probe at the endpoint with a receiver. Isolate the wire, label it, and repeat for remaining lines. This method prevents cutting into conduits or mistakenly identifying neutrals as live lines.
In dual-voltage systems (e.g., 208V/480V), confirm the configuration before labeling. Measure between each line and neutral: 208V systems read ~120V, while 480V systems read ~277V. Label conductors with both voltage levels (e.g., “L1 – 480V/277V”) to avoid confusion during repairs. Store all documentation in a waterproof pouch near the panel or upload to a secure maintenance database.
