Ensure the main AC output terminals align with L1, L2, L3, and neutral lines on the grid interface–misalignment risks immediate overcurrent or uneven load distribution. Verify the DC input from panels connects to a charge controller rated for at least 20% above the combined array wattage; undersizing this link degrades lifespan by 40% under peak irradiance.
Use 4 AWG copper cables for runs under 30 meters; beyond this, switch to 2 AWG to limit voltage drop to under 2%. Grounding must tie to a dedicated rod buried 2.4 meters deep, bonded to both the conversion unit’s chassis and all exposed metal enclosures. Skipping this step invites surge-induced failures during transient events.
For systems with battery backup, isolate the storage bank’s positive terminal with a class T fuse sized to 125% of the battery’s continuous discharge current. Position the fuse no more than 15 cm from the battery to minimize arc risks. Connect the negative terminal directly to the conversion device–never splice or use intermediary connectors, as resistance at this junction causes erratic performance.
Test the setup with a multimeter at each leg before energizing: L1-L2, L2-L3, and L3-L1 should read 380–400VAC for European grids or 208–220VAC for split configurations. If readings deviate by more than 3%, recheck connections for loose strands or oxidation before proceeding.
Connecting Tri-Output Power Conversion Systems: Key Schematics
Start with a 400V AC bus configuration for optimal efficiency in medium-scale energy setups. Ensure each generator output connects to a dedicated breaker rated at 125% of the maximum current draw. For a 10kW system, this translates to 18A per line–use 25A breakers to accommodate surges. Label each conductor at both ends (L1, L2, L3) to eliminate confusion during maintenance.
- Grounding: Bond the neutral and earth at the main service panel only–never at the conversion unit. Use 6 AWG copper wire for the grounding electrode conductor if the distance exceeds 3 meters.
- DC input: Match the PV array’s open-circuit voltage to the MPPT range (typically 150-800V). For a 60-cell panel (≈38V VOC), series 16-20 modules to stay within limits.
- Protection: Install Class II SPDs on both DC and AC sides, with a 40kA rating for grid-tied systems.
Use a three-pole contactor (rated for 1.5× system current) to isolate the unit during faults or grid failures. Wire it in series with the output breakers, controlling it via a separate 24V control circuit fed by the DC bus. For string inverters, split the PV input into two independent strings with separate fuses if the total exceeds 15A to comply with NEC 690.9.
Critical connections: Torque all terminals to manufacturer specs (typically 2.5 Nm for M8 screws). After commissioning, verify phase rotation with a rotary field meter–incorrect rotation will damage motors. Record baseline values (AC voltage: 400±10V; frequency: 50Hz ±0.2Hz) and check weekly during the first month to detect anomalies early.
Key Components for a Tri-Power Energy Conversion System
Select a tri-power panel array rated for at least 120% of your grid load to compensate for conversion losses and peak demand. Monocrystalline modules deliver 20–22% efficiency, outpacing polycrystalline options by 3–5%, ensuring optimal space utilization on rooftops or ground mounts. Verify that the panel’s maximum power voltage (Vmp) aligns with the DC bus voltage requirements of your conversion unit to prevent clipping and maximize harvested energy.
Prioritize a conversion unit equipped with three independent input channels and galvanic isolation. Models featuring silicon carbide (SiC) or gallium nitride (GaN) transistors reduce switching losses by 30–40% compared to traditional IGBTs, improving thermal performance and extending operational lifespan. Ensure the unit supports 400–800V DC input, as higher voltages lower cable gauge requirements and minimize resistive losses over distances exceeding 50 meters.
Install a charge regulator with MPPT (maximum power point tracking) for each string to compensate for shading or temperature variations. Units with dual-core processors and adaptive algorithms adjust every 1–2 seconds, increasing energy harvest by 10–25% versus single-core analog controllers. Confirm that the regulator’s current rating exceeds the short-circuit current (Isc) of your panel array by 25% to handle transient surges during cloud-edge transitions.
Deploy a three-leg AC output module with anti-islanding protection to comply with grid regulations. Look for models featuring grid-forming mode, which maintains voltage and frequency stability during utility outages, allowing seamless transition to backup power. Specify output current ratings 10% above continuous load requirements to avoid overheating and ensure longevity under inductive loads like motors or compressors.
Use stranded copper conductors sized per NEC Article 690, with insulation rated for 90°C wet conditions. For conduit runs exceeding 15 meters, increase conductor cross-section by 1.25x to account for voltage drop. Grounding conductors must match the largest ungrounded conductor size or 8 AWG, whichever is larger, to prevent corrosion and ensure fault clearing under 5 ohms of resistance.

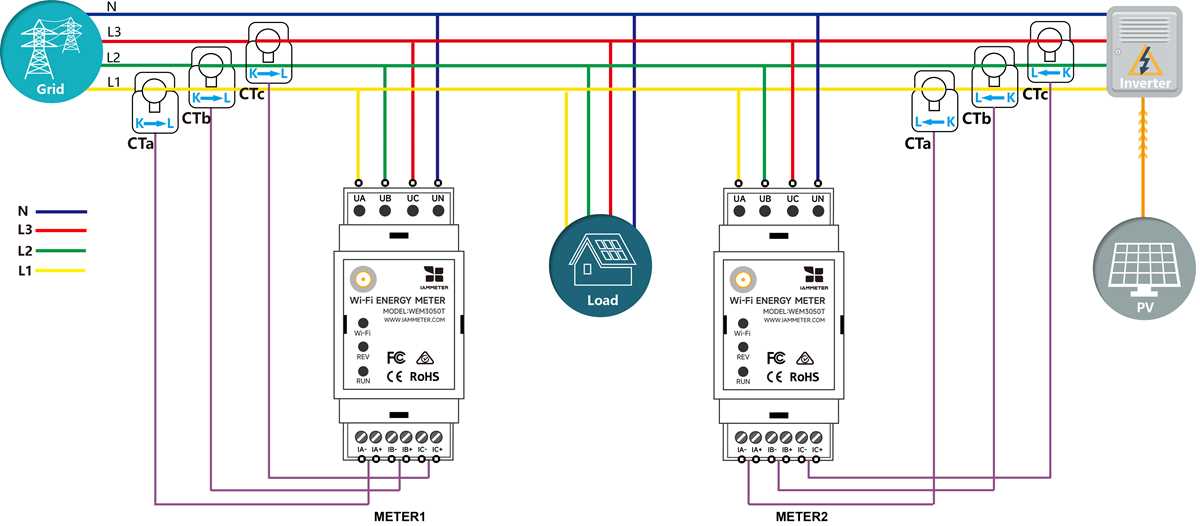

Integrate a bidirectional meter capable of logging real and reactive power flows at 5-second intervals. Units with Bluetooth or Wi-Fi connectivity simplify data retrieval, while internal 4GB storage accommodates 12+ months of granular performance records. Ensure meter accuracy is ±0.2% for revenue-grade applications, or ±0.5% for non-revenue uses, to comply with IEEE 1547 standards.
Mount surge arrestors on both DC and AC sides, with clamping voltages 1.5x the system’s nominal voltages. Combination arrestors that include gas discharge tubes and metal oxide varistors protect against direct strikes up to 40kA. Replace arrestors every 3–5 years or after six surge events, whichever occurs first, to maintain protection levels.
Connecting Photovoltaic Arrays to a Tri-Output Power Converter: Procedural Guide
Verify the converter’s input specifications match the combined voltage of your PV modules in series. For most residential setups, 600–800V DC is optimal–exceeding this risks damaging the MPPT controller. Measure open-circuit voltage of each string at dawn; use a digital multimeter with a 1kV rating to confirm readings align within ±5% of the manufacturer’s datasheet.
Route DC cabling from the roof through a double-pole DC disconnect rated for at least 125% of the maximum system voltage. Position this switch no farther than 3 meters from the power converter’s input terminals to minimize voltage drop. Secure conductors with UV-resistant cable ties every 0.5 meters; use 6mm² copper wire for systems under 10kW or 10mm² for larger configurations. Label each conductor at both ends with heat-shrink tubing marked “PV+” and “PV–” to prevent misconnection.
Attach the DC conductors to the converter’s input terminals following the L-N-G (Live-Neutral-Ground) sequence. Torque terminal screws to 2.5Nm using a calibrated torque screwdriver–over-tightening cracks the terminal housing, while under-tightening causes arcing. Connect the grounding conductor to the chassis ground busbar with a 16mm² bare copper wire; ensure continuity resistance to earth does not exceed 0.1Ω. Activate the DC disconnect and observe the converter’s LCD for input voltage confirmation within 5 seconds.
Before energizing the AC output, confirm all three legs of the grid connection are phase-balanced using a true RMS clamp meter. Permissible imbalance is ≤3% between any two legs. Fasten AC terminals with a 4Nm torque setting; use star-pattern tightening for bolted connections. Program protective relays for overvoltage (270V RMS) and underfrequency (47.5Hz) trips via the converter’s menu–default settings rarely match local grid codes and must be adjusted according to IEC 62109-2 or equivalent standards.
Grid-Tied vs. Off-Grid Tri-Output System Connection Layouts
For grid-connected setups, use a four-quadrant converter with anti-islanding protection compliant with IEEE 1547 or VDE-AR-N 4105 standards. Connect L1, L2, and L3 to the main panel via a dedicated breaker sized at 125% of the continuous current rating–e.g., a 50A breaker for a 40A system. Include a bidirectional meter between the utility and converter to track net energy flow, ensuring reactive power support during grid voltage sags (dynamic VAR injection up to 0.95 leading/lagging). Grounding must follow NEC Article 250 or IEC 60364-5-54, with separate equipment and system grounds bonded at a single point to prevent circulating currents.
Key Differences in Safety and Control Circuits
| Parameter | Grid-Tied System | Isolated (Off-Grid) System |
|---|---|---|
| Overcurrent Protection | Fused disconnect + 3-pole circuit breaker + series arc fault detection (AFCI) | DC-side fuse + 2-stage thermal-MOSFET protection (200% surge tolerance) |
| Voltage Ride-Through | Low-voltage ride-through (LVRT): 0.2pu for 3s, 0.5pu for 10s per VDE 4110 | Frequency-dependent load shedding (47-52Hz trip within 0.5s) |
| Neutral Handling | Solidly bonded at service entrance; no neutral-earth connections at converter output | Floating neutral with ground fault detection (GFD) threshold at 30mA |
| Communication Protocol | Modbus TCP/IP or IEC 61850 for utility SCADA integration | RS-485 or CAN bus with battery BMS interface |
Off-grid configurations demand a split-bus architecture: connect two 600V DC buses (positive/negative) from the energy storage bank to separate H-bridge legs, each feeding a 400V AC bus via line reactors (1.5mH). Use a grounded wye-delta transformer (20kVA for 10kW loads) to create a stable neutral reference; verify phase balance within 2% via harmonic analysis (THD
Grounding electrode resistance must not exceed 5Ω in rocky soil–supplement with chemical rods if necessary. For grid-tied setups, insert a galvanic isolator (e.g., Victron Venus GX) between the converter and external CT sensors to prevent ground loops. Off-grid systems require a 48V DC bus for control circuits, fed by a separate 20A buck converter (efficiency >92%) with reverse polarity protection. Test all connections with a 1000V megohmmeter after installation; leakage current should not exceed 0.5mA per kW rating during a 60-second test.
Load Prioritization Logic
Implement a three-tier load classification in off-grid mode:
- Critical: Medical equipment (1.5x inverter rating reserve, UPS-grade relays)
- Essential: Refrigeration, minimal lighting (rotating load scheduling via PLC)
- Discretionary: HVAC, water heaters (thermostatic control with 2-hour delay)
For grid-parallel operation, enable dynamic load shifting by connecting industrial drives (VFDs) to the same bus as the converter, using a common DC link capacitor bank (4.7mF per kW) to smooth ripple current. Synchronization frequency must match utility within 0.1Hz; verify phase sequence with a phase rotation meter before each commissioning cycle.
