Use a residual current sensor for detecting imbalances in three-line systems–connect it between the neutral point (star configuration) and the protective earth. This setup ensures fault detection within 50 milliseconds at deviations exceeding ±10% of nominal voltage. Avoid direct series connections; instead, route all conductors through the sensor aperture to maintain accuracy.
For undervoltage safeguards, wire the control module across two lines with a shunt resistor (0.1–0.5 ohms) to prevent false tripping. The resistor dissipates transient currents, allowing the device to distinguish true faults from startup surges. Test thresholds at 20%, 40%, and 60% of rated voltage to confirm stability before deployment.
Overcurrent tripping demands precise coil sizing–match the pick-up current to the motor’s full-load amperage multiplied by 1.15 for standard induction types. Split-core transformers simplify retrofits, but ensure gap alignment: misalignment by 1–2 mm reduces sensitivity by 15–20%. Calibrate using a looped test wire with 5A to simulate faults.
Sequence reversal detection requires linking the terminal block to all three supply leads. Modern units integrate this functionality internally, but legacy models need an external phase rotation relay wired in parallel. Verify correct sequence under load–incorrect polarity can stall motors or damage compressors.
Mount protective modules within 2 meters of the load for optimal response. Copper conductors (4–6 mm² for 32A circuits) reduce voltage drop, while aluminum requires upsizing by 40%. Secure connections with torque wrenches (1.2 Nm for M4 bolts) to prevent overheating.
Guide to Connecting a Triple-Circuit Protection Device
Start by identifying the live conductors (L1, L2, L3) on your power source–these must connect directly to the corresponding input terminals of your safeguard unit. Verify the neutral (N) and grounding (PE) lines are properly separated; cross-connecting these will trigger false fault detection. Use 6 mm² copper cables for loads up to 40 A, scaling to 16 mm² for industrial setups exceeding 100 A. Label each conductor with heat-shrink tubing to prevent misalignment during future maintenance.

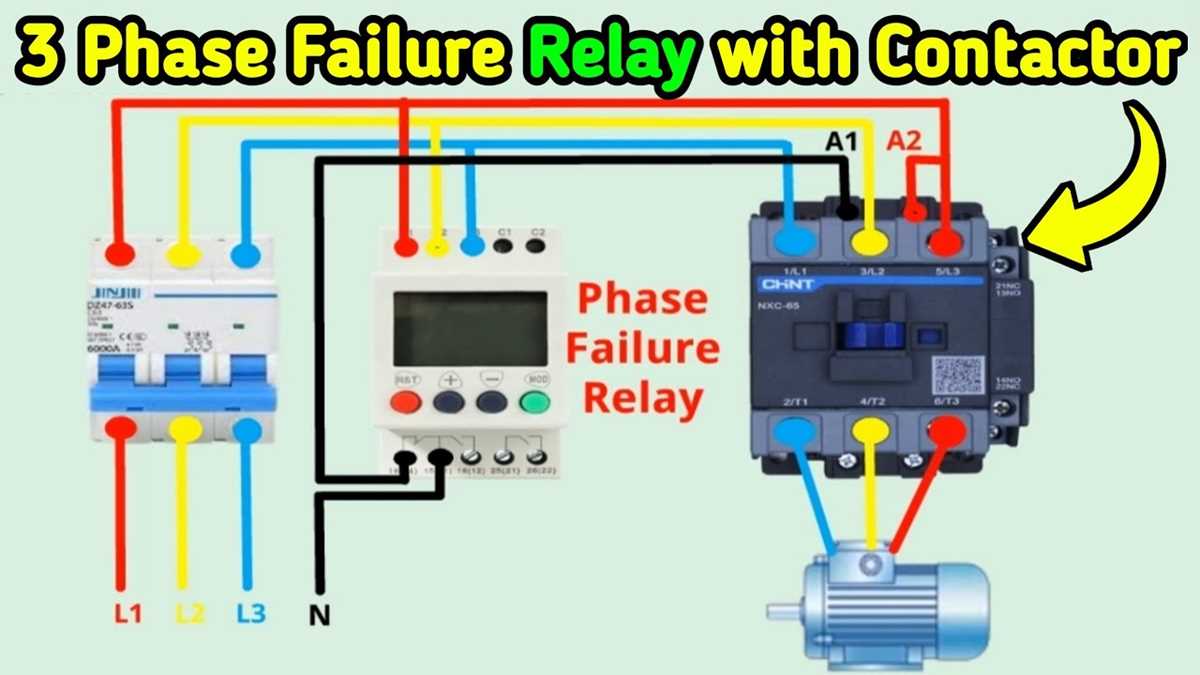

Attach the control outputs to the contactor coil using auxiliary contacts rated for at least 5 A switching current–standard 24 VDC or 230 VAC coils work, but check the device’s manual for voltage tolerance (±10% is typical). Install a fuse (6 A slow-blow) on the control circuit to protect against short-circuits in the signaling path. For three-wire delta configurations, omit the neutral connection entirely; the unit’s internal logic compensates for unbalanced voltages within 2-5% before tripping.
Test the setup under load by simulating a voltage dip (reduce one line to 80% of nominal) or imbalance (adjust L1 to 400 V, L2 to 380 V, L3 to 420 V)–the safeguard should react within 200-300 ms, cutting power to the contactor. If using a dual-function model (voltage + current), wire the secondary outputs to an alarm or PLC input via a 2.5 mm² shielded cable to avoid interference from nearby motors or drives.
Selecting an Ideal Triple-Circuit Protection Device for Your Setup
Begin by identifying voltage thresholds your equipment tolerates. Voltage-sensitive loads–like variable frequency drives or CNC machines–require devices with adjustable under/overvoltage ranges. For standard industrial motors (400V AC), a unit offering ±15% tolerance ensures safe operation without false trips. Check manufacturer specs: some models default to ±10%, which may be insufficient for grids with fluctuating supply.
Prioritize response time based on application criticality. Sensitive electronics (servers, PLCs) demand protection units with sub-100ms reaction times to prevent damage during transient events. For less critical loads (pumps, compressors), 200-500ms is acceptable and often more cost-effective. Compare datasheets: a 50ms unit costs 30-40% more than a 200ms model, so balance need versus budget.
Evaluate current handling capacity relative to your circuit’s full-load amperage. A device rated for 10A continuous may suffice for a 7.5kW motor but will fail under sustained overloads. Choose a unit with at least 1.2x the breaker rating: for a 25A circuit, select a 30A-rated protector to avoid nuisance tripping while allowing margin for startup surges.
| Load Type | Recommended Min. Rating | Typical Breaker Size |
|---|---|---|
| Small Motor (2.2kW) | 16A | 10-16A |
| VFD (5.5kW) | 25A | 20-25A |
| Large Chiller (30kW) | 80A | 63-80A |
Assess unbalance sensitivity settings. Motors experience excessive heating when phase currents differ by >5%. A unit with adjustable unbalance detection (e.g., 5-30%) lets you match protection to motor class: 5% for precision machinery, 15% for general-purpose motors. Avoid fixed-setting devices if your system has known imbalance sources like single-phase loads on one leg.
Look for auxiliary features that simplify maintenance. Units with self-test cycles (monthly) reduce on-site troubleshooting. Remote reset capability via dry contacts cuts downtime by allowing operators to restart protection without accessing panels. Some advanced models log last-trip data (voltage/current values at failure point), useful for diagnosing intermittent issues.
Check environmental ratings if installation isn’t in a climate-controlled space. Devices with -25°C to +70°C operating ranges handle outdoor enclosures or unheated warehouses. Dust/moisture ingress protection (IP54 minimum) prevents failure in dirty environments. Avoid consumer-grade units rated for indoor use only–they’ll degrade in 2-3 years under industrial conditions.
Compare communication interfaces if your system uses centralized monitoring. Modbus RTU units integrate with SCADA systems, while devices with 4-20mA outputs feed analog signals to PLCs. For standalone applications, dry contact outputs suffice. Budget accordingly: Modbus-capable protectors cost 60-80% more than basic models, but eliminate manual readings and enable predictive maintenance.
Verify certification compliance for your jurisdiction. UL 508 (North America), IEC 60947-4-1 (global), and CE markings ensure safety and legal adherence. Some industries require specific certifications (e.g., marine: DNV GL, food processing: NSF). Ignoring these may void insurance coverage or lead to noncompliance fines during audits.
Step-by-Step Electrical Signal Protection Assembly

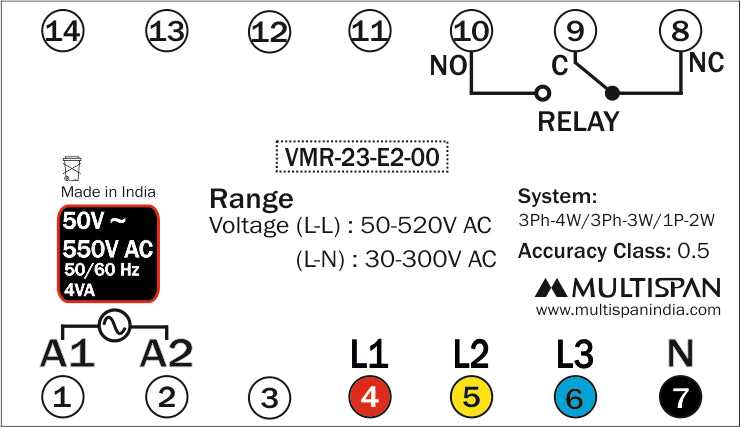

Begin by identifying the three conductive pathways on the protection device: locate the input terminals marked L1, L2, and L3 for the supply lines and a neutral connection where required. Ensure the main power disconnect switch is in the OFF position before proceeding to prevent accidental energization. Use a multimeter set to AC voltage mode to verify absence of current between each pair of terminals and between each line and ground.
Connect the incoming power conductors to the corresponding device inputs–secure L1 to the first terminal, L2 to the second, and L3 to the third using appropriately sized crimp connectors or terminal screws rated for the expected load. For systems with a neutral conductor, attach it to the designated neutral terminal, ensuring the connection is tight and insulated to prevent loose contacts or short circuits. Use torque specifications provided by the manufacturer to avoid under or over-tightening.
Route the output conductors from the device’s output terminals to the downstream load or distribution panel. Match the sequence: T1 to L1 output, T2 to L2, and T3 to L3 to maintain consistency in voltage detection. If the protection unit includes a grounding terminal, connect it to the system’s earth ground using a conductor with sufficient cross-sectional area to handle fault currents. Double-check all connections against the schematics to ensure correct polarity and sequence.
For auxiliary signaling, link the control circuit outputs to an alarm or shutdown mechanism if present. Typical outputs may include normally open or normally closed contacts–consult the technical manual to determine the correct configuration for your setup. Use shielded cable for signal pathways to minimize interference, especially in industrial environments with high electromagnetic noise.
After completing the connections, re-energize the system in stages: first, restore power to the protection device, then verify signal integrity via built-in indicators or test points. Monitor voltage levels across each pathway using a multimeter or oscilloscope to confirm proper operation. If deviations exceed ±10% of nominal voltage, disconnect immediately and recheck all connections for errors.
Finalize the installation by securing all cables with suitable clamps or conduit, ensuring no strain is placed on terminal connections. Label each conductor clearly at both ends to facilitate future maintenance. Perform a functional test by simulating a voltage imbalance or loss to verify the protection device responds as intended–this step is critical for confirming reliability before full operational deployment.
Common Electrical Assembly Errors and Corrections
Avoid connecting neutral conductors to protective earth terminals. This mistake can create dangerous ground loops, tripping residual current devices unexpectedly and increasing shock hazards. Verify terminal labels against schematics before securing connections–neutral wires (typically blue) must terminate at designated N points, while earth wires (green/yellow) require separate PE terminals.
Incorrect current path sequencing disrupts functionality and risks thermal overload. For three-conductor systems, ensure each input line follows L1 → L2 → L3 order as marked on the device casing. Swapping L2 and L3, for instance, distorts protective functions, causing false alerts or missed fault detection. Label conductors at both ends before stripping insulation.
Bypassing protection circuits by direct jumper installation between terminals invalidates safety ratings. Some technicians mistakenly bridge outputs to inputs during troubleshooting, exposing downstream equipment to transient voltages. Always check manufacturer guidelines–most controlled current devices prohibit any permanent bypass configurations.
Exceeding conductor sizing recommendations creates latent fire hazards. Under-sized cables overheat due to insufficient current capacity, while over-sized wires complicate termination, leaving exposed strands that may short. Consult ampacity tables for the precise cross-section matching the system’s maximum load plus 25% derating factor.
Mixing control and power circuits in shared cable trays induces electromagnetic interference. Separate signal cables carrying low-voltage feedback (e.g., 0-10V analog inputs) from high-power feeders (400V mains) by at least 200 mm or use shielded twisted pairs. Ground shields only at one end to prevent circulating noise currents.
Ignoring torque specifications on terminal screws leads to loose connections that arc and oxidize. Most industrial components specify tightening torques (e.g., 2.5 Nm for M4 screws)–use a calibrated screwdriver to prevent stripping. Loose terminals account for 18% of thermal incidents in three-conductor assemblies.
Incorrect rotation direction reversal remains undetected until equipment damage occurs. Verify sequence with a portable tester before full energization–clockwise rotation for motors demands L1 → L2 → L3, while counter-clockwise requires reversing any two inputs. Label motors and controllers accordingly.
Failing to implement redundancy for safety circuits introduces single-point failure risks. Route emergency stop loops through dual-channel protective devices, ensuring each channel has independent power sources and feedback paths. Test both channels monthly by simulating faults–catastrophic failures often trace to unchecked redundant paths.
