Begin by identifying the neutral point in your installation–to balance loading across all conductors, this connection must handle zero potential under ideal conditions. If absent, imbalance currents will return through grounding paths, risking equipment overheating. Place current transformers *downstream* of the main disconnects, not upstream, to prevent false tripping during transient surges. For 400V systems, ensure conductor cross-sections exceed minimum ampacity by 20% to accommodate harmonic distortion from variable-speed drives without derating the insulation.
Connect protective relays in a delta-star configuration with the star point grounded through a 10-ohm resistor; this limits ground-fault currents to 2A while maintaining sufficient sensitivity for fault detection. Verify torque settings on bolted connections–copper busbars require 30 Nm, aluminum requires 20 Nm–using a calibrated torque wrench to prevent loose joints causing hotspots. Label every branch circuit with the *maximum continuous current* (not just breaker rating) to assist maintenance crews during lockout-tagout procedures.
Design branch circuits with separate conduits for each live conductor, even if local codes permit shared conduits, to simplify troubleshooting and reduce crosstalk between adjacent feeds. For motor feeds exceeding 50 HP, incorporate soft start modules set to ramp voltage over 10 seconds–this avoids inrush currents 6-8× the full-load current. Use thermal imaging to check connections *after* 24 hours of operation; initial inspections won’t reveal conduction issues from thermal cycling.
Implement a *zone-selective interlocking* scheme for overcurrent devices: upstream breakers delay by 0.3 seconds if a downstream fault is detected, preventing nuisance tripping while ensuring faults are cleared locally first. Ground all metallic enclosures through 6 AWG conductors (or larger) bonded directly to the service entrance, bypassing any raceways that might introduce impedance. Test insulation resistance with a 500V megohmmeter *before* energizing; readings below 1 MQ signal moisture ingress or insulation degradation.
Balanced Three-Line Power System Visualization
Start by connecting the generator’s output terminals to a wye or delta arrangement–wye for 208V line-to-line in 120V systems, delta for direct 480V industrial setups. Label each conductor L1, L2, L3 with consistent color coding (typically black, red, blue for North America, brown, black, grey for IEC). Ground the neutral point in wye configurations only; delta setups require a dummy neutral or ground reference through a zig-zag transformer for fault detection.
Use a 4-pole breaker for the main disconnect, ensuring each pole handles no more than 80% of its rating for continuous loads. Place current transformers (CTs) on each line before the breaker, sized to match the expected amperage (e.g., 400:5 for a 400A service). Verify CT ratios align with the metering equipment to prevent inaccurate readings or saturation during transients.
For motor loads, wire the starter in line with the conductors, maintaining L1-T1, L2-T2, L3-T3 pairing to avoid counter-rotation. Add a soft starter or variable frequency drive (VFD) upstream if speed control is needed, but isolate it from the main lines with reactors to mitigate harmonic distortion. Capacitor banks should be switched separately to prevent backfeed into the VFD.
Fault Protection and Coordination
Set overcurrent relays to trip at 125% of the full-load current, with short-circuit protection calibrated to interrupt within 0.05 seconds for faults exceeding 10x nominal current. Coordinate fuses and breakers so downstream devices trip first–use time-current curves to verify selective tripping. Ground fault relays require a neutral CT in wye systems; delta setups need zero-sequence CTs around all three lines.
In high-impedance grounding schemes, pair a resistor between the neutral and ground to limit fault current to 5–10A. This prevents arcing faults but complicates single-line-to-ground detection–use a dedicated ground fault relay with adjustable pickup to distinguish between load unbalance and actual faults. Test the relay annually with primary injection to confirm settings.
For emergency shutdowns, wire a mushroom-head pushbutton in series with the main breaker coil, tied to a safety relay with redundant contacts. Ensure the safety relay’s reset requires a separate momentary pushbutton to prevent accidental re-energization. Label all disconnects and breakers with voltage ratings and arc flash hazard warnings (e.g., “480V – Arc Flash Risk – PPE Level 2 Required”).
Load Balancing and Efficiency

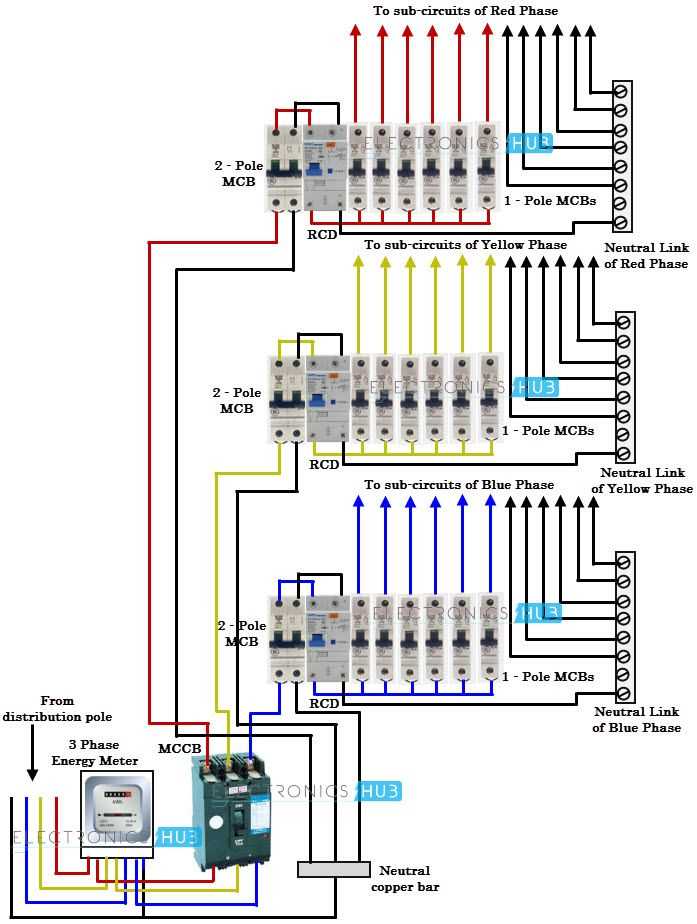

Distribute single-line loads evenly across all three lines to avoid neutral current in wye systems. Use a power analyzer to measure imbalance; aim for less than 3% deviation between line currents. If imbalance exceeds 5%, reconfigure loads or add a phase rotation monitor to alert operators before overheating occurs.
For long conductor runs, calculate voltage drop using the formula VD = (1.732 × K × I × L) / CM, where K is the conductor’s resistivity (12.9 for copper at 75°C), I is current, L is length in feet, and CM is circular mil area. Keep drop under 3% for branch circuits, 5% for feeders. Use paralleled conductors for currents above 400A, ensuring they’re of equal length and terminated in the same lug to prevent circulating currents.
Core Elements of Tri-Level Power Systems and Their Schematic Representations
Begin by identifying the generator on your layout–typically depicted as three synchronized windings spaced 120 degrees apart in a circle or aligned horizontally. Look for the delta (Δ) or wye (Y) configuration labels to determine grounding: a neutral point in Y systems enables single-level fault protection, while Δ setups prioritize fault tolerance over distribution versatility. Always confirm winding labels (U, V, W or L1, L2, L3) match industry standards for your region–mismatches between EU and North American schematics can lead to incorrect load balancing.
Transmission conductors demand distinct symbols: solid lines for live paths, dashed for returns, and dotted for protective earth. Use thicker strokes for high-current routes (typically ≥100A) to visually prioritize them during troubleshooting. Ensure each path terminates at a protective device–fuses, MCBs, or thermal relays–with corresponding trip thresholds clearly annotated (e.g., “250A” for a main breaker). Omit symbols for redundant overload sensors only if the downstream load has inherent fault resilience.
Switchgear and Conversion Components
Contactors should be diagrammed with dual coils if auxiliary control is needed–for instance, a starter with a holding circuit–and pair them with Normally Open (NO) or Normally Closed (NC) contacts based on the start/stop logic. Inverter symbols require clarification: a basic AC-to-DC bridge uses six diodes (two per level), while a VFD incorporates additional gate drivers (IGBTs) for speed modulation. Label DC link capacitors with ripple current ratings to prevent premature failure during harmonic distortion.
Load representations depend on function: resistive elements (heaters) use zigzag lines with wattage values; inductive loads (motors) show an opposing coil symbol alongside power factor (PF) annotations (e.g., “PF 0.85”). For transformers, specify core type (laminated steel vs. ferrite) and turns ratio (e.g., “400:230”) to avoid impedance mismatch during commissioning. Always cross-reference wire gauges with ampacity charts–undersized cabling in high-demand sectors (e.g., elevators) risks overheating.
Grounding and Safety Icons
Grounding symbols vary by system: a single line to earth indicates solid grounding, while a resistor-enclosed “G” denotes resistance-grounded networks (common in industrial pumps to limit fault currents). Neutral points must be distinguished from protective earth (PE)–use a dashed-and-dotted line for the latter. Include lightning arrestors near service entry points, depicted as a spark gap, and pair them with transient voltage suppressors for sensitive equipment. Double-check that all ferrule terminals or lugs match the conductor cross-section to prevent arcing in high-vibration environments.
Step-by-Step Guide to Sketching a Tri-Star Power Layout
Begin with a clear workspace and standard drafting tools: graph paper (4 mm grid), HB pencils, eraser, protractor, and colored pens (red, blue, yellow). Align the grid vertically to maintain uniformity–this ensures 120-degree spacing between line sets. Label each conductor set immediately: L1 (red), L2 (blue), L3 (yellow), plus neutral (black) and ground (green) if applicable.
Mark a central reference point for the power source, typically placed at the top edge of the sheet. From this origin, draw three straight lines diverging at 120° intervals, each extending 100 mm before curving downward to simulate overhead conductors or conduit paths. Use a protractor to verify angles; deviations beyond ±2° will misalign downstream connections.
Identify load types and position them symmetrically below the source. Common loads include motors, transformers, or distribution panels–each represented by a rectangle. Dimensions: motors (width 20 mm × height 30 mm), panels (40 mm × 60 mm). Connect each incoming line set to its corresponding load terminal using straight, horizontal runs, avoiding diagonal crossings unless absolutely necessary. Bend radii for conduit runs should match real-world specs–10× conduit diameter for rigid, 6× for flexible.
| Component | Symbol | Line Weight | Spacing (mm) |
|---|---|---|---|
| Source bus | Thick solid | 1.0 mm | 60 |
| Load terminal | Medium solid | 0.5 mm | 40 |
| Neutral | Thin dashed | 0.3 mm | 30 |
| Ground | Thin dotted | 0.2 mm | – |
Apply consistent arrowheads at line endings to denote current flow direction–outward from source, inward to loads. Where conductors cross or run parallel, maintain minimum 5 mm clearance; use a jump offset (small semicircle) to prevent visual ambiguity. For branched runs, branch lines should start at vertical midpoints of main runs, never at corners.
Annotate each segment with precise values: voltage (400 V typical), current rating (derived from load data), conductor gauge (10 AWG minimum for 30 A circuits), and protective device specs (breaker type, trip curve). Position text horizontally alongside runs, avoiding overlap with other elements. Finalize by reviewing grid alignment–each 120° set should converge cleanly at the source origin; misalignments must be corrected by redrawing affected segments.
Troubleshooting Common Errors
Erratic spacing causes uneven load balancing. Measure each 120° segment–if variances exceed 3 mm, erase and redraw using the protractor. Diagonal crossings introduce noise; reroute offenders horizontally or vertically. Symbol size must scale uniformly–oversized motors skew perception of conductor lengths. Test readability by blocking out colored lines; underlying pencil marks should remain legible.
