Start with the throttle input. Locate the three primary wires–+5V (red), signal (green or yellow), and ground (black). The signal wire must connect directly to the driver’s designated throttle pin, not a random GPIO. Miswiring here causes erratic acceleration or complete failure. Verify voltage at the throttle’s signal pin with a multimeter: 1.0V at rest, 4.2V at full engagement. Anything outside this range indicates a faulty throttle or incorrect wiring.
Power delivery demands precision. The battery positive (red) and negative (black) must route to the driver’s input terminals, not the motor outputs. Use 12AWG wire for current paths; thinner gauges risk overheating under load. Install a 30A fuse between the battery and driver–no exceptions. Without it, a short circuit will destroy the circuitry within milliseconds. Confirm the driver’s input voltage range matches the battery’s nominal output; a mismatch leads to undervoltage shutdowns or overvoltage damage.
Motor connections require absolute polarity alignment. Swap the phase wires (blue, yellow, green) and the driver won’t initialize. Use bullet connectors crimped with a hydraulic crimper–solder alone won’t handle the current. Measure resistance between the motor phases: 0.1–0.5 ohms indicates a healthy winding. Anything above suggests a fault requiring immediate attention.
The hall sensor wires (five-pin connector) are mandatory for smooth startup. Incorrect ordering (red, yellow, green, blue, black) causes jerky movement or failure to engage. Test each sensor’s output with a multimeter: high (4.5V) or low (0V) as the wheel turns. If readings fluctuate erratically, sensor alignment or wiring is flawed. Bypass sensors only in emergencies–hall-less operation strains the driver and reduces efficiency.
Ground loops are a silent killer. Never daisy-chain grounds. Run a dedicated 12AWG ground from the driver’s negative terminal directly to the battery’s negative terminal. Shared grounds–especially with accessories–introduce noise, causing throttle lag or random cutouts. For added stability, star-ground all components at a single point near the battery.
Final validation: With the system powered, spin the wheel manually. If the motor resists or clicks, phase or hall wiring is reversed. Disconnect immediately to avoid overheating. Recheck every connection before attempting restart. The driver’s LED indicators provide critical diagnostics–consult the manual for blink codes. Silent failures often trace back to a single misplaced wire.
Connecting a Low-Voltage Power System for Pedal-Assist Machines
Start by identifying the throttle, motor, and battery terminals on your speed governance unit. Most setups use 3mm bullet connectors for high-current paths–ensure these are crimped tightly with a ratcheting tool to prevent voltage drops under load. A 20-amp fuse should be installed within 15cm of the power source to protect against short circuits, as recommended by EN 60204-1 standards for low-voltage safety.
Signal and Ground Distribution
Route the 5V hall sensor wires in twisted pairs to minimize electromagnetic interference, especially if the hub exceeds 500W. The PAS (pedal assist sensor) typically requires a 10kΩ pull-up resistor between its signal and reference lines–omit this only if the documentation specifies an active-high output. Ground loops can cause erratic behavior; consolidate all grounds at a single star point near the battery’s negative terminal.
Use 18AWG wire for signal paths and 14AWG for power, matching the gauge to the current draw–under-sizing risks overheating at sustained 15A draw. Connect the brake levers’ normally-open contacts in series with the throttle circuit; this ensures immediate power cut-off when activated. Test continuity with a multimeter before securing connections with heat-shrink tubing rated for 125°C.
For regenerative braking systems, verify the unit’s specifications–some models require a dedicated braking diode (typically SB540) across the motor terminals to handle back EMF. If modifying a stock arrangement, document each wire’s color code (e.g., blue=throttle+, green=motor phase A) to avoid miswiring during troubleshooting. Regulatory compliance varies; in the EU, a CE-marked 2-amp slow-blow fuse is mandatory for public use.
Final Checks Before Power-Up
Apply dielectric grease to all exposed connectors to prevent corrosion, particularly in humid climates. After assembly, measure the no-load voltage at the motor terminals–it should match the supply’s output within ±0.2V. If voltage sags under throttle, recheck the battery’s health: a 5% drop at 20A indicates degraded cells. Always secure loose wires with nylon ties, keeping them away from moving parts and heat sources like the hub or MOSFET array.
Key Components for a Low-Voltage Motor Drive System
Begin with a 40A–60A throttle-compatible drive module matched to your battery pack’s output. Ensure the unit supports PWM signals between 1–4 kHz for smooth acceleration without overheating. Check for built-in low-voltage cutoff at 18.5V to prevent deep discharge damage, and verify compatibility with both hall-effect and cadence sensors if using a mid-drive system. Brands like Grin Tech and Infineon offer models pre-configured for 250W–500W motors, simplifying initial setup.
Battery Pack and Protection Circuit
Assemble a 7-series lithium-ion or lithium-iron-phosphate pack with a 30A–50A BMS–match the amp rating to your drive module’s peak demand. Include a temperature sensor (NTC 10kΩ) wired to the BMS to halt charging above 60°C. Add a 50A fuse and reverse polarity protection diode (e.g., 1N5408) on the positive lead. A waterproof XT60 or Anderson Powerpole connector ensures secure, weather-resistant power delivery to the drive module.
Hall sensors require shielded twisted-pair wiring (22–24 AWG) with ferrite chokes near the motor to minimize interference. Use a 12-position JST connector for clean signal routing. For throttle input, opt for a 3-wire hall-effect twist-grip with 1–4V output range or a potentiometer-based lever if adjusting on-the-fly. Test continuity between all grounds–motor, throttle, and drive module–before powering up to avoid erratic behavior.
Step-by-Step Power Module Assembly for 2-Rail Drivetrains

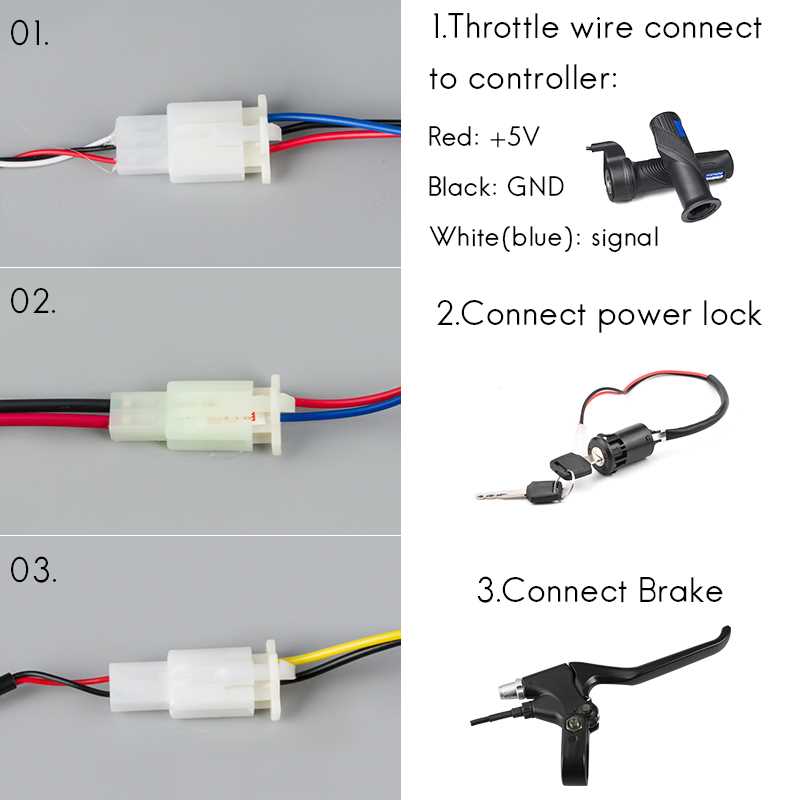

Start by securing the throttle signal wire–typically a 1-4V analog input–to the marked port on the control unit, often labeled “THR” or “SPEED SENSOR”. Use a multimeter to verify voltage output before connecting; idle should read near 1V, full engagement around 4V. Confirm compatibility with Hall-effect sensors if your motor uses them, as mismatched signals cause erratic acceleration or cutoff.
Attach the brake lever switches next. Mechanical levers use normally closed (NC) contacts that open when engaged, cutting power to the motor. Hydraulic systems often integrate motor inhibition directly into the lever assembly–ensure the correct wiring harness is selected (aftermarket lever kits sometimes require adapter plugs). Test by squeezing each lever; the motor should halt without delay. If response lags, inspect for loose connectors or corroded terminals using a continuity tester.
Integrate the battery pack’s main leads last. Positive (red) connects to the primary input terminal, usually adjacent to a fuse holder pre-installed with a 30A-50A fuse depending on motor wattage. Ground (black) routes to the chassis or control unit’s dedicated negative bus bar–never splice grounds with phase wires. For dual-battery setups, wire packs in parallel to retain 2-rail voltage while doubling capacity; confirm polarity before securing connections with heat-shrink tubing to prevent shorts.
Phase wires–the thickest in the setup–require precise matching with motor outputs. Brushless motors use three leads (U, V, W); swap any two if the motor spins backward after initial startup. Unsure of your motor’s configuration? Run a rotational test: spin the wheel freely, then power momentarily; the correct wiring produces smooth torque in the intended direction. Misaligned phases cause overheating or a buzzing noise under load.
| Component | Wire Gauge (AWG) | Terminal Type | Torque Spec (Nm) |
|---|---|---|---|
| Battery leads | 10-12 | Ring or spade (6.3mm) | 4.0-4.5 |
| Phase wires | 8-10 | Bullet (4mm or 6mm) | 5.0-5.5 |
| Signal wires | 18-22 | JST or dupont | 1.5-2.0 |
Install the power switch between the battery and control module. Use a heavy-duty rocker or toggle rated for 100A continuous current–substandard switches overheat and fail under sustained loads. For waterproofing, position the switch under a sealing gasket; test the off position by ensuring the system powers down completely–residual current indicates a faulty switch or parasitic drain.
Complete the assembly by routing all wires away from moving parts (chain, pedals) and securing them with zip ties every 150mm. Use spiral wrap for high-traffic areas like the dropout or bottom bracket. Avoid sharp bends in phase wires–radius below 25mm risks insulation damage over time. Final step: perform a bench test without load, monitoring dashboard outputs (if equipped) for voltage sag or error codes before road testing.
Troubleshooting Common Faults
No power output? First, check the emergency cutoff switch (if present)–it’s often overlooked. Next, verify battery voltage at the module’s input terminals; less than 20V indicates a disconnected lead or depleted pack. If the motor hums but doesn’t rotate, recheck phase wire connections–Hall sensor arrays must align with manufacturer specifications (typically 120° for 3-phase). Overheating during operation usually stems from undersized wires or poor solder joints; redrill connections and apply fresh solder.
