Begin by identifying the primary and secondary coils on the 208–250VAC unit. The input terminals–typically marked L1 and L2–must receive the dual-phase line feed. Confirm the line voltage with a multimeter before proceeding; discrepancies beyond ±10% risk damaging the core or reducing efficiency. Neutral connections are optional unless the load requires balanced return paths, but never bond neutral to ground at the device itself.
For standard dual-pole configurations, strip 6mm of insulation from each conductor and insert them fully into the terminal screws. Torque specifications usually range between 0.8–1.2 Nm–over-tightening distorts the threads, while under-tightening causes arcing. Use copper wire no smaller than 12 AWG for circuits under 20A; switch to 10 AWG if the current exceeds this threshold. Keep leads as short as possible; coiled excess wire creates parasitic inductance that degrades performance.
Label the output side X1 and X2 to match the schematic. If the downstream load demands a grounded reference, connect X2 to the equipment chassis ground via a dedicated 6 AWG green wire. Verify continuity between X2 and the chassis ground lug–resistance should read
After securing all connections, apply power through a dedicated double-breaker rated for the device’s VA capacity (e.g., a 30A breaker for a 7.2 kVA unit). Measure the output voltage across X1-X2; it should stabilize within ±5% of the nameplate rating (e.g., 115V for a step-down unit). If readings fluctuate, recheck coil polarity–reversing L1/L2 swaps the magnetic fields and halves the output.
Install transient suppression across the input terminals if the unit powers sensitive electronics. A metal-oxide varistor (MOV) with a clamping voltage 20% above the peak line voltage (e.g., 400V for 250VAC systems) absorbs spikes during inductive load switching. Secure the MOV directly to the terminals to minimize lead inductance.
Step-by-Step Guide to Connecting a Dual-Voltage Power Source
Begin by identifying the primary and secondary coil terminals on your device–typically marked with “H” for high-voltage inputs and “X” for low-voltage outputs. For a 220-240VAC configuration, link the incoming L1 and L2 supply lines directly to the H1 and H2 terminals, ensuring no neutral connection is made at this stage. If the unit requires grounding (as most do), attach the grounding wire to the designated terminal or chassis point before proceeding further.
On the secondary side, connect the X1 terminal to the load’s positive lead, while X2 serves as the common return–this establishes a complete circuit for the stepped-down voltage. For single-phase applications, avoid splitting the secondary winding; instead, use a jumper between X2 and X3 if present, unless the manufacturer specifies a center-tap configuration. Verify taps match the required output (e.g., 12V, 24V, or 48V) by consulting the data plate or schematic–incorrect tap selection risks equipment damage.
Test continuity between all connected points before energizing: a multimeter set to ohms should show near-zero resistance across coil windings and infinity between isolated terminals. If incorporating protective devices like fuses or circuit breakers, position them in series with the primary L1 line, sized 125% above the device’s maximum current rating. For three-wire systems (L1, L2, and neutral), confirm the neutral remains unconnected unless the schematic explicitly calls for a derived neutral via a bonding jumper.
After securing all connections, apply power incrementally–first with a 50% voltage test if possible, then full line voltage–while monitoring for abnormal heat, audible hum, or excessive current draw. A properly connected unit will exhibit stable operation within 5% of rated output; deviations exceeding 10% indicate winding misconfiguration or internal faults. Document your setup with a labeled sketch to simplify future troubleshooting or modifications.
Core Elements for a Dual-Phase Power Conversion Setup
Select a magnetic core rated for at least 1.25× the intended load wattage to prevent saturation under continuous duty. Toroidal designs reduce stray flux by up to 30% compared to E-I laminations, improving efficiency in compact enclosures. Verify the core material: grain-oriented silicon steel handles high-frequency harmonics better than standard cold-rolled steel, crucial for switching applications.
Primary and secondary coil conductors must match the current capacity calculated by dividing the power rating by the phase-to-phase voltage. For 60 Hz systems, AWG 12 wire handles 20 A safely, while AWG 8 supports 40 A with a temperature derating factor of 0.8 for 75°C insulation types. Use parallel strands for currents above 50 A to minimize skin effect losses, which can exceed 15% in solid conductors at 60 Hz.
| Conductor AWG | Max Continuous Current (A) | Voltage Drop per 100 ft (mV/A) |
|---|---|---|
| 14 | 15 | 85 |
| 12 | 20 | 53 |
| 10 | 30 | 33 |
| 8 | 40 | 21 |
Thermal protection is mandatory. Install a bimetallic breaker or fuse sized at 110–125% of the maximum coil current. For units above 2 kVA, incorporate a thermal cutoff switch embedded in the windings, calibrated to trip at 110°C for Class F insulation. Enclosure ventilation must maintain ambient below 40°C; forced-air cooling reduces core temperature by 18–22°C compared to passive convection in sealed housings.
Grounding connections require bare copper conductors sized per NEC Table 250.122: minimum AWG 10 for circuits up to 30 A, AWG 8 for 40 A, and AWG 6 for 60 A. Bond the core and chassis to the grounding conductor using a star washer to ensure electrical continuity under vibration. For sensitive loads, add a 1 mΩ bonding strap between secondary neutral and ground to suppress common-mode noise above 30 kHz.
Input/output terminals should accept crimp-style ring terminals rated for the peak current. Tin-plated copper lugs prevent corrosion; silver plating reduces contact resistance by 40% for currents above 50 A. Secure connections with torque values specified by the terminal manufacturer–typically 12–15 lb-in for AWG 12, increasing by 30% for aluminum conductors. Use dual-wrench techniques to prevent conductor rotation during tightening.
Isolation barriers between primary and secondary windings must withstand a hipot test at 3× the peak phase voltage plus 1000 V. For medical-grade applications, clearance distances should exceed 8 mm through air and 4 mm across surfaces per IEC 61558. Polyester tape layers between windings provide dielectric strength up to 5 kV/mm, while Nomex paper withstands 7 kV/mm but increases winding thickness by 12%.
Step-by-Step Primary and Secondary Coil Hookup Guide
Begin by verifying the input voltage rating on the device’s rating plate matches the local mains supply–typically split-phase systems at 120/208V or single-phase at 208/230V. Use a multimeter to confirm live conductors and neutral before handling any terminals. Identify the primary coils by their thicker wire gauge and terminal markings (H1, H2, H3, or H4); these connect to the power source.

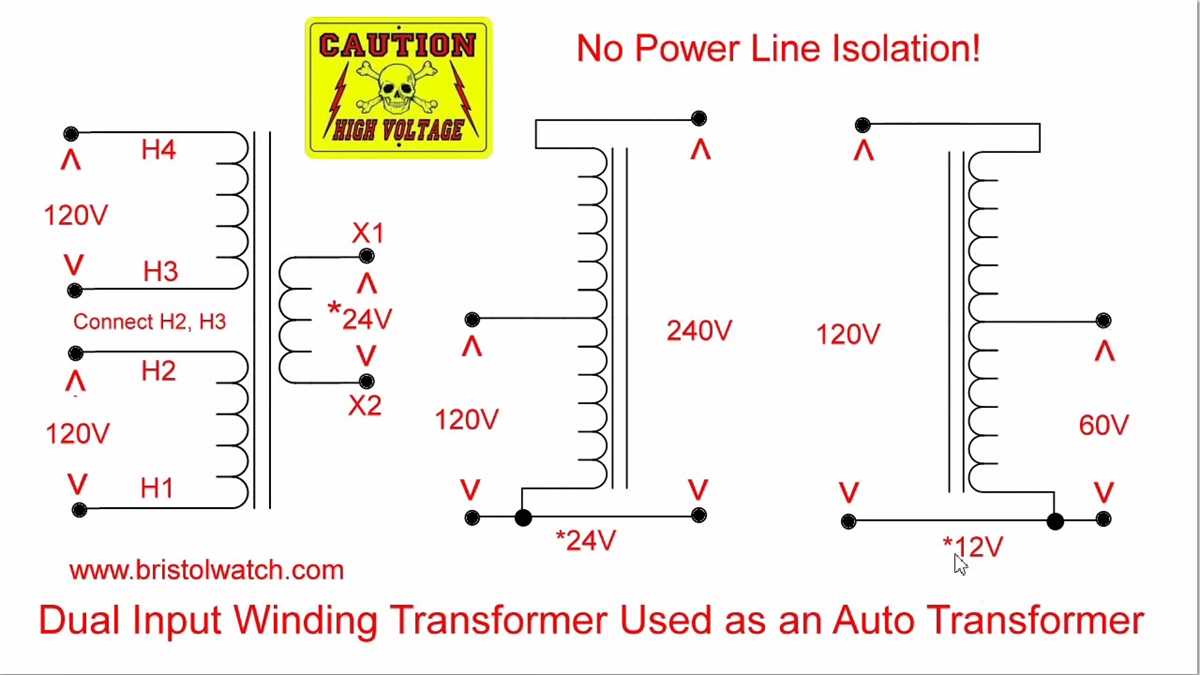

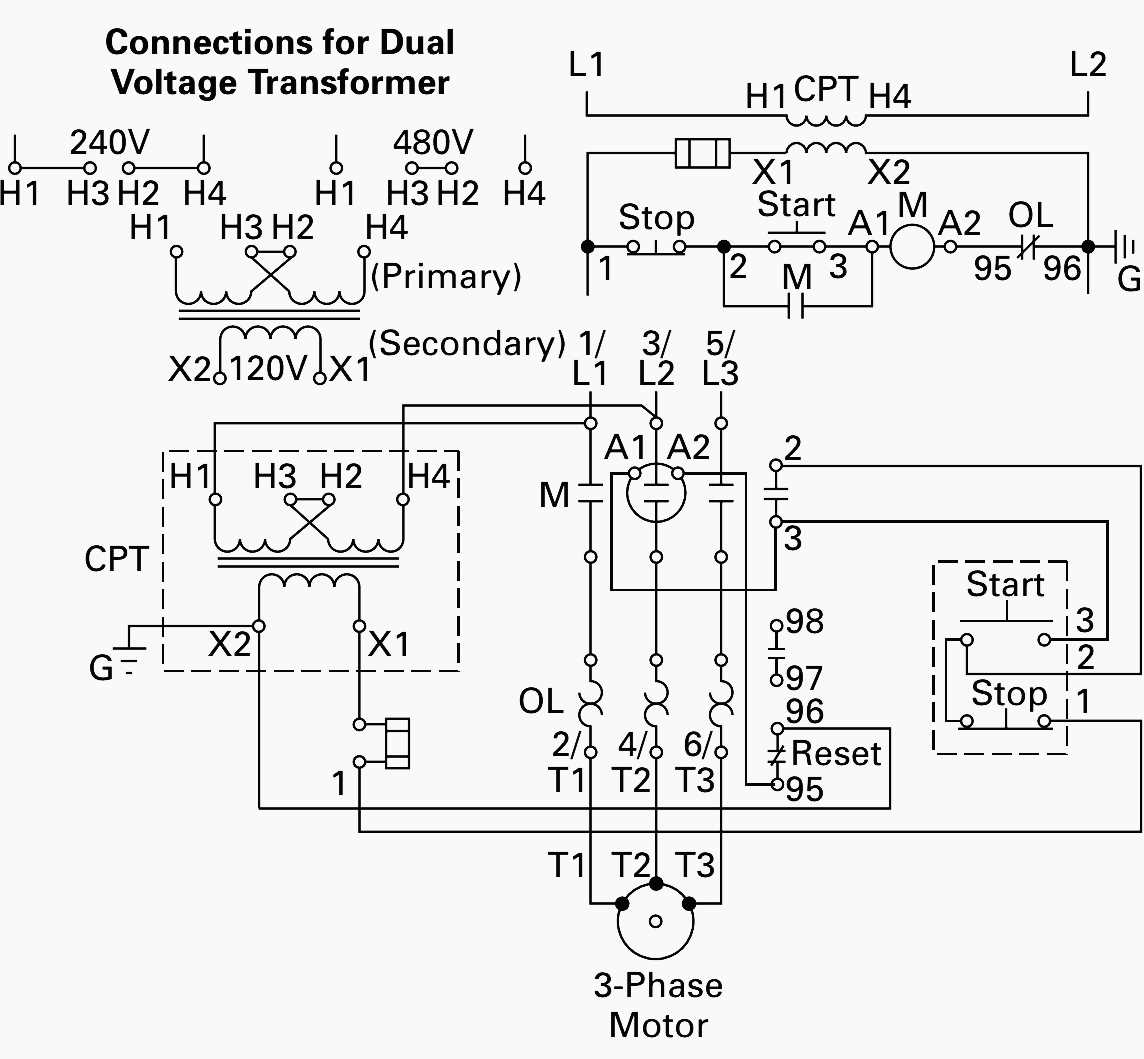

For dual-voltage primary setups, link H1 and H2 in parallel for lower voltage (e.g., 120V) or in series for higher (230V). Connect the neutral to H3 if present, ensuring a secure bond with a torque wrench–tighten to manufacturer specs (usually 12-15 in-lbs for #10 AWG). Label each conductor with heat-shrink tubing or colored tape to prevent misidentification during later adjustments.
Primary Coil Bonding Sequence
Strip ½ inch of insulation from each lead, then twist strands clockwise before crimping terminal lugs. Use copper-only lugs rated for 60°C minimum; aluminum lugs risk galvanic corrosion. For series hookups (H1 to H3, H2 to power), insert a jumper between the two coils–verify continuity with a megohmmeter before energizing. Isolate the neutral (H4) if unused, cap it with a non-conductive nut, and secure it away from live parts.

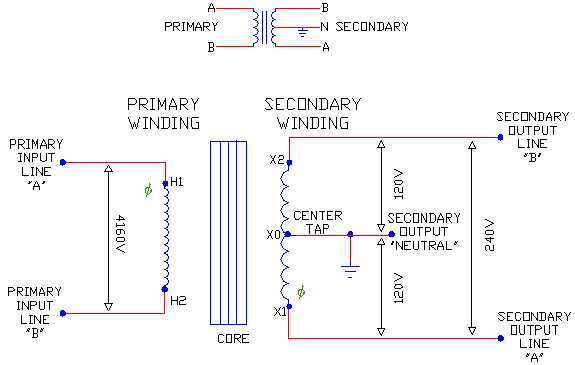

On the output side, measure the secondary coil voltage with the primary energized but no load attached. Match the expected output (e.g., 12V, 24V) to the device’s requirements–tolerance should not exceed ±5%. Identify terminals X1 and X2 by their thinner wire diameter; connect these to the load circuit. For center-tapped secondaries, X2 serves as the common reference–bond it to the chassis ground only if the schematic specifies a grounded neutral.
Use stranded wire (AWG 14 or heavier) for load connections, ensuring insulation is rated for at least 300V. Route wires away from sharp edges or moving parts–secure them with nylon clamps spaced every 12 inches. Test for shorts with a 500V insulation tester: apply probes between each coil and ground, then between primary and secondary–readings below 1MΩ indicate a fault.
Final Checks Before Energizing
Verify all connections with a continuity test under load–current should stabilize within 1-2 seconds. Re-torque terminal screws after initial heating cycles, as thermal expansion can loosen joints. Install a 1A fuse or circuit breaker on the primary side as short-circuit protection; secondary circuits may use fast-acting fuses sized at 120% of expected load current.
Energize the system in stages: apply 50% voltage first, monitor for humming or excessive heat (surface temps above 60°C suggest overload), then ramp to full power. Confirm output stability with an oscilloscope–noise above 50mV peak-to-peak suggests incorrect coil phasing or stray capacitance. If using a step-down configuration, reverse the input and output connections only if the core design permits bidirectional operation.
