Begin by securing a double-pole breaker rated for your application–typically 30 or 50 amperes for residential outlets. Size the wire according to the National Electrical Code: 10 AWG copper for 30-amp circuits, 6 AWG copper for 50-amp circuits. Always verify local codes, as requirements may differ for garages, workshops, or high-demand appliances.
Neutral wires are unnecessary for most 120/240-volt circuits unless the device requires a 120-volt connection, such as dryers with electronic controls. In such cases, use a four-wire configuration: two hot wires, one neutral, and one ground. For pure 240-volt equipment like welders or ovens, a three-wire setup (two hots, one ground) is standard. Label all conductors at both ends to avoid misconnection.
Grounding must follow NEC Article 250. Connect the bare or green ground wire to the equipment grounding terminal and the service panel’s grounding bus. For subpanels, run a separate grounding conductor back to the main panel–never rely on conduit alone unless explicitly permitted by local amendments. Test continuity before energizing the circuit using a multimeter set to ohms.
Terminal blocks on appliances usually indicate L1 and L2 for the hot wires. Match these to the breaker’s corresponding poles to maintain phase balance. Over-tightening terminal screws strips threads; aim for 20 in-lbs torque on #6 or larger wire. After securing connections, wrap all exposed terminals with electrical tape to prevent accidental contact.
Final steps: verify no load is connected, flip the breaker on briefly to check for voltage (240 volts across L1 and L2), then switch off before attaching the device. Re-check all bonds and tighten any connections that may have loosened under current. Document the circuit in your panel directory with the breaker number and purpose.
Electrical Connection Guide for Dual-Phase Circuits
First, verify the breaker panel supports a split-phase 60Hz supply by checking for a double-pole circuit breaker rated for 30, 40, or 50 amps, depending on the load. Use 10 AWG copper conductors for 30A circuits, 8 AWG for 40A, and 6 AWG for 50A–never substitute aluminum unless explicitly approved for the application. Terminate the ground wire (bare or green) to the grounding bus bar, while the two hot legs (typically black and red) connect to the breaker’s terminals. The neutral (white) should bond to the neutral bus, but only if the appliance requires it–some machinery operates on a 3-wire configuration with no neutral.

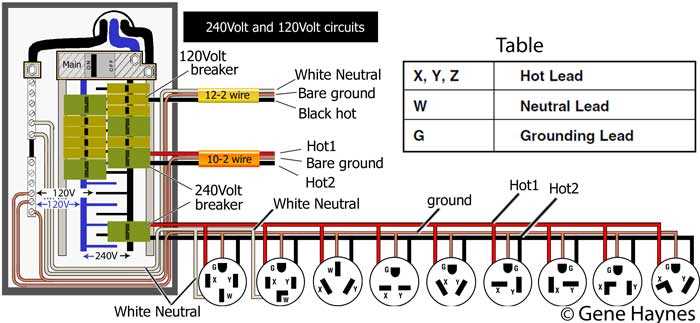

For NEMA 14-50 or 6-50 receptacles, follow this terminal mapping:
| Terminal | Wire Color | Function |
|---|---|---|
| X | Black | Hot (Line 1) |
| Y | Red | Hot (Line 2) |
| W | White | Neutral (if required) |
| G | Green/Bare | Ground |
After securing connections, measure voltage across the hot legs–expect 220–240VAC (±5%)–and between each hot leg and neutral (110–120VAC). If readings deviate, inspect the breaker, terminals, and wire continuity with a multimeter. For hardwired appliances like ranges or HVAC units, use individual wire nuts or crimp connectors rated for the current load, never twist-and-tape splices. Label all wires at both the panel and outlet with permanent markers to prevent misidentification during future maintenance.
When routing cables, maintain a minimum 1.25-inch bend radius for solid conductors and 1.5 inches for stranded to avoid insulation damage. Secure cables every 4.5 feet and within 12 inches of junction boxes using approved staples or straps–do not overtighten. For outdoor or damp locations, use UF-B cable or conduit with THHN/THWN wires, ensuring all boxes are weatherproof. Finally, energize the circuit only after a second technician verifies the setup; arc faults in dual-phase systems can cause rapid, catastrophic failure.
Essential Equipment for Dual-Phase Electrical Setup
Begin with a 30-amp double-pole breaker rated for the target current (e.g., 40A for heavy appliances) to match the conductor gauge. Use 10 AWG copper wire for 30-amp circuits and 8 AWG for 40-amp applications, ensuring the insulation is THHN/THWN-2 for dry locations or XHHW-2 where moisture resistance is needed. A voltage tester (non-contact or multimeter) is mandatory to verify de-energized conductors before handling. Include a torque screwdriver (10–20 in-lbs) to tighten terminal screws to NEC standards, preventing loose connections that cause overheating. For conduit installations, schedule 40 or 80 PVC (½” for 10 AWG, ¾” for 8 AWG) requires a hacksaw, PVC cutter, or heat gun for bending, plus solvent cement for joints. A fish tape simplifies pulling wire through conduit, while wire strippers sized for 10–8 AWG eliminate insulation damage. Secure cables with romex staples every 4.5 feet and within 12 inches of junction boxes, or use conduit straps for rigid setups.
Specialized Supplies for Safety and Compliance
Install a NEMA 6-15 or 6-20 receptacle (for 15–20 amp appliances) or a NEMA 14-30/14-50 for 30–50 amp devices, depending on the equipment’s plug type. Always pair outlets with a matching cover plate to prevent accidental contact. For subpanel extensions, use a grounding bus bar and neutral bus bar with at least 20% spare capacity. Copper grounding rods (8-foot, 5/8″ diameter) must be driven at least 8 feet into soil, connected via 6 AWG bare copper wire clamped with irreversible grounding fittings. Insulated wire nuts (yellow for 12–10 AWG, red for 8 AWG) and heat-shrink tubing (¾” diameter for splices) prevent short circuits. A GFCI breaker (30–50 mA trip) is critical for outdoor or wet-area circuits, while AFCIs (15–20A) protect bedroom or living space outlets from arc faults. Label all conductors at both ends with wrap-around wire markers (L1, L2, N, G) to avoid miswiring. Keep a fire extinguisher (Class C) nearby during work–never rely on water for electrical fires.
Step-by-Step Guide to Installing a Dual-Voltage Receptacle from the Electrical Box
Begin by switching off the main power at the service panel to eliminate any risk of electrical shock. Verify the absence of current using a non-contact voltage tester on the breaker terminals and the designated circuit path.
Select a two-pole circuit breaker matching the amperage requirements of your appliance–typically 30A for dryers, 40A for ranges, or 50A for high-demand equipment. Confirm the breaker’s compatibility with your panel’s brand and model. If upgrading an existing setup, remove the old breaker by pulling it straight out from its slot; for a new circuit, snap the breaker into an empty slot ensuring proper alignment with the bus bar.
Run the appropriate cable from the panel to the outlet location–10 AWG for 30A circuits, 8 AWG for 40A, or 6 AWG for 50A. Ensure the cable length accounts for routing through joists, studs, or conduit without strain. Strip the outer sheath 6–8 inches at both ends, exposing the red, black, white, and bare ground wires. For conduit installations, pull wires individually, terminating them with wire nuts or lugs per local code.
Key steps for termination at the panel:
- Connect the bare ground wire to the grounding bar, tightening the screw securely.
- Attach the white neutral wire to the neutral bar in panels with separate grounding and neutral buses. In main panels, both may share a bus; verify local regulations.
- Insert the red and black hot wires into the breaker’s lugs, torquing to the manufacturer’s specifications (usually 12–25 in-lbs).
- Fold excess wire neatly into the panel, avoiding obstruction of other breakers.
At the receptacle location, mount a NEMA 14-30, 14-50, or 6-30 outlet box depending on appliance requirements. Secure the box to a stud or joist, ensuring it sits flush with the finished wall surface. For surface-mounted installations (e.g., garages), use a metal weatherproof box with a gasketed cover. Strip ¾ inch of insulation from each wire, then connect them as follows:
- Ground: Bare copper to the green grounding screw (or U-shaped terminal).
- Neutral: White wire to the silver-colored screw or terminal (marked “W” or “N”).
- Hot wires: Red and black to brass-colored screws or terminals (typically marked “X” and “Y”).
Tug each wire gently to confirm a tight connection. For NEMA 10-style outlets (older setups without neutral), cap the white wire with a wire nut and connect only the red, black, and ground–check local codes before bypassing neutral.
Before powering the circuit, inspect all connections for exposed copper, loose terminations, or pinched wires. Replace the panel cover, securing it with all screws to prevent arc faults. Switch the breaker to the “on” position and test the outlet with a multimeter or receptacle tester, verifying 220–240 volts between the two hot terminals and 110–120 volts from either hot to neutral (for four-prong outlets). If voltage is absent or incorrect, recheck all terminations, breaker engagement, and cable integrity.
Finalize the installation by securing the receptacle faceplate, labeling the breaker in the panel directory, and ensuring proper strain relief on the cable where it enters the box. For GFCI protection in wet locations (e.g., outdoor outlets), use a two-pole GFCI breaker in the panel–note that standard GFCI receptacles are not rated for dual-voltage circuits. Document the installation with photos for future reference, including breaker location, cable routing, and outlet type.
Color Coding and Conductor Size for Dual-Voltage Electrical Installations
Always use black and red for ungrounded (hot) conductors in split-phase setups. The neutral–when required–must be white or gray, and the equipment grounding conductor (EGC) must be green, bare, or green with yellow stripe. Local codes may permit alternative color schemes for multi-wire branch circuits, but these remain the safest defaults. Verify with the latest NEC or regional regulations before finalizing terminations, as deviations can void inspections or create hazards.
Select conductor gauge based on load amperage, distance, and insulation type. For standard residential applications carrying up to 30A, 10 AWG copper suffices for runs under 100 feet. At 40A–50A, upgrade to 8 AWG copper, while 60A–100A demands 6 AWG or 4 AWG copper. Longer distances (>150 feet) or higher ambient temperatures may require upsizing by 1–2 gauges to compensate for voltage drop. Aluminum conductors require one size larger than copper for equivalent current capacity.
- 30A circuits: 10 AWG (copper), 8 AWG (aluminum)
- 40A circuits: 8 AWG (copper), 6 AWG (aluminum)
- 50A circuits: 6 AWG (copper), 4 AWG (aluminum)
- 60A–70A circuits: 4 AWG (copper), 2 AWG (aluminum)
- 80A–100A circuits: 2/0 AWG (copper), 4/0 AWG (aluminum)
Voltage drop calculations prioritize conductor material, length, and current. Use the formula VD = (2 × K × I × L) / CM, where K = 12.9 (copper) or 21.2 (aluminum), I = amperage, L = one-way distance (feet), and CM = circular mils. Target for general loads, . For a 50A circuit over 150 feet, 6 AWG copper yields ~3.3% drop–upsize to 4 AWG to remain compliant.
Avoid splices in high-current conductors whenever possible. If necessary, use insulated crimp connectors rated for the circuit’s amperage, followed by heat-shrink tubing or listed splice kits. Never daisy-chain multiple loads on a single conductor exceeding 80% of its capacity. For subpanels, dedicate separate grounding and neutral buses, bonding the grounding conductor only at the main service disconnect. Label all conductors at termination points with durable, legible tags to simplify future maintenance.
