Begin by ensuring the transfer switch is installed between the main service panel and the backup power unit. Use a double-pole, double-throw (DPDT) switch rated for 30 amps or higher to handle the load safely. Verify the switch’s compatibility with your service’s amperage–most residential split-phase systems require a 200-amp panel, but smaller setups may suffice with 100 amps.
Connect the neutral conductor to a bonded terminal in both the main panel and the power source. If the unit features a floating neutral, confirm the manufacturer’s guidelines–some models require a separate grounding rod, while others allow direct bonding to the panel’s ground bar. Avoid mixing neutrals and grounds; this violates NEC Section 250.142(B) and risks overloading circuits.
Run two hot conductors (L1 and L2) from the power device’s output terminals to the transfer switch. Use 10 AWG copper wire for 30-amp setups or 8 AWG for 50-amp systems, ensuring adequate insulation (THHN or THWN-2) to prevent heat damage. Mark each conductor at both ends with phase tape–red for L1, black for L2–to prevent miswiring.

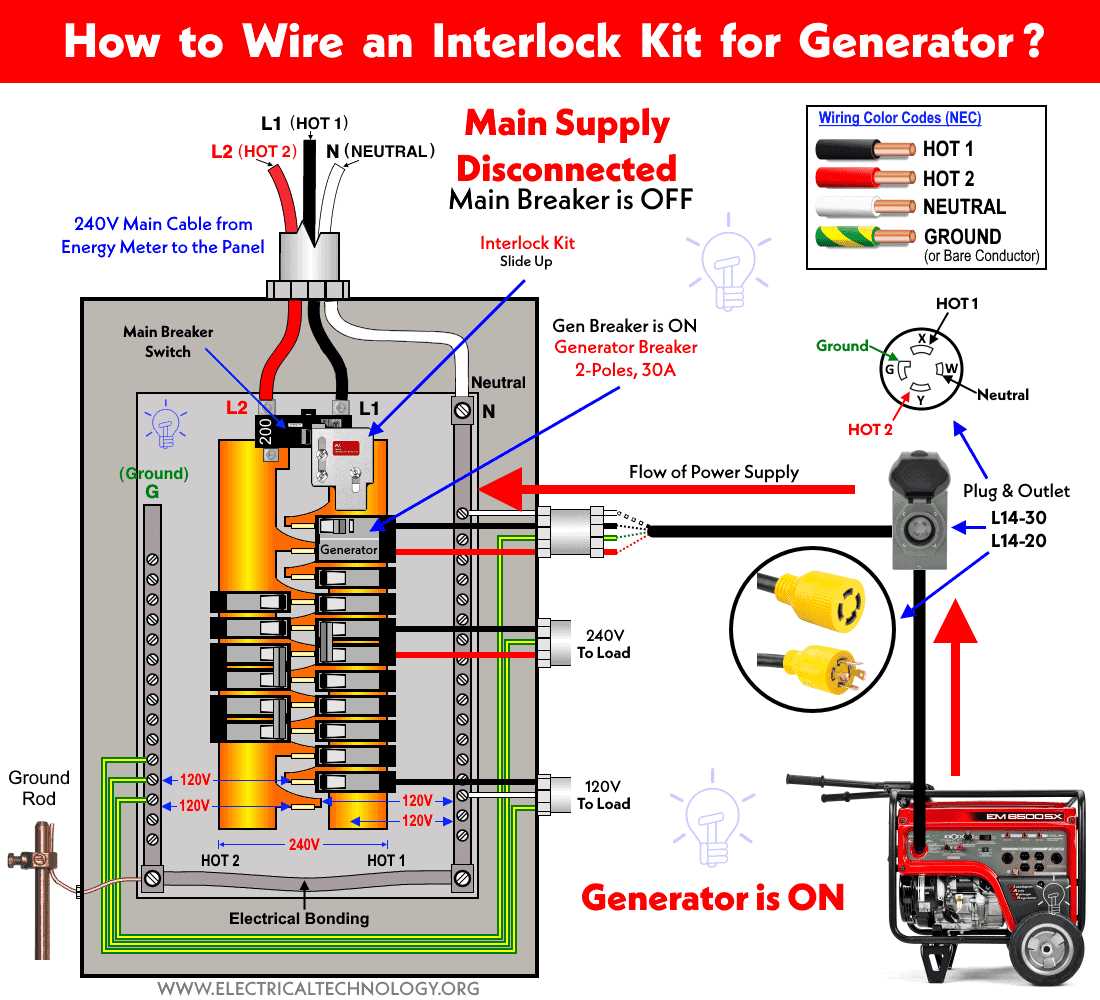

Install a 30-amp or 50-amp inlet box near the power source’s location, matching the unit’s outlet configuration. For twist-lock receptacles (NEMA L14-30 or L14-50), align the prongs correctly: the upper slot is neutral, the lower-right is ground, and the two angled slots are L1 and L2. Secure the inlet box to an exterior wall with weatherproof gaskets to prevent moisture intrusion.
Test continuity with a multimeter before energizing. Set the meter to ohms and probe between the neutral and ground–readings should be zero if bonded correctly. Check L1 to L2 for 240 volts AC (±10% tolerance); anything below 216 volts indicates internal resistance or undersized wiring. If voltage drops under load, replace conductors or verify the power device’s output stability.
Label all breakers and switches with their corresponding loads. Use a permanent marker or engraved tags to identify critical circuits (e.g., “Furnace,” “Well Pump”). For subpanels, separate the neutral and ground buses–bonding them together in subpanels violates NEC guidelines and creates parallel paths for fault currents.
Connecting a Dual-Phase Power Source Safely
Use a four-wire transfer switch rated for 50A service to isolate your home circuit from utility lines. Connect the red and black hot wires to the respective terminals on both the breaker panel and the output receptacle–verify polarity with a multimeter ensuring 208–230VAC between phases. Ground the green wire directly to the metal chassis; bond it to the neutral bar only at the main service disconnect to prevent parallel paths. Install a GFCI breaker for outdoor outlets; label all cables with heat-shrink tubing showing amperage and circuit ID.
For inline stabilization, pair a surge protector with a 3% voltage regulator between the source and critical loads–avoid using extension cords longer than 25 feet to prevent voltage drop exceeding 3V per 100 feet. Test the setup under load with an infrared thermometer; hot spots above 75°C indicate faulty connections requiring immediate re-torqueing or replacement of terminals.
Critical Elements for a High-Voltage Power Supply Installation
Begin with a double-pole circuit breaker rated for at least 30 amps to handle the load safely. This component must match the panel’s specifications–check for compatibility with 10-gauge copper conductors if the run exceeds 50 feet, or upgrade to 8-gauge for added security against voltage drop. Ensure the breaker’s interrupting rating exceeds the panel’s fault current capacity to prevent catastrophic failure during short circuits.
A transfer switch with mechanical interlocks is non-negotiable to eliminate backfeeding risks. Opt for a model with a neutral-bonding option if the system lacks a grounded neutral, but verify local codes–some regions mandate separate grounding rods or isolated neutrals. For manual switches, confirm the amperage aligns with the main breaker; automatic models should include time-delay features to prevent nuisance trips during transient spikes.
Use THHN/THWN-2 conductors for indoor runs, but switch to direct-burial rated cables (e.g., UF or USE) for underground sections, ensuring a minimum 18-inch depth for protection against physical damage. Avoid aluminum wiring–copper’s lower resistance reduces heat buildup in high-current applications. For outdoor connections, employ waterproof junction boxes with silicone-sealed glands to prevent moisture ingress, especially in humid or coastal environments.
Grounding electrodes must adhere to NEC Article 250: a single 8-foot copper rod suffices for most setups, but two rods spaced 6 feet apart are required if individual resistance exceeds 25 ohms. Bond all metallic components–enclosures, conduits, and the neutral bus–to a single grounding point to eliminate stray currents. Test the setup with a megohmmeter before energizing; coil insulation resistance should read above 1 megohhm to confirm no leakage paths exist.

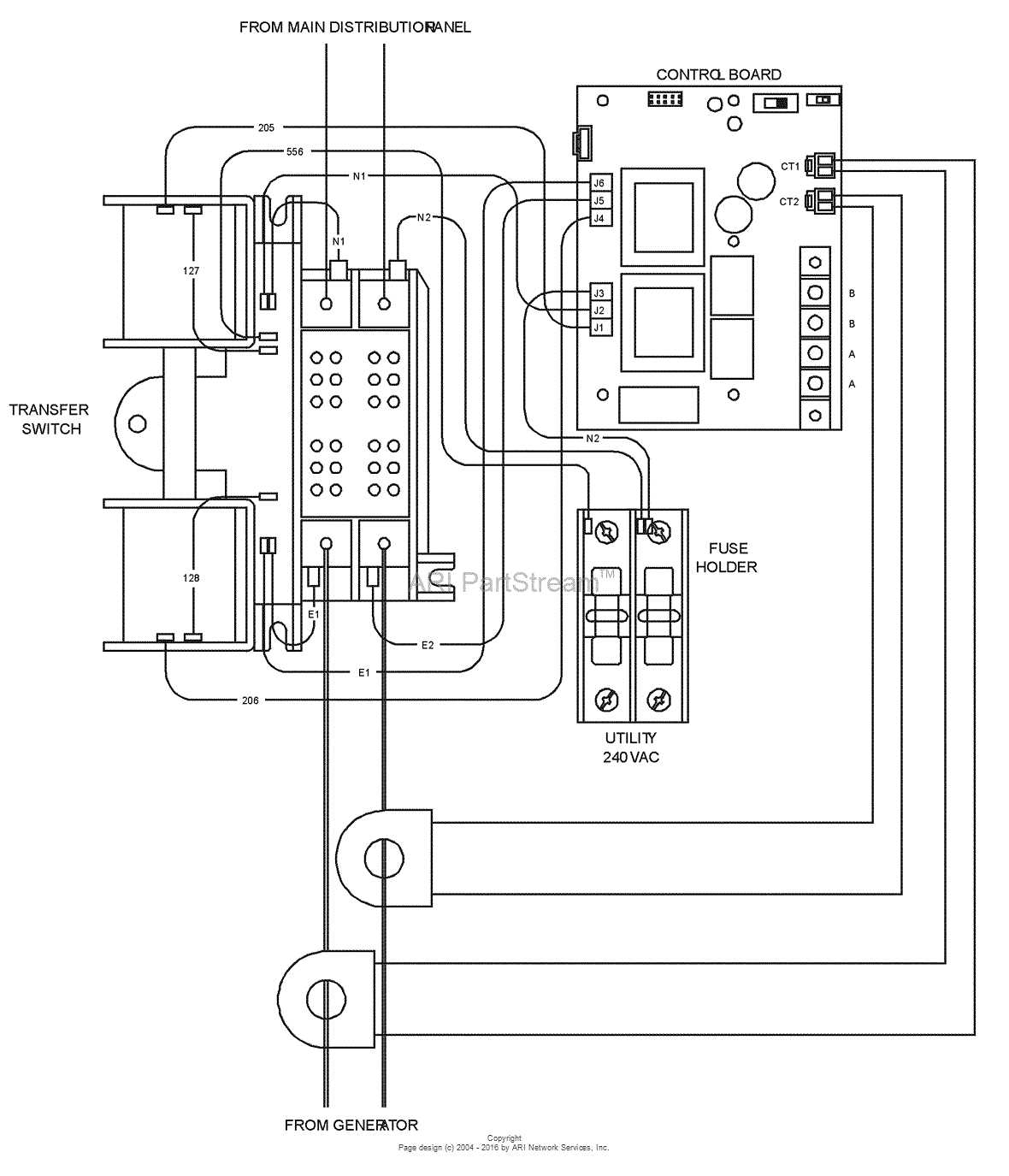

How to Connect a Dual-Voltage Power Source to an Automatic Transfer Panel
Shut off the main breaker in the utility service panel before beginning. Verify absence of voltage at both the service disconnect and the transfer switch terminals using a non-contact voltage tester. Label each conductor at both ends–neutral (white), ground (green or bare), and the two live legs (black and red or another color distinct from neutral/ground). Use 6 AWG copper wire for circuits up to 50 A, 2 AWG for 60–100 A, ensuring the cable matches or exceeds the overcurrent protection rating.
Mount the automatic transfer panel within 3 ft of the service panel, maintaining a minimum 36 in clearance for NEC compliance. Secure the enclosure to structural framing with 1/4 in lag screws, aligning knockouts with existing conduit runs. Run individual THHN conductors through liquid-tight flexible conduit from the service panel to the transfer switch–avoid shared raceways for utility and emergency feeds to eliminate induced currents.
Neutral and ground separation: Dedicate a busbar in the transfer panel for neutral; bond it to the enclosure only at the service panel, not within the secondary system. Land the white neutral wire from the backup source onto this isolated bar. Attach grounding conductors from both utility and backup inputs to the main ground busbar, then connect to the service panel’s ground electrode via a 6 AWG solid copper jumper. Confirm all terminations torque to 18–20 lb-ft with an insulated torque screwdriver.
Insert the two hot legs (e.g., black and red) into the double-pole breaker marked for the backup feed inside the service panel. Route the corresponding conductors from the transfer switch’s load terminals through the same breaker, matching polarity. Snap the breaker into the busbar slot, ensuring the handle tie locks both poles simultaneously. Energize the main breaker only after verifying no conductors cross between utility and backup paths inside the panel.
Final Validation
Before commissioning: Disconnect the backup source and use a megohmmeter to test insulation resistance between each live conductor and ground; readings below 1 MΩ indicate compromised dielectric and require replacement of cable or terminations. Reconnect the source, initiate a manual transfer, and measure line voltage across each hot leg to neutral–expect 115–125 V; across the two hots–230–250 V. Log measurements in a permanent record for future reference.
Selecting Proper Conductors and Overcurrent Protection for Dual-Voltage Power Sources
Calculate current draw using the formula: amperage = (watts ÷ volts) × 1.25. For a 5,000-watt standalone power unit operating at 220-240 span, this yields 26 amperes. Copper conductors sized at 10 AWG handle this load but increase to 8 AWG if run exceeds 50 feet to compensate for voltage drop.
Overcurrent devices must match conductor capacity precisely. A 30-ampere double-pole breaker suits 8 AWG copper cable. Never use single-pole protection–it disrupts balanced voltage across both hot legs. Install breaker directly at the source output terminals to protect the entire feed path.
- 6 AWG copper: 50 amperes
- 8 AWG copper: 40 amperes
- 10 AWG copper: 30 amperes
- 12 AWG copper: 20 amperes
Temperature derating applies if cables pass through ambient temperatures above 86°F. Reduce 10 AWG capacity to 25 amperes at 113°F; upsize to 8 AWG if heat persists. Secure conductors to mounting surfaces every 18 inches using non-metallic staples rated for 90°C insulation.
Neutral conductors must equal or exceed hot conductor sizing. Grounding wire follows the same rule–minimum 10 AWG copper for 30-ampere circuits. Bond neutral and ground only at the main service disconnect; isolate elsewhere to prevent parallel neutral paths.
- Verify source voltage with a multimeter before energizing.
- Measure actual load with a clamp meter under peak conditions.
- Compare readings to conductor/breaker ratings–derate 20% for continuous loads.
- Inspect connections for torque compliance using a calibrated screwdriver.
Aluminum conductors require one size larger than copper. Use 6 AWG aluminum for a 30-ampere circuit, coated with anti-oxidant compound at terminals. Ensure all terminations accommodate the coefficient of thermal expansion for aluminum.
Conduit fill limits dictate physical cable arrangement. Three 8 AWG THHN conductors fit snugly in ½-inch EMT, leaving 40% spare space. Larger circuits demand ¾-inch conduit–never exceed 310.16 table B.31 fill percentages.
Label all breakers and conductors with permanent markers indicating source, amperage, and circuit function. Use shrink tubing or engraved tags for outdoor installations. Archive calculations alongside installation photos for future reference.
