Use a 6-gauge copper conductor for circuits handling up to 50 amperes at 480 volts AC. Secure terminals with a torque wrench set to 20 lb-in to prevent overheating at connection points. Label each wire at both ends with heat-resistant tags to simplify future diagnostics.
Connect the high-side winding to the live terminal marked “L1” using a Lug ring terminal crimped with a ratcheting tool. Ground the chassis to the dedicated earth stud with a 4-gauge bare copper wire, ensuring a resistance below 0.5 ohms. For dual-voltage models, verify the voltage selector switch is flipped to 480V before energizing.
Avoid aluminum wire; use only tinned copper to prevent oxidation. Install a thermal overload protector with a trip curve matching the device’s FLA–typically 10-12 amps for a 1.5 kW unit. Mount a 40A double-pole circuit breaker no farther than 10 feet from the load center to minimize voltage drop.
Route cables through liquid-tight conduit if the installation is exposed to moisture or oil mist. Seal conduit entries with waterproof grommets and apply dielectric grease to all screw terminals. Perform a megohm test before startup–any reading under 100 megohms indicates insulation failure requiring replacement.
For reversing rotation, swap any two phase wires at the main disconnect. Keep wire runs parallel and spaced at least one diameter apart to reduce electromagnetic interference. Always disconnect power at the breaker and confirm absence of voltage with a multimeter before servicing.
Electrical Hookup Guide for High-Voltage Airflow Units
For a dual-phase 220-240VAC setup, connect the red (live) wire to the first hot terminal and the black (live) wire to the second. Secure the white (neutral) lead to the designated terminal–most modern units require this for internal circuit protection, even if the neutral isn’t actively used in power delivery. Ground the green or bare wire to the chassis or a dedicated ground lug to prevent voltage leakage hazards. Always verify the data plate for amperage ratings before selecting wire gauge; 12 AWG suffices for motors up to 2 HP, while 10 AWG is mandatory for higher loads.
Capacitor integration depends on whether the device uses a start, run, or dual-capacitor configuration. For a start capacitor (typically 100-400 µF), attach it between the auxiliary winding (often the brown or purple wire) and the main winding (red). Run capacitors (5-50 µF) connect similarly but remain in the circuit permanently. If the schematic includes a relay or centrifugal switch, ensure correct polarity–reverse connections will cause immediate overheating or failure. Disconnect power and use a multimeter in continuity mode to confirm winding integrity before energizing.
Terminal Block Wiring Reference
| Wire Color | Terminal Label | Purpose | Notes |
|---|---|---|---|
| Red | Main (L1) | Primary live input | Fused at motor’s rated amps |
| Black | Auxiliary (L2) | Secondary live input | May split if dual-voltage |
| White | Neutral (N) | Reference/return path | Not used in some single-phase setups |
| Brown/Purple | Start winding | Initial torque boost | Disengages after startup |
| Green/Bare | Ground (GND) | Safety bonding | Must connect to metal frame |
When retrofitting older units, check for thermal overload protectors–these are often embedded in the windings or mounted externally with two spade connectors. If bypassed, replace immediately; failure risks permanent damage. For variable speed models, locate the control board’s low-voltage inputs (typically 24VAC) and avoid mixing them with high-voltage lines. Use a separate transformer if the board lacks built-in isolation.
Reversing rotation requires swapping either the start winding or one of the live leads–for most configurations, interchanging the red and black wires suffices. Verify direction by briefly energizing the system; if airflow is backward, correct the swap and retest. Never rely on external labels; trace each conductor back to the internal schematic using a wire map or continuity tester.
Troubleshooting Power Issues
If the device hums but doesn’t spin, suspect a faulty start capacitor or open winding. Measure capacitance–if values deviate by more than 10%, replace the component. For intermittent operation, check relay contacts for pitting or corrosion, cleaning with emery cloth if minor. Persistent overload trips indicate excessive load, misaligned blades, or binding bearings; lubricate bearings or realign the impeller before reprocessing. Always discharge capacitors by shorting terminals with an insulated screwdriver before handling.
When extending cable runs, calculate voltage drop using the formula:
Vdrop = (2 × L × I × R) / 1000
where L is length in feet, I is current in amps, and R is wire resistance per 1000 ft. For a 50-foot, 12 AWG run at 15A, drop exceeds 3%, requiring 10 AWG. Ensure connectors (e.g., split bolts, wire nuts) are rated for the ampacity–oxidation at joints causes resistance heating.
For multi-tap units, select the highest voltage tap that matches your supply (e.g., 230V tap for 220-240V lines) to optimize efficiency. Incorrect tap settings reduce torque by up to 30% and accelerate wear. If the nameplate specifies “dual-voltage,” follow the bridging instructions–most require linking specific terminals for 220V operation. Double-check with a megohmmeter for winding insulation integrity before first use; readings below 1MΩ indicate imminent failure.
Identifying Critical Parts in a High-Voltage Fan Assembly Layout
Trace the main power feed first–it enters through a double-pole circuit breaker rated for 30–50 amps, depending on the unit’s current draw. Verify the breaker’s ampacity matches the nameplate data on the centrifugal impeller housing to prevent overload. Label each conductor with phase tape: black, red, and bare or green for ground, adhering to NEC color codes.
Locate the thermal cutout switch mounted on the coil frame; it interrupts power if overheating exceeds 194°F (90°C). Bypass testing is unsafe–use a multimeter in ohmmeter mode to confirm continuity across the switch before energizing. Replace if resistance reads infinite or erratic.
- Capacitor: Identifies as a dual-run type (start/run) with microfarad ratings stamped on its casing, typically 10–50 µF. A failed capacitor causes erratic operation or failure to start–test with a capacitance meter.
- Relay: Look for a 240 VAC coil relay controlling the impeller. Verify coil resistance (≈50–150 Ω) and contact integrity; pitted contacts mandate replacement.
- Speed controller: Mounted in-line with the run winding, often a tapped autotransformer or solid-state module. Measure voltage taps (e.g., 80 V, 120 V, 208 V) to confirm output.
Inspect the centrifugal housing for a centrifugal starting switch wired to the auxiliary winding–its contacts open at ≈75% of operating speed. Test this switch by manually spinning the shaft; a distinct click confirms proper engagement. Lubricate bearings with high-temp grease if rotation feels stiff.
Confirm all terminal connections tighten to 12–15 in-lbs torque using a calibrated screwdriver. Loose terminals create resistive heating; thermal imaging after startup reveals hot spots. Keep a torque log for future reference, noting each connection’s specifications and inspection dates.
Step-by-Step Connection Guide for Fixed-Speed 415W Ventilation Units
Locate the dual power terminals on the equipment casing–typically marked L1 and L2. Use 12-gauge stranded copper conductors rated for 30A service. Strip 12mm of insulation from each wire end, insert into the terminals, and torque to 2.8Nm with a calibrated screwdriver. Verify continuity between each conductor and the metal housing with a multimeter; readings above 0.5MΩ indicate proper isolation. If the unit includes a thermal overload protector, connect it in series with L1–consult the nameplate for protector specifications (common ranges: 8A–12A at 25°C ambient).
Grounding and Capacitor Integration
- Secure a 10-gauge bare copper ground wire (minimum) to the dedicated grounding terminal–identified by a green screw or grounding symbol–torqued to 3.5Nm.
- For single-run capacitor models, wire the capacitor between the auxiliary terminal (AUX) and L1–polarity is irrelevant. Peak voltage must match or exceed 370VAC (e.g., 5μF/440VAC).
- Energize the circuit via a dedicated 30A double-pole breaker; verify rotation direction within 3 seconds of startup–reverse L1 and L2 if rotation opposes nameplate arrows.
- Capacitor-start/capacitor-run configurations require two capacitors: one 18μF/370VAC start capacitor (with bleed resistor) wired in series to the auxiliary winding, and a second 10μF/440VAC run capacitor permanently connected to the main winding.
Standard Terminal Markings and Wire Colors for High-Voltage Fan Assemblies
Always verify the line voltage supply wires first: typically, the incoming power conductors will be black (hot leg A) and red or brown (hot leg B) in North American split-phase systems. European and Asian models may use brown and black, or brown and gray–never assume without checking the nameplate or schematic reference.
Terminals for dual-speed or multi-tap units often follow a numeric or alphabetic sequence. Common labels include:
- L1 / H1 – Primary hot input (black or brown), always connected to the first ungrounded conductor.
- L2 / H2 – Secondary hot input (red, brown, or gray), connected to the second ungrounded conductor.
- C / COM – Common terminal for dual-voltage models, usually paired with a white or blue lead if a neutral is required.
- T1–T4 – Speed or tap selector terminals; T1 is typically the highest speed setting, with voltage decreasing across subsequent taps.

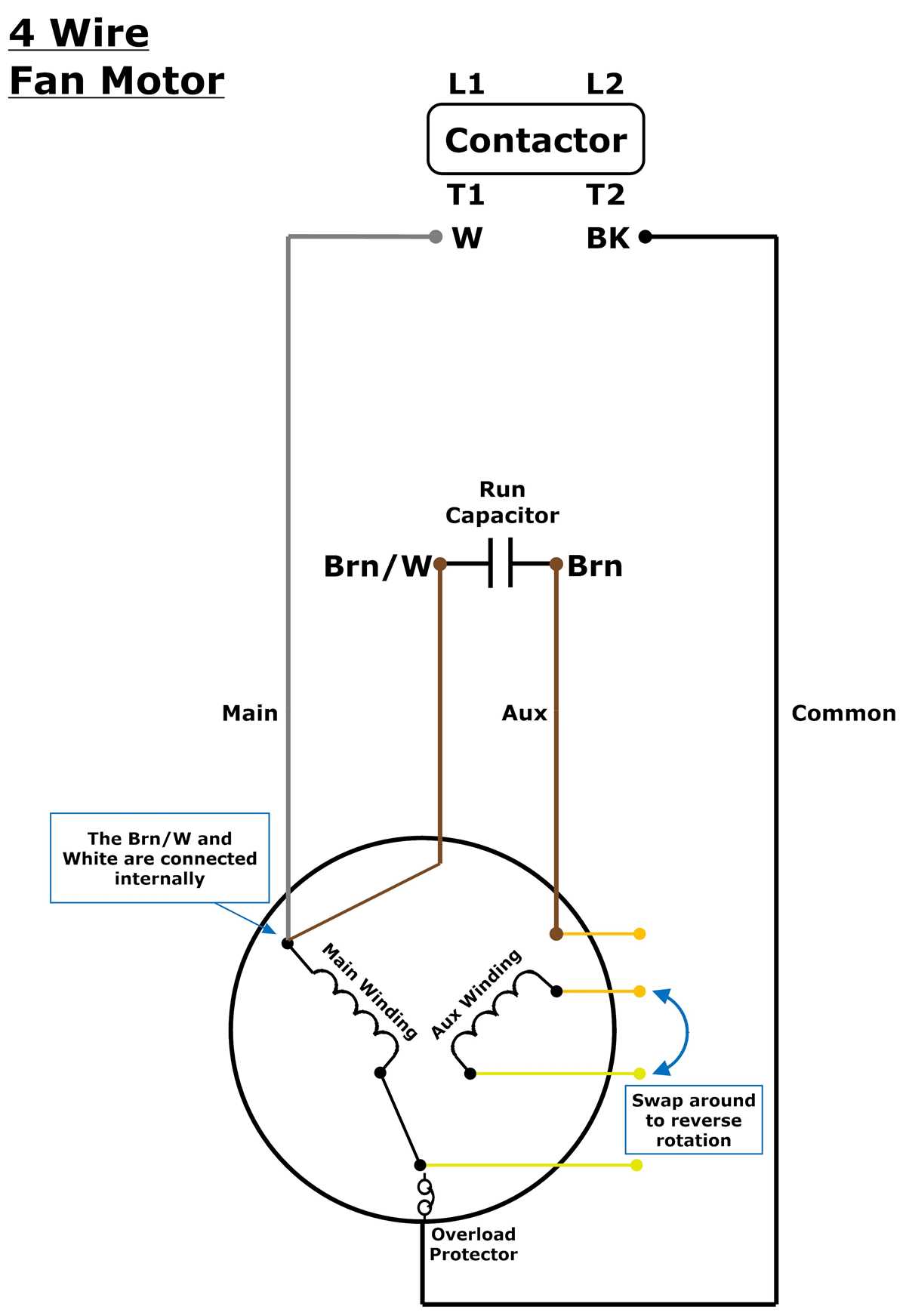

Single-phase capacitor-run units will include a start/run capacitor wired between the auxiliary winding and the main winding. The auxiliary lead is often marked S (yellow or purple) and connects to the capacitor’s non-polarized terminal. The main winding lead (M or R, typically black) connects directly to the power input. If the motor hums but fails to start, check the capacitor–90% of startup failures trace back to a weak or open capacitor.
Grounding and Safety Conductors
The equipment grounding conductor (EGC) is universally green, green with yellow stripe, or bare copper. Terminate this lead to the GND or ⏚ symbol on the motor frame or junction box–never omit or substitute. In systems with a metal conduit, the conduit itself may serve as the ground path, but a dedicated green wire ensures redundancy. Double-check continuity between the motor frame and the main service ground; resistance should measure less than 1 ohm.
Neutral conductors (white or blue) appear in certain dual-voltage configurations but are absent in pure 2-leg high-voltage circuits. If present, connect neutral only to terminals explicitly labeled N or NEU. Miswiring neutral to a hot terminal risks immediate overload and catastrophic failure of internal windings.
For reversible airflow setups, seek terminals labeled FOR (forward) and REV (reverse). The control leads (often orange or pink) toggle between these states by swapping polarity to one winding. Ensure the reversing switch or relay is rated for the full motor current–undersized components will arc and weld contacts shut within days of operation.
