For a permanent installation of a 5 kW, 22-amp resistant element, use 12 AWG copper conductors protected by a 25-amp double-pole breaker. Run the wires in conduit–EMT or rigid non-metallic–directly from the service panel to the thermostat box. Follow the NEC Article 424, Part IV for branch circuits: dedicate a separate circuit, keep the neutral disconnected, and land the conductors on double-pole terminals rated for 75 °C.

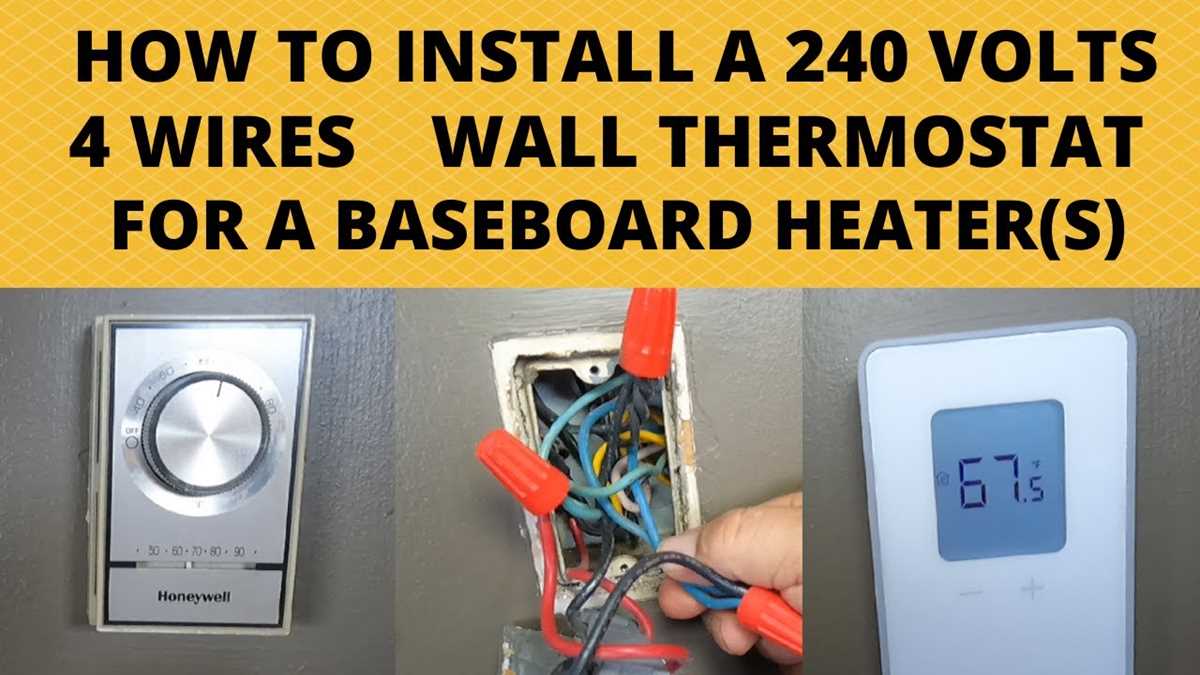

Begin at the panel: mark the breaker slot for the two live wires; leave the lug bolts loose so they accept the stripped ends without stress. At the thermostat, mount a line-voltage thermostat (Honeywell TL8230 or equivalent) sized for 22 A inductive load. Wire the stat in series with the element: one live conductor through the stat’s red and black terminals, the other live straight to the element’s L2 lug. Secure all connections with compression rings; torque to 18 inch-pounds.
Downstream, clamp the element’s electrical box with a #10-32 ground screw to the box thread; connect the equipment grounding conductor (green or bare 12 AWG) to the screw, then bond it to both the element frame and the stat enclosure. Seal the box with a UL-listed gasket; use silicone on knockouts to prevent drafts that can trip thermal cut-outs.
Test before closing the panel cover: measure 208 across the element terminals at the stat’s off position; confirm zero on both legs when stat is on. Label the breaker and element junction box with permanent marker or embossed tags identifying amperage and voltage.
Electrical Connection Guide for High-Voltage Wall-Mounted Radiators
Connect the dedicated double-pole circuit breaker to the radiator’s junction box using 10-gauge NM-B copper cable rated for 30 amps. Strip ½ inch of insulation from each conductor, then secure the black and red wires to the unit’s brass terminal screws marked L1 and L2. The green or bare copper ground wire must attach to the green grounding screw inside the box. Verify torque specifications–typically 12–15 inch-pounds–to prevent terminal overheating.
For installations exceeding 8 feet in length, daisy-chain multiple units by running 10-gauge cable between adjacent radiators. Keep a minimum 1-inch clearance from combustible surfaces, measured from the backplate’s upper edge. If wall studs interfere, offset the junction box downward by at least 6 inches to avoid drilling into framing. Use a non-contact voltage tester before handling exposed wires to confirm circuits are de-energized.
Common Mistakes to Avoid
- Mixing wire gauges (e.g., 12 AWG with 10 AWG) reduces ampacity and risks overheating.
- Skipping a separate thermostat connection forces reliance on built-in manual controls, sacrificing energy efficiency.
- Overlooking local codes–some jurisdictions require AFCI protection for bedroom installations.
- Ignoring manufacturer’s wattage ratings–exceeding 2,500 watts on a 30-amp circuit trips breakers frequently.
Label both conductors at the breaker panel with “High-Voltage Radiator Circuit” to comply with NEC 408.4. If rewiring older systems, replace aged cloth-insulated wiring immediately–frayed insulation causes short circuits. For metal-clad installations, bond the metal junction box to the grounding conductor using a listed pigtail.
Mount thermostats horizontally on interior walls, away from drafts and direct sunlight. Use a 24-volt relay for smart thermostats to isolate low-voltage controls from the main circuit. Test end-to-end resistance with a multimeter–expect readings between 15–25 ohms for standard 1,500-watt units. Deviations indicate faulty elements or loose connections.
Final Safety Steps
- Reattach the cover plate before energizing the circuit–exposed terminals violate OSHA standards.
- Power the circuit, then check for abnormal noises (humming, buzzing) signaling loose components.
- Record the installation date and breaker location in the panel directory.
- Schedule annual inspections to check for wire corrosion, especially in humid basements.
Equipment and Supplies for Installing High-Voltage Wall-Mounted Radiators
Use a non-contact voltage tester (minimum 480V rating) to verify de-energization before stripping conductors–cheaper multimeters fail under inductive loads common in resistive heating circuits. A clamp-style ammeter (0-30A range) ensures accurate current draw confirmation without interrupting connections, particularly critical for dual-pole breakers where imbalance exceeds 0.5A. Select 10-gauge NM-B copper cable for runs under 50 feet; for longer distances, upgrade to 8-gauge THHN in conduit, accounting for 3% voltage drop at full load (15A).
- Thermal wire strippers (adjustable to 0.148″ insulation thickness) prevent nicking stranding–manual cutters crush conductor integrity by 12% post-installation.
- Crimping tool (ratcheting, 12-20AWG capacity) with insulated butt splices sized for 90°C conductor ratings–avoid twist-on connectors, which loosen under cyclic thermal expansion.
- Fish tape (steel, 1/8″ diameter) paired with a glow rod for pulling runs through finished walls; lubricate with powdered soapstone to reduce friction drag by 40%.
- Din-rail mounted terminal blocks (35mm, 30A capacity) for junction boxes–compression terminals outperform screw types in vibration resistance.
- Digital caliper to measure knockout diameters (1/2″ vs 3/4″)–incorrect fits void UL listing for weatherproof enclosures.
Grounding rods must be copper-coated steel (8′ length, 1/2″ diameter) coupled with a galvanized clamp–aluminum alloys corrode within 36 months under 60Hz AC leakage currents. For thermostat compatibility, verify sub-base resistance (≤50Ω at 25°C) using a megohmmeter (500V setting)–failing this test indicates moisture ingress in line-voltage controls.
Step-by-Step Guide to Installing a Double-Pole Breaker for Wall-Mounted Resistance Units
Shut off the main service disconnect before touching any conductors. Verify zero voltage using a non-contact tester on both incoming lugs of the panel. Failure to confirm de-energization risks severe arc flash or electrocution.
Match the amperage rating of the breaker to the appliance’s nameplate data. Common values for residential fixed resistive loads are 20A, 30A, or 40A. Using a breaker with a higher rating than the conductor’s ampacity violates NEC 240.4(D) and creates a fire hazard. Refer to the following table for conductor size requirements:
| Breaker Rating | Copper Conductor Size | Aluminum Conductor Size |
|---|---|---|
| 20A | 12 AWG | 10 AWG |
| 30A | 10 AWG | 8 AWG |
| 40A | 8 AWG | 6 AWG |
Route the cable through the knockout on the top or side of the enclosure, leaving 6–8 inches of slack inside the box. Secure the cable with a clamp or cable connector within 12 inches of the entry point and every 4.5 feet thereafter per NEC 334.30.
Strip ¾ inch of insulation from each conductor. Insert the black wire into the upper terminal of the breaker, the red wire into the lower terminal, and the bare or green grounding conductor into the panel’s grounding busbar. Torque all connections to the manufacturer’s specified inch-pounds using a calibrated screwdriver; typical values are 15–20 lb-in for 10–30A breakers and 25–30 lb-in for 40A.
Snap the breaker into an empty slot of the same width as the device. Ensure the bus stabs engage fully; partial engagement can cause overheating. Reconnect the main disconnect and restore power. Test for proper operation by energizing the circuit and verifying the appliance activates without tripping the breaker.
Label the new breaker and circuit directory immediately with the appliance location and load type per NEC 408.4. Include the date of installation and the installer’s initials. Store a photograph of the completed panel configuration and conductor routing for future reference.
Safe Electrical Circuit Installation for High-Voltage Appliances
Shut off the main power supply at the service panel before handling any conductors. Use a non-contact voltage tester to confirm all lines are dead–probes or proximity detection must register zero across both hot legs and the neutral or ground. Failure to verify de-energization risks lethal shock or arc flash injuries rated at 10,000+ amperes in residential settings.
Select THHN copper conductors sized to match the appliance’s nameplate amperage plus 25% for continuous loads–common derate multipliers apply in conduit runs over 24 inches or ambient temperatures exceeding 30°C. A 30-amp circuit requires minimum 10 AWG conductors, while a 50-amp circuit demands 6 AWG or larger; never substitute aluminum for branch circuits under 60 amps due to oxidation risks at terminations.
Route metal-clad cable or rigid conduit from the breaker enclosure directly to the appliance location, maintaining 1¼-inch minimum separation from low-voltage runs to comply with NEC 300.3(C). Secure conduit every 4½ feet and within 12 inches of terminal boxes using listed straps–loose conduits can vibrate, chafe insulation, or compromise grounding integrity over time.
Terminate each hot conductor to a dedicated double-pole breaker labeled for the specific load type–mislabeled circuits create confusion during maintenance and violate NEC 210.8. Connect the ground conductor to the panel’s grounding busbar using a green hex-head lug; never splice grounds inside conduit unless using an irreversible crimp terminal rated for the conductor size.
Strip exactly ½ inch of insulation from conductor ends using calibrated wire strippers–excessive stripping exposes copper to corrosion, while insufficient contact causes high-resistance heating. Twist stranded conductors clockwise before inserting into terminal screws or compression lugs, then torque to manufacturer specifications (typically 15–20 lb-in for breakers, 25–35 lb-in for outlet lugs).
Seal all conduit entries with listed knockout seals to prevent moisture ingress and rodent intrusion–condensation inside unsealed conduits can cause short circuits if it bridges hot terminals. For outdoor runs or damp locations, use liquid-tight flexible conduit with UV-resistant outer jackets rated for the local temperature extremes.
Test the completed circuit by energizing the breaker and verifying 238–242 volts across the hot terminals at the appliance outlet with a true RMS multimeter. Measure voltage drop under load: any reading exceeding 3% (≈7.2 volts for a 240-volt circuit) indicates undersized conductors, loose connections, or excessive run length requiring remediation.
Label every breaker and junction box cover with indelible ink specifying the circuit’s purpose, conductor type/size, and maximum load rating–unlabeled panels cause delays during emergencies and fail electrical inspections. Store spare breakers and termination hardware in a sealed, humidity-controlled environment to prevent oxidation of contact surfaces.
