Use a dual-pole 60-amp residual current device rated for 208–250VAC single-phase applications when protecting heavy-duty appliances like electric ranges, water heaters, or EV chargers. Confirm the device’s trip threshold: 5 milliamps for personnel protection, 30 milliamps for equipment-only circuits. Verify the interrupting rating–minimum 10,000 amps–to handle short-circuit current from modern service panels.
Route both ungrounded conductors (often black and red) through the same trip unit coil to ensure simultaneous disconnection during a ground fault. Bypass neutral if the appliance doesn’t require it, but never omit ground–bond the enclosure to the grounding terminal with a 10 AWG bare copper wire. Label the terminal block: “Load Side–Do Not Connect Neutral Here” for 3-wire configurations.
Connect the supply leads directly to the upper lugs of the interruptor–torque to 25 in-lbs using a calibrated screwdriver. For sub-feeds, attach downstream wires to the lower lugs, matching conductor size to the device’s ampacity (e.g., 8 AWG for 40–50 amp devices, 6 AWG for 60 amp). Test the trip function before energizing: press the test button–both poles must open within 25 milliseconds; reset requires a full off-on cycle.
Install arc-fault suppression if the circuit supplies outlets or cords (NEC 210.12). Mount the device vertically in the panel to prevent nuisance tripping from vibration. After final inspection, apply a transparent cover to prevent accidental contact with live busbars–retorque all connections after 24 hours of service.

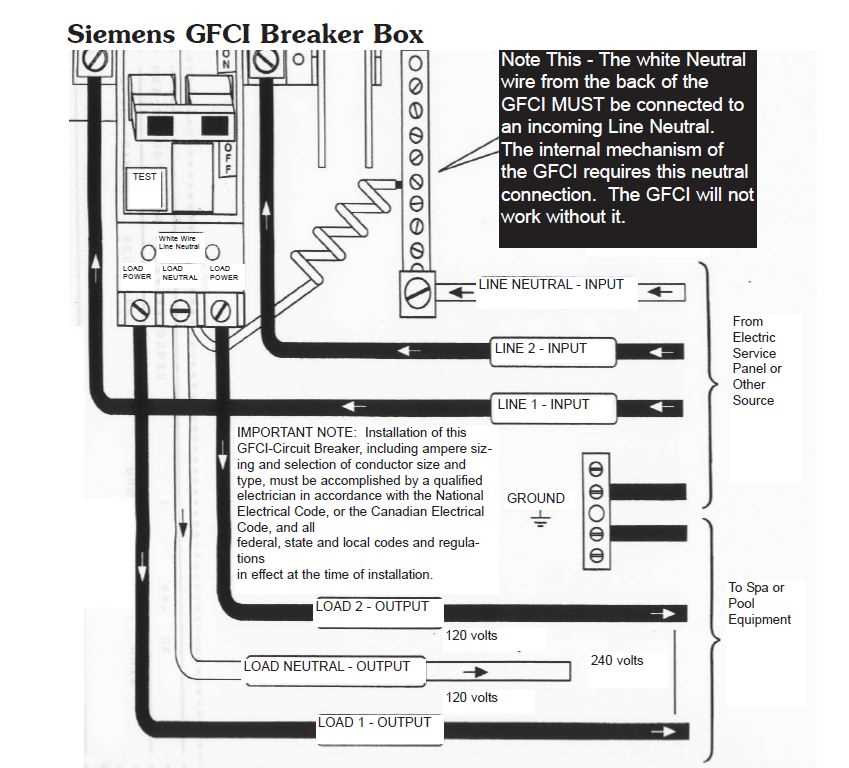

Installing a Dual-Phase Ground Fault Circuit Interrupter Schematic
Connect the two 120-volt hot conductors to the breaker’s line terminals–label them “L1” and “L2″–ensuring each wire fastens securely with 12-10 AWG torque values of 12-18 lb-in to prevent arcing. Link the load terminals to the appliance with identical wire gauge, matching phase polarity to avoid imbalance. The neutral pigtail must attach to the panel’s neutral bus bar separately; never splice it with the ground. Test the setup with a multimeter: expect 240V across L1 and L2, and 120V from each hot to neutral under no-load conditions.
Route the equipment grounding conductor to the dedicated ground bus bar, avoiding any shared paths with neutrals. Verify trip functionality by pressing the breaker’s test button–it should disconnect power instantly without hesitating. For inductive loads like motors, pair the circuit with a surge suppressor rated for the same amperage to prevent nuisance tripping from transient spikes.
Tools and Equipment Required for Installing a Double-Pole Safety Device
Start with a non-contact voltage tester rated for up to 250 alternate-cycle circuits to confirm power isolation before handling any conductors. Use insulated screwdrivers with magnetic tips–Philips #2 and flathead 4mm–to secure terminal connections without stripping threads. A torque screwdriver calibrated to manufacturer specifications (typically 12-15 in-lbs) ensures proper tension on clamp screws, preventing overheating. Wire strippers with 10-12 AWG markings are critical; avoid generic cutters, as improper stripping damages conductor strands, increasing resistance. Include a multimeter with a minimum 600V AC rating for post-installation verification of line-side and load-side polarity.
Essential Hardware and Consumables
Copper conductors sized at 10 AWG for 30-amp circuits or 8 AWG for 40-amp applications–THHN-rated for dry locations, XHHW for wet–along with anti-oxidant grease applied to aluminum-to-copper splices. Panelboard-compatible double-pole devices require a 2-inch knockout punch tool for precise enclosure modifications. Flame-retardant cable ties (UL94 V-0) secure loose conductors, while arc-resistant electrical tape (rated for 80°C) insulates splice points. A fish tape with a flexible steel shaft helps route wires through conduits without damaging insulation. Verify compatibility with the enclosure’s busbar configuration–some load centers demand specific stab positions for proper seating.
Step-by-Step Guide to Identifying Neutral and Live Conductors in a Dual-Phase 208/230V Setup
Begin by ensuring the circuit is de-energized using a non-contact voltage tester–hold the probe near each wire until no signal appears. Most dual-phase systems use a three-wire or four-wire configuration where the neutral conductor (if present) will be white, gray, or marked with a stripe. In contrast, live wires typically follow a black-red-blue color code or equivalent, depending on regional standards. For split-phase arrangements–common in North American residential and commercial installations–the two live conductors will read 110–120V relative to neutral, while measuring 208–240V across them. Verify this with a multimeter by checking line-to-neutral and line-to-line readings.
Locate the panel schedule or equipment label to confirm wiring conventions. If no documentation exists, trace the conductors back to their origin:
- In a subpanel, neutral bundles separate from grounding wires (bare or green).
- In a main service disconnect, neutral often terminates at a bus bar paired with the grounding bus.
- If the circuit powers a device requiring a return path (e.g., motor stator, heater element with control electronics), the white/neutral conductor will be present; otherwise, two live conductors suffice for single-phase resistive loads.
Cross-reference with local electrical codes–NEC Article 200 mandates neutral identification, while IEC 60446 permits blue for neutral in some regions.
Use a continuity tester to isolate neutral from grounding:
- Disconnect all conductors.
- Attach one probe to the suspected neutral.
- Touch the other probe to the grounding terminal or enclosure–no beep confirms neutral; a beep indicates ground miswiring.
If continuity exists, the conductor is either mislabeled or improperly connected. Repeat for live wires–these should show no continuity to neutral or ground. For circuits with shielded cables (e.g., Type MC), strip back the armor to expose individual conductors; neutral may be taped white at termination points.
Check for conductor marking anomalies. While standards dictate neutral as white/gray, some installations use:
- Unmarked white wire in older conduit jobs, repurposed from lighting circuits.
- Striped markers (white with blue stripe) in international settings.
- Caution: Bootleg neutrals, where a conduit sleeve imitates neutral but connects to ground–test with a multimeter; a near-zero resistance between this conductor and ground reveals the error.
For split-phase loads with no neutral (e.g., baseboard heaters), no white conductor should terminate in the junction box–if present, it’s either abandoned or incorrect.
Final validation requires energized testing. After safely restoring power:
- Measure each conductor to ground–neutral will read 0V (or negligible voltage), while live conductors will show 110–125V.
- Verify line-to-line voltage–208–240V between two live wires.
- For mixed-use circuits (e.g., 120V outlets fed from a dual-phase source), neutral carries imbalance current; check with a clamp meter >1A during operation.
If readings deviate, suspect a lost neutral–immediately disconnect and investigate junctions or terminal blocks. Document findings; incorrect identification risks arcing, equipment damage, or shock hazards.
Proper Terminal Connections for Safety Switches in High-Current Circuits
Identify the power source conductors first–these feed the protective device directly. Strip 10-12 mm of insulation from each conductor, ensuring copper strands remain intact. Twist strands gently to prevent fraying before inserting into the designated upper terminals. Tighten screws firmly but avoid overtightening, which can deform wire strands and compromise conductivity.
Label the output terminals clearly before attaching downstream cables. Use a torque screwdriver calibrated to manufacturer specifications–typically 1.2 to 1.5 Nm for most residential protective devices. Mismatched torque values lead to loose connections, causing arcing or nuisance tripping under load.
Route load-side conductors away from sharp edges or moving parts within the panel. Secure them with nylon ties at 20 cm intervals to prevent vibration-induced loosening. Exposed copper should extend no more than 1 mm past the terminal clamp to reduce risk of accidental shorts.
For split-phase installations, verify polarity before energizing. Connect the ungrounded conductor to the brass-colored terminal and the neutral to the silver-colored terminal. Crossed conductors will trigger immediate faults and could damage sensitive equipment downstream.
Test continuity between terminals before closing the enclosure. Use a multimeter set to ohms (200 Ω range) and confirm readings below 0.5 Ω. Higher resistance indicates corrosion, improper crimping, or incompatible wire composition–address immediately.
Seal unused knockouts with UL-listed plugs to maintain enclosure integrity. Even tiny gaps allow dust and moisture accumulation, leading to premature corrosion or false fault signals. Apply anti-oxidant compound sparingly on aluminum conductors to prevent galvanic reactions.
Document connections with a permanent marker inside the panel door. Note circuit purpose, load rating, and date of installation. Future troubleshooting becomes significantly faster when technicians can reference accurate, up-to-date records rather than guessing based on wire colors alone.
