For a reliable 24-pin automotive socket setup, begin by matching the power source’s positive lead to pin 1 (typically marked in red). Verify the circuit’s maximum current draw–most configurations handle 10 to 20 amperes–then secure the ground line to the chassis using a dedicated terminal, preferably with a minimum 8-gauge cable to prevent resistance losses.
Route auxiliary circuits (pins 3 through 8) for brake lights, turn signals, and running lamps using 16-gauge wire, ensuring each connection is crimped and soldered for durability. Use a multimeter to confirm voltage stability: 23.8 to 24.2 units under load. If installing a reverse polarity protector, connect it between the main power feed and the socket’s common rail.
Critical errors to avoid: mixing up pin assignments for left/right indicators (common in aftermarket schematics) or neglecting a fuse within 7 inches of the power source. For extended wiring runs (over 15 feet), upgrade to 12-gauge wire to maintain signal integrity under load.
Inspect connectors for corrosion every 6 months; dielectric grease on terminals reduces oxidation by 70%. Store spare wiring diagrams in a dry environment–laminate paper versions or save digital copies offline–to reference during repairs.
Electrical Connector Setup for Heavy-Duty Towing Systems
Begin by identifying the pin configuration for your 24-pole vehicle-side socket–standard models follow either ISO 3732 (7-pin) or ISO 12098 (13-pin) layouts, though aftermarket variants may deviate. Verify the exact arrangement in the manufacturer’s documentation before proceeding, as mismatched connections risk power surges or equipment failure.
Step-by-Step Assembly
Strip each cable back 12mm, twist the copper strands tightly, and crimp with red-coded 4–6mm² insulated terminals. For auxiliary circuits (e.g., reverse lights or hydraulic controls), use heat-shrink tubing over splices–standard PVC tape degrades under vibration. Secure all joints with a torque wrench set to 2 Nm to prevent loosening during transit.
Ground the system at the tow vehicle’s chassis using a dedicated M8 bolt–avoid shared grounding points with other electronics, as this can introduce interference. Route cables through a protective conduit (minimum 19mm internal diameter) to shield against abrasion from road debris; zip ties should be spaced every 30cm but not overtightened to allow slight cable movement.
For braking circuits, integrate a 25A circuit breaker directly into the feed line–do not rely on fuse boxes alone, as they may not trip quickly enough under sustained loads. Test continuity with a multimeter: resistance between live pins and ground should not exceed 0.5 ohms. If readings fluctuate, recheck crimps for cold solder joints or corrosion.
Common Pitfalls
Mixing up polarity is irreversible in 24-series systems–double-check against a wiring schematic before energizing. Avoid daisy-chaining power feeds; each function must draw directly from the main relay to prevent voltage drop. Overlooked pin 5 (typically for auxiliary charging) can cause battery drain if left unconnected, so cap unused pins with weatherproof covers.
Label each cable at both ends with heat-resistant tags–color-coding alone fails under UV exposure. For vehicles with dynamic stability control, ensure the dedicated data line (pin 12 in 13-pin layouts) is shielded with foil tape to block EMI from adjacent wires. Failure to isolate this line can trigger false brake activation warnings.
After assembly, perform a road test under load: monitor voltage at the connector with a clamp meter while cycling all functions (lights, signals, brakes). A drop below 22.5 amps under load indicates undersized conductors–upgrade to 10mm² cable if necessary. Document all modifications for future troubleshooting.
Determining the Right Leads for Your 24V Connector
Start by examining the connector’s pin layout–most heavy-duty harnesses follow either a 7-pin round or 13-pin configuration. The larger 13-pin variant consolidates lighting, braking, and auxiliary power into a single unit, while the 7-pin separates them into distinct terminals. Check your vehicle’s manual or tow package documentation to confirm which arrangement applies.
Use a multimeter to test each lead before making permanent connections. Set the device to continuity mode and probe the socket pins while activating corresponding functions–brake lights, turn signals, or reverse lamps. This verifies the intended purpose of each wire without relying solely on color coding, which varies by manufacturer. Expect standard labels like “LR” (left rear), “RR” (right rear), or “AU” (auxiliary) on the socket, but always cross-check.
Common color schemes for 24V systems include:
- Yellow: Left turn/brake
- Green: Right turn/brake
- Brown: Tail/marker lamps
- White: Ground
- Blue: Electric brakes (if equipped)
- Red: Auxiliary or battery charge lead
- Black: Reverse lamp or secondary power
Deviations exist, especially in European or military-grade setups, where codes may differ. Always prioritize function testing over color assumptions.
Ground the white lead first–attach it to a clean, bare metal surface on the chassis near the connection point. Avoid painted or coated areas, as corrosion can disrupt the circuit. For auxiliary power (red or black), route it through a relay if drawing more than 10 amps to prevent voltage drop. Use heat-shrink tubing or dielectric grease on all joints to protect against moisture and vibration.
For heavy loads like hydraulic pumps or refrigeration units, dedicate a separate 30-amp fuse directly to the battery. Install an inline circuit breaker within 18 inches of the power source to mitigate fire risks. If the connector includes a purple lead (commonly pin 7 on 13-way sockets), it’s often reserved for reverse lights–connect it to the vehicle’s reverse lamp switch.
Label each lead with adhesive sleeves or numbered tags during installation. This simplifies troubleshooting later, especially if the system includes non-standard features like a 12V tap for accessories. Store spare labeling tags with the vehicle’s documentation for future reference.
If the harness includes a gray lead (pin 12 on some 13-way connectors), it typically supplies continuous power for cabin systems or battery charging. Confirm its purpose with a voltage check; it should read 24V regardless of ignition state. Secure this lead with a dedicated fuse (typically 15-20 amps) to prevent overload.
Troubleshooting Mismatched Leads
If a function fails, isolate the issue by disconnecting the harness and retesting the socket with a test lamp. A flickering light indicates a loose ground, while no response suggests a broken wire or blown fuse. For intermittent faults, inspect the connector for bent pins or corrosion–clean contacts with a wire brush and dielectric compound. Replace the entire pigtail if damage is extensive, as repairs may compromise reliability.

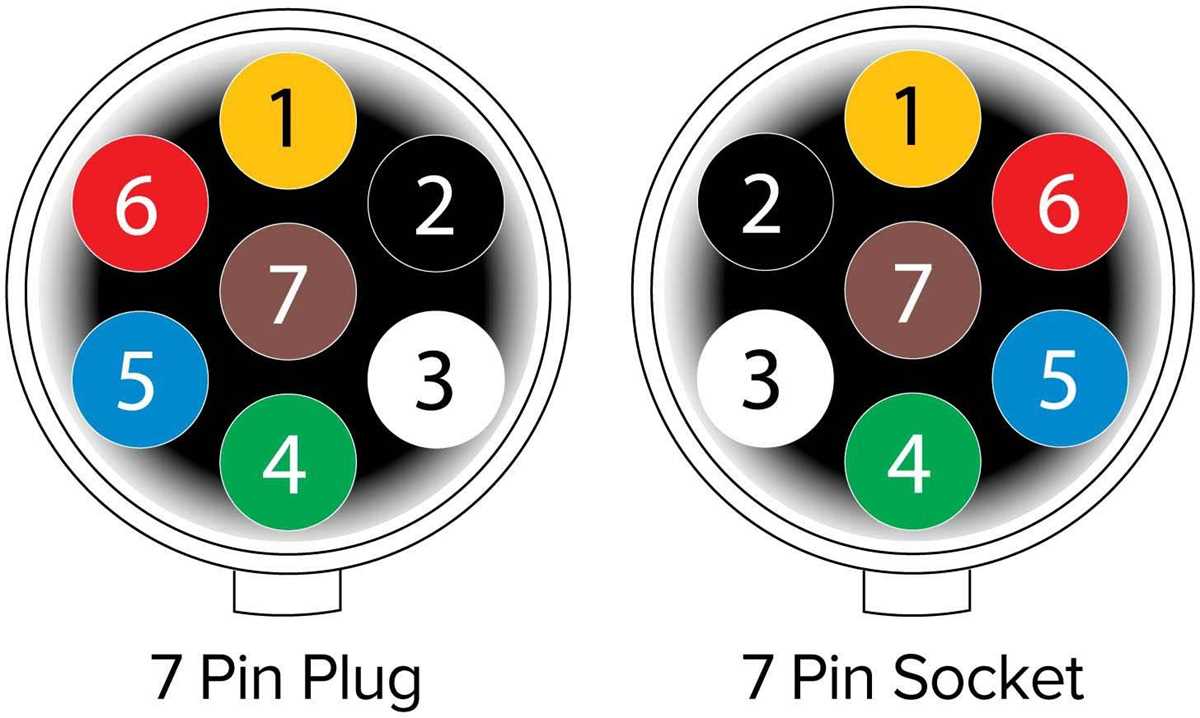

Step-by-Step Assembly Guide for a 7-Pin 24V Towing Interface
Begin by securing the vehicle-side harness to a clean, corrosion-free mounting point near the towing hitch. Use a multimeter to verify the 24V power source delivers consistent output–acceptable range is 23.5–25.5V under load. If readings fluctuate, inspect the alternator and battery terminals for oxidation or loose connections before proceeding.
Cable Preparation and Pin Assignment
| Pin Number | Function | Wire Gauge (Min.) | Color Code Standard |
|---|---|---|---|
| 1 | Brake control | 12 AWG | Yellow/Blue |
| 2 | Reverse lights | 16 AWG | Green |
| 3 | Ground | 10 AWG | White |
| 4 | Tail/clearance lights | 14 AWG | Brown |
Strip 6mm of insulation from each conductor, then crimp connectors using a ratcheting tool–avoid solder for outdoor installations due to vibration risks. Route cables through a protective conduit if exposed to road debris or sharp edges. For vehicles with existing factory interfaces, splice into the harness behind the rear bumper; tap into the fuse box only if manufacturer guidelines permit direct tapping.
Final Checks and Load Testing
Connect a test load (e.g., trailer lights or resistive dummy load) and activate each circuit sequentially. Monitor voltage drop across connections–values above 0.5V indicate resistance issues requiring re-crimping or heavier gauge wire. Seal all junctions with heat-shrink tubing filled with dielectric grease to prevent moisture ingress. Document the setup with photos for future troubleshooting.
Common Errors in 24V Connector Assembly and Prevention Strategies
Reverse polarity is the most frequent installation flaw, causing immediate component failure in towed equipment. Test connections with a multimeter before finalizing crimps–red probes must register positive on the center pin and black on the outer sleeve. Incorrect readings indicate swapped leads; correct this by flipping the wire ends before securing terminals. Use heat-shrink tubing instead of electrical tape for insulation; tape degrades within months, exposing circuits to moisture ingress that triggers short circuits. Pre-shrink tubing contracts uniformly at 200°C, forming a waterproof seal resistant to road salt and vibration.
Insufficient Wire Gauge and Improper Grounding
Undersized conductors overheat under continuous 15A loads, degrading insulation and increasing fire risk. Match 12AWG copper wire to the circuit breaker’s rating; finer strands corrode faster, especially in humid climates. Grounding errors occur when attaching the return path to painted chassis surfaces–the oxide layer creates high resistance. Scrape paint to bare metal using a wire brush, then apply dielectric grease before bolting the terminal. Verify grounding integrity by measuring voltage drop across the connection; readings above 0.2V signal poor conductivity requiring rework.
