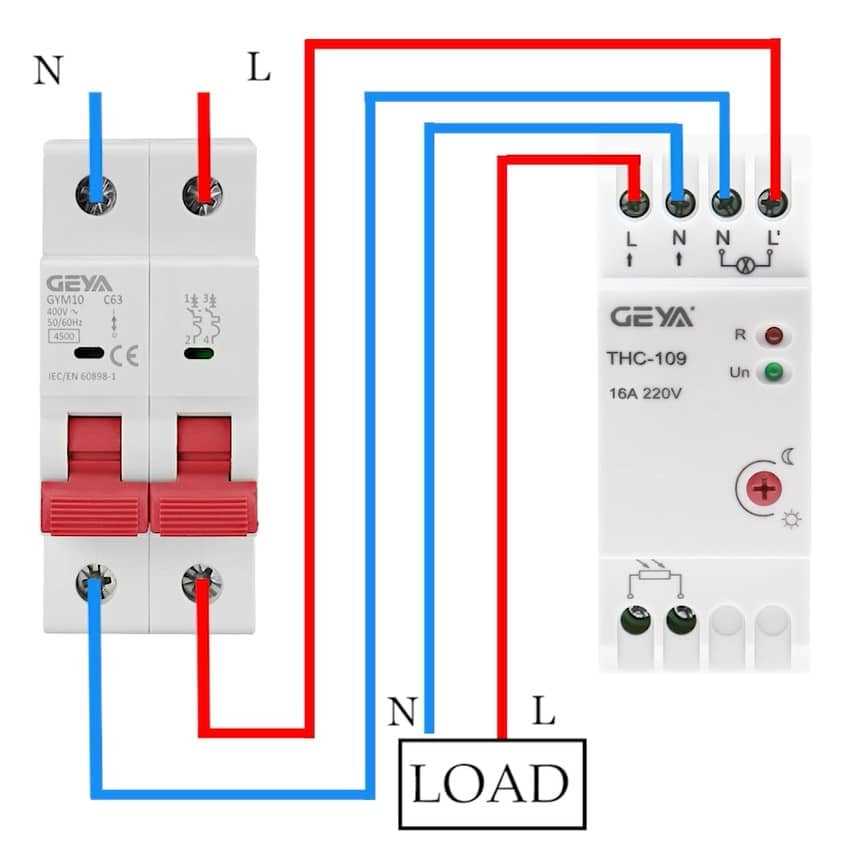

Start by disconnecting the main power supply before handling any conductive components. For a 15-amp protective switch, use 14-gauge copper wire; for 20-amp, switch to 12-gauge. Secure the live wires (black and red) to the upper terminals–polarity must match the panel’s bus bar arrangement. Ground (bare or green) attaches to the designated grounding screw, while neutral (white) connects to the adjacent neutral bar if present.
Verify all connections with a multimeter set to AC voltage mode–measure between each phase terminal and ground. Expected readings should align with the local grid standard (e.g., 230-240 volts). If readings deviate, recheck terminal tightness or inspect for damaged insulation. Torque specifications for terminals typically range between 12-18 inch-pounds; overtightening risks stripping threads.
Label each conductor at both ends to avoid misidentification during maintenance. Use heat-shrink tubing or permanent markers resistant to smudging. For outdoor installations, apply dielectric grease to terminals to prevent corrosion. Install a weatherproof cover if the switch is exposed to moisture or dust.
Avoid overloading by calculating the total load current: sum the rated currents of all connected appliances. If exceeding 80% of the switch’s capacity, upgrade to a higher-rated model. For split-phase systems, ensure the neutral wire carries only the imbalance current–never exceed its ampacity rating.
Test the installation by toggling the switch on and off under load. Listen for unusual sounds and observe for arcing or overheating. If the switch trips during this test, inspect for short circuits or ground faults using a circuit analyzer. Replace any damaged components immediately–do not attempt repairs on faulty switches.
Electrical Panel Connection Guide for Dual-Phase Systems
For a 40A protective switch handling 240-volt loads, connect the hot wires to opposing bus terminals–typically identified by brass screws–with no more than 12 AWG copper conductors. The neutral wire, if required, attaches to the grounded bar, while the ground wire fastens to the dedicated bonding strip. Ensure torque values comply with NEC Table 250.114: 20 lb-in for #10 copper, 30 lb-in for #6 aluminum. Label each conductor with heat-shrink tubing (minimum 3mm ID) color-coded per IEC 60446: black/red for phase lines, white for neutral, green or bare for earth.
Inspect the breaker’s interrupting rating–minimum 10kA for residential panels–before installation. Use a multimeter set to AC voltage to verify absence of backfeed (less than 1V) before handling any terminal. Replace aged enclosures if corrosion exceeds 30% of contact surfaces, or if dielectric tests reveal insulation resistance below 1 MΩ at 500V DC.
Selecting an Appropriate Protection Device for High-Power Devices
Match the overcurrent protector amperage to the appliance’s continuous load rating plus 25% safety margin. A 30-amp unit should use a 40-amp device, while 50-amp equipment requires a 60-amp model–never round down. Check the manufacturer’s data plate to confirm exact figures; ignoring this risks nuisance tripping or worse, overheating conductors.
Double-pole switches are non-negotiable for 240-volt loads. Single-pole variants cannot interrupt both legs simultaneously, leaving one side live–a serious hazard. Verify interrupting rating aligns with system fault current; residential panels typically need 10kAIC, while commercial settings may demand 22kAIC or higher.
Thermal-magnetic units provide dual-layer defense: thermal bimetal strips handle sustained overcurrents, while the magnetic coil snaps open during short circuits. For motor-driven appliances like air compressors or welders, consider time-delay variants labeled HACR (heating, air conditioning, refrigeration). These tolerate startup surges without false trips.
Key Specifications to Compare
- Voltage: 240VAC (two ungrounded conductors)
- Poles: 2 (mandatory)
- Frame size: Ensure compatibility with existing panel busbars
- Trip curve: B, C, or D–choose based on surge characteristics
Ground-fault protection is unnecessary for most fixed appliances unless local codes mandate GFCI for specific equipment (e.g., dishwashers). Arc-fault protection, however, may apply in newer installations per NEC 210.12.
Step-by-Step Guide to Installing a Dual-Switch Protector for High-Voltage Appliances
Shut off the main power supply at the service panel before starting. Verify absence of current using a non-contact voltage tester on all conductors–phase lines and neutral–to prevent electric shock.
Select a compatible dual-switch protector rated for the appliance’s amperage. For example, a 30-amp unit suits most ovens, while 50-amp handles larger equipment. Check the manufacturer’s specifications for wire gauge requirements–typically 8 AWG for 40-amp or 6 AWG for 50-amp units.
Remove the panel cover by unscrewing the fasteners, storing them in a secure location. Identify two adjacent empty slots in the load center that align with the protector’s mounting clips–most panels have labeled positions for high-power devices.
Insert the protector into the slots, ensuring the clips securely latch onto the bus bars. Tighten the captive screw at the base to prevent loosening over time. Misalignment can cause overheating or tripping under load.
- Red (Phase 1) and Black (Phase 2) Wires: Strip ½ inch of insulation using wire strippers. Insert each into the corresponding terminal on the protector’s top lugs, tightening with a torque screwdriver (30 lb-in for 30-amp, 45 lb-in for 50-amp).
- Neutral (White) Wire: Connect to the designated neutral bar if required (not all protectors need this). Ensure no stray strands touch grounded metal surfaces.
- Ground (Green/Bare) Wire: Attach to the grounding bar via the panel’s designated screw. For subpanels, verify the neutral bar is isolated from ground.
Label the protector with the connected appliance’s name and amperage rating using the panel’s adhesive stickers. Include usage notes if sharing the panel with other high-draw devices to avoid overloading.
Restore power at the main switch. Test the protector by toggling it off and on while observing the appliance–it should start without delay. Use a multimeter to confirm 240 volts across the two phase terminals and 120 volts from each phase to neutral.
If the protector trips immediately, recheck connections for shorts or reversed wires. For persistent issues, measure resistance between the phase lines (should be infinite) and ground (should match the appliance’s specifications). Replace damaged conductors or the protector if faults persist.
Critical Errors to Sidestep in High-Voltage Protector Installation
Crossing neutral and live conductors during terminations triggers immediate short circuits, often rupturing 40A+ conductors before overcurrent devices respond. Use a multimeter to verify polarity at each terminal–neutral must register ~0V to ground, live ~230V–before energizing. Failure to torque terminal screws to manufacturer specs (typically 1.2–1.5Nm for 14–10AWG copper) causes hotspots; thermal imaging reveals loosened connections glowing at 90°C+ within 30 minutes of load application. Label every conductor at both ends with heat-shrink tubing marked in indelible ink–mismatched phases in dual-pole protectors create 400V+ potentials across appliances designed for 240V.
Oversights During Panel Integration
| Mistake | Consequence | Corrective Measure |
|---|---|---|
| Omitting insulated bushings on 4.8mm+ conductors | Chafed insulation arcs at panel knockouts | Install UL-listed nylon bushings for all 10AWG+ entries |
| Daisy-chaining neutrals | Overloaded return paths trip GFCI unpredictably | Route each neutral directly to the busbar |
| Ignoring derating for conduit fill (4+ conductors) | 85°C-rated THHN operaties at 115% capacity | Apply NEC Table 310.15(B)(16) derating factors |
Sharing a neutral between 240V protectors violates NEC 300.20(B); install a separate neutral for each paralleled set. Verify ground continuity with a megohmmeter–resistance above 1Ω indicates corroded bus-bar clamps requiring immediate replacement. For subpanels, the isolated ground must never carry neutral current; terminate it directly to the main ground electrode via a #6AWG conductor minimum.
Essential Equipment and Protective Gear for Dual-Voltage Protective Device Setup
Select a voltage tester with non-contact capability to verify power shutdown before handling any conductors. Models like Fluke 1AC II or Klein NCVT-3 detect live currents through insulation, eliminating false negatives when verifying de-energized lines. Confirm the tester operates within 208-240V range to avoid inaccuracies.
Use insulated screwdrivers rated for 1000V minimum, preferably with VDE certification. Wiha 320 or Klein Tools 1001-7 feature ergonomic handles and magnetized tips to secure small fasteners during terminal connections. Avoid standard hardware store variants–substandard insulation fails under accidental contact.
- Wire strippers calibrated for 6-14 AWG solid/stranded conductors (Klein Katapult or Ideal T-Stripper)
- Crimping tool with hexagonal dies for insulated lugs (TE Connectivity WT2000 or similar)
- Torque screwdriver (Wiha Adjustable, 1.3-3.4 Nm) to meet NEC 110.14(D) terminal tightness requirements
- Fish tape (3/16″ steel or fiberglass) for pulling conductors through conduit runs exceeding 10 feet
- Conduit bender with ½” and ¾” EMT shoe (Greenlee 555 or equivalent)
Arc-rated gloves meeting ASTM D120 standards provide primary hand protection against accidental contact. Class 2 (17kV) gloves with leather protectors balance dexterity and dielectric strength. Store gloves in a ventilated bag away from ozone-generating equipment to prevent rubber degradation.
Safety glasses with ANSI Z87.1+ rating must include side shields. Polycarbonate lenses resist impact from debris while anti-fog coatings maintain visibility during prolonged heat exposure. For environments with fluorescent lighting, consider amber-tinted lenses to reduce eye strain from flicker at 120Hz.
Insulated mats conforming to ASTM F1506 provide secondary protection against ground faults. OSHA-approved 36″ x 24″ mats with ribbed surfaces prevent slipping even when contaminated with dielectric fluids. Test mats biannually per NFPA 70E using a 10,000V megohmmeter.
Equip a dual-voltage-rated multimeter (Fluke 87V or Keysight U1272A) with:
- True RMS measurement for accurate readings on non-sinusoidal loads
- Min/max recording to capture transient spikes during startup
- Low-impedance mode to eliminate ghost voltages from capacitive coupling
- Backlit display for visibility in poorly lit service panels
Calibrate annually per manufacturer specifications to maintain ±1% accuracy at 250V.
Store all tools in a hardened case with foam inserts cut to each item’s profile. Pelican 1510 or similar cases protect equipment from impact and moisture during transport to job sites. Label each compartment with part numbers for rapid inventory checks before installation.
