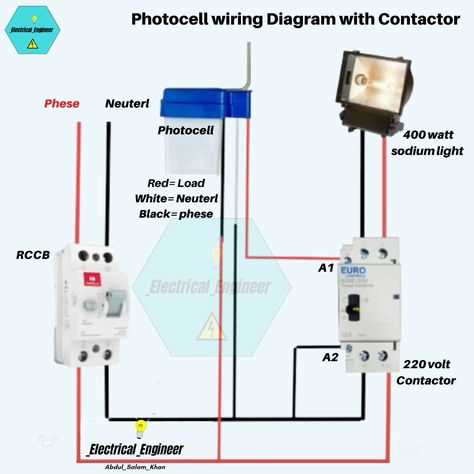

Begin with supply lines: neutral to terminal A1 (if neutral switching is needed) and live to A2. For standard single-phase setups, this ensures proper coil excitation without requiring extra components. Verify line polarity with a multimeter–incorrect pairing risks coil burnout or erratic operation.
For load connections, wire the incoming phase to the upper contact (L1) and outgoing to the lower (T1). Use 1.5mm² copper conductors for currents under 16A; scale up to 2.5mm² for 20A–32A applications per IEC 60204-1 standards. Tighten terminal screws to 2.5 Nm–loose connections cause arcing and voltage drops.
Auxiliary contacts (NO/NC) require careful mapping. Link 13–14 for normally open configurations or 21–22 for closed. Cross-reference with the device’s datasheet–miswiring here disrupts control circuits, especially in motor starters where sequence timing is critical.
Grounding is non-negotiable: bond the metallic housing to the PE bus using a dedicated conductor (minimum 2.5mm²). Omit this, and stray currents create shock hazards or interfere with sensitive electronics, such as PLCs or VFDs.
Test under load: Energize the coil and measure voltage across T1–T2; it should match supply values (±5%). If voltage sags, check for undersized wiring or corroded contacts. For three-phase variants, mirror the setup across L2–T2 and L3–T3, maintaining phase rotation.
Label every terminal using heat-shrink sleeves or engraved tags. Replace generic plastic markers–these degrade under UV or heat cycles in industrial environments. Include circuit identifiers per IEC 60445 (e.g., Q2.M1) to streamline troubleshooting.
Protective devices must be sized correctly: 16A switch for 12A continuous loads, derated by 20% for frequent switching or high inrush currents. Oversized breakers risk nuisance tripping; undersized units fail to interrupt faults, compromising system integrity.

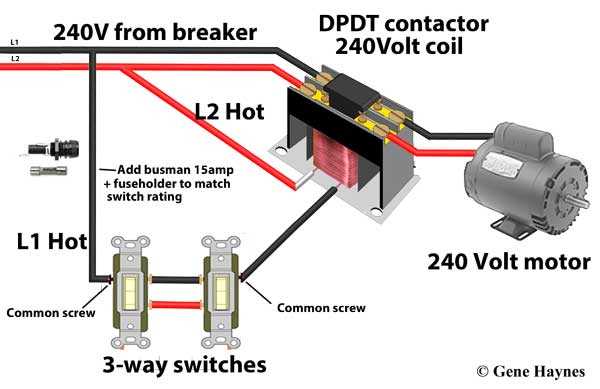

Connecting a Single-Phase 240V Relay for Industrial Loads
Start by identifying the coil terminals–typically labeled A1 and A2–on your relay. These points require a separate control circuit, often 12V or 24V DC, to energize the coil and engage the main contacts. For a 240VAC supply, connect the live feed to the common (COM) terminal of the first pole, then route the output from the normally open (NO) terminal to your load. Ensure the neutral wire bypasses the relay entirely unless handling a double-pole configuration, where both live and neutral are interrupted.
| Terminal | Wire Color (EU Standard) | Function |
|---|---|---|
| A1 | Black | Coil Positive |
| A2 | Brown | Coil Negative |
| COM (Pole 1) | Red | Line Input |
| NO (Pole 1) | Blue | Load Output |
| NC (if used) | Gray | Fail-Safe Path |
For motors or pumps exceeding 10A, add an auxiliary circuit breaker rated 125% of the load current upstream of the relay. Overcurrent protection must match the relay’s maximum switching capacity–check the datasheet for values like 25A, 40A, or 60A. Avoid paralleling poles unless explicitly allowed; even then, current imbalance can cause premature failure. Test continuity with a multimeter after wiring to confirm no shorts exist between poles or the coil.
Control Circuit Variations for Remote Activation
Optocouplers or solid-state relays (SSRs) can isolate the control signal when interfacing with PLCs or microcontrollers. Wire a 5V or 12V signal to the optocoupler’s LED side, then connect the transistor output to the relay coil terminals. This prevents back-EMF from damaging sensitive electronics. For manual switches, use a maintained latching switch in series with the coil; momentary types require a self-hold circuit with a secondary NO contact wired back to the switch input.
Label all wires with heat-shrink tubing or permanent markers per IEC 60445 standards. For example, use “L1” for incoming phase, “T1” for load output, and “K1” for coil control. Keep high-voltage and low-voltage cables segregated in separate conduits–inductive spikes from the coil can corrupt nearby signals. When terminating, tin stranded wires to prevent fraying, but avoid excessive solder; crimp connectors or ferrule terminals provide more reliable contact.
Core Elements for a High-Power Switching Relay Installation
Select a switching device rated for at least 30A per phase if controlling resistive loads like heaters, or 20A for inductive loads such as motors. Verify the coil voltage matches the control signal–110VAC coils suit line-voltage triggers, while 24VDC coils pair better with PLCs or low-voltage automation. Philips-Schneider LC1D series or Siemens 3RT20 models offer proven durability in industrial applications.
Overcurrent protection requires dual safeguards: install a thermal-magnetic breaker sized 125% above the circuit’s continuous current, and supplement with fast-acting fuses at 150% for transient surge suppression. Schneider GV2 or Eaton PKZ breakers provide DIN-rail mounting compatibility. Route conductors in separate conduits–control lines (18-20 AWG) segregated from power cables (minimum 10 AWG for 30A circuits) to prevent induced noise.
Ancillary Components for Reliable Operation
Auxiliary contacts enable remote status feedback: use a NO/NC block from the same manufacturer as the main relay to ensure mechanical synchronization. For timed sequences, Omron H3CR-A or Allen-Bradley 700-HK series pneumatic timers eliminate digital interference. Seal all connections with heat-shrink tubing meeting UL224 standards, and torque terminals to 2.4 Nm for copper lugs to prevent thermal creep.
Step-by-Step Connection Guide for Single-Phase 230V Electromagnetic Switch
Begin by securing the main power feed to the input terminals of the control device. Use 6 mm² copper cables for lines carrying up to 16 amperes and 10 mm² for currents exceeding 20 amperes. Label L1 and L2 clearly–never assume polarity based on wire color alone, as standards vary by region. Connect the neutral conductor only if the load requires it; most inductive or resistive devices operate safely without it. Verify the supply matches the device’s rating (typically 230V AC ±10%) before proceeding.
Auxiliary Circuit Assembly

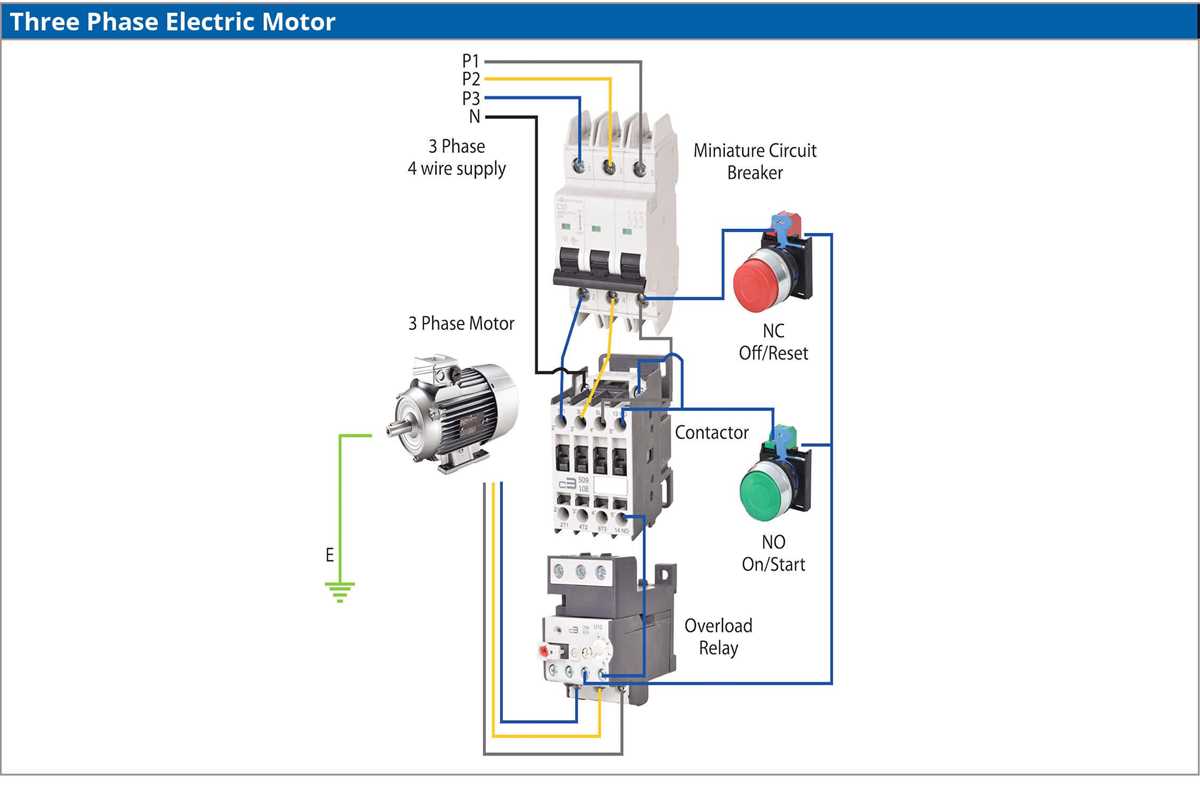

Attach the control circuit to terminals A1 (live) and A2 (neutral) using 1.5 mm² stranded wire. For start/stop applications, wire a normally open pushbutton between A1 and the coil’s start terminal, then link the stop button in series. Latching configurations demand a relay or additional contacts–never splice low-voltage control wires to high-current lines. Test coil resistance with a multimeter (expected range: 20–200 ohms for a 230V coil) to confirm integrity before energizing.
Mount thermal overload protection in series with the load output (T1/T2). Select trip values based on the motor’s full-load current: multiply nameplate amps by 1.15 for standard duty, or 1.25 for heavy-start conditions. Ensure overload contacts interrupt the control circuit directly–parallel bypasses defeat protection. For capacitor-start motors, integrate a delay relay to prevent nuisance tripping during inrush phases.
Final Inspection and Testing
Insulate all exposed conductors with heat-shrink tubing or rated electrical tape–not standard PVC tape, which degrades under heat. Torque terminals to manufacturer specifications (usually 2–3 Nm for M4 screws) using a calibrated screwdriver; overtightening cracks porcelain insulators. Energize the system in stages: first the control circuit, then the main supply. Listen for smooth operation–abnormal buzzing indicates misaligned armatures or incorrect coil voltage.
Monitor the first five cycles for consistent engagement; sporadic drops suggest loose connections or insufficient coil voltage. Measure voltage drop across the contacts during operation–values above 0.5V AC signal abnormal resistance, requiring contact cleaning or replacement. Document all connections in a circuit schematic, including wire gauges, overload settings, and terminal labels for future troubleshooting.
Resolving Faults in High-Voltage Relay Circuits
Check coil continuity first with a multimeter set to resistance mode–values below 10 ohms or infinite reading indicate coil failure. Replace the relay if resistance deviates; typical AC coils measure 20-100 ohms. Verify control voltage at coil terminals with power applied; 198-242V AC range is critical for proper engagement. Low voltage causes chattering, while overvoltage burns out coils. Examine for loose or corroded connections at terminals L1/L2 and T1/T2 using a torque screwdriver–tighten to 1.2 Nm for copper contacts. Oxidized terminals show white/green deposits; clean with a wire brush or contact cleaner.
Test auxiliary contacts by manually pressing the relay; clicking confirms mechanical operation, but silence suggests stuck contacts or broken springs. Measure voltage drop across closed contacts–values above 0.5V indicate pitting or wear, requiring replacement. For intermittent faults, inspect wiring insulation for cracks or heat damage; use a thermal camera to detect hotspots around connections. If control signals trigger erratically, bypass external switches to isolate whether the issue lies in relay logic or upstream components.
Critical Safety Measures for High-Voltage Electromagnetic Switch Installations
Isolate the power source before any intervention by toggling the main circuit breaker to the “off” position. Verify absence of current using a multimeter set to AC voltage–readings must show 0V across terminals. Failure to confirm zero voltage risks severe electric shock, arc flash, or fatal injury. Store the breaker in the “off” position with a lockout tag to prevent accidental re-energization by others during work.
Use insulated tools rated for 600V minimum, such as screwdrivers with non-conductive handles and pliers with dielectric coating. Standard hardware-store tools often lack sufficient protection; verify certification marks (e.g., IEC 60900, ASTM F1505) before use. Remove jewelry, watches, and conductive clothing to eliminate unintended contact paths. Work on a dry, non-conductive surface–avoid metal benches or wet floors.
Wear arc-rated personal protective equipment (PPE) when handling live circuits or during final testing. A flame-resistant (FR) hoodie, face shield, and rubber insulating gloves (Class 2 or higher) protect against arc blasts, which can reach temperatures of 35,000°F (19,427°C). Safety glasses with side shields prevent debris from entering the eyes during mechanical adjustments. Ensure PPE is free of tears, holes, or contamination before each use.
Handling and Termination Risks
Secure all connections with torque wrenches calibrated to manufacturer specifications–overtightening damages threads, while loose terminals cause overheating. Use copper lugs for copper conductors; mixing metals accelerates corrosion. Strip wires precisely, leaving no exposed strands beyond the terminal clamp. Apply anti-oxidant compound to aluminum connections to prevent high-resistance failure. Cover unused terminals with insulating caps to block accidental contact.
Test the switching device after installation by simulating operational conditions. Energize the coil with a low-voltage signal (e.g., 24V DC) while verifying proper contactor closure via a continuity tester. Check for abnormal humming, chattering, or coil overheating–these indicate misalignment, incorrect voltage, or damaged components. Use an infrared thermometer to scan terminals and bus bars for hotspots; temperatures above 75°C (167°F) require immediate investigation.
- Work with a partner when possible–never alone if the system exceeds 100 amperes. A second person can cut power, call emergency services, or administer first aid during an accident.
- Keep a Class C fire extinguisher (rated for electrical fires) within 3 meters of the work area. Water or foam extinguishers conduct electricity and worsen hazards.
- Label all wires and terminals with heat-shrink sleeves or permanent markers. Misidentification during future maintenance is a leading cause of accidental shorts.
- Avoid wearing synthetic fabrics (polyester, nylon) under FR gear–Synthetic materials melt into skin under arc exposure, worsening burns.
Dispose of damaged components immediately. Coils with burnt insulation, pitted contacts, or cracked housings pose failure risks. Wrap defective parts in insulating material before discarding to prevent accidental activation or metal-to-metal contact in waste bins. Document all repairs and replacements in a maintenance log for future reference–include date, issue description, and parts used to track recurring problems.
