For immediate results, wire the coils in parallel for lower input levels and in series for higher input levels. A single-phase or three-phase setup with 120/240VAC supply requires connecting two winding groups in parallel to handle the lower level, while switching to series configuration doubles the voltage capacity for 208/480VAC lines. Use a 9-lead machine with numbered terminals: link L1 to T1, L2 to T2, and L3 to T3 for standard three-phase hookups. Ground the motor via the chassis or a dedicated neutral line–ensure continuity with a multimeter before energizing.
When transitioning between voltages, verify winding resistance across each coil set. Target readings should align within 5% for balanced performance. For 12 leads (dual-speed setups), group leads 1-4, 2-5, and 3-6 into separate circuits; adjust phase connections accordingly. Faulty insulation or irregular readings indicate damaged windings–replace or repair before proceeding. Label each lead clearly to avoid miswiring, which risks overcurrent or phase imbalance.
Apply thermal overload protection inline with each phase to prevent overheating during stalled rotor conditions. Select relay ratings matching the motor’s full-load current (FLC) at the operating voltage–consult manufacturer specs for exact values. For variable-frequency drives (VFDs), use shielded cable to minimize electromagnetic interference; keep leads under 100 feet unless using reactors. Test directionality by jogging the motor at low speed before finalizing connections–reverse any two phase leads to correct rotation.
Secure all terminals with torque-rated terminals to prevent loosening under vibration. Use crimp connectors for stranded wire or lugs for solid core; avoid solder alone as it degrades under mechanical stress. For temporary setups, hardwire the neutral to the start winding center tap in single-phase motors to simplify testing–remove after confirmation to comply with code. Document each step with photos or diagrams for future troubleshooting.
Dual-Voltage Electrical Hookup Guide
Connect the first supply leg (L1) to terminal T1, the second (L2) to T2, and–if applicable–ground the neutral (L3) to T3 for 3-phase low-range setups. For high-range configurations, link L1 to T1, L2 to T4, L3 to T2, and bridge T3 with T5 using a jumper no thinner than 10 AWG copper. Verify voltage across phases: 230-240V for low, 460-480V for high. Mismatched readings signal incorrect bridging or missing neutral; power down immediately and recheck connections against the nameplate’s specified phasing order.
Testing and Troubleshooting
Use a multimeter to confirm each winding’s continuity before energizing: resistance should match ±5% of manufacturer specs (typically 1.5-3 ohms for stator coils). If current draw exceeds nameplate FLA by 20% at startup, suspect shorted turns or reversed polarity. Rotate phase connections systematically–swapping L1/L2 or L2/L3–and monitor amp readings. Persistent imbalance indicates damage; disassemble and inspect for charred leads or compromised insulation. For single-voltage retrofits, strip conductors to 7-8mm exposed length, crimp with ring terminals, and torque to 12-15 lb-ft to prevent loosening under vibration.
Connecting a Single-Phase 230V Electric Drive: Practical Guide
Isolate the power supply before handling terminals. Identify the capacitor–typically a cylindrical or oval component–attached to the housing. Locate the two main winding contacts (often labeled U1-U2) and the auxiliary winding pair (Z1-Z2). For permanent-split capacitor (PSC) setups, link the capacitor directly between Z1 and U1. If using a start capacitor, connect it via a centrifugal switch or relay to Z1, ensuring disconnection after acceleration.
Key Terminal Arrangements
- Main winding: Attach U1 to L1 (live) and U2 to neutral (N). Verify polarity–reversing these will invert rotation.
- Auxiliary circuit: Wire Z1 through the capacitor to L1, and Z2 directly to N. Some models require a resistor (47–120Ω) across Z1-Z2 to suppress voltage spikes.
- Grounding: Connect the metal frame to the earth terminal using 10 AWG copper wire. Test continuity with a multimeter before energizing.
Use spade connectors for secure joins; stranded wire (12–14 AWG) handles vibration better than solid core. Tighten screws to 5–7 Nm torque–loose connections overheat. After assembly, apply power briefly (≤1 second) to confirm direction, then shut off and reinspect. If the drive hums without turning, check capacitor charge with a 500V analog meter–0 ohms indicates failure.
Dual-Phase 230/460V Equipment Connection: Conductor Identification and Junction Point Labeling

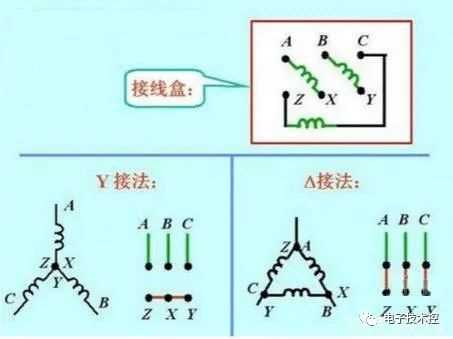

Begin by confirming the equipment’s nameplate rating–high-phase operation requires the neutral terminal (⏚) disconnected, while low-phase demands a star (⋏) bond between the midpoint and neutral. European installations follow IEC 60445: brown (L1), black (L2), grey (L3), blue (neutral), green/yellow (protection). North American variants use NEC Article 430: black (T1), red (T2), orange (T3), white (neutral), green (ground). For wye-delta transitions, verify that T4, T5, T6 remain isolated–failure risks phase imbalance exceeding 7% and trips overload relays prematurely.

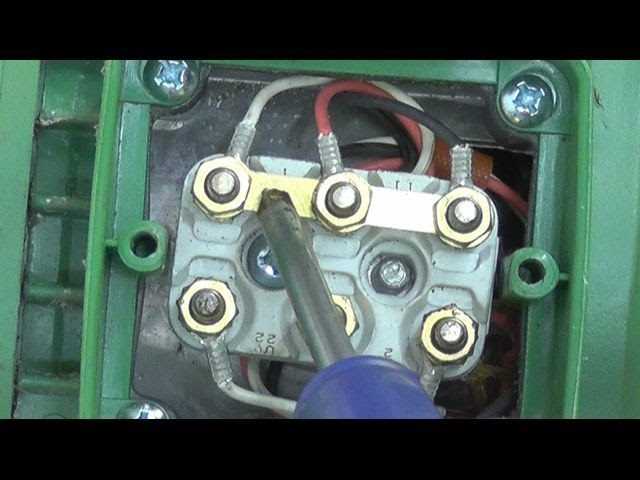

Mark junction points with self-laminating labels (UL 969-compliant) showing voltage rating (230/460), connection type (Δ/⋏), and torque specification (NEC 430.9 requires 12 lb-in for #10 AWG). When reconfiguring from 460V delta to 230V wye, relocate jumpers from T9-T10 to T1-T7, ensuring continuity resistance below 0.1 Ω before energizing–use a 1000V megohmmeter for insulation testing (minimum 1.5 MΩ). Avoid mixing conductor sizes; 230V low-phase draws 1.73× current, necessitating upsized conductors (refer to NEC Table 310.16 for derating factors).
Test phase rotation with a two-lead clockwise indicator (CAT III-600V rated). Reverse polarity on T2-T5 reverses rotation, risking mechanical coupling shear–confirm direction before load engagement. For inverter-duty setups, shielded cable (12 AWG minimum) reduces harmonic distortion below 5% THD; maintain 6″ separation from power conductors to prevent capacitive coupling. Store spare parts at 40-70°F to prevent varnish deterioration in rewound stators.
Critical Errors in High-Voltage Three-Phase Equipment Installation and Prevention Strategies
Mixing phase sequence during connection causes reverse rotation, damaging pumps, compressors, or gearboxes. Label each conductor at both ends before termination: L1 (red), L2 (yellow), L3 (blue), and ground (green/yellow). Use a phase rotation meter to verify sequence after initial hookup, especially in systems with multiple drives. For motors above 15 kW, incorrect rotation can generate torque spikes up to 180% of nominal, risking shaft shear or coupling failure within seconds.
Underestimating conductor cross-section leads to overheating. At 400 V, 1 mm² of copper carries 6 A safely; exceeding this ratio by 20% drops efficiency by 8% due to I²R losses. Calculate current using I = P / (√3 × V × cosφ × η), rounding up to the next standard wire gauge. For example, a 30 kW unit requires 50 mm² conductors at 0.85 power factor and 92% efficiency. Always derate by 10% for bundled cables or ambient temperatures above 35°C.
| Power Rating (kW) | Full Load Current (A) | Recommended Copper Wire (mm²) | Voltage Drop per 100 m (%) |
|---|---|---|---|
| 7.5 | 14.8 | 4 | 2.1 |
| 15 | 28.5 | 10 | 1.8 |
| 30 | 55.7 | 25 | 1.5 |
| 55 | 100.8 | 50 | 1.2 |
Skipping insulation resistance tests invites ground faults. Measure between each live conductor and ground using a 500 V megohmmeter; values below 1 MΩ indicate compromised insulation or moisture ingress. For new installations, minimum acceptable resistance is 10 MΩ. Replace cables showing readings below this threshold–moisture absorption in PVC insulation reduces dielectric strength by 40% after one week of exposure at 95% humidity.
Improper star-delta transition timing burns windings. Set the timer to 5–7 seconds delay for motors above 11 kW; shorter intervals create current surges up to 12× nominal during switching. Adjust the delta contactor pull-in voltage to 85% of line voltage to prevent sluggish engagement. For frequent-start applications, use a soft starter with a 3–5 second ramp time to limit inrush to 4× FLA.
Ignoring thermal overload protection ratings causes nuisance trips or thermal damage. Size heaters based on the unit’s full-load amperage, not nameplate service factor. For 10% service factor motors, set protection to 110% of FLA; for 1.15 SF, use 125%. Ambient-compensated relays prevent false trips at temperatures above 40°C–uncompensated devices may misread by ±15%. Test trip curves quarterly; worn contacts increase response time by 30%.
Disregarding harmonics in VFD-driven systems overheats conductors. Install a line reactor (3–5%) or dv/dt filter at the drive output to reduce reflected wave voltages exceeding 2 kV/µs, which degrade insulation 5× faster. For drives above 37 kW, use shielded cables with foil and braid to limit electromagnetic coupling; grounding both ends reduces common-mode noise by 45 dB. Verify harmonics with a power analyzer; THD above 5% requires active filtering to prevent neutral conductor overload.
Loose terminations create hot spots detectable only with infrared scans. Torque lugs to manufacturer specifications: 2.5 Nm for M6, 6 Nm for M10. Recheck after 24 hours; copper yields 5–7%, requiring retightening. Use spring washers on aluminum connectors to maintain pressure as thermal cycling loosens joints. For outdoor installations, apply antioxidant paste to bimetallic connections; corrosion increases resistance by 0.5 mΩ per year in coastal environments, doubling I²R losses within 5 years.
