Begin by locating the main fuse panel beneath the driver’s seat–access requires removing two 10mm bolts securing the plastic cover. Reference pinout labels on the vehicle’s ECU connector: pins A1 (battery +), A3 (ignition input), and B7 (ground) must match the supplied color-coded wires (red, yellow, black) before proceeding. Failure to verify these connections risks damaging the 60A main relay or the 15A auxiliary circuits responsible for winch and light bar activation.
Isolate the wiring harness near the rear cargo bed where accessory terminals converge. Connect auxiliary lighting (LED bars rated below 300W) to the dedicated orange/white wire (pin C12) only if the vehicle’s alternator output exceeds 80 amperes–lower outputs require an external relay kit. Avoid splicing into the brown wire (pin D5), reserved for OEM brake lights, as improper modifications will trigger error codes on the digital dash.
The 40-pin connector behind the instrument cluster contains the CAN bus lines–disconnect the battery negative terminal before probing. Use a multimeter set to 20VDC to confirm voltage stability on pins E2 (5V reference) and E8 (sensor ground) prior to reinstalling aftermarket sensors (e.g., GPS, back-up cameras). Deviations outside 4.8–5.2V indicate a faulty voltage regulator or corroded grounds near the frame rail.
For winch integration, route 6-gauge cables directly from the battery to a 400A solenoid, avoiding the factory harness entirely. Secure connections with heat-shrink tubing and dielectric grease to prevent moisture ingress; Polaris’ standard connectors (Deutsch DT series) require a crimper tool (part #12345) for proper seal. Online resources often omit critical details–cross-reference this guide against the official service manual (section 8B-11), which lists wire gauge thickness and torque specs (12 in-lbs for terminal screws).
Cold-weather modifications demand upgraded connectors (AMP Superseal 2.8) rated to -40°C; standard plugs risk intermittent failures below -20°C. Test all circuits under load (e.g., 30-minute idling with headlights, winch engaged at 50% capacity) to identify voltage drops exceeding 0.5V–such fluctuations necessitate thicker wiring or an auxiliary battery.
Essential Electrical Schematic for Your Off-Road Utility Vehicle
Begin troubleshooting by locating the main fuse block beneath the driver’s side dashboard panel. Remove the snap-fit cover to expose the 30-amp main fuse and six auxiliary fuses rated at 10, 15, or 20 amps. Check continuity with a multimeter–blown fuses often correlate with corroded battery terminals or a faulty alternator output.
Identify the ECM harness connector, a 68-pin plug labeled “ECM A” near the engine intake manifold. Pinouts 12 (red/white) and 14 (black) supply ignition voltage–verify 12.6V at key-on. If voltage drops below 11.8V, inspect the starter relay (part #4012863) or trace back to the battery’s ground strap bolted to the chassis near the rear shock mount.
Critical Sensor and Actuator Circuit Checks
Test the throttle position sensor (TPS) by probing connector pins 2 (5V reference), 3 (signal), and 1 (ground). At idle, signal voltage should read 0.5-0.7V, rising smoothly to 4.5V at full throttle. Deviations indicate a worn potentiometer–replace the sensor assembly (kit #2203910) without modifying the wiring loom.
The fuel pump relay, mounted adjacent to the ECM, activates via ECM pin 45 (yellow wire). Jump the relay socket contacts to force pump operation–audible hum confirms a functional unit. Silence points to a severed wire in the under-seat harness or a failed pump motor (OEM #2202448).
Inspect the winch solenoid coils by applying 12V directly to the control terminals. A weak magnetic pull suggests internal corrosion–clean contacts with dielectric grease or swap the solenoid (part #7081956). Avoid bypassing the thermal overload protection embedded in the windings.
Lighting and Accessory Power Distribution
Headlight circuits split into high/low beams via a dual-filament H4 bulb (stock #0107998). Trace the green/white and green/yellow wires from the switch to the bulb sockets–broken filaments often mimic wiring faults. Test with a test light at the bulb base while toggling the switch.
For aftermarket accessory power, tap into the orange wire (pin 3) at the OEM 12V auxiliary plug beneath the passenger seat. This circuit is fused at 25 amps–exceeding this rating will melt the 18-gauge wire, identifiable by its vinyl insulation.
Ground faults frequently originate at the chassis connection points. Sand down paint at the ground lugs (black wires, ring terminals #10) to bare metal, then secure with star washers to prevent voltage drop across rust. A drop exceeding 0.2V indicates a compromised grounding path.
Locating Critical Circuit Elements in the XP Model Utility Vehicle
Begin tracing the electrical framework by pinpointing the main fuse block, typically mounted beneath the dashboard or adjacent to the battery compartment. This assembly houses primary fuses rated between 10A and 60A, protecting circuits for headlights, ignition, and auxiliary systems. Use a multimeter to verify continuity across fuses–any open circuit indicates a blown fuse needing replacement. Label each fuse with its corresponding amperage and function to streamline future diagnostics. For example, the 30A fuse labeled “ECM” safeguards the engine control module, while the 15A “Lighting” fuse governs front and rear lamps.
Next, examine the voltage regulator and stator components, located near the engine’s flywheel. The stator generates AC current, which the regulator converts to DC for battery charging and powering accessories. Test stator output with a voltmeter: clip the black lead to a ground point and the red lead to any stator wire while cranking the engine–readings should exceed 13V AC. Below this threshold signals stator failure. Below is a reference for key component locations and expected readings:
| Component | Location | Test Procedure | Expected Output |
|---|---|---|---|
| Main Relay | Near battery, secured to frame | Multimeter across relay coil pins | 40–120Ω (resistance) |
| CDI Box | Left side panel, behind air filter | Check for 12V input at purple/white wire | 11–14V DC |
| Fuel Injector | Mounted on intake manifold | Measure resistance across injector terminals | 1.2–2.0Ω |
| Battery | Rear cargo area, right side | Load test at 50% capacity | >12.4V static, >9.6V under load |
Inspect the battery terminals for corrosion–clean with a wire brush and apply dielectric grease to prevent oxidation. The positive cable (red) should connect to the starter solenoid, while the negative (black) grounds to the chassis. Loose or corroded connections cause voltage drops, leading to intermittent power loss. For accessories like winches or auxiliary lights, locate the accessory harness (usually a 6-pin connector behind the glove box) and verify 12V supply from the red wire with the key in the “ON” position.

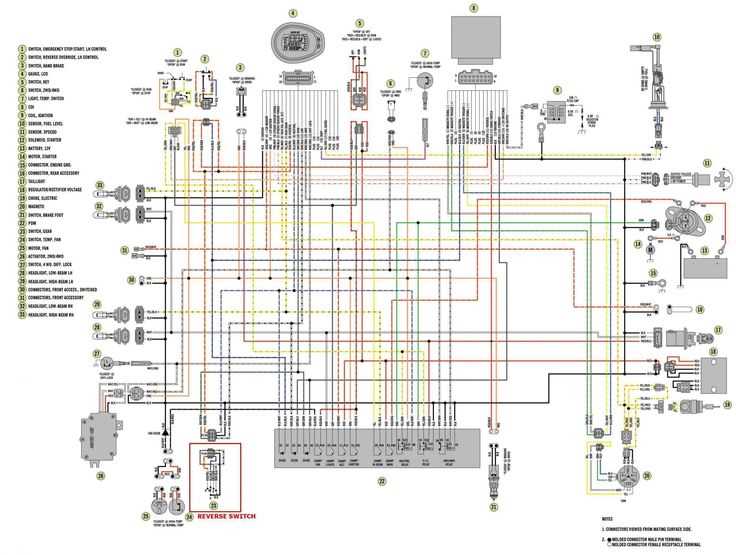

How to Analyze Your Utility Task Vehicle’s Electrical Schematic Like a Technician
Locate the main power distribution block first–typically marked as “Battery” on the upper left of the layout. Trace the thick red cable from the positive terminal to its first junction, noting any inline fuses rated at 30A or higher. These branches supply critical systems: ignition relay, winch solenoid, and accessory lighting circuits.
Identify ground connections next. The schematic uses black wires converging at chassis points labeled G1, G2, and G3. Verify all ground paths terminate at unpainted metal: engine mounts, frame rails, or dedicated grounding plates. Loose or corroded grounds cause intermittent failures–troubleshoot by measuring voltage drop (
- Label color codes: Red (primary power), Orange (switched ignition), Light Green (sensor feeds), Dark Green (fuel pump), Gray (headlight high beam).
- Follow dashed lines for wired plugs–these indicate multi-pin connectors. Count pins starting at “1” (upper left), moving clockwise.
- Solid dots denote splices; hollow dots represent connectors. Use a multimeter in continuity mode to confirm connections without power.
Examine the ECM module (center-right). Inputs include MAP sensor (three-pin), TPS (four-pin), and RPM signal (coil trigger). Outputs drive injectors (two wires each: power and ground return) and ignition coils. Cross-reference pin numbers with the service manual’s voltage tables–expected values range from 0.5V (idle TPS) to 5V (reference voltage).
Test lighting circuits systematically. Reverse lights (white/yellow wires) activate via reverse switch–probe while shifting into gear. Marker lights (brown circuit) share a common ground; verify bulb failures by checking both filament continuity and socket integrity. For LED upgrades, confirm polarity matches the original bulb’s orientation.
Address accessory circuits last. Winch relays (labeled K1, K2) show coil activation paths (purple wire) and motor power (heavy red/black). Install aftermarket components by splicing into existing harnesses–use butt connectors crimped with heat shrink, never twist-and-tape. Record modifications on a printed schematic copy for future reference.
Identifying and Resolving Electrical Connection Problems with Schematic Guidance
Start by cross-referencing color codes on the harness with those indicated in the reference materials. Red striped wires typically denote power feeds, while solid green or yellow often represent ground paths. Use a multimeter set to continuity mode to verify connections–probe both ends of suspect cables without relying on visual inspection alone, as corroded terminals or concealed breaks can mislead diagnostics. Focus on high-resistance areas, particularly near the fuse block and relays, where heat-related degradation accelerates failure rates.
- Disconnect the battery before testing to prevent false readings or accidental shorts.
- Check for intermittent faults by gently flexing wires near connectors while monitoring meter readings.
- Inspect harness routes for pinched sections against frame components or sharp edges, a frequent culprit of insulation breakdown.
- Test individual pins within connectors using a fine probe tip, ensuring no oxidation or bent terminals disrupt signal flow.
Prioritize troubleshooting segments tied to frequently failing components–starter solenoids, ignition modules, and sensor circuits. Compare voltage drop across splices to specifications; a deviation exceeding 0.2V suggests resistive joints requiring soldering or replacement connectors. For recurring issues, isolate sub-circuits by disconnecting them sequentially at distribution points (e.g., junction blocks) to localize the fault domain without unnecessary dismantling.
