Start with the fuse box under the driver-side dash. The accessory circuit–typically marked IGN or ACC–supplies steady 12V power even when the ignition is off. Tap this line using a 18-gauge crimp connector to avoid melting insulation. Route the wire through the firewall grommet near the brake booster, securing it with zip ties every 6 inches to prevent chafing against sharp edges.
Locate the factory harness behind the center stack. The pink wire delivers constant power, yellow handles illumination dimming, and orange/black carries the antenna trigger. For aftermarket units, splice these wires directly–do not rely on adapters. Use a multimeter set to DC voltage to confirm polarity before connecting. Reverse polarity will fry the internal amp circuitry instantly.
Ground the unit to a bare metal surface within 18 inches. Sand off paint at the grounding point to ensure a solid connection. If the display flickers or speakers emit static, recheck this step–poor grounding causes 90% of post-install issues. Route RCA cables away from power wires to minimize interference; cross them at 90-degree angles if unavoidable.
For vehicles with amplified systems, retain the blue/white factory amp wire. Bypassing it will drop subwoofer output by 50%. When testing, start with the volume at half–factory presets calibrate bass levels aggressively. If the unit resets during cranking, add a capacitor (minimum 1 farad) between the battery and amplifier to stabilize voltage.
Label every connection with heat-shrink tubing and numbered flags. Document wire colors and termination points in a notebook–reference diagrams only guide, real-world wiring often deviates from printed schematics. Use solder and adhesive-lined shrink tubing for connections exposed to moisture or vibration. Never tape wires; adhesive dries out and leaves corroded copper.
Wiring Guide for Factory Sound System in Mid-Size Pickup
Locate the twelve-pin gray connector behind the center stack–pin 4 delivers constant 12V from the battery via a 10A fused line, while pin 8 supplies switched power activated by the ignition. Ground is consolidated on pin 12; verify continuity with chassis using a multimeter set to 200 ohms before proceeding. Speakers connect via pins 1, 3, 5, 7, 9, and 11: front door woofers receive 4-ohm balanced signal on 1 and 3, dash tweeters on 5 and 7, and rear full-range units on 9 and 11. Mismatched impedance risks amplifier shutdown.
For aftermarket integration, splice the harness adapter at the firewall grommet–orange wire with white stripe carries vehicle speed signal critical for ancillary functions, avoid cutting it. Antenna trigger (pink with black stripe) must be bridged to retain automatic seek; failure results in manual tuning. USB retrofit requires tapping into the existing LIN bus (solid purple wire) behind the glovebox; voltages between 0.5V and 3.8V indicate active data transmission. Always disconnect the negative terminal for five minutes to reset module communication errors.
Troubleshooting Common Issues
No audio output: probe the speaker wires with a 9V battery–audible click confirms intact circuit. No power: check fuse F2UA (10A) in the underhood box and replace with identical rating. Static during acceleration: reroute power cables away from the transmission tunnel; interference from alternator harmonics often resolves with shielded 18-gauge cable. Retain factory equalizer presets by transferring settings via OBD-II port before disconnecting the main harness.

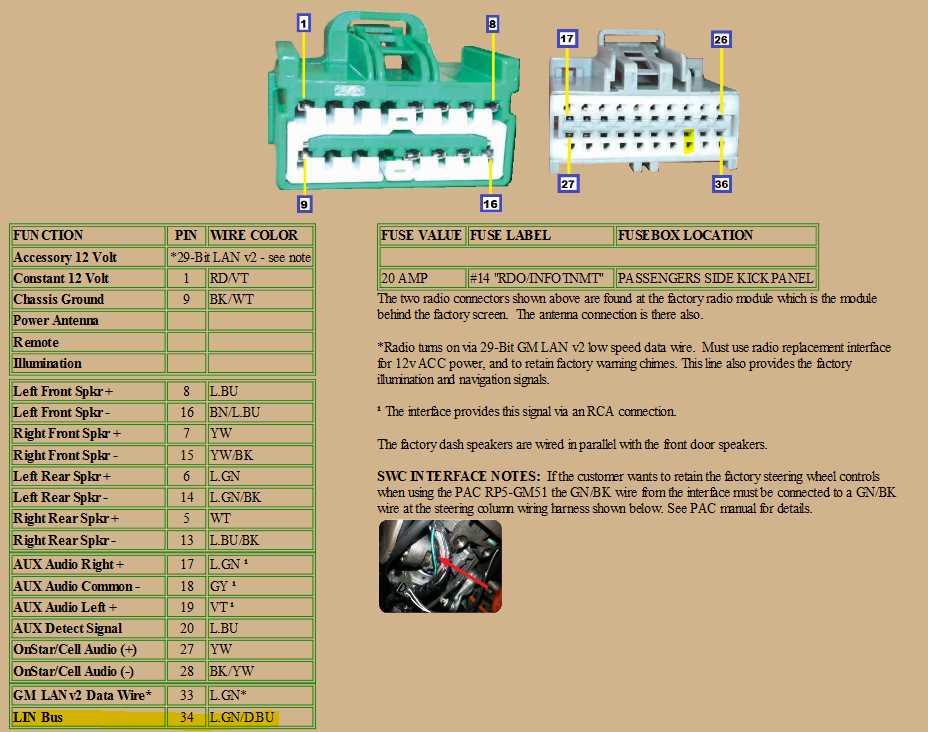

Matching Harness Wire Colors to Factory Connector Pins

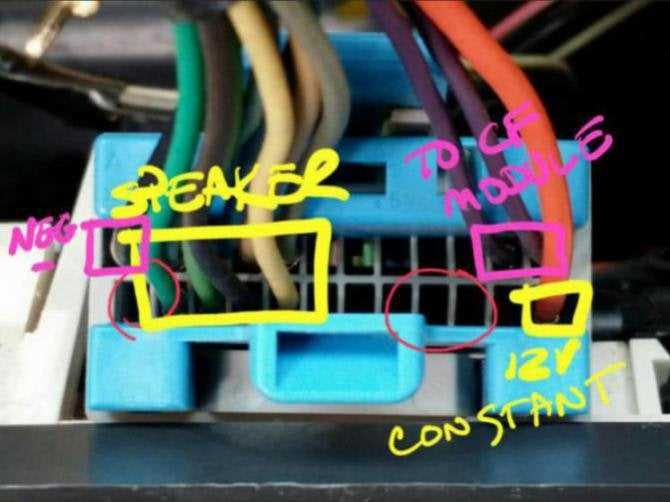

Locate the 12-pin connector behind the dashboard unit–it’s typically a black plug with yellow-striped latches. Pin 1 (leftmost, upper row) carries the dark green/white speaker lead for the front left door; verify continuity with a multimeter set to ohms before splicing. The adjacent Pin 2 switches to light blue/black for the right front door tweeter; mismatching this pair swaps stereo channels permanently.
| Pin Number | Wire Color | Function | Signal Type |
|---|---|---|---|
| 1 | Dark green/white | Left front (+) | High-level |
| 2 | Light blue/black | Right front (+) | High-level |
| 6 | Yellow/black | Battery (+) | 12V constant |
| 9 | Gray/red | Ignition | Switched 12V |
| 11 | Pink/black | Ground | Chassis (-) |
Skip Pins 3-5; they serve auxiliary outputs or unused circuits in most configurations. Pin 6 is critical–yellow/black delivers continuous 12 volts, often mistaken for accessory power. Test voltage drop under load; readings below 11.8 volts indicate corroded terminals needing immediate cleaning with a wire brush.
Ground integrity at Pin 11 demands attention: pink/black must terminate directly to chassis metal, not through paint or bolt threads. Use star washers to bite through factory coatings, then apply dielectric grease to prevent future oxidation. Ignore vague “brown” or “orange” references in aftermarket manuals–factory schematics list gray/red at Pin 9 for ignition-switched power, confirmed by a test light illuminating only when the key rotates to ON.
Step-by-Step Guide to Accessing the Factory Audio System Connections Behind the Control Panel
Disconnect the negative terminal of the vehicle’s battery before proceeding. Failure to do this risks short circuits or electrical damage when handling exposed connectors. Locate the 10mm nut securing the terminal clamp and loosen it with a socket wrench, then lift the cable away from the battery post and tuck it aside to prevent accidental contact.
Remove the trim panel surrounding the climate and infotainment controls. Starting at a bottom corner, wedge a plastic pry tool between the panel and dashboard to release the hidden clips. Work methodically around the perimeter, applying even pressure to avoid cracking the plastic; six clips typically hold this section in place. Once free, set the panel aside–do not force it if resistance is felt, as wiring harnesses may still be attached.
Extract the head unit by unscrewing the four Torx T20 bolts positioned at each corner. Slide the unit forward carefully; the rear connector block and antenna cable will remain attached. Gently depress the plastic release tabs on either side of the wiring harness plug to detach it from the back of the unit. For vehicles with amplified audio, an additional ground wire may be bolted to the chassis–remove this last.
Identify the primary power, speaker, and accessory leads behind the mounting bracket. The harness typically includes:
- A constant 12V lead (yellow, thicker gauge)
- A switched 12V lead (red, thinner gauge)
- Eight speaker wires–each pair color-coded with a solid/tracer stripe (e.g., gray/gray-black for front right)
- A single purple illumination wire (dims with headlights)
Use a multimeter set to DC voltage to verify each lead’s function before modification. Reattach components in reverse order, ensuring all connectors snap securely and trim clips align properly.
Integrating Premium Sound Systems with Factory Harness Configurations

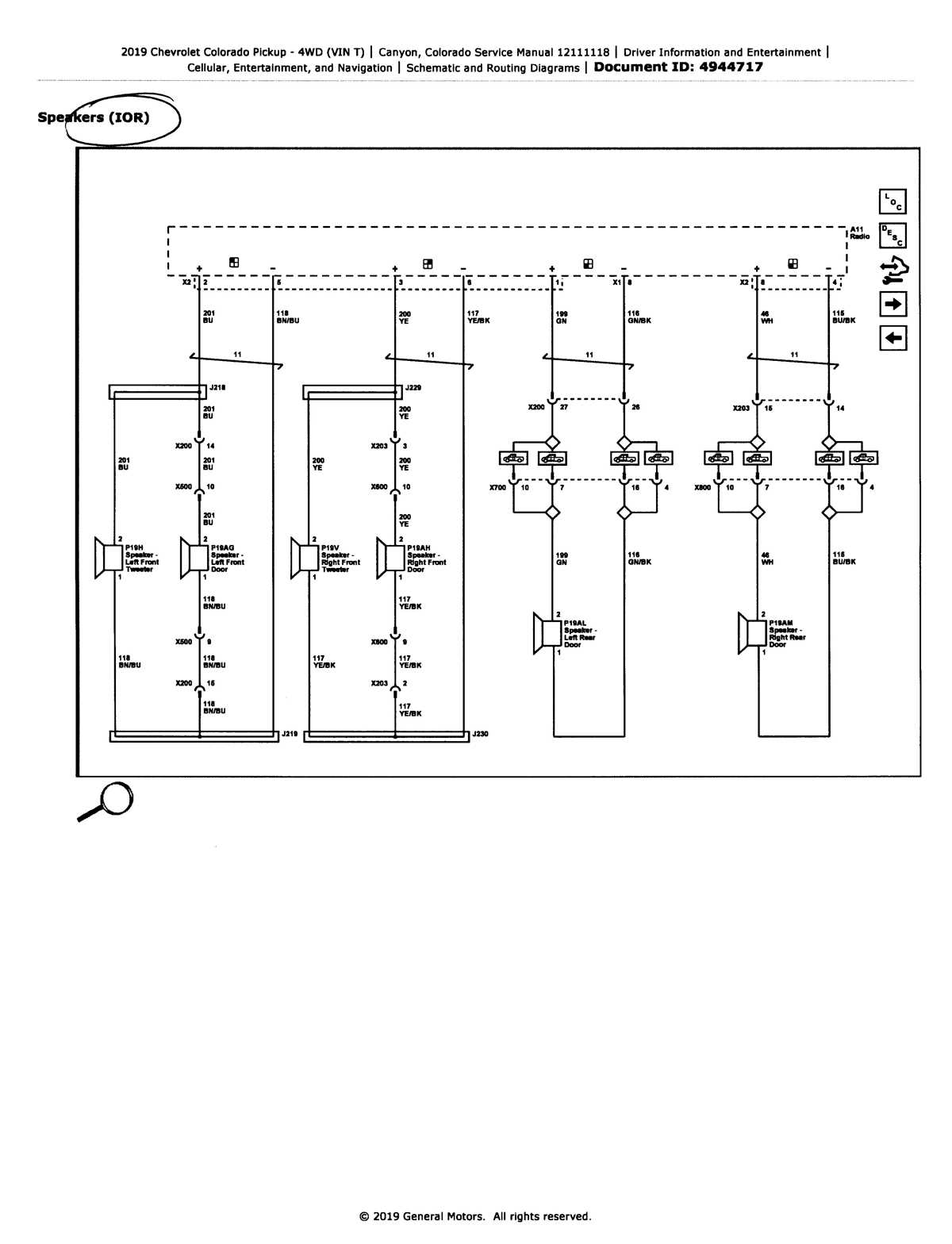

Locate the OEM speaker connectors behind the dashboard fascia–these are labeled as Front Left (+), Front Right (+), Rear Left (+), and Rear Right (+), along with their corresponding negative terminals. Factory harnesses in this pickup use 18-gauge wire; ensure your aftermarket speakers are rated for this gauge to prevent impedance mismatches. Use a multimeter to verify polarity before connecting; even a 0.5V discrepancy can degrade sound staging.
For tweeters, tap into the A-pillar harness instead of the door terminals. The factory wires here (typically purple/violet for positive, gray for negative) carry high-frequency signals optimized for the OEM coaxial setup. Crimp connectors are inadvisable; solder and heat-shrink tubing yield the most reliable joints, especially in high-vibration environments like door panels.
Adapter Selection and Power Handling
Factory amplifiers in this model output 15 watts RMS per channel–match aftermarket speakers with a 30–70 watt RMS range for optimal headroom. Avoid bridged connections unless the amplifier is explicitly rated for it; the OEM fuses (10A for front channels, 15A for rear) provide insufficient protection for bridged loads. If adding a subwoofer, spliced into the rear speaker wires will trigger the factory equalizer’s bass boost, but this may overload the harness. Instead, run a direct line from the battery with an inline fuse (30A minimum).
Door speakers in this vehicle are mounted on plastic baffles–replace these with aftermarket rubberized baffles to reduce panel resonances. The OEM grille clips are fragile; use torque-limited screwdrivers (12 in-lbs) when reinstalling to avoid cracking the mounting tabs. For component systems, route tweeter wires through the existing harness channels to maintain factory door seal integrity.
Signal Integrity and Noise Reduction
RCAs tapped from the factory head unit may introduce ground-loop hum. Use a ground-loop isolator (12V, 4Ω) between the amplifier and harness to eliminate this. The OEM wiring loom includes dedicated turn-on leads (light blue wire, 250mA max); verify continuity with a test light before splicing to aftermarket amplifiers. For passive crossovers, mount components near the speakers to minimize signal degradation–factory door harnesses are shielded but lack sufficient gauge for long runs.
Testing each channel individually prevents troubleshooting headaches later. Use a pink noise generator to verify all speakers are properly wired and phased. The OEM system employs a time-alignment delay for the rear speakers; expect a slight lag when first powering on aftermarket setups until the amplifier stabilizes.
Retain the factory antenna lead (black/white striped wire) if keeping the AM/FM tuner. Cutting this will disable all radio reception, including satellite and navigation signals in some trim levels. For custom installations, label every wire with its function before disconnecting–factory harnesses in this model vary significantly between trims (LT vs. Z71), and splicing errors can damage onboard modules.
