For precise troubleshooting, connect the aftermarket head unit’s constant power lead to pin C-108 (yellow wire, 12V battery) on the white 24-pin connector. Ground the black wire to pin C-106 or a bare metal chassis point near the fuse box–resistance shouldn’t exceed 0.5 ohms. The switched ignition feed (red, pin C-109) must disengage when the key is removed; verify with a multimeter set to 20V DC. Misrouting this line can drain the battery in under 48 hours.
Speaker outputs follow a balanced 2-ohm configuration: front left (pin A-118, gray), front right (pin A-119, violet), rear left (pin A-120, brown), rear right (pin A-121, dark blue). Don’t splice taps–use crimp connectors rated for 22–18 AWG and heat-shrink tubing. The factory amplifier (located behind the glove box) expects a low-level signal on pins A-101 (white/black) and A-102 (white/red). Bypassing it requires bridging these to the head unit’s RCA outputs, but expect 10–15% volume loss without a line-level converter.
Anticipate a muted chime on startup–this is tied to the CAN bus via pins C-25 (blue/white) and C-26 (blue/yellow). Disabling it requires a resistor load (1 kΩ, ¼W) across these pins or a firmware reflash using MUT-III scan tool. The steering wheel controls interface through a single-wire LIN bus (pin C-44, pink). Adapters like Metra ASWC-1 should be wired directly, not through the clockspring, to avoid intermittent failures.
Check for fused circuits if no power exists: the 10A audio fuse (position 19 in the driver’s panel) protects the entire system. Replacement wires should match the 0.5 mm² gauge of the OEM harness. For memory retention during battery disconnect, maintain the yellow wire live–never splice it to the red ignition line. Keep wire runs tight against the firewall to prevent chafing from the EVAP purge valve bracketry.
Vehicle Audio System Connection Guide for the Latest SUV Model

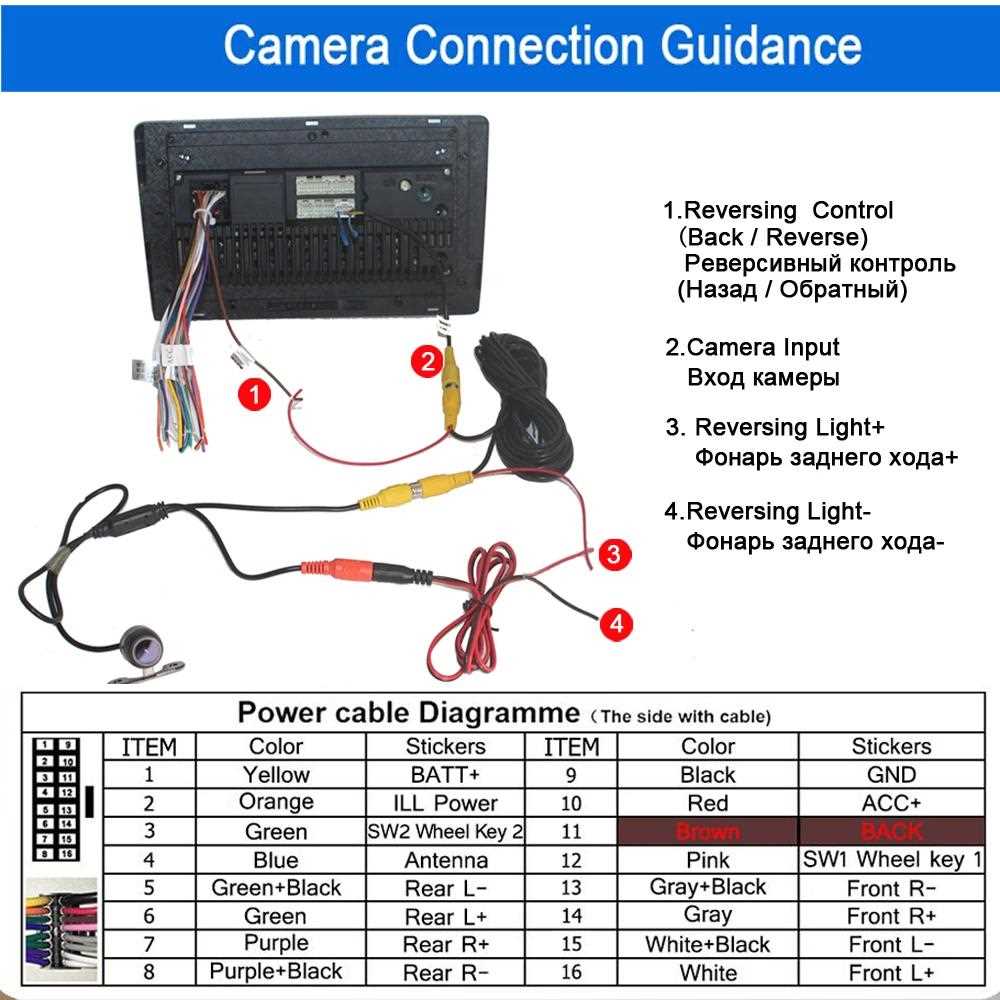

Locate the factory harness behind the dashboard center console–typically a 16-pin plug with color-coded leads matching standard aftermarket decks. Identify the following wires by function and hue:
- Yellow (B+): Permanent 12V source; connects directly to the battery via an inline fuse (15A minimum).
- Red (ACC): Switched power; splices into the ignition circuit using a T-tap connector near the fuse box.
- Black (Ground): Solid connection to chassis metal–scrape paint at attachment point for optimal conductivity.
- Blue/White (Antenna Trigger): Activates motorized antenna or external amplifier.
- Orange (Illumination): Dimmer-controlled; pairs with headlight circuit to adjust display brightness.
- Gray/Purple/Green/White: Front and rear speaker outputs–polarity-critical; test with 9V battery before finalizing.
For premium sound upgrades, bypass the stock amplifier behind the glove box (8-pin connector) and wire speakers directly to aftermarket units using 18-gauge oxygen-free copper cables. Secure all splices with heat-shrink tubing, never electrical tape alone.
Critical Troubleshooting Steps
- Verify all connections with a multimeter before powering up–expected readings: 12-14V on power leads, 4-8 ohms on speaker wires.
- If no audio output, recheck ground integrity; a weak connection causes distortion or intermittent failures.
- For static noise, add a noise filter capacitor (10,000µF) between yellow and ground wires to suppress alternator whine.
- Test steering wheel controls using an adapter harness–OEM buttons require resistive values of 560Ω (volume up) and 1.5kΩ (next track).
Remove the climate control panel first–it detaches with plastic trim tools after unscrewing two Phillips screws. Behind it lies the stock unit’s mounting bracket; press retention clips inward to release the factory head unit.
For vehicles with rear cameras, preserve the original harness’s pink/white wire–it carries video signal to the aftermarket screen if retaining backup functionality. Route new RCA cables along the driver-side kick panel away from airbag deployment zones.
Label each wire with masking tape during disassembly to avoid misconnections–especially crucial for models with integrated navigation; incorrect wiring risks frying the GPS module.
Post-Installation Checks
Reassemble in reverse order, ensuring all airbag sensors remain undisturbed. After startup, confirm:
- Display powers on without reboot loops.
- All speakers produce clean audio at 50% volume.
- Bluetooth pairing succeeds within 30 seconds.
- Steering wheel controls match their original functions.
Store the original unit’s removal keys in the glove box; they’re required for dealer diagnostics or warranty claims. Keep crimp connectors organized–mixed colors lead to frustrating time sinks during future modifications.
Decoding the OEM Audio System Harness Connector Layout

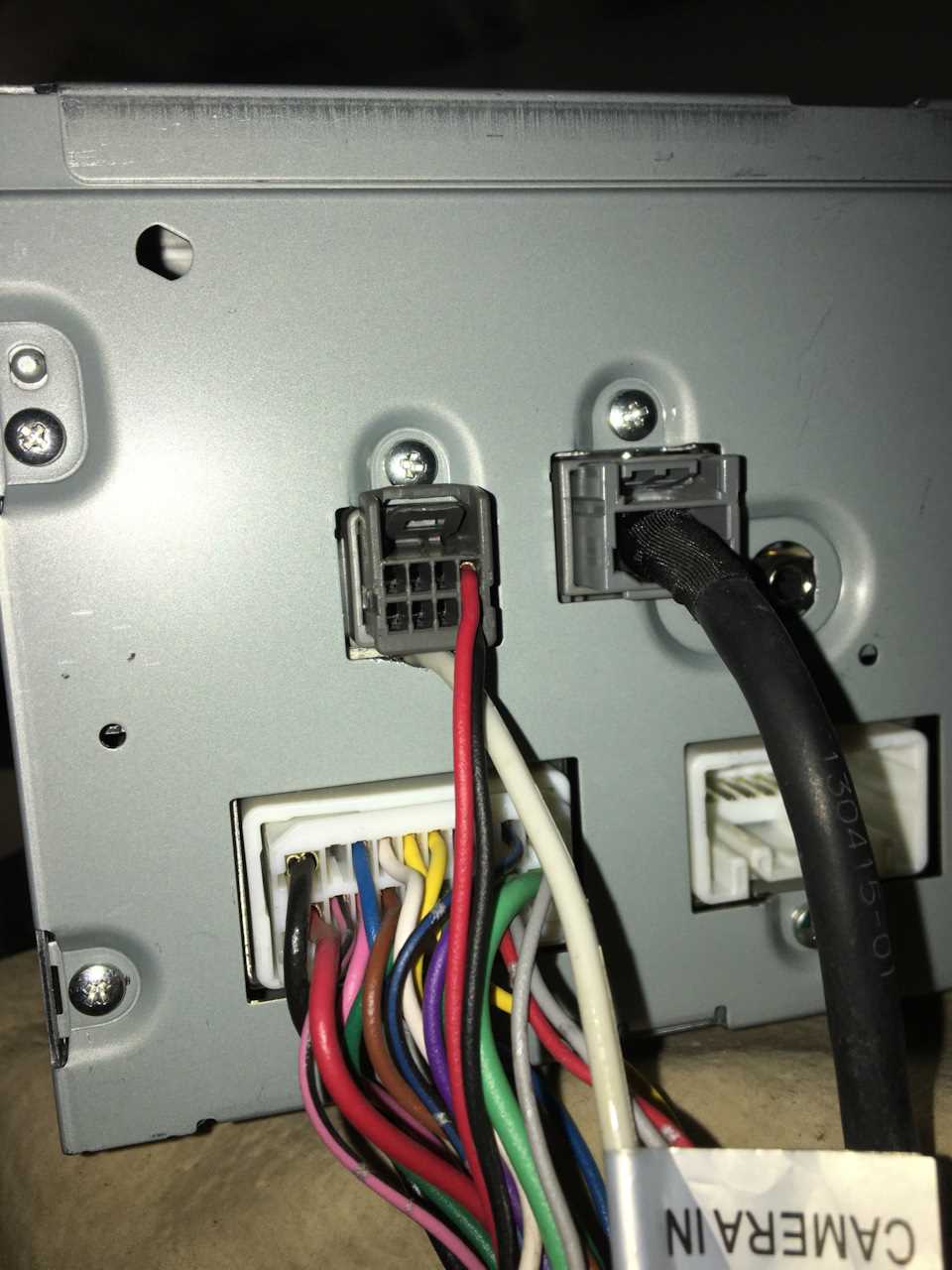

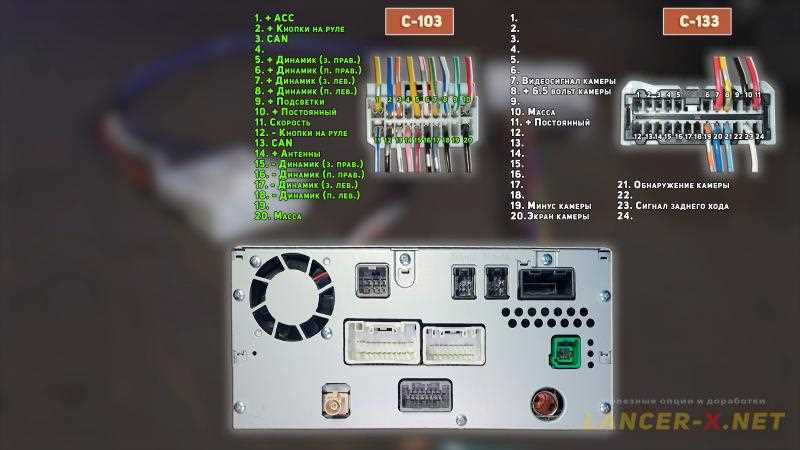

Locate the factory harness behind the head unit–typically a rectangular plug with 12 to 24 colored wires. Each pin serves a distinct function, and misidentification will disrupt power flow, speaker output, or antenna signals. Begin by cross-referencing the connector’s shape: a 16-pin Molex configuration is common in vehicles from this class, though a 20-pin variant appears in models with integrated navigation or premium sound options.
Use a multimeter set to DC voltage (20V range) to probe the pins while the ignition is in accessory mode. Ground pins will read 0V, power supply wires (usually red or yellow) will show 12V, and illumination lines (often orange or gray) fluctuate with dashboard lights. Speaker leads produce no voltage but emit a faint pop when touched with the probe–confirm polarity by checking resistance (4-8 ohms) between them and ground.
Reference the following standard pin assignments for most aftermarket retrofits:
- Constant power (memory): Thick yellow or red wire, 12V regardless of ignition state.
- Switched power: Thinner red/black stripe, only active with ignition.
- Ground: Black or brown, often paired with smaller gauge wires.
- Left front speaker: Gray (+) and gray/black (-) with white stripe.
- Right front speaker: White (+) and white/black (-).
- Antenna trigger: Blue or blue/white, 12V when radio is powered.
- Dimmer/illumination: Orange or orange/white, voltage varies with lighting.
For vehicles equipped with amplified systems, identify the remote turn-on wire (thin blue) that signals the amplifier. Failure to connect this correctly results in silent speakers, as the amp won’t receive activation voltage. Verify its presence by probing for a brief 12V pulse during startup–some models tie this to the head unit’s data bus, requiring a bypass module if replacing the factory setup.
Document each wire’s position by tracing it back to the bulkhead connector. Manufacturer-specific deviations exist–for instance, a pink or purple lead might handle steering wheel controls or hands-free microphone input. Label these with masking tape or heat-shrink tubing to avoid confusion during splicing. Avoid relying on wire color alone; use a continuity tester to confirm each lead’s path to its destination component.
When splicing into the harness, use crimp connectors or solder joints followed by adhesive-lined heat shrink to prevent oxidation. Twist connectors corrode over time, especially in humid climates. For high-current feeds (constant power, amplifier turns), upgrade to 14-gauge wire to handle increased load without voltage drop. Ensure all connections are wrapped in loom tubing to shield against abrasion and moisture.
Test the installation incrementally: power first, then ground, followed by speakers, and finally ancillary functions. If static or intermittent audio occurs, recheck speaker wiring for reversed polarity or shorts. A quick diagnostic trick–tap each speaker lead while music plays to pinpoint dead channels. Once stable, secure the harness with zip ties, avoiding sharp edges or moving parts that could chafe insulation over time.
Step-by-Step Color Coding for Aftermarket Head Unit Integration
Identify the harness adapter matching the vehicle’s factory connector. Most kits include color-matched wires to simplify connections, but verify labels before proceeding. The standard ISO layout divides wires into three groups: power, speaker, and antenna/control.
Connect the constant power (yellow) first–this maintains memory settings for presets and time. Locate it on the adapter’s 12-pin block, usually labeled “B+” or “Battery.” Use a multimeter to confirm 12V reading with the ignition off. Secure with solder or crimp connectors, then insulate with heat-shrink tubing to prevent shorts.
Speaker Outputs
Match speaker wires to the harness’s color codes: front left (+) white, front left (-) white/black; front right (+) gray, front right (-) gray/black; rear left (+) green, rear left (-) green/black; rear right (+) purple, rear right (-) purple/black. Strip 5mm of insulation, twist strands tightly, and join with corresponding wires from the aftermarket unit. Avoid reversing polarity–distorted audio or damaged amplifiers may result.
For vehicles with amplified systems, locate the remote turn-on lead (blue/white). This triggers the amplifier when the head unit powers on. If omitted, the system may drain the battery or fail to produce sound. Test by turning the key to accessory mode–voltage should spike from 0 to 12V on this wire.
Antenna and Data Links
The antenna lead (typically blue) attaches to the motorized or fixed mast. For models with steering wheel controls, connect the data bus wire (often pink or orange) to the aftermarket interface module. Some adapters include pre-wired connectors–align pins precisely to avoid intermittent functionality. Double-check with the manufacturer’s pinout if the first attempt fails.
Finalize by bundling excess wire with zip ties, routing away from moving parts and heat sources. Insert the harness into the dashboard slot, pressing firmly until it clicks. Power on the system, cycle through modes to confirm all channels output sound without static. If issues persist, recheck ground connections–poor grounding causes noise or malfunctions.
