Start with the factory service manual for precise connector pinouts–aftermarket guides often mislabel ground and power circuits. Locate the main fuse block beneath the driver-side dash; reference the color-coded diagrams on pages 8-12 for accurate wire tracing. Use a multimeter set to continuity mode to verify connections before splicing–assume no visual inspection is enough.
The TIPM (Totally Integrated Power Module) controls critical systems like fuel injection and dashboard indicators. If replacing this unit, label each harness connection with masking tape and photograph the setup first. Mismatched connections here can trigger irreversible module damage or “no start” conditions. Test the 12V ignition feed at the PCI bus connector (pin C2, orange wire) before reinstalling interior panels.
For trailer wiring adaptations, bypass the stock 4-pin harness and install a dedicated 7-way connector with relays for brake and auxiliary circuits. Diagram sheets for this modification are in section 24D of the OEM documentation. Use dielectric grease on all exposed connectors to prevent corrosion–off-road exposure accelerates voltage drop failures.
Common failure points include the CAN bus splice near the BCM (body control module) and the instrument cluster harness. Symptoms of faults here include erratic gauges or warning lights without trigger codes. Replace damaged wires with TXL-grade automotive wiring of the same gauge; avoid household wire.
When diagnosing parasitic drains, disconnect the negative battery terminal and insert an ammeter in series. The acceptable maximum is 50mA–values above this indicate shorted components. Isolate circuits systematically using the fuse pullout method; refer to the schematic index for assigned fuses.
Electrical Schematics for the 2018 JKU: Hands-On Reference
Locate the main fuse box under the driver-side dashboard panel–remove the two Torx screws securing the cover to expose the relay and fuse layout. Pin IDs on the schematics correspond to labeled slots here: “BATT” feeds constant power, “IGN” activates with the key, and “ACC” energizes accessories. Use a multimeter set to DC 20V to verify voltages; corrupted ground circuits often mimic failed components.
Trace the CAN bus lines–thick yellow/orange wires–from the OBD-II port beneath the steering column to the TIPM module behind the glovebox. Disconnect the battery negative terminal before probing; parasitic draws as low as 50 milliamps can strand a vehicle overnight. The body control module interprets signals from door switches, horn relay, and trailer wiring harness–cross-reference schematics if the power mirrors or keyless entry behave intermittently.
Headlight circuits split between high and low beams at the combination switch behind the turn signal stalk. The left headlight receives power through fuse #23, the right through #24; both ground via chassis bolt G305 near the windshield cowl. Factory fog lights add a separate relay under the hood–fuse #28 protects it–and a momentary switch on the dash. Replace the relay if clicking persists when toggling, indicating coil failure.
Audio wiring harnesses terminate at the rear of the Uconnect unit; purple/white wires carry rear-speaker signals, orange/green carry front. Aftermarket amplifiers require a bypass resistor–120 ohms–across the data line if the factory radio cuts out when cranking. Subwoofer connections run alongside the rear seat belt retractors; insulation chafing here causes static that mimics blown speakers.
Trailer wiring modules mount near the rear bumper, identifiable by a seven-pin connector. Pin assignments follow SAE J2863: yellow for left turn/brake, green for right, brown for tail lights, white for ground. If brakes actuate unexpectedly, inspect the brake controller’s red wire for voltage leakage at the master cylinder; corrosion here triggers false braking signals.
Power window circuits loop from the door switches through inertial breakers in the TIPM before reaching the motors. Failed one-touch-up functions often trace to burned contacts on the switch’s integrated resistor–confirm by jumping the switch terminals with a paperclip; if the motor responds, replace the switch. Rear window switches share a common ground at G501 next to the driver’s seat belt bolt.
Heated seats derive power from fuses #32 and #33; element resistance should measure between 4-6 ohms. Overcurrent trips the inline thermal fuse beneath the seat cushion–cut the leather carefully, replace the fuse, and seal with dielectric grease to prevent future moisture ingress. Seat memory modules retain position data; clear faults by holding the “recall” button for 10 seconds.

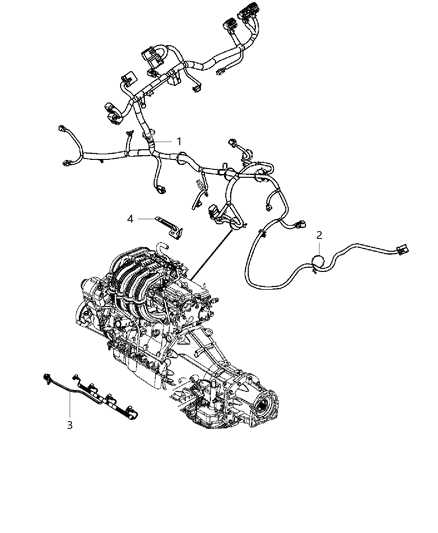

Engine wiring harnesses route through the firewall bulkhead connector; the 8-pin plug’s top row carries sensor signals (MAP, TPS), the bottom row delivers ignition coil power. Oil pressure switch wires–solid gray–terminate at the instrument cluster; if the gauge reads zero while the engine runs, back-probe the sender with a test light–if illuminated, the cluster gauge is faulty. Turbocharger wastegate solenoids connect via thin red/blue wires; resistance should read 20-30 ohms–replace the solenoid if out of spec.
Locating the Fuse Box and Relay Panel Layout for Common Circuits
Start by accessing the main fuse block inside the cabin–remove the lower dashboard panel on the driver’s side by releasing two retaining clips near the top edge. The block houses 32 slots, organized in two rows: the upper row (slots 1–16) handles high-current protection for lighting, HVAC, and powertrain modules, while the lower row (slots 17–32) secures circuits for infotainment, auxiliary power outlets, and body control functions. Label positions differ between model variants; confirm slot assignments against the legend molded into the lid.
The under-hood fuse and relay center sits adjacent to the battery tray, concealed beneath a snap-fit cover. This panel contains heavy-duty relays for the cooling fans, horn, and starter motor, along with 18 mini-blade fuses rated between 10A and 60A. Critical circuits–such as the electric cooling fan and fuel pump–require immediate identification during troubleshooting. Refer to the etched symbols on the panel’s underside: a lightning bolt denotes power feeds, while a resistor icon marks switched circuits.
Key Relay and Fuse Assignments
| Panel Location | Fuse/Relay Number | Circuit Protected | Amperage |
|---|---|---|---|
| Cabin Block | F2 | Left Low Beam | 15A |
| Cabin Block | F11 | Rear Wiper Motor | 25A |
| Under-Hood | R3 | Cooling Fan Relay | 40A |
| Under-Hood | F7 | Anti-Lock Brake System | 30A |
For trailer tow circuits, locate the optional auxiliary relay box mounted behind the rear bumper on the driver’s side. This separate enclosure contains three relays: one for the trailer brake controller (labeled “TRAILER BRAKE”), a backup light relay (“BACKUP LT”), and a dedicated power feed (“AUX PWR”) rated at 40A. If these relays are absent, the vehicle lacks the tow package–the primary fuse box will instead include a single 30A fuse for trailer lighting only.
Use a multimeter to verify relay functionality by probing terminal 30 (battery feed) and terminal 87 (load output) with the ignition off. A reading below 0.2 ohms confirms proper contacts; higher resistance indicates corrosion or failed solder joints. Replace faulty relays immediately–aftermarket units must match the original coil resistance (typically 70–90 ohms) to avoid ECM fault codes.
Troubleshooting Tips
Avoid tapping fuses to test circuits; instead, use a fused jumper wire (maximum 5A) to isolate faults without risking damage. The cabin fuse block’s lid includes spare fuses–always carry replacements for F3 (10A, instrument cluster) and F20 (20A, power windows), which fail most frequently due to transient voltage spikes. Never substitute a higher-rated fuse; doing so jeopardizes the harness insulation and risks fire.
Step-by-Step Guide to Mapping Engine Bay Electrical Layouts
Begin by securing the vehicle’s service manual and locating the primary power distribution block under the hood. This central hub–typically near the battery–houses fuses, relays, and critical junction points. Label each connector with masking tape and a permanent marker before disconnecting anything. Note the color-coding of wires exiting the block: solid red indicates constant 12V+, striped yellow/black often denotes ignition-switched circuits, and brown variants frequently tie to chassis ground.
Identifying Key Subassemblies
Trace the harness branching from the distribution block to these components:
- Engine control module (ECM): Follow the thickest bundle–usually 12-16 gauge wires–color-coded white/orange for CAN bus high and white/green for CAN bus low. Verify continuity with a multimeter at pins 54 and 55 (ECM connector C1).
- Cooling fans: Locate the dual-relay module adjacent to the radiator support. The primary fan draws 25A (red/light blue fuse link), while the secondary uses a brown/white trigger wire. Test relay coil resistance (80-120 ohms) before reassembly.
- O2 sensors: Upstream sensors (bank 1, sensor 1) use a gray connector with black/light blue and black/white leads. Downstream sensors swap the leads to black/tan. Probe the heater circuit at 3-14 ohms for intact internal coils.
Disconnect the negative battery terminal before probing any circuits. Use a back-probe technique for sensors still plugged in–insert a T-pin through the wiring insulation at the connector, then clip the multimeter lead to the pin. This preserves connector integrity while measuring voltage drops across active circuits. For the throttle body, check the purple/white wire (TPS signal) at 0.5-1.0V closed and 4.0-4.5V wide open.
Verifying Ground Distribution
Chassis grounds concentrate near the front driver-side strut tower. Clean each contact point with a wire brush and apply dielectric grease. Critical grounds include:
- G101: Engine block to firewall (10-gauge black/orange) – supports ECM and fuel pump.
- G102: Radiator support to fender (8-gauge black) – secures cooling fans and headlights.
- G103: Under-dash cluster (various black leads) – consolidates instrumentation and HVAC.
Measure resistance from each ground location to the battery negative post. Readings above 0.2 ohms indicate corrosion or loose mounting bolts.
For the alternator, focus on the orange/black wire (excitation circuit) and the heavy-gauge fusible link (red/yellow) carrying output. With the engine running at 2,000 RPM, verify 13.8-14.4V at the battery. If voltage strays, unplug the alternator and test the stator windings (0.3-0.5 ohms between phases) and rotor (3-5 ohms at the slip rings).
Terminate each session by reconciling connections against the schematic. Cross-reference pinouts for every unplugged sensor or module–even a single misrouted wire can trigger diagnostic trouble codes (DTCs) or intermittent faults. Label new splices with heat-shrink tubing and adhesive-lined connectors rated for 300V minimum. Discard any harness showing brittle insulation or exposed copper; use OEM-spec wiring gauge for repairs.
