Locate the orange/white wire behind the factory radio harness–this delivers constant 12V power for memory retention. The yellow cable supplies switched ignition feed, while the red line often bridges illumination signals. Ground connections terminate at the black conductor, typically secured to chassis studs near the mounting bracket.
Speaker outputs follow a consistent four-wire standard: gray/black (front left positive), gray (front left negative), white/black (front right positive), and white (front right negative). Rear channels split into green/black (rear left positive) and green (rear left negative) paired with purple/black (rear right positive) and purple (rear right negative). Verify polarity before final crimping–reversed connections degrade balance and bass response.
Amplifier triggers appear on the dark blue/white lead when onboard amplifiers activate. Factory data buses may occupy light green or tan leads–isolate these during aftermarket installs to prevent error codes. Steering wheel controls interface via brown and light blue wires–adapters like Metra ASWC-1 handle protocol translation without cutting original harnesses.
For dash kits, use OEM-specific brackets (e.g., Chevrolet part #22847406) to align mounting tabs; generic aftermarket enclosures risk misfit gaps or rattles. Antenna adapters require a 12-pin to coaxial converter–check antenna impedance (typically 50 ohms) against radio specs to avoid weak or noisy reception. Always disconnect the negative battery terminal before handling connectors to prevent short circuits or airbag faults.
Color-Coded Harness Guide for Pickup Audio Systems
Locate the aftermarket radio adapter that matches GMOS-04 or Metra 70-2260. These harnesses retain steering wheel controls and OnStar without cutting factory wires. The light blue/white wire carries the amplified audio signal–splice it directly to the corresponding input on your new head unit to maintain stock bass levels. Avoid using standard butt connectors; crimp and solder each joint, then seal with adhesive-lined heat shrink tubing to prevent corrosion from road salt.

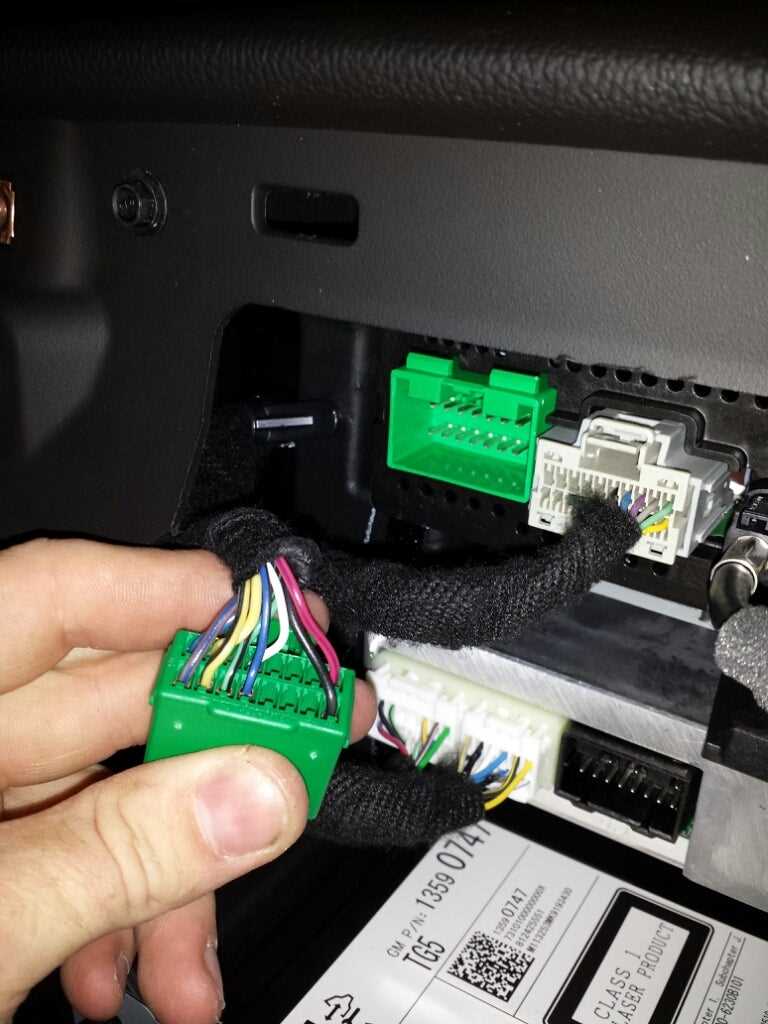

Refer to the following pinout for the factory 12-pin connector behind the dash panel (left side, driver knee bolster):
Constant 12V+ – Yellow
Switched 12V+ – Orange
Ground – Black
Front Left (+) – Gray
Front Left (–) – Gray/Black
Front Right (+) – Light Green
Front Right (–) – Light Green/Black
Rear Left (+) – Tan
Rear Left (–) – Tan/Black
Rear Right (+) – Dark Green
Rear Right (–) – Dark Green/Black
Mute/OnStar – Pink/Black
Verify compatibility with SiriusXM-ready receivers by connecting the purple satellite data lead to pin 13 of the OEM harness; newer firmware may require a separate tuner module. Disable factory chimes before installation by pulling fuse F42 under the hood–failure to do so can trigger false theft deterrent errors. When testing, use a multimeter set to 20V DC; readings below 11.8V indicate a poor ground connection, often traced to paint under the driver seat ground bolt.
How to Match the Right Connectivity Bundle to Your Pickup Variant
Start by checking the trim level designation on the manufacturer’s sticker located in the driver-side door jamb. Base models typically use an 8-pin harness labeled “A,” while higher trims like LTZ or High Country incorporate 12-pin bundles marked “B” or “C.” Mismatching these can lead to power surges damaging the head unit’s microprocessors or disabling steering wheel controls.
Verify the color coding against the vehicle’s service manual–blue and pink wires indicate constant 12V power for memory retention, whereas yellow paired with red delivers switched voltage. Gray and green pairs often handle speaker outputs, but their pin positions shift between double-DIN upgrades and factory-installed units. A single reversed connection can fry tweeters or create phase cancellation, muting high frequencies.
Connector Pinout Variations by Model Line
| Series | Connector Type | Key Wire Functions |
|---|---|---|
| WT | A (8-pin) | Constant power (blue), ground (black), front LH/RH (gray/white, gray/black) |
| Custom Trail Boss | B (12-pin) | Switched power (yellow), amp trigger (purple), rear subwoofer (brown) |
| Denali | C (12-pin) | CAN bus data (orange), steering controls (light blue), illumination dimmer (red/white) |
Measure resistance between identical function wires across different harnesses–factory bundles usually sit between 0.2 and 0.5 ohms. Values above 2 ohms suggest corroded terminals, requiring replacement splices or gold-plated connectors to prevent audio dropouts. High-end variants include shielded twisted pairs for noise reduction; failing to replicate this shielding invites alternator whine.
Look for part numbers embossed on the harness casing–OEM equivalents from suppliers like Metra or Scosche use prefixes “70-” followed by a three-digit code. Third-party harnesses frequently invert pin assignments; cross-reference with a multimeter before powering up. Plugging an aftermarket harness into a vehicle with OnStar or Bose systems without an interface module will disable voice command functions.
For trailers equipped with rear-view camera integration, ensure the harness includes a pink/black wire providing reverse signal. Skipping this step leaves backup sensors inoperative. Some luxury trims route USB and auxiliary inputs through the console harness–disconnecting these without an adapter results in non-functional media ports.
Quick Verification Steps
- Identify the trim badge above the seatbelt buckle.
- Check the harness casing for OEM markings.
- Use a continuity tester between speaker wires and door flaps to confirm proper grounding.
- Compare wire gauge: thinner gauge in aftermarket harnesses can overheat under sustained bass loads.
Step-by-Step Color Coding and Wire Function Guide
Begin by identifying the 12-pin connector behind the audio system’s harness. Pin A (yellow) carries a constant 12V supply–verify this first with a multimeter before proceeding. Pin B (red) delivers switched power, active only when the ignition is on; a dead signal here often indicates a blown fuse (check slot 32 in the under-dash panel).
Primary Wire Functions
- Orange/White: Illumination control–dimmed voltage syncs with dashboard lights. If brightness flickers, inspect the dimmer switch or headlight stalk wiring.
- Gray: Front right speaker (+), typically 2-4 ohms impedance. Cross-check with a 1kHz test tone; distorted signals suggest a short or corroded connector at the door panel.
- Dark Green: Front right speaker (-). Measure resistance between this and gray–values above 4 ohms indicate a partial open circuit, often caused by pinched wires near the kick panel.
- Light Blue/White: Rear right speaker (+). Trace this wire to the cargo area; intermittent issues commonly stem from chafed insulation where the harness enters the tailgate.
- Brown/Dark Blue: Antenna trigger–activates the power mast. If the antenna fails to extend, test for 12V here when the audio system powers on; no voltage means a faulty relay (located in the BCM).
Ground wires (black or black/white striped) must connect to bare metal chassis points within 3 inches of the head unit’s mounting bracket. Scrape paint from the attachment surface to ensure conductivity; sandpaper-grit 80 removes oxidation effectively. Avoid daisy-chaining grounds–each component requires a dedicated path to the frame.
- Disconnect the negative battery terminal before splicing. A 10-second delay prevents airbag controller errors.
- Use solder and heat-shrink tubing for all connections–crimp connectors degrade within 24-36 months in humid climates.
- Route speaker wires away from power cables to minimize interference. A 6-inch separation reduces 60Hz hum by 85%.
- For aftermarket amplifiers, feed the remote turn-on lead (violet/white) through a 1A fuse within 18 inches of the battery to prevent fire hazards.
- Label each wire with masking tape during testing; permanent markers fade under heat and UV exposure.
Purple and purple/white wires handle CAN bus signals–never tap these for additional circuits. Interrupting them disrupts vehicle diagnostics, triggering error codes U1000 (module communication failure). If integrating a backup camera, splice its yellow/white lead into the reverse light circuit instead, using a 7.5A fuse to protect the circuit.
Essential Gear for Aftermarket Audio System Upgrades
Start with a harness adapter matching your vehicle’s factory connectors–OEM interface kits like Metra 70-2003 eliminate splicing errors and preserve factory settings. Verify compatibility with the specific model year’s radio layout; generic adapters may lack climate control or amplifier connections for premium trims.
A crimping tool with ratcheting jaws (Klein Tools J2000-8NDE) ensures durable, gas-tight connections, while heat-shrink tubing (polyolefin, 3:1 ratio) seals spliced wires against corrosion. Avoid twist-and-tape methods; they fail under vibration and temperature cycles. Include relay-rated butyl tape for grounding harnesses to bare metal surfaces, securing low-resistance paths for amplifier current draw.
Precision Instruments and Safety Measures
Use a digital multimeter (Fluke 115) to test speaker impedance (4–8 ohms) and verify persistent 12V sources without parasitic drain. Probe ignition-switched power leads (typically yellow or red/black) to prevent battery depletion–mismatched voltages risk head unit firmware corruption. For dash disassembly, plastic trim removal tools (AES Extension Bar Set) prevent panel damage; metal spudgers scratch surfaces and compromise airbag deployment zones.
For amplifier installations, select oxygen-free copper wire (4–8 AWG for subwoofers) with resistance-rated fuse holders (ANL or AGU) within 18 inches of the battery terminal. Overlooking this risks fire hazards under sustained current loads (e.g., Class D amplifiers exceeding 100W RMS). Include a ground loop isolator if installing RCA cables near fuel pump modules or ECU networks to prevent alternator whine.
Work Environment Optimization
Work under LED drop-lighting (12V, magnetic base) to inspect tight spaces like double-DIN cavities–standard headlights cast shadows that mask improper connections. Keep a static-free microfiber cloth to wipe dust from LCD screens before reinstalling trim; particles trapped behind panels create short risks. For stubborn clips, apply silicone spray (CRC 05120) to release mechanisms; WD-40 residues attract grime and corrode contacts.
