Start by locating the central fuse box beneath the dashboard on the driver’s side. Pinpoint terminals F4, F5, F6 for the primary power distribution–these handle the ignition, headlights, and auxiliary systems. Mislabeling here causes cascading failures, so verify each connection against the service manual schematic before proceeding.
For the instrument cluster, trace the tan/black wire from the C2 harness connector. This feeds critical data to the speedometer, fuel gauge, and warning lights. A faulty ground at G103 (near the firewall) will trigger erratic readings–secure it with a 10-gauge ring terminal and dielectric grease to prevent corrosion.
When rewiring the trailer brake controller, focus on the dark green/light green circuit. This uses a 30-amp breaker–bypassing it invites overheating. Route wires through the factory grommet behind the brake pedal to avoid chafing. Test continuity with a multimeter (2Ω or less) before finalizing connections.
The ECM communication lines (pins 6, 14, 18 on the OBD-II port) must remain untouched unless recalibrating. Improper splicing here disrupts fuel timing and transmission shifts. For aftermarket modifications, use a T-harness with redundant relays to preserve CAN bus integrity.
Complete Electrical Schematic Reference for Dodge Pickup Trucks

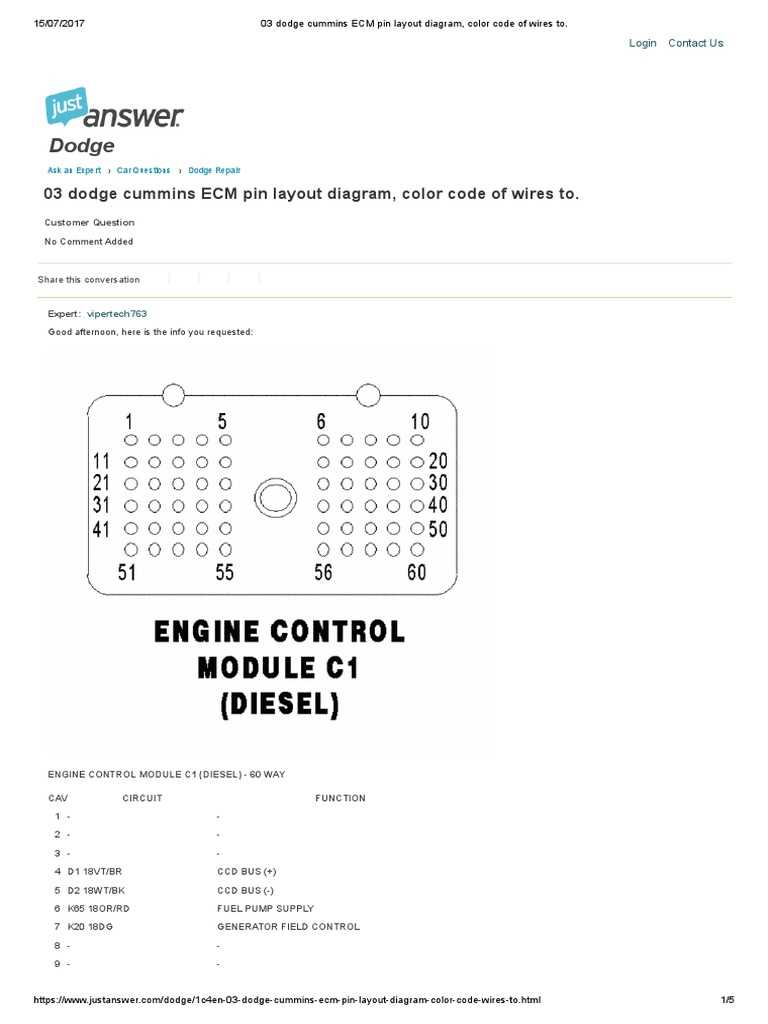

Locate the engine control module (ECM) connectors first–these are critical for diagnosing power distribution issues. On late-model Dodge trucks, the ECM sits near the firewall on the passenger side, typically labeled C1 (black) and C2 (gray). Pinout details for these connectors are found in section 8E-12 of the factory service manual, where pin A12 supplies ignition-switched 12V, while D4 carries ground. Verify continuity between these points and the battery before testing sensors.
Key Fuse Box Locations and Their Functions
Three primary fuse panels govern the truck’s circuits. The integrated power module (IPM) beneath the hood houses high-current relays for the starter, headlights, and cooling fans–consult fuse position F3 (30A) for fan operation. Inside the cabin, the rear body control module (RBCM) manages auxiliary systems like heated seats and trailer brakes, with fuse R10 (10A) dedicated to the rear wiper motor. A third panel behind the glove box controls infotainment and lighting, where fuse I14 (15A) powers the radio and navigation unit.

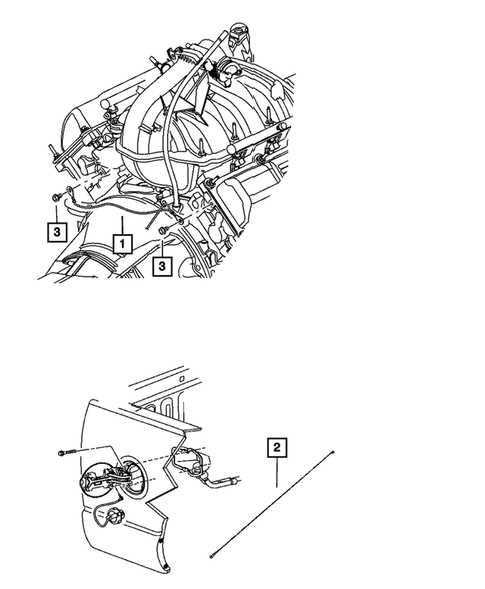

Trace circuits methodically using a multimeter set to 200 ohms. For fuel pump diagnostics, probe the yellow/light blue wire at the underhood diagnostic connector (pin A), which should read when the ignition is on. If resistance exceeds 2Ω, inspect the main harness for chafing near the rear axle, a common failure point where wires rub against the frame. Replace damaged sections with cross-linked polyethylene (XLPE) wiring rated for 125°C to prevent heat-related shorts.
Finding the Power Distribution Center and Electrical Blueprint in Your Pickup
Check beneath the dashboard on the driver’s side to find the primary fuse panel. A small latch secures the cover; release it to reveal the integrated relay bank and labeled fuse slots. Each slot corresponds to a specific circuit–critical systems like the ignition, lighting, and HVAC controls are clearly marked for quick reference. If troubleshooting an accessory, cross-reference the number on the blown fuse with the chart printed inside the cover.
For under-hood connections, lift the power distribution center lid located near the battery. This unit consolidates high-amperage circuits including the starter, alternator, and cooling fans. A detailed schematic is molded into the underside of the cover, showing wire gauge, color codes, and terminal assignments for every connection. Trace each wire carefully–thick orange cables handle 40+ amps, while thinner purple or light green strands manage low-current sensors.

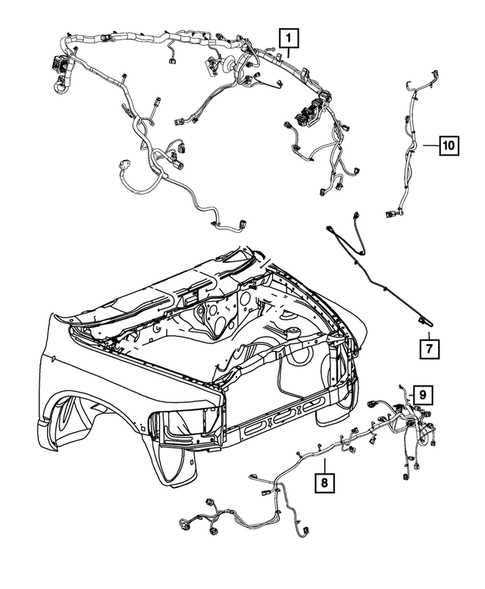

Access the full vehicle electrical blueprint through the manufacturer’s technical manuals or authorized repair databases. Look for section 8W-30 for interior circuits and 8W-40 for exterior and powertrain components. These diagrams display splice points, ground locations, and module pinouts, allowing precise voltage checks or signal tracing without guesswork.
Step-by-Step Connection Guide for Aftermarket Audio System Installation
Disconnect the vehicle’s battery negative terminal before touching any electrical leads to prevent short circuits or damage to sensitive components. Identify the factory harness behind the stock head unit–typically secured with a mounting sleeve or dash panel. Use a multimeter set to DC voltage (20V range) to verify power and ground pins by probing the connector while the key is in the ACC position; the constant power lead should read 12V, accessory lead will drop to 0V when the key is off, and ground should register near 0 ohms.
Trim the aftermarket harness wires to expose 3-5mm of copper, then twist strands tightly to prevent fraying. Match each wire by function, not color, as factory schemes vary–yellow (permanent power), red (accessory), black (ground), blue/white (amplifier remote), and speaker outputs (often gray, white, purple, green). Crimp connections with insulated butt splices, ensuring no bare wire extends beyond the sleeve, then reinforce with heat shrink tubing to guard against corrosion or vibration loosening.
Route the amplifier remote turn-on lead (blue/white) from the new head unit to any factory amp or aftermarket amplifier–never connect it directly to a speaker output, as this risks damaging the internal circuitry. For vehicles with retained accessory power (RAP), split the constant 12V feed using a relay or fuse tap to maintain settings (clock, presets) during brief ignition-off periods without draining the battery. Test all connections with the multimeter before reassembling dash panels to confirm no shorts exist.
Reconnect the battery ground last, then power up the system. Program any vehicle-specific settings (chime modules, steering wheel controls) via the head unit’s menu, adjusting voltage thresholds if warnings appear. If static or distortion occurs, recheck ground connections and speaker polarity–reversing positive/negative wires can degrade sound quality. Secure all loose cables with zip ties to prevent interference with pedals, climate controls, or airbag sensors.
Pinpointing and Resolving Frequent Circuit Problems with Schematics
Locate the fuse box layout in the visual guide to verify blown fuses. Each fuse corresponds to a specific component, marked with amperage ratings–replace only with identical values. Corroded fuse clips often cause intermittent failures; clean contacts with electrical cleaner and recheck operation before proceeding.
Trace power distribution paths from the battery to the affected module. Use a multimeter to measure voltage at connectors: battery voltage (12.6V) should drop by no more than 0.2V across each connection point. If readings deviate, inspect terminals for corrosion, loose crimps, or frayed strands. Replace damaged wires rather than splicing to maintain integrity.
Check ground points marked on the schematic–these are critical failure nodes. Test continuity between the ground pin on the module and the vehicle chassis. Resistance above 0.5 ohms indicates a poor ground; clean the mounting surface, apply dielectric grease, and secure tightly to eliminate voltage drops.

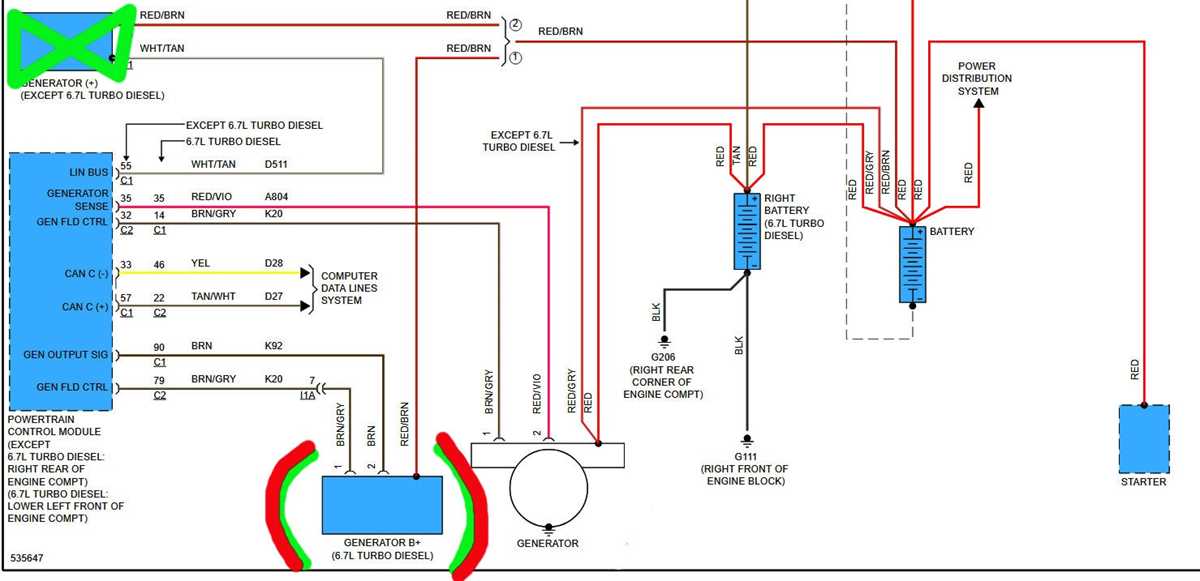

- Headlights flickering? Examine the alternator B+ output path. Voltage at the alternator should read 13.8–14.4V at idle. If low, test the regulator or rectifier.
- Power windows failing in sequence? Test for high resistance in the window motor harness–common in door hinge wires due to repetitive flexing.
- Blower motor only works on high speed? Inspect the resistor pack or climate control module inputs per the schematic.
Isolate parasitic draws by disconnecting one fuse at a time while monitoring current with an ammeter connected in series with the battery negative terminal. Draws above 50mA typically indicate a stuck relay or module in sleep mode. Refer to the schematic to identify the affected circuit and replace the faulty component.
- Remove the relay from its socket and measure coil resistance–should read 50–120 ohms. Infinite resistance means an open coil; replace the relay.
- Jump the relay terminals 30 and 87 with a fused jumper wire. If the component activates, the relay or its control signal is faulty.
- Verify the relay control circuit by probing terminal 85 (ground) and 86 (trigger) with the ignition on. A valid trigger should pull terminal 86 to battery voltage.
Color-coding in the schematic simplifies wire identification: solid colors denote primary wires, while striped wires indicate secondary circuits. Use this to trace shorts–look for melted insulation or bare copper where wires bundle near sharp edges or moving parts. Repair shorts with heat-shrinking tubing, not electrical tape, to prevent recurrence.
Color Codes and Function Labels for Pickup Truck Lighting System Circuits
Always verify circuit colors against the vehicle’s harness directly–factory deviations exist even within the same production year. The standard coding applies to most exterior and cabin illumination branches, but trailer wiring harnesses and aftermarket integrations often follow distinct conventions.
Below is a breakdown of primary color designations for exterior lighting subsystems, including their typical in-line fuse ratings and routing IDs. Cross-reference these with the fuse box legend (located under the instrument panel left side) to diagnose intermittencies. Dark blue (DB) and light green (LG) traces are prone to oxidation in high-moisture zones–inspect connectors near rear tailgate latch actuators if voltage drop exceeds 0.2V.
| Color | Function | Common Branch Source | Fuse Rating (A) | Routing Identifier |
|---|---|---|---|---|
| Dark Blue (DB) | Left Turn Signal | BCM Output Module | 15 | C102-04 |
| Light Green (LG) | Right Parking Light | IP Fuse Block | 10 | F20-06 |
| Red (RD) | Stop Lamps | Rear Junction Block | 20 | G105-18 |
| White/Violet (W/V) | Reverse Lights | Transmission Range Sensor | 15 | C409-12 |
| Brown (BN) | Tail Lamps (Marker) | Central Timer Module | 7.5 | K12-03 |
| Yellow (YL) | Fog Lamps | Front Control Module | 15 | C201-08 |
For headlamp assemblies, high-beam circuits utilize a black/red (BK/RD) trace paired with a 30A fuse (F63), while low-beam runs through dark green/white (DG/W) with a 20A fuse (F42). Ambient interior lighting–dome, cargo bed, and door courtesy lamps–relies on pink/black (PK/BK) feeds piggybacked from the ignition-switched accessory bus. If cargo bed LED strips flicker, probe the ground splice at G202 near the rear frame rail; corrosion here mimics a faulty switch.
Auxiliary circuits, such as aftermarket strobe or work lamps, must tap into the white/orange (W/O) feed at the under-hood power distribution center–this branch remains live with the key in the “ON” position. Avoid splicing into the brown/yellow (BN/YL) trace, which powers trailer brake controllers; overload risks damaging the integrated trailer module (ITM) microcontroller.
When retrofitting LED bulbs, confirm polarity match–factory halogen circuits often reverse polarity at the socket. Test with a multimeter before installation; many LED failures stem from incorrect 12V/DC alignment. For daytime running lamp (DRL) conversions, intercept the light blue/orange (LB/O) wire at C305-05–this node bypasses the headlamp switch and activates via the body control module (BCM) at engine start.
Critical ground references for lighting systems converge at three primary nodes: G103 (driver-side front fender), G201 (passenger-side rear frame), and G300 (tailgate hinge). Measure resistance between any ground node and the battery negative post–readings above 0.5Ω indicate a compromised connection. Clean ground surfaces with a wire brush and dielectric grease if corrosion is present; neglected grounds account for 70% of intermittent lighting faults.
For smart high-beam assist (if equipped), the forward-facing camera relay engages a gray/white (GY/W) trace from the front camera module–diagnose with a scan tool under “Adaptive Forward Lighting” parameter IDs. Static brightness adjustments require recalibration if the camera is disconnected. Fog lamp delay functions are controlled via the pink/light blue (PK/LB) wire at the multifunction switch; if delay timing is erratic, replace the switch assembly–internal potentiometers degrade over time.
