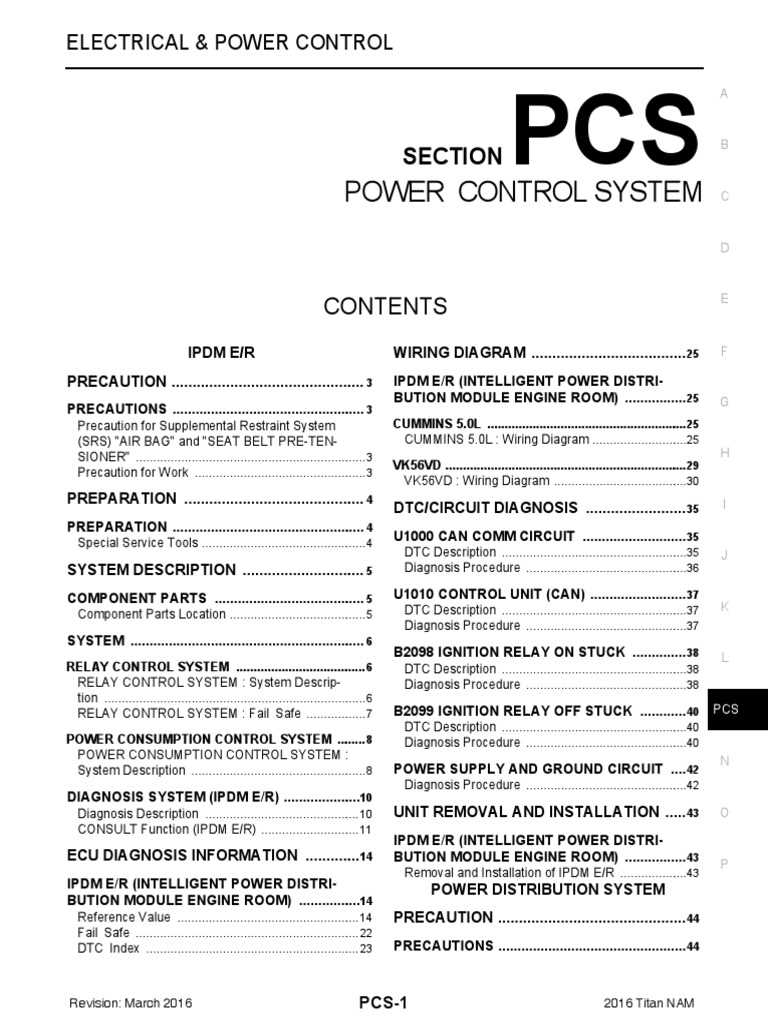

Start with the official service manual from the manufacturer. This document includes detailed fuse layouts, connector pinouts, and color-coded wire paths for every circuit in the vehicle’s harness. For instance, the main power distribution block, located under the driver’s side dashboard, shows precise diagrams for the ignition, lighting, and accessory feeds. Cross-reference each wire’s color and gauge with the manual’s legend to avoid misconnections.
Third-party repair databases offer interactive schematics with zoom and search functions. These platforms allow filtering by system–such as engine control, transmission, or body electronics–and highlight wire routes in real time. Pay attention to ground points: corroded or loose grounds at mounting bolts near the battery tray or rear frame often cause intermittent faults. Measure voltage drops at these points under load to confirm integrity.
Salvage yard wiring harnesses can serve as temporary references but require validation. Inspect each connector for heat damage, melted plastic, or discolored pins–common in high-current circuits like alternator feeds or starter cables. Use a multimeter’s continuity mode to trace each wire from connector to component, noting deviations from the schematic’s expected routing. Avoid relying on aftermarket manuals that lack OEM-specific revisions; they frequently omit late-year changes to emission or safety systems.
When diagnosing CAN bus networks, focus on termination resistors at the diagnostic port and instrument cluster. A missing 120-ohm resistor disrupts data flow across the entire network. Probe the bus modules with an oscilloscope to verify proper signal patterns; correct waveforms resemble square waves with consistent voltage swings between 2.5 and 3.5 volts. Abnormal signals often point to chafed wiring near the transmission tunnel or A-pillar.
Electrical Schematic for Your Heavy-Duty Pickup: Hands-On Tips
Locate the fuse box under the driver-side dashboard first–label F11 controls the trailer brake circuit, critical for towing mods. Verify its 30-amp rating before swapping for a higher-capacity fuse if installing aftermarket winches.
Trace the orange wire (pin 12 on the 16-pin connector) from the BCM to the rear tail light assembly. This circuit carries turn signal data; corrosion here disrupts trailer light sync. Clean terminals with dielectric grease, not sandpaper–abrasives damage thin plating.
Engine Bay Harness Repairs
- Disconnect the negative battery terminal before probing the C1 connector behind the alternator. Shorts here disable the voltage regulator.
- Check the brown/white stripe wire (pin 7) for continuity if the engine stalls; it links the ECU to the MAP sensor.
- Replace cracked conduit sleeves near the exhaust manifold–heat degrades insulation faster than on the cabin side.
For diagnostic scans, splice into the blue wire (pin 3 of the OBD-II port) to monitor CAN bus traffic without triggering fake codes. Aftermarket tuners often misread signals here; a 120-ohm resistor bridges pins 6 and 14 for correct network termination.
Rear differential locker wiring hides behind the spare tire carrier–label all connections before disassembly. The solenoid draws 12V but uses a 20-amp inline fuse; bypassing it risks burning the transfer case control module.
Troubleshooting Silent Starters
- Test the purple wire at the ignition switch (pin 5) with a multimeter–voltage should drop from 12V to
- If readings are off, jump the starter relay socket terminal 87 to 30–this isolates whether the issue stems from the relay or starter motor.
- Starter replacement requires dropping the driveshaft; mark spline alignment with paint to avoid driveline vibrations.
HVAC blower resistors fail predictably near the firewall–replace the entire assembly if the highest fan setting engages but lower speeds don’t. The gray wire (pin 4) feeds power; corrosion mimics a dead motor. Scrap the plastic clip holding the harness to prevent repeated chafing.
Identifying Critical Electrical Link Junctions in the Full-Size Pickup
Start beneath the driver-side dashboard near the fuse box–three primary harness clusters branch from the central module. The largest, a 32-pin black connector labeled “IPDM,” handles powertrain relays and fuel pump activation. Disconnect the negative battery terminal before probing to prevent short circuits; use a multimeter set to 20VDC to verify signals at each pin. Pin 17 (green/yellow stripe) carries constant 12V for transmission controls, while pin 24 (red/blue) supplies switched power to the ECM.
The front passenger kick panel hides the BCM harness–look for a 24-pin gray connector with lock tabs. Key connections include pins 8 (yellow/black) for headlight low beams and 16 (pink/white) for the horn. Trace wires upward to the under-hood junction near the brake master cylinder; the ABS module’s 14-pin white harness connects here, with pin 7 (orange) providing sensor ground and pin 12 (brown/black) relaying wheel speed data.
Engine Bay Connections
Locate the alternator’s dual-pin connector at the rear of the generator. The thicker red wire with fusible link feeds direct battery current, while the thinner blue/white cable regulates voltage via the IC regulator. Nearby, the MAP sensor harness–two wires, gray and green–snaps into a weatherproof connector; gray carries 5V reference, green returns sensor data to the PCM. Check continuity between the sensor and PCM pin 51 on the 120-pin main plug if facing rough idle issues.
Behind the left headlight assembly, find the headlamp-leveling motor’s three-wire harness. Yellow/red delivers 12V, black grounds the motor, and blue/black adjusts aim based on vehicle load. A common failure point is the harness rubbing against the inner fender–inspect for chafed insulation and reroute if necessary using split-loom tubing. The right side mirrors this setup but includes an additional two-pin connector for the fog light relay.
Crawl under the rear of the cab to access the trailer wiring junction. The factory harness splits into a seven-pin connector: pins 1 (yellow) and 4 (green) handle left/right turn signals, 6 (brown) completes the brake circuit, and 7 (white) is the ground. For aftermarket additions, splice into the brake controller wires at the hydraulic modulator, where purple (stop lamp) and dark blue (controller output) meet the OEM harness.
In the bed, the tailgate release solenoid connects via a two-wire connector–purple/white triggers the actuator, black grounds it. Test by back-probing with a test light while activating the switch; if no voltage is present, trace upstream to the switch’s 4-pin connector (pins 1 = input, 2 = ground, 3 = output). The bed’s 12V auxiliary outlet shares a fuse with the rear camera, so intermittent power failures often indicate a blown 15A fuse in slot 23 of the interior panel.
Use dielectric grease on all multicontact plugs after reconnection to prevent corrosion. Label each harness segment with masking tape during disassembly–factory colors rarely match aftermarket schematics, and misaligned pins in the ECM or BCM connectors can trigger cryptic DTCs like “U1000” or “P0605.” For frayed wires, solder and heat-shrink repairs outlast crimps; avoid twisting strands, as vibrations in the chassis rails will loosen connections over time.
Step-by-Step Process for Tracing Electrical Circuits Using the Schematic
Begin by isolating the component or system causing the issue. Locate its corresponding symbol on the electrical blueprint and note its color-coded conductors. Use a multimeter in continuity mode to verify connections–probe the first terminal while grounding the black lead to the chassis. If resistance exceeds 0.5 ohms, inspect for corrosion, loose terminals, or broken strands in the wire bundle.
Key checkpoints:
- Identify fuse ratings labeled near the power source–match them with the circuit’s amperage requirements.
- Trace the route of each conductor from origin to destination, marking junctions with a highlighter.
- At connectors, gently wiggle wires while monitoring the multimeter–intermittent drops indicate faulty pins.
For relays, remove the unit and apply 12V directly to the coil terminals (85 and 86) using jumper wires. Listen for a click; if absent, replace the relay. If present, test output terminals (30 and 87) for continuity under load. Voltage should match battery levels (±0.2V); lower readings suggest resistance in the circuit path.
Advanced Diagnostic Sequence
When dealing with complex networks like lighting or sensor arrays, divide the system into segments:
- Power distribution: Confirm battery voltage at the main fuse box (typically 12.6V–14.5V).
- Ground integrity: Scrape paint from chassis grounding points; corroded spots cause voltage drop.
- Signal processing: For digital signals, use an oscilloscope to detect pulse abnormalities (e.g., CAN bus errors).
Document every measurement–date, location, and reading–for comparison over time. If repairs involve splicing, use heat-shrink butt connectors rated for 20A; avoid electrical tape. Always reconnect negative battery terminals last to prevent short circuits during testing.
Identifying Common Color Codes and Their Corresponding Components
Locate the primary power distribution harness–typically bundled near the fuse box or under the dashboard–and trace wires by their insulation hues. Black (B) universally denotes ground, while red (R) carries constant 12V power, critical for memory retention in ECUs and alarms. Yellow (Y) often connects to battery-positive feeds in ignition-controlled circuits, whereas light green (LG) or blue (L) with striped patterns frequently signal sensor inputs like oxygen or throttle position.
Key Color Codes in Full-Size Pickup Electrical Systems
| Color | Abbreviation | Typical Function | Common Components |
|---|---|---|---|
| White | W | Ignition-controlled power | Fuel injectors, ignition coils, relays |
| Dark Green | DG | Sensor signal return | MAP sensor, crankshaft position sensor |
| Orange | O | Battery-positive (fused) | Fog lights, trailer brake controllers |
| Pink | P | Fuse link for high-current draws | Starter motor, alternator exciter |
| Brown | Br | Lighting circuits | Tail lights, parking lamps |
| Gray | Gr | Data communication lines | CAN bus, ABS module |
Stripes or tracers–thin secondary lines along the main color–alter meaning: a white wire with red stripe (W/R) often delivers switched accessory power, while pink with black stripe (P/B) may indicate a grounding path for heated seats. Match connectors by pin numbering before probing; harness pins labeled A, B, C correspond to female plugs, whereas 1, 2, 3 denote male terminals. Always verify with a digital multimeter–active circuits should read 10-14.5V against ground; open circuits drop below 0.5V.
