Start with the main fuse block under the instrument panel on the driver’s side. Locate fuse #15 (10A) for the front fog lamp circuit–this often trips when auxiliary lighting fails. Verify continuity between pin #30 on the BCM (Body Control Module) and the fog lamp relay socket. If resistance exceeds 0.5 ohms, replace the 14-gauge orange wire segment between the junction box and relay.
Focus on the engine bay harness next. The IAT (Intake Air Temperature) sensor shares a 5V reference line with the MAF (Mass Air Flow) sensor via a yellow-striped wire. Cut at connector C101 near the airbox to isolate shorts; splice in a new 20-gauge lead if voltage drops below 4.8V. Use crimp connectors rated for 105°C–standard hardware store splices corrode within 18 months.
Trace the ignition switch circuit through the dash harness. The PK/BK (pink/black) wire carries battery voltage to the run/crank relay. At connector X2, pin #5, voltage should toggle between 12.6V (run) and 0V (off). If readings fluctuate, inspect the 20-way orange connector beneath the steering column–corrosion here mimics starter solenoid failure.
For climate control diagnostics, remove the center console trim. The blower motor resistor block uses a white/black wire for high-speed control. Probe the harness side of connector T130–pin #1 should read 300mV at full fan speed. Replace the resistor block if readings disappear during operation; aftermarket units last 40% longer than OEM parts.
Test the CAN bus network last. Backprobe connector X6 at the DLC port–pins #6 and #14 should show 2.5V differential with key on/engine off. If voltage sits at 0V, check the splice pack behind the glove box. Cut the green/white CAN-H wire; clean both ends and solder a bridge wire before insulating with adhesive-lined shrink tube.
Chevrolet Sedan Electrical Blueprint Reference

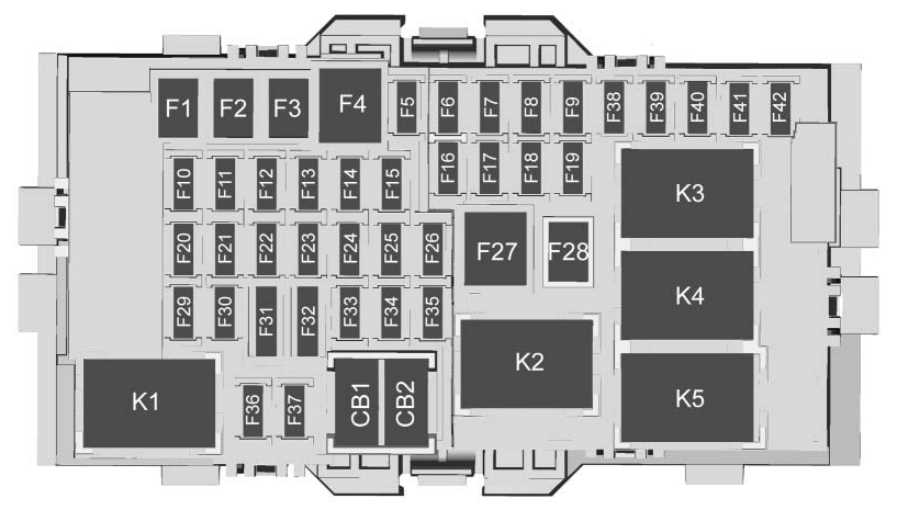

Access the fuse box layout under the dashboard on the driver’s side to locate relay R6, responsible for the front fog lamps. This 30-amp component is marked in slot 18 of the under-hood power distribution chart. Verify continuity with a multimeter set to 200 ohms if lamps fail; resistance above 5 ohms indicates corrosion on connector C302.
Trace the orange/black stripe wire from the BCM (Body Control Module) to pin 12 of the instrument cluster connector X2. This circuit controls the low fuel warning LED–intermittent faults often stem from chafed insulation near the steering column. Replace damaged sections with 18-gauge cross-linked polyethylene wiring and seal splices with heat-shrink tubing rated to 125°C.
Critical Ground Points
Ensure G103, located behind the left rear taillight, remains free of oxidation. This ground serves multiple systems: anti-lock brakes, traction control, and the fuel pump. Clean the mounting stud with 600-grit sandpaper and apply dielectric grease before reassembling. Corrosion here mimics transmission faults by disrupting solenoid actuation signals, frequently misdiagnosed as mechanical failure.
The engine harness splits at splice S204 into three branches: oxygen sensor (gray), manifold pressure (blue), and ignition coils (red/white). Oxidation at this juncture causes intermittent misfires coded P0300-P0306. Probe each branch at the splice with a voltmeter; voltage drop exceeding 0.3V across any branch necessitates replacing the entire wire segment back to the PCM.
To isolate blower motor resistor failures, remove the glovebox liner and test resistance across pins B (black) and C (blue/white) of connector X1. Values should measure 1.5-2.3 ohms; readings below 0.5 ohms confirm internal short. The resistor assembly mounts directly to the HVAC housing–avoid bending cooling fins during replacement as deformation reduces thermal dissipation.
For rear defogger diagnostics, measure voltage at the grid’s center point with a probe set to 12V DC. Full defrost operation should display 10.5-13.5V–any reading below 8V suggests a broken grid line. Repair breaks less than 5mm wide using conductive epoxy; larger gaps require complete element replacement. Avoid excessive pressure when cleaning the glass to prevent damaging the embedded resistive traces.
How to Find the Complete Electrical Schematic for Your Chevrolet Sedan
Start by accessing the official GM Service Information portal at acdelcotds.com. This database requires a paid subscription, but it provides the most accurate and manufacturer-approved schematics for all vehicle systems, including power distribution, sensor networks, and onboard diagnostics.
Check AlldataDIY or Mitchell1–both platforms offer detailed repair manuals with integrated electrical layouts. These services are subscription-based but deliver searchable, high-resolution diagrams, including component locations, fuse box maps, and connector pinouts specific to each model variant.
Alternative Free Sources
AutoZone’s Repair Guides sometimes include partial schematics for common circuits like lighting, ignition, or charging systems. While not exhaustive, these resources can help with basic troubleshooting without cost. Look under the “Vehicle Repair” section by entering your exact trim and engine configuration.
Explore forums like ChevyMalibuForums.com or GM-Trucks.com, where owners and technicians often share PDFs of scanned manual excerpts. Use precise search terms like “ECM pinout layout” or “body control module diagram” to narrow results. Verify any downloaded files against known-good sources to avoid outdated or incorrect data.
Obtaining Factory Documentation
Visit a local Chevrolet dealership and request the Technical Service Bulletins (TSBs) or wiring schematics directly from their service department. Some dealers may provide printed diagrams for a fee, though policies vary. Specify the need for diagrams covering the CAN bus, infotainment, or hybrid powertrain if applicable to your variant.
For advanced users, Helm Incorporated publishes the official Chevrolet Factory Service Manual (FSM), which includes a dedicated volume for electrical systems. These manuals are sold as physical books or digital downloads at helminc.com. Ensure you select the correct year and model before purchasing, as editions are non-transferable.
If working on a fleet or salvage vehicle, check Copart or IAAI auction listings–sometimes intact service manuals are included with the vehicle sale. For urgent repairs, YouTube channels like “South Main Auto” occasionally walk through schematic reading, pointing out common pitfalls like wire gauge mismatches or ground point failures.

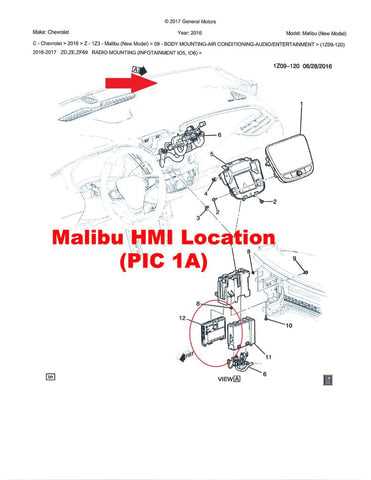

Step-by-Step Pinout Connections for the BCM (Body Control Module)
Begin by locating the BCM under the dashboard on the driver’s side–securely fastened behind the instrument panel trim. Disconnect the negative battery terminal before handling any connectors to prevent short circuits or electrical damage. The module typically features two primary connectors: a 52-pin (X1) and a 42-pin (X2) plug. Verify these by referencing the color-coded labels: X1 is usually black, while X2 is gray or white.
Key Connector Pinouts
| Connector | Pin | Function | Wire Color | Voltage/Note |
|---|---|---|---|---|
| X1 | 1 | Battery (+) Feed | Red | 12V constant |
| X1 | 10 | Headlamp Relay Control | Light Blue/White | Switched 12V |
| X1 | 20 | Ground | Black | Chassis reference |
| X2 | 5 | Door Lock Actuator (Front Left) | Pink/Black | Pulse signal |
| X2 | 15 | Hazard Warning Switch Input | Brown/White | Low signal (0V when active) |
Check each pin for corrosion or bent terminals–clean with electrical contact cleaner if needed. Use a multimeter to confirm voltages: probe pin X1-1 (red wire) for 12V battery feed and X1-20 (black wire) for proper chassis ground continuity. For switched circuits like the headlamp relay (X1-10), test for voltage drop when activating the corresponding function.
For door lock actuators, connect an oscilloscope to X2-5 to observe the pulse signal during lock/unlock cycles. A missing or distorted waveform indicates a faulty BCM output or wiring fault. Similarly, verify the hazard warning input (X2-15) by grounding the wire momentarily–observe the corresponding BCM response via the hazard lamps or scan tool.
Reconnect the battery and perform a functional test: cycle the ignition, test exterior lighting, door locks, and accessory outputs. Monitor for error codes using an OBD-II scanner–codes like U0100 or B1325 signal communication faults or BCM-related issues. If errors persist, probe adjacent modules (e.g., IPC or ECM) for shared CAN bus signals on pins X1-30 (CAN-H) and X1-31 (CAN-L).
Secure all connectors with retaining clips and reattach the dashboard trim. Recheck torque specs for mounting screws (typically 2-3 Nm) to avoid stress on the module housing. Document any deviations in wire colors or pin functions–aftermarket harnesses or regional variants may differ. Store disconnected connectors in labeled bags to prevent misplacement during reassembly.

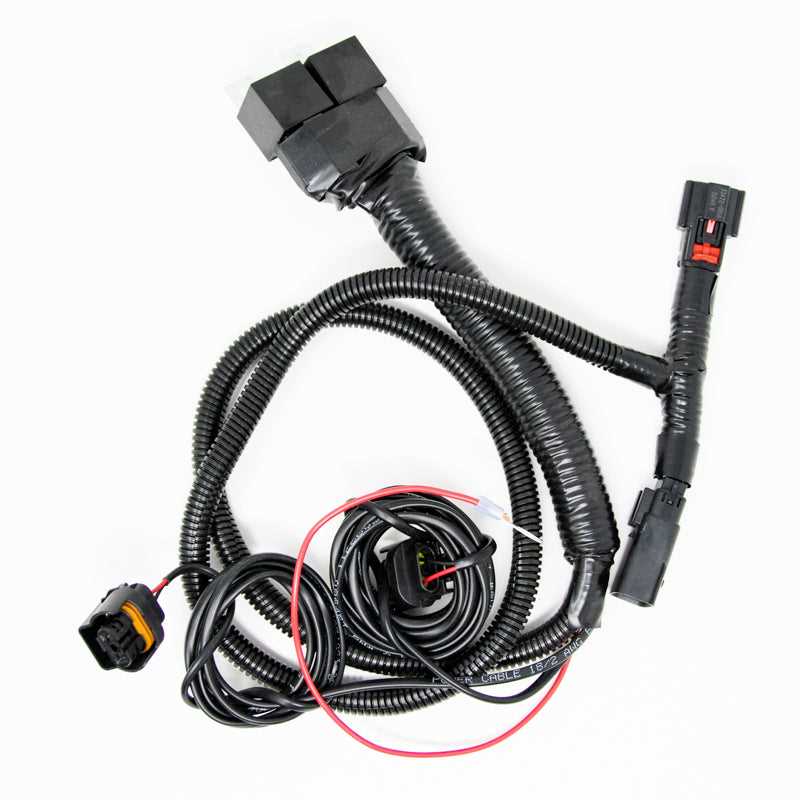

Decoding Wire Colors and Purposes in the Powertrain Cable Assembly
Begin by isolating the main engine loom from auxiliary connectors to trace each conductor without interference. The primary power feed–typically a thick orange or red stripe wire–delivers 12V+ from the battery to the fuse block and ignition switch, while its black counterpart serves as the ground return. Verify continuity with a multimeter before proceeding, as corrosion or abrasion on these high-current paths can mimic other faults.
Critical Circuits and Their Color Codes
- PCM (Engine Control Module): Expect dark green/white stripe for signal inputs (e.g., throttle position) and light blue/orange stripe for outputs (e.g., fuel injectors). Switched 12V+ to the PCM often comes via a pink wire, but always cross-check with a schematic–manufacturers occasionally deviate for mid-year revisions.
- Fuel Pump: The relay-controlled feed uses a gray wire; a purple conductor usually triggers the relay coil. On some models, a redundant dark blue/yellow stripe from the immobilizer module signals pump enable.
- O2 Sensors: Upstream sensors typically pair tan/black stripe (heated +) with tan/white stripe (signal). Downstream sensors may repurpose gray/black stripe for signal return. Both require a brown ground connection–verify no voltage drop here, as compromised grounding skews sensor readings.
For low-current sensors like the MAP/MAF, look for yellow/black stripe (5V reference), white/black stripe (signal), and green/black stripe (ground). A common failure mode is chafing where these wires enter the intake boot; inspect harness guides and grommets at bulkhead pass-throughs. If resistance exceeds 0.3 ohms on any sensor circuit, bypass the harness with a temporary jumper to confirm the fault lies in the loom.
Transmission-related conductors follow a distinct pattern: dark blue carries engine torque requests to the TCM, light green/black stripe handles shift solenoid control, and brown/white stripe relays pressure switch data. On automatic variants, a pink/black stripe wire bridges the brake switch signal to the TCM–interruption here triggers torque reduction or failure-to-shift conditions. Test these under load, as intermittent breaks may not appear during static checks.
- Label each connection with masking tape before disconnecting–photographs alone are unreliable.
- Use a tone generator on suspected open circuits; avoid piercing insulation if possible.
- Compare resistance values against a known-good loom segment. For example:
- Injector circuits: 13–18 ohms
- Ignition coil primary: 0.5–1.2 ohms
- Secondary (coil-to-plug): 10–15 kΩ
- Check for voltage drop across connectors during cranking/running–any reading above 0.3V indicates high-resistance corrosion.
- For CAN bus wires (orange/black stripe and white/black stripe), scope the signal–noise spikes often correlate with loose module grounds.
Auxiliary systems like the starter solenoid (purple/white stripe), alternator field (light blue), and A/C compressor clutch (dark green/yellow stripe) share the main engine loom. Prioritize these during parasitic drain diagnostics or intermittent no-crank conditions. A frequently overlooked detail: the gray/orange stripe wire feeds the instrument cluster’s tachometer signal–if the gauge fluctuates or pegs, probe this line while revving the engine. Balance precision with persistence–most loom failures reveal themselves only under specific operating conditions (e.g., heat, vibration).
