Start by identifying the four main harness connectors behind the factory head unit. The first pair handles power and accessory signals: a yellow wire (12V constant) maintains memory settings, while the red (12V switched) activates the system when the ignition is turned. Ground is a black wire, often marked with a white stripe. The second pair contains speaker outputs–front left/right (gray/white and gray), rear left/right (green/white and green). These follow standard polarity: solid colors for positive, striped for negative.
Verify connections against the ISO wiring pinout specific to this trim. Pin locations may shift between base and premium trims–check the harness color codes printed on the factory connector for accuracy. Factory amplifiers, if present, use an additional light blue/white remote turn-on wire, routed separately to activate external boosters. Avoid splicing into the purple (subwoofer) or orange/white (illumination) leads unless upgrading to an aftermarket setup that requires them.
Test continuity between the head unit and door speakers using a multimeter. Resistance should read 4 ohms (±0.5) for each channel. If impedance drops below 3 ohms, check for shorts in the door harness–common failure points are near the hinge grommets or under the dash kick panels. For OEM replacements, match the connector housing type (AAMP 16-pin) to prevent incorrect power delivery, which can trigger error codes B1378 (speaker imbalance) or U1101 (communication fault).
When integrating third-party units, bypass the factory amp using a line-output converter (LOC) if the system lacks RCA preouts. Connect the LOC’s input to the speaker wires (gray/white, gray, green/white, green), adjusting gain to prevent clipping on the amp’s high-level inputs. For systems with factory navigation, retain the CAN bus wires (yellow/black and white/black) to preserve steering wheel controls and vehicle diagnostics. Always confirm fuse ratings (10A for radio, 15A for amp) before powering up to avoid blowing the integrated anti-theft circuit.
Document each wire’s termination point, including twist counts per inch for secure connections. Use heat-shrink tubing over soldered joints to prevent corrosion–exposed copper oxidizes within 18 months, causing intermittent signal loss. If static occurs after installation, check the antenna lead (pink) for proper grounding or reroute it away from power cables to reduce interference. For vehicles with Harman Kardon setups, retain the MOST fiber-optic loop (orange/black) to maintain active noise cancellation.
Vehicle Audio System Connection Guide for 2017 Model Compact Sedan

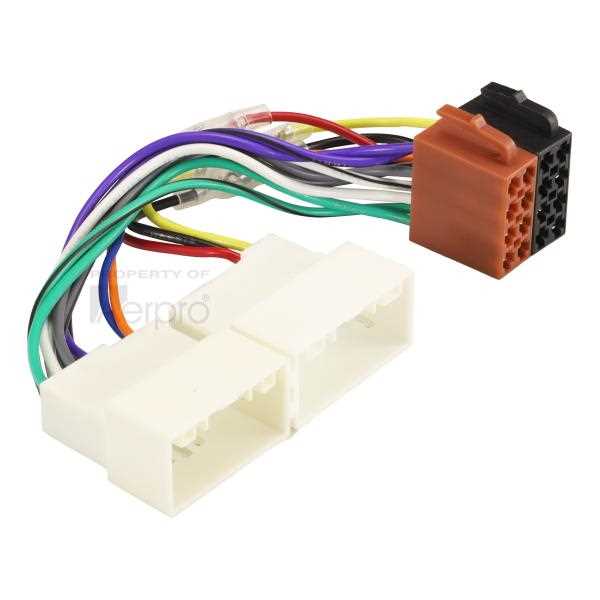

Installing an aftermarket head unit requires precise wire matching to avoid damaging the car’s electrical system. The factory harness for this generation includes a 16-pin ISO connector with color-coded strands:
| Wire Color | Function | Voltage |
|---|---|---|
| Yellow/Black stripe | Constant 12V power (battery) | 12V DC |
| Red | Switched 12V (ignition) | 12V DC (with key in ACC/ON) |
| Black | Ground (-) | 0V |
| White/Black stripe | Front left speaker (+) | 4 ohms |
| White | Front left speaker (-) | 4 ohms |
| Grey/Black stripe | Front right speaker (+) | 4 ohms |
| Grey | Front right speaker (-) | 4 ohms |
| Green | Rear left speaker (+) | 4 ohms |
| Green/Black stripe | Rear left speaker (-) | 4 ohms |
| Violet | Rear right speaker (+) | 4 ohms |
| Violet/Black stripe | Rear right speaker (-) | 4 ohms |
Locate the antenna lead–typically a single blue wire in the harness–to ensure proper AM/FM reception. If integrating a subwoofer or amplifier, tap into the dedicated lightweight blue/white strand (12V remote turn-on) and verify a 4-gauge ground cable is secured to bare metal for stable current flow. Mismatching speaker polarities often results in phase cancellation, reducing bass response. Test each connection with a multimeter before finalizing the installation.
For vehicles equipped with steering wheel controls, an adapter is mandatory–aftermarket harnesses like Metra ASWC-1 automatically map button functions without requiring resistor networks. Ensure the parking brake safety circuit is engaged during initial setup to avoid triggering error codes in the entertainment module. Failure to adhere to these specifications may void dealer diagnostics compatibility.
Finding the Audio System Connector Behind the Instrument Panel
Begin by removing the lower dashboard cover beneath the climate controls–it’s secured by two Phillips screws near the driver-side footwell and three clips along the upper edge. Once detached, the central console bracket appears; disconnect the hazard light switch wiring by gently pressing the release tab and pulling straight out. The main harness for the head unit sits directly behind the factory bracket, identifiable by its 12-pin rectangular connector with color-coded leads: yellow (constant 12V), red (switched 12V), black (ground), and four speaker outputs in gray/white, gray/black, violet/white, and violet/black pairs.
Trace the bundle toward the passenger side–it routes upward behind the air vent duct, where an additional 8-pin harness for the amplifier may be present if the vehicle has premium audio. Use a trim removal tool to pry the glove box stoppers inward, then drop the glove box for unobstructed access; the wiring bundle often ties into a plastic retainer here, requiring a 10mm socket to remove the mounting bolt securing the junction. Avoid forcing connectors–some models have a locking tab that must be depressed before separation.
Understanding Wire Colors and Their Roles in Your Vehicle’s Audio Connector
Start by identifying the yellow B+ wire–this supplies constant 12V power from the battery to maintain memory settings, including presets and clock data. Connect it directly to the battery’s positive terminal or an always-hot fuse to prevent draining the vehicle’s electrical system when the ignition is off.
The red ACC wire delivers 12V power only when the ignition is in the accessory or on position. Tap this into the vehicle’s ACC circuit, typically found at the fuse box or behind the ignition switch. Avoid splicing it into the cigarette lighter line, as some models split this circuit for other accessories, leading to inconsistent power delivery.
Ground connections use the black wire–attach it to a bare metal chassis point with solid conductivity. Choose a location near the audio unit’s mounting area, sanding away paint or corrosion for maximum efficiency. A weak ground causes static, popping, or intermittent failures in the sound system.
Speaker outputs follow a specific color scheme: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left, green (+) and green/black (-) for rear right, and violet (+) and violet/black (-) for rear left. Match these precisely; reversing polarity distorts audio and risks damaging the amplifier section of the head unit over time.
For steering wheel control integration, locate the light green/pink wire–this carries resistive signals from the vehicle’s multifunction buttons. Use an adapter harness designed for OEM interface compatibility, ensuring correct resistance values. Incorrect wiring here disables functions or triggers error codes in the car’s CAN bus system.
Removing the OEM Head Unit: A Precise Walkthrough
Disconnect the negative battery terminal first to prevent electrical shorts. Use a 10mm socket to loosen the clamp; tuck the cable away from metal surfaces. Allow 2–3 minutes for capacitors in the system to fully discharge before proceeding.
- Locate the trim panel surrounding the audio faceplate–it snaps into place but requires deliberate pressure to avoid cracking. Start at the lower edge, wedging a plastic pry tool between the dash and the panel. Work clockwise, releasing each clip with steady upward leverage.
- Once the trim is free, set it aside and identify the four 10mm bolts securing the head unit to the mounting cage. Remove them with a socket wrench, keeping track of washers; they often stick to the bolts.
- Gently pull the unit straight out–no twisting. Detach the harness plug at the rear by pressing the release tab; avoid yanking the wires. If the climate control module shares the harness, label each connector with masking tape to prevent mismatches during reinstallation.
For models with integrated navigation, an additional GPS antenna cable may be attached near the top of the unit. Disconnect it by unscrewing the coaxial connector–do not tug on the cable itself. If resistance is met, check for hidden retaining screws before applying force.
Reassembly follows the reverse sequence, but verify all connections before powering the system. Reattach the battery terminal last and test functionality; error codes often point to a loose harness plug rather than wiring damage.
Integrating Third-Party Audio System Cables with OEM Connectors
Locate the vehicle’s native connector behind the dashboard panel–typically a 16-pin plug with color-coded leads. Use a multimeter to verify each pin’s function before making connections; the factory harness often repurposes pins for non-audio functions like illumination or data buses.
Match aftermarket harness wires to the OEM plug by referencing these common pairings:
- Yellow → Constant 12V power (battery)
- Red → Switched 12V (ignition)
- Black → Ground (check for resistance below 0.5 ohms)
- Blue/White → Amplifier remote turn-on (test for 12V when ignition is on)
- Gray/White & Gray → Front right speaker (+/-)
- Green/White & Green → Rear right speaker (+/-)
Cut only the aftermarket harness wires–never modify the factory plug unless splicing is unavoidable. Use butt connectors or solder joints with heat shrink tubing for permanent connections; crimp caps introduce failure points in high-vibration environments. For systems with parking brake safety interlocks, bridge the factory parking brake wire to ground to bypass video restrictions.
Check for hidden canbus wires (often purple or purple/white) responsible for chime alerts or steering wheel controls. Tapping into these incorrectly can trigger false error codes. If retaining steering wheel controls, install a compatibility adapter between the aftermarket deck and the vehicle’s data network; generic adapters rarely map all functions correctly.
Verifying Ground Integrity
Ground loops cause persistent humming–avoid sharing grounds with other high-current accessories like rear defrosters. Test continuity between the ground wire and chassis metal; if resistance exceeds 0.2 ohms, clean mounting surfaces with sandpaper and secure with star washers. Never rely on painted or coated areas for grounding.
Before finalizing connections, power up the system and verify:
- All speakers produce sound (left/right balance test with a mono track).
- Volume adjusts smoothly without distortion at 75% max output.
- Illumination dims in sync with dashboard lights (if wired to factory rheostat).
- Bluetooth/AUX inputs register without dropout.
Tuck unused factory wires away with electrical tape; never leave them exposed to metal edges. For vehicles with factory amplifiers, downgrade to 4-channel aftermarket units–stock amplifiers often require additional signal processing modules that increase complexity.
Safety Overrides for Non-Standard Features

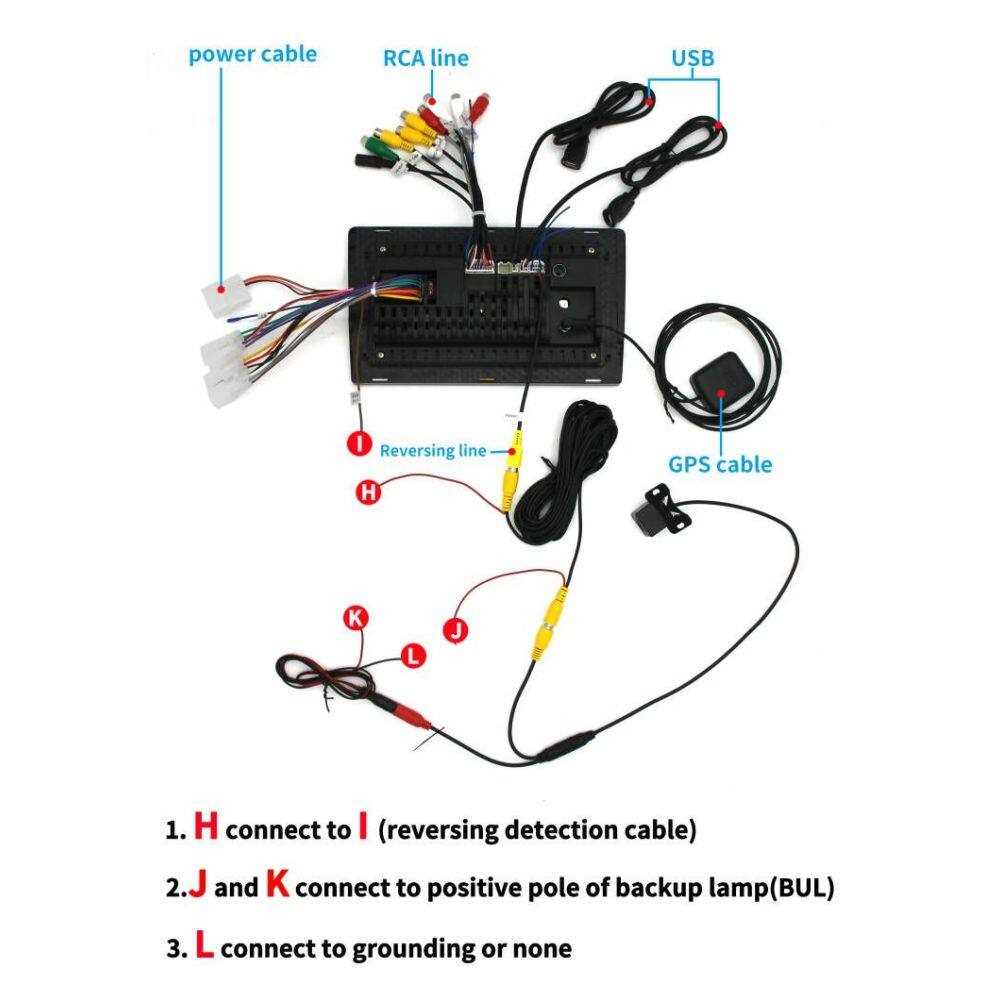

Some models route rear view camera feeds through the OEM head unit. To retain this functionality, splice the camera’s composite video (usually pink) and reverse trigger (purple) into the aftermarket harness adapter. Test by shifting into reverse–lag exceeding 0.5 seconds indicates a weak signal; replace the RCA cable with shielded coaxial.
For USB/charging ports, hardwire an independent power line directly to the battery with an inline fuse (10A). Factory USB circuits often lack sufficient amperage for modern devices, causing slow charging or overheating. Route cables away from airbags and moving parts; secure with zip ties every 15cm.
