Locate the retained accessory power wire at pin 16 (violet/light blue) of the C2 connector–this feeds constant 12 V to the head unit independent of ignition. Disconnect the battery negative terminal before tapping any circuits to avoid shorting the fuse box or damaging the BCM.
For aftermarket amplifier integration, tap the front speaker outputs at pins 4 (gray/dark green), 5 (white/dark green), 6 (gray/red), and 7 (white/red) on connector C1. These carry 4-6 W RMS per channel at 4 Ω, sufficient to drive passive crossovers. Avoid bridging these wires directly to high-power amplifiers; use buffered line-level converters rated for 50 W RMS.
Ground the chassis-side connection at the factory bolt beneath the glovebox–remove paint with a wire brush and secure with a 10 mm star washer. Verify continuity between this point and pin 8 (black/orange) on C1 before connecting aftermarket components. Poor grounding introduces alternator whine and intermittent backlighting flicker.
The SYNC 3 module receives serial data on pins 10 (orange/light blue) and 11 (light green/red) of connector C1 via the HS-CAN bus. Splicing into these wires for third-party adapters requires a 120 Ω terminating resistor within 12 inches of the splice to maintain network integrity.
For OEM navigation retrofit, pin 2 (dark green/yellow) of C1 provides switched 12 V to the GPS antenna amplifier. Use RG-59 coaxial cable with FME connectors and route along the existing roof harness conduit to prevent signal attenuation exceeding 0.5 dB/ft.
Steering wheel control resistance values measure 2.2 kΩ (volume up), 1.5 kΩ (volume down), and 680 Ω (mode) between pin 1 (white/brown) of C2 and ground. Emulate these values with a precision 1 % resistor network when replacing the head unit.
Electrical Connectivity Guide for Modern Pickup Audio Systems
Start by locating the factory harness behind the dashboard center stack–pinout coding follows a standardized color scheme: yellow denotes constant 12V power, red triggers accessory voltage, black ensures ground, and blue-white handles amplifier remote turn-on signals.

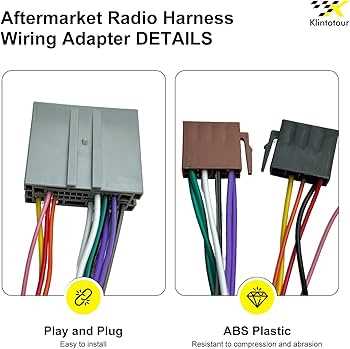

Check harness adapters for compatibility; aftermarket units often require Metra 70-1770 or Scosche FD17B interfaces to bridge factory connections without cutting original wires. Verify pin alignment before securing connectors to prevent signal interference or short circuits.
Grounding demands direct attachment to bare metal chassis points, preferably near the original mount. Sand paint or corrosion from contact surfaces to maintain conductivity and reduce noise in audio output.
Speaker wires split into pairs: front left (gray/light blue), front right (white/orange), rear left (white/brown), and rear right (green/yellow). Ensure polarity consistency–reversed leads cause phase cancellation, degrading sound quality.
Retain the stock antenna adapter if integrating a non-OEM infotainment screen. Axxess ASWC-1 or similar modules simplify steering wheel control retention for vehicles equipped with SYNC systems.
For navigation-enabled models, GPS receivers connect via a dedicated 4-pin harness. Confirm software compatibility between the replacement unit and factory vehicle configurations to avoid GPS signal dropouts.
Test all connections with a multimeter before final assembly. Voltage readings should measure 12V at power leads, 0Ω at grounds, and 4-8Ω across speaker terminals. Replace any degraded wiring exhibiting resistance above 1Ω.
Secure excess wiring with loom tubing or high-temp zip ties, routing away from moving components and heat sources. Document changes with photographs of the harness layout for future reference during upgrades or troubleshooting.
Finding the Stock Audio System Plug Behind the Dashboard
Remove the lower dash trim panel by releasing three clips–two near the steering column and one at the outer edge–using a trim removal tool. Slide the panel downward to detach it completely. Behind this section, locate a rectangular black connector secured to a metal bracket; it sits adjacent to the climate control module and above the footwell vent.
Trace the bundle of colored wires exiting the connector downward; they terminate in a white 12-pin plug. This plug interfaces with the head unit’s rear harness. Verify pin assignments against service manual schematics by marking each wire with tape–ground (brown), constant 12V (yellow), switched 12V (red), and speaker leads (violet, gray, white, green for rear pairs) ensure correct splicing when integrating aftermarket components.
Disconnect the negative battery terminal before handling the plug to prevent short circuits. Press the release tab on the connector’s side while pulling steadily; avoid twisting to prevent damaging the latch mechanism. Store the removed plug in a labeled bag with its corresponding dash panel for reinstallation.
Identifying Wire Colors and Pinouts for Aftermarket Stereo Installation
Locate the constant power lead first–typically a yellow wire in the OEM harness, supplying 12V regardless of ignition state. Verify with a multimeter; voltage should read 10.5V or higher even with the key off. Failure to connect this correctly will drain the vehicle’s battery within hours.
Next, trace the switched power line, often red or orange, which activates only when the ignition is in ACC or ON position. This wire powers the head unit’s memory functions and should show no voltage with the key off. Cross-reference with the vehicle’s service manual if colors deviate–aftermarket integrations frequently reuse pink or purple for this purpose.
Ground connections (black or brown in most manufacturer setups) must attach to bare metal chassis points–never to painted surfaces or plastic clips. Use a 16-gauge or thicker wire and secure with a star washer to prevent corrosion. Test continuity with a low-resistance setting (Ω) on your meter; readings above 0.5 ohms indicate a poor connection.
Speaker Wire Identification
- Front left (+): Gray (standard), may alternate with light blue striped in some trim packages.
- Front left (–): Gray with black stripe; polarity reversal will cause phase cancellation.
- Front right (+): White; verify by playing a mono test tone through only this channel.
- Front right (–): White with black stripe; mismatching this will audibly reduce bass.
- Rear left (+): Green; check for signal with a left-right balance test–adjust stereo settings to isolate.
- Rear left (–): Green with black stripe; avoid shorting to other speaker wires; damage is irreversible.
- Rear right (+): Purple; often confused with illumination wires–double-check with a tone generator.
- Rear right (–): Purple with black stripe; twisting pairs together reduces interference.
Illumination wires (orange or orange with white stripe) dim the display in sync with dashboard lights. Connect these only if the aftermarket unit supports variable voltage dimming (0-12V)–most require a fixed 12V input for full brightness. Miswiring here causes flickering or no illumination at night.
Parking brake and steering wheel control wires (light blue or pink) demand specialized adapters. Never splice directly; use an ASWC-1 or Metra Axxess module to retain factory functionality. These modules map buttons to the aftermarket unit’s protocol–skip this step, and buttons won’t respond. Test by pressing volume, track skip, and voice commands before finalizing the install.
Always use reliable crimp connectors or solder + heat shrink–never electrical tape alone. For harness extensions, match gauge size exactly (typically 18-22 AWG for signal, 14-16 AWG for power). Label every wire with masking tape before cutting; a single misplaced connection can fry the head unit’s circuit board. Confirm all connections with a multimeter before powering on–the first startup should be silent with no pops or clicks.
Direct Integration of Audio System Cables Without Harness Interfaces
Locate the vehicle’s fuse box under the dash or behind the glovebox panel. Use a multimeter to identify a 12V constant power source–look for yellow cables exiting the factory connector. Tap into this line using a 16-gauge fusible link to prevent overload; solder joints must be heat-shrunk for corrosion resistance. Avoid the ignition-switched circuit (typically red) unless delayed accessory power is required.
Secure the ground connection to a bare metal chassis point near the installation area. Sand away paint or protective coatings until shiny steel is exposed–poor grounding causes buzzing, signal interference, or total failure. Use a star washer between the ring terminal and chassis for maximum conductivity. For aftermarket amplifiers, run a dedicated 4-gauge ground directly to the battery’s negative terminal to eliminate noise.
| Cable Color (Factory) | Function | Aftermarket Match |
|---|---|---|
| Dark Green/Violet | Rear Right (+) | Gray |
| White/Brown | Front Left (+) | White |
| Gray/Red | Rear Left (+) | Green |
| Light Blue/White | Remote Turn-On | Blue/White |
Twist speaker wires tightly before crimping or soldering–loose strands cause distortion. For 4-ohm factory speakers, maintain polarity: positive (striped) and negative (solid) must align with the head unit’s output. Test each channel with a 1 kHz tone before finalizing connections; imbalance in volume indicates reversed polarity. Use butt connectors for solid joints–avoid electrical tape as primary insulation.
Route cables away from moving parts, sharp edges, and heat sources. Use split loom tubing or braided sleeving to protect against abrasion. Label each wire with masking tape during testing to prevent misconnections. For vehicle-specific mute functions (e.g., parking brake or reverse signals), consult the service manual’s pinout–incorrect tapping may trigger error codes or disable features.
Verify all connections with a continuity tester before reassembling panels. Power up the system at low volume and check for clean audio, proper fade/balance, and no warning lights on the dash. If interference persists, add a ground loop isolator or relocate the power wire away from antenna cables. For OEM amplifiers, bypass the external harness and connect directly to the speaker outputs–factory wiring often includes noise-reduction circuits.
