Start by locating fuse block J2 under the instrument panel–this central hub connects critical systems, including the powertrain control module and climate controls. Use a multimeter set to 20V DC to verify power at terminal B+ (red/black wire) before proceeding; inconsistencies here often trace back to corroded ground points near the driver-side kick panel. Refer to pinout 327B in the service manual for exact color codes, where the tan/black wire delivers 12V ignition feed–interruptions in this circuit trigger false DTCs like P0562.
Inspect the rear lighting cluster connectors C101 and C102 for heat damage, particularly the blue/yellow wires responsible for brake signal delivery. Replace the entire harness segment if insulation brittleness appears–sectional splices fail under vibration stress. For auxiliary lighting circuits, note that the white/orange wires run directly from the body control module to the roof-mounted switch; bypassing the module requires bridging the circuit through relay 15A K7 to avoid BCM resets.
Test alternator output at the B+ stud (red wire) under load; readings below 13.8V at 2,000 RPM point to diode failure or schlecht connector contact. The under-hood junction box X3 feeds the cooling fans via purple/green wires–measure resistance across thermistor C2 to confirm sensor integrity before condemning the fan control module. For trailer wiring, prioritize the brown/white ground return path; voltage drop exceeding 0.3V under load indicates compromised chassis grounds at point G103.
Access the onboard diagnostic port via the center console trim removal–pin 16 supplies permanent battery voltage (orange wire), while pin 6 transmits CAN high signals (violet). Isolate intermittent faults by backprobing the engine wiring harness near the firewall bulkhead connector; the tan/light blue circuit carries 5V reference to the MAP sensor, and short-to-ground conditions here mimic throttle position failures.

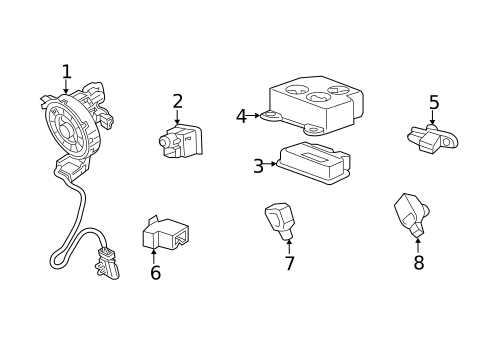

Electrical Schematic for Chevy’s Full-Size SUV: Hands-On Reference
Locate the under-hood fuse block on the driver’s side–remove the cover by pressing the release tabs to access the power distribution module. Pin 23 on connector C1 supplies constant 12V to the BCM; verify voltage with a multimeter before proceeding. If readings fluctuate, check the 20A fuse labeled “IGN RELAY” in slot 18; corrosion here disrupts multiple subsystems.
Trace the purple/white stripe wire from the rear liftgate latch actuator back to splice S208. This splice branches to the rear wiper motor and cargo lamp–if either fails, probe S208 first. Use a non-contact voltage tester to confirm power at the splice before disassembly, avoiding unnecessary panel removal. Replace any wire exhibiting brittle insulation, as this segment sees frequent flexing.
Critical Ground Points
Secure ground G200 beneath the rear seat cushion–loosen the 10mm bolt, clean the mounting surface with a wire brush, and re-tighten to 15 ft-lbs. Weak grounding here causes sporadic infotainment reboots and false security alerts. For G300 near the left taillight, strip corroded wires back 0.5 inches, apply dielectric grease, and crimp a new terminal ring.
When diagnosing the trailer brake controller, focus on the dark blue/white stripe wire at pin 1 of the connector behind the kick panel. A voltage drop exceeding 0.5V under load indicates a faulty trailer harness or corroded pin. Swap the controller with a known-good unit before condemning the module–factory controllers rarely fail before 70,000 miles.
Test the HVAC blend door actuators by monitoring the brown/yellow stripe wire at the harness near the glove box. Cycling the temperature control should produce a 5V pulse sequence; absence confirms a motor seizure. Disconnect the actuator, manually set the door to mid-position, then reconnect–this resets the system without scan tool intervention.
Advanced Circuit Verification
For intermittent no-crank conditions, inspect the yellow/black stripe wire between the ignition switch and starter solenoid. Back-probe pin 6 of connector X2 with the key in “start” position–voltage should read 10.5V minimum. If lower, bypass the security bypass relay (connect a jumper wire between pins 85 and 86) to isolate the fault.
Replace any blown 30A fuse for the cooling fan circuit immediately–dual fans draw 28A combined. Use a thermal imaging camera to pinpoint shorts in the fan harness; melted insulation around the radiator support bracket is a common culprit. Hardwire a relay if replacing the factory fuse repeatedly to prevent fire hazards.
When rewiring aftermarket accessories, splice into the light blue wire at the driver’s kick panel for switched power–this line cuts off with the key. Avoid tapping into the orange wire (constant 12V), as it powers memory functions and drains the battery when misused. Secure all splices with adhesive-lined heat shrink tubing, never electrical tape, to prevent moisture ingress.
Finding Primary Electrical Connector Points in a Full-Size GM SUV
Begin under the dashboard on the driver’s side. Remove the lower trim panel by unscrewing the single 7mm bolt near the hood release lever. Gently pull the panel outward–three plastic clips secure it, and they release with minimal force. Behind the panel, the primary harness splits into three main bundles: instrument cluster (12-pin gray), body control module (24-pin black), and powertrain interface (16-pin tan). Label each connector with masking tape before disconnecting any to avoid misrouting during reassembly.
Engine Bay Access Points
Pop the hood and locate the fuse box mounted on the left side rail. Pry off the cover–the central harness (thick black conduit) exits the box and routes along the firewall. Follow the conduit toward the brake booster: here, a T-shaped connector joins the main engine harness to the under-hood sensor network. Use a small flathead screwdriver to release the locking tab on the T-connector–do not pull the wires, as this junction handles ABS, traction control, and ECM signals.
The rear harness runs beneath the cargo floor. Fold the third-row seats forward, then lift the cargo floor panel by removing two 10mm bolts near the rear hatch threshold. The harness emerges from a grommet in the left wheel well; press the grommet inward to release the wiring. Trace it forward–it merges with the tailgate module behind the left rear quarter panel liner. Disconnect the panel liner’s six plastic retainers with a trim tool to expose the junction.
Chassis and Lighting Links
Under the vehicle, the main harness exits the cabin through a firewall grommet left of the brake pedal. Slide beneath the driver’s seat to find the harness clipped to the floorpan–four 10mm bolts secure the seat, and removing them allows access to the transmission tunnel connector (20-pin white). This connector links to the shift interlock, transfer case, and rear differential control modules. Spray electrical contact cleaner on pins before reconnecting to prevent corrosion buildup.
Headlights and fog lights share a harness that routes through the front bumper supports. Remove the front grille by releasing six plastic clips along the top edge and unbolting two 8mm screws at the bottom. Behind the left headlight assembly, a 14-pin connector (gray) joins the main harness to the lighting and DRL circuits. Test each pin with a multimeter set to 12V DC–expected readings are 11.8-12.4V on active circuits when the ignition is on.

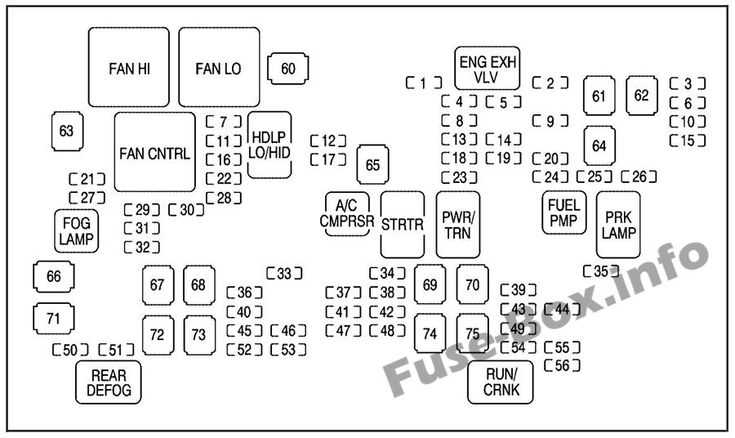

Identifying Fuse Box and Relay Layouts for Electrical Troubleshooting
Locate the primary fuse panel beneath the instrument panel on the driver’s side–removing the kick plate reveals its exact position. Label each fuse slot with its corresponding circuit using a permanent marker directly on the cover; reference the owner’s manual for amperage ratings and system assignments, as labels may wear over time. For relay clusters, note their orientation: square-pin relays occupy specific slots, while blade-style relays often share similar form factors but control distinct functions (e.g., cooling fan vs. fuel pump). Use a multimeter in continuity mode to verify relay operation; a clicking sound confirms coil activation but doesn’t guarantee switch contact integrity.
Test high-current circuits by isolating upstream power–remove the fuse first, then probe both sides of the socket with the ignition on. A voltage drop above 0.5V suggests corrosion or undersized wiring; prioritize cleaning terminals with contact cleaner before replacing components. For intermittent faults, tap relays and fuses lightly while monitoring symptoms–loose connections often reveal themselves under vibration. Keep a schematic of relay pinouts (85/86 for coil, 30/87 for load) to bypass suspect units with jumper wires if diagnostics stall.
Step-by-Step Guide to Installing a Trailer Brake System Controller
Locate the vehicle’s under-dash fuse box–typically found on the driver’s side near the pedal assembly. Remove the cover to reveal labeled slots. Identify the empty port marked “Brake Controller” or “Trailer Brake,” usually slot 27 or 30 on GM platforms. If no dedicated slot exists, use a 30-amp fuse tap on the ignition-switched circuit, ensuring it matches the controller’s power requirements.
Route the controller’s wiring harness upward through the firewall. Use the grommet near the steering column for a clean pass into the engine bay. Secure excess harness with zip ties to prevent interference with pedals or steering components. Verify the harness’s blue wire connects to the vehicle’s brake signal output–failure here results in no trailer braking response.
- Red wire: Connects to 12V ignition source.
- Black wire: Grounds to chassis (avoid painted metal).
- White wire: Neutral return (bond to frame).
- Blue wire: Brake signal output (critical link).
Attach the controller bracket to the dash lower panel. Drill pilot holes if no factory mounts exist, ensuring screws don’t penetrate deeper than 1/2 inch to avoid wiring damage. Secure the controller firmly–vibration causes false activation. Position it within 15 degrees of horizontal for proper inclinometer alignment.
Test the setup with a multimeter before connecting the trailer. Probe the blue wire: voltage should read 0V off-brake, 12V when brakes are applied. If readings fluctuate unprompted, recheck ground or fuse integrity. Use a trailer brake tester or a 12V light bulb to confirm signal output at the trailer plug–dim illumination indicates poor ground or corroded terminals.
- Verify vehicle brake lights function independently.
- Activate controller (most default to synchronization mode–gain dial full counterclockwise).
- Increase gain incrementally while monitoring trailer response (start with 50% of max).
- Trigger panic stop (30 mph to standstill) to confirm proportional braking.
- Adjust gain until trailer wheels lock slightly before tow vehicle.
Seal all connections with dielectric grease to prevent corrosion. Wrap exposed wiring with moisture-resistant loom tubing, especially near the hitch and trailer plug. Recheck terminal crimps every 5,000 miles or after submersion–oxidation develops rapidly in coastal or winter climates. Store the controller’s manual in the glovebox; reset procedures vary by model and are required after battery disconnect.
