Locate the fusebox layout under the dashboard on the driver’s side–pin F47 controls the rear defogger relay, while F33 manages the powertrain control module. Verify connections by probing terminal C1-12 (yellow/black wire) for a steady 12V signal during ignition. If voltage drops below 11.5V, inspect the IPDM (intelligent power distribution module) for corrosion on connector J30, specifically pins 8 and 15.
For climate control circuits, trace the blue/white wire from the A/C compressor clutch to the ECM (engine control module) at terminal C2-4. A faint spark or intermittent engagement suggests a faulty thermal fuse–replace the HVF3 component (located behind the glovebox) with a 20A equivalent, not exceeding 22A. Ignore generic diagrams; focus on the power window section where the pink/black wire (pin C3-7) links to the door lock actuator. A multimeter reading above 0.5 ohms indicates a short–reroute the wire harness away from the hinge area.
When troubleshooting the fuel pump relay, bypass the FP circuit temporarily using a jumper wire between terminals 30 and 87. If the pump primes, replace the relay (OEM #98680-3E000). For CAN bus errors, disconnect the B+ battery terminal for 10 minutes to reset the BCM (body control module). Reconnect and monitor U codes–persistent U1900 requires reflashing via KDS/GDS software, not manual recoding.
Address blower motor failures by checking resistor R12 (mounted near the firewall). A melted component demands a solid-state replacement part (#97315-3E000), not a generic rheostat. For exterior lighting, the left tail lamp shares ground with the license plate bulb–a single corroded G4 terminal affects both. Use dielectric grease on all bulb sockets to prevent moisture ingress.
Electrical Schematic Troubleshooting for a 2016 Mid-Size SUV

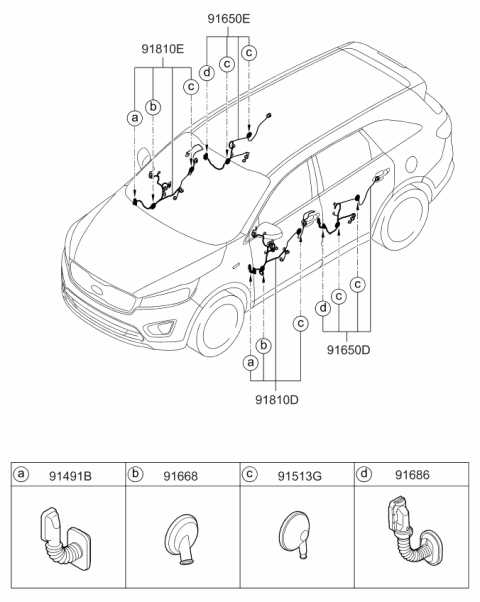

Start by isolating the specific circuit causing issues–ground faults often mimic more complex problems. Use a multimeter set to continuity mode to verify connections between fuses and relays. Check the under-hood fuse box (labelled as I/P-B) for corroded pins; clean with contact cleaner and a nylon brush. For power windows or door locks, trace the harness from the module to the switch–chafing near the door hinge is common.
- Fuse 15 (10A): Radio, USB, clock–measure voltage at the back of the fuse with the ignition on.
- Fuse 32 (10A): Instrument cluster–inspect for intermittent voltage drops when cycling the ignition.
- A/C relay: Swap with a known-good relay (e.g., horn) to confirm failure.
For headlight circuits, probe the bulbs’ sockets while toggling the switch. If voltage reads below 12.6V, backtrack to the TIPM (Totally Integrated Power Module). The main harness often splits behind the glovebox; unclip the panel to access splices hidden below the climate controls. Pinched wires near the steering column can disable the starter–look for melted insulation or copper exposure.
- Disconnect the battery before removing dash panels.
- Label every connector before unplugging–use masking tape and a fine-tip marker.
- Test for parasitic drain by placing the multimeter in series with the negative terminal.
Bluetooth and navigation units share ground points behind the infotainment screen. If audio cuts out intermittently, resecure the ground at G301 (located under the passenger-side dash). For ABS faults, focus on wheel-speed sensors–clean the reluctor rings before condemning the module. The OBD-II port’s power pin (16) should read battery voltage; absence indicates a blown fuse or faulty ignition switch.
Identifying the Fuse Panel and Relay Connections in Your Vehicle
Begin by removing the lower dashboard cover on the driver’s side. Use a flathead screwdriver to pry open the clips securing the panel–three along the bottom edge and two near the steering column–then pull it away carefully. Behind this cover, the primary fuse box is mounted directly above the accelerator pedal. Labels on the inside of the cover detail each fuse’s amperage and function, but cross-reference with the vehicle’s manual for precise terminal locations.
Secondary Relay and Fuse Assembly
The auxiliary fuse cluster is situated under the hood, adjacent to the battery. Lift the plastic latch on the rectangular black box to reveal relays for the cooling fan, A/C compressor, and engine control circuits. Remove the lid by sliding it forward–three relays are mounted vertically on the left side, while blade-type fuses occupy the right. Use needle-nose pliers to extract fuses for inspection, checking for melted connectors or discolored filaments.
For harder-to-reach components, such as the trailer brake control relay or anti-lock brake module, access the fuse panel behind the glove compartment. Drop down the compartment, squeeze the side tabs inward, and remove the panel housing. The relays here are color-coded: red for 30-amp circuits, yellow for 20-amp, and blue for 10-amp. Mark each position with masking tape before removal to avoid misplacement during reinstallation.
Step-by-Step Engine Compartment Cable Assembly Hookups
Disconnect the battery ground terminal first–this prevents short circuits while handling electrical linkages. Label each connector with masking tape before detachment; note the color-coding and terminal positions to avoid misalignment during reassembly. Use a multimeter set to continuity mode to verify each pin’s function before reconnecting, especially for critical sensors like the crankshaft or oxygen probes.
Critical Junction Identification
Locate the powertrain control module’s main harness–typically a 68-pin grey plug beneath the airbox. Match the female pins to their male counterparts by aligning the locking tabs; apply dielectric grease to terminals exposed to moisture (e.g., ignition coils, alternator). For high-current circuits like the starter solenoid, ensure crimp connections are secured with a torque wrench (±2 Nm) to prevent voltage drop.
Inspect the fuse box under the hood for corroded contacts; replace any bracket-mounted relays showing resistance above 0.5 ohms. Trace the glow plug harness separately–its thick gauge wires demand direct routing away from exhaust manifolds to avoid thermal degradation. Avoid twisting strands during routing; instead, secure them with spiral wrap every 15 cm to prevent chafing against sharp edges.
Grounding and Signal Verification
Clean all grounding points (e.g., chassis, engine block) with a wire brush and apply corrosion inhibitor. Reconnect grounds first, starting with the battery negative cable, then validate each circuit with a scan tool–monitor for pending codes in the PCM before startup. For auxiliary systems (fog lights, A/C compressor), confirm their relay triggers by simulating the switch input with a 12V test light.
Test the alternator’s output harness by back-probing the B+ terminal at 2,000 RPM–voltage should stabilize between 13.8–14.4V. If readings fluctuate, inspect the voltage regulator’s pigtail for frayed insulation; splice in a new section using heat-shrink tubing rated for 125°C. Finalize by cycling all accessories (headlights, cooling fans) to ensure no parasitic drains exceed 50mA on the battery.
Tail Light and Stop Lamp Circuit Schematic Analysis
Begin troubleshooting by disconnecting the vehicle’s battery to prevent short circuits or accidental activation of components. Locate fuse F35 (10A) in the under-dash panel–this protects the entire tail and brake lamp system. Verify continuity with a multimeter; if blown, replace it, but investigate downstream causes first, such as corroded connections or chafed wiring near the rear bumper.
The circuit splits into two primary branches: the tail lamp branch and the stop lamp branch. The tail lamp branch originates at pin 18 of the Body Control Module (BCM), routing through a 12V feed via a brown/orange wire (gauge: 0.8 mm²). Follow this wire to the left and right rear lamp assemblies, where it connects to bulbs T10 (tail lights) through a shared ground at G101. Check for voltage at these bulbs with the lighting switch engaged–absence suggests an open in the wire run or a faulty BCM relay output.
- Stop Lamp Branch: Triggered by the brake pedal switch (normally open), this branch sends a 12V signal from fuse F54 (15A) to the switch, then splits into two paths:
- Direct feed to the rear stop lamps (bulbs P21/5W) via a red/black wire (gauge: 1.0 mm²).
- Secondary path to the BCM (pin 47) for electronic brake light monitoring, then to the high-mount stop lamp via a thin purple/yellow wire.
- Test the brake switch by probing both terminals–depressed pedal should show continuity. If not, replace the switch or inspect its 5 mm pushrod adjustment.
Common failure points include oxidized bulb sockets (clean with dielectric grease) and fractured wires near the rear hatch hinge (inspect for brittle insulation). For vehicles with LED assemblies, confirm the presence of inline resistors or current-limiting modules; their absence causes rapid cycling or hyper-flashing. Use a wiring diagram cross-reference to match wire colors to the specific trim package–some variants include a dedicated trailer wiring harness that alters ground paths.
If both tail and stop lamps fail unilaterally, focus on shared grounds (G101) or the BCM connector (C201). Probe pins 18 and 47 with the ignition on–voltage should mirror lighting switch or brake pedal status. For intermittent issues, flex wires near suspension mounts while monitoring with a graphing multimeter to detect resistance spikes exceeding 0.5 Ω. Replace any wire showing insulation cracks or copper strand corrosion greater than 30% of cross-section.
