Begin by locating the fuse box under the dashboard on the driver’s side. This panel houses critical relays and connectors that control lighting, power windows, and engine sensors. Use a multimeter to verify continuity on fuse #15 (10A), which supplies current to the instrument cluster. If resistance exceeds 0.5 ohms, replace the fuse immediately–corrosion on terminals is a common failure point in high-mileage vehicles.
Trace the main harness bundle running along the firewall before inspecting the data link connector (OBD-II port). Pin 6 (CAN high) and Pin 14 (CAN low) require 2.5V differential; deviations indicate wiring damage or ECM failure. For rear lighting circuits, check the 12-pin connector near the tailgate–terminals 1, 3, and 5 power brake lights, while corrosion here disrupts trailer wiring functionality.
Examine the alternator’s B+ output wire (thick red, 10-gauge) for voltage drop exceeding 0.2V between the alternator output and battery positive. Voltage loss here reduces charging efficiency by 18–22% in models with dual-zone climate control. Replace the wire if insulation degradation or fraying is visible–stock wiring uses cross-linked polyethylene, resistant to heat but prone to brittle failure at 30K+ miles.
Isolate the starter solenoid circuit by testing the purple/white wire (key switch sense) for 12V when the ignition is engaged. Failure here prevents engine cranking and mimics a dead battery. The transfer case module (AWD versions) draws power from a dedicated 30A fuse; intermittent drops below 11.7V trigger error code P1876–clean connections with CRC Electrical Contact Cleaner before replacing components.
For HVAC system diagnostics, follow the yellow/black wire from the blend door actuator to the climate control module. Voltage should toggle between 0V and 5V during recirculation mode changes. If stuck, the door motor requires replacement–third-party units often fail within 12 months due to inferior plastic gears compared to OEM parts.
Electrical Schematics for Your Pickup: Hands-On Tips
Locate fuse box schematics first–it’s behind the lower-left dash panel. Use a multimeter set to 20V DC to verify pin voltages: terminal 30 (red) should read 12V constant, while terminal 15 (yellow/red stripe) drops to 0V when ignition is off. For trailer wiring, splice the brown circuit (pin 4) directly to the rear tail light ground; avoid chassis grounds as corrosion causes intermittent failure. Replace the 7-way trailer connector if resistance exceeds 2 ohms between pins 6 and 7–stock connectors degrade under 30,000-mile heat cycles.
Probe the TIPM (Totally Integrated Power Module) under the hood by matching wire colors to the factory service manual: gray/violet (pin C2-18) powers the left trailing arm sensor–if voltage fluctuates, bypass the module with a 10A relay inline. For backup camera retrofit, tap the purple/white wire (pin A7) at the rear harness; terminate at the HMI (Human Machine Interface) with a 220-ohm resistor to prevent flicker. Avoid scanners that claim OBD-II compatibility–direct connection to the DLC (Data Link Connector) via FORScan with a HS-MS switch yields real CAN bus data without false DTCs.
Locating Authorized Electrical Schematics for Your 2016 Pickup

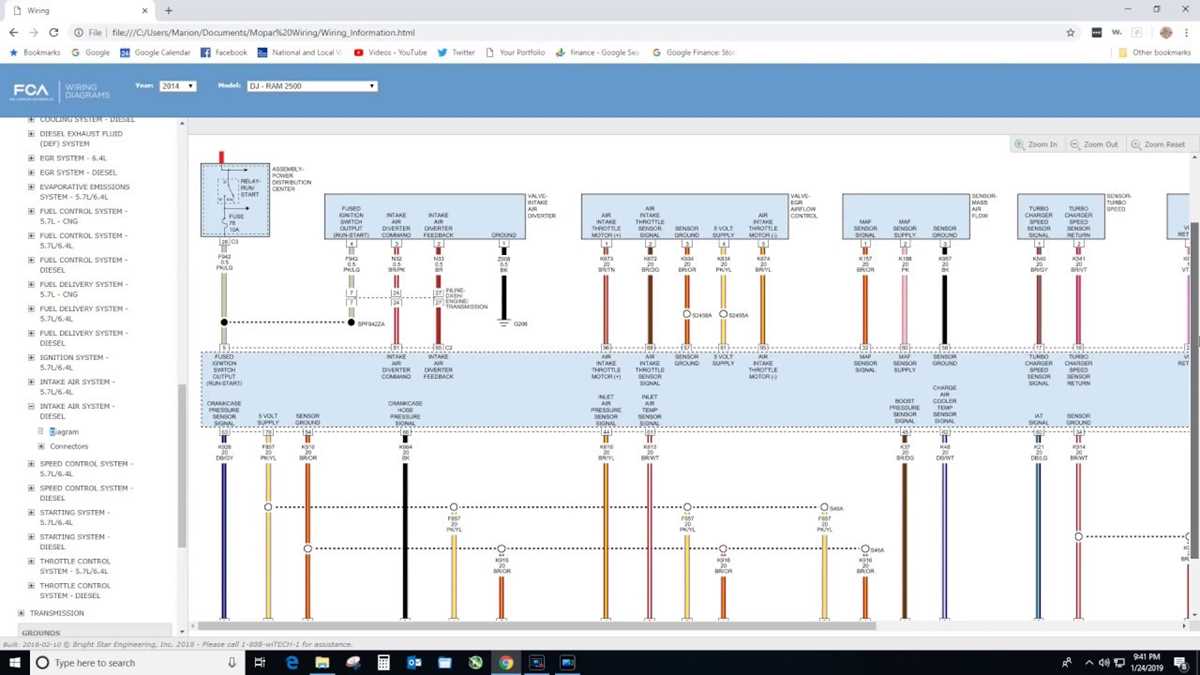

The most reliable source for factory-approved circuit layouts is the manufacturer’s dedicated service portal. FCA US LLC maintains a subscription-based database under TechAuthority (available at techauthority.com) where original equipment manuals are hosted. Registration requires a valid VIN or model details; annual access fees start at $29.99 but grant unlimited downloads for all model years. Look for the “Electrical Troubleshooting” section–here you’ll find precise pinouts, harness routing, and fuse block details straight from the engineering team.
Dealership service departments also retain physical copies of the factory schematics. Request a printed version of the “Body Builder Manual” or “Electrical Diagnosis Guide” from any authorized truck center. These binders include color-coded charts, ground locations, and connector types cross-referenced to component names. Ask for the exact volume covering the 6.4L HEMI or 3.0L EcoDiesel if applicable–dealers often keep older revisions even after digital migration.
| Source | Format | Cost | Key Details Included |
|---|---|---|---|
| TechAuthority | $29.99/year | OEM pin diagrams, splice points, relay logic | |
| Dealer Parts Counter | Printed | Free (with purchase) | Harness colors, fuse ratings, sensor specs |
| Helm Inc. | CD/DVD | $89.95 | SAE wire gauge, torque specs, diagnostic tips |
| Public Libraries (Select Regions) | Physical | Borrowing fee | Basic layouts, component locations |
Helm Incorporated (helminc.com) publishes official repair literature on disc. The 2016 truck’s schematics are bundled in the “Electrical Repair Kit” (part #ML-81271603). Each CD contains searchable documents with layer-by-layer breakdowns of modules like the TIPM, BCM, and ECM. Verify the part number matches your powertrain–diesel variants omit spark plug circuits but include DEF system references.
Online forums catering to late-model truck owners occasionally host user-uploaded scans. RamForumZ and Cummins Forum have dedicated subsections where members share high-resolution images of printed pages. Look for posts tagged “ETM” or “Factory Service Manual”–ensure the uploader cites a dealership or Helm source to avoid inaccuracies. Cross-reference any unofficial downloads with the fuse box lid diagram shipped with the vehicle.
Certain municipal libraries maintain automotive technical databases through OverDrive or Hoopla. Search for “vehicle wiring” or “factory service literature”–some branches stock the same Helm CD-ROMs offered online. Availability varies; larger systems in states with active diesel repair communities (e.g., Texas, Michigan) are more likely to carry these resources. Reserve through the library website and check out the disc for up to 21 days with no late fees if returned to the originating branch.
Key Electrical Schematic Symbols for the Pickup’s Harness and Their Functions
Start by identifying the ground symbols–typically a series of downward-pointing arrows or the letter “G” inside a triangle–on any vehicle’s schematic. In this truck’s circuitry, grounds are critical failure points; corrosion or loose connections at these nodes can mimic complex electrical faults like intermittent module resets or sensor errors. Test each ground path with a multimeter set to continuity mode, ensuring resistance reads below 0.5 ohms. If resistance exceeds this threshold, clean the contact surface with a wire brush and apply dielectric grease before re-securing the bolt to prevent future oxidation.
- Fuse symbol (rectangle with inner line): Indicates a protective device rated in amperage; always cross-reference with the legend for exact values (e.g., 10A, 20A). Swap blown fuses only with identically rated replacements; using a higher amperage fuse risks overheating and fire, while a lower-rated one may blow prematurely under normal load.
- Relay (square with diagonal line): Denotes a switch controlled by an electromagnetic coil. Pin numbering varies by relay type (e.g., SPST, SPDT); refer to the pinout diagram adjacent to the symbol. Test relays by listening for a click when energized–no click suggests coil failure or insufficient trigger voltage (typically 12V).
- Connector (two opposing trapezoids): Represents a disconnect point between harness sections. Examine connectors for bent pins, debris, or greenish corrosion–a common issue in older trucks. Use a terminal pick to straighten pins and apply contact cleaner before reassembly.
- Resistor (zigzag line): Found in circuits regulating sensor signals or LED brightness. Measure resistance with power disconnected; deviations from the schematic’s specified value (e.g., ±5%) indicate a failed component.
For sensor symbols–often labeled with abbreviations like “MAP,” “TPS,” or “O2″–locate the corresponding circuit in the legend to confirm wire gauge and color codes (e.g., “YEL/LT BLU” for a transmission range sensor). Probe sensor signals with an oscilloscope; irregular waveforms or voltage spikes outside expected ranges (e.g., 0.5–4.5V for a TPS) point to faulty sensors or damaged wiring. Always back-probe connectors to avoid damaging terminals during testing.
Pay special attention to power distribution symbols, such as the alternator output (denoted by a battery icon with a curved arrow). Verify alternator output at the battery post with the engine running; voltage should read 13.8–14.4V. Voltages below 13V suggest a failing alternator or poor charging circuit ground, while readings above 15V may indicate a faulty voltage regulator. When diagnosing, isolate the circuit by disconnecting the alternator and retesting–if voltage stabilizes, the issue lies within the alternator itself; if not, inspect the battery, fusible link, or body ground strap.
Tracing the Pickup’s Electrical Panel: A Practical Breakdown
Locate the vehicle’s primary distribution center under the hood–this is fuse block A, identifiable by its rectangular shape and labeled cover. Use the index on the underside to cross-reference panel positions; for example, slot 12 typically governs the powertrain control circuits, while slot 23 handles trailer lighting feeds.
Disconnect the battery’s negative terminal before handling any connectors to prevent short circuits. The cover will snap off with a firm upward pull, revealing a grid where each row corresponds to specific systems–row one serves engine components, row two manages interior electronics. Use a multimeter set to continuity mode to verify each fuse’s integrity.
- Fuse 8: 20A, controls left-hand drive lamp cluster
- Fuse 15: 10A, powers HVAC blower motor relay
- Fuse 21: 30A, linked to electronic stability control
Trace the ground wires first–these black or brown leads terminate at chassis bolts near the front suspension strut tower. Stray current paths often originate here; corrosion builds rapidly at these points, especially if exposed to road salt. Clean terminals with a wire brush and apply dielectric grease before reassembling.
For relay-driven circuits, identify the control coil side (pins 85/86) versus the switched output (pins 30/87). The horn relay sits in position R7; remove it and test with a 9V battery–clicking confirms functionality, silence means replacement. A common failure symptom is intermittent accessory operation, traced back to oxidization at socket contacts.
- Label all removed components with masking tape to avoid misplacement.
- Check for brittle insulation on low-voltage leads–these harden over time and crack under vibration.
- Compare findings against the manufacturer’s schematic; expect minor deviations for region-specific builds.
Behind the instrument cluster lies fuse block B, accessed by removing the dashboard lower panel. This secondary panel contains critical feeds for the airbag system (slot 5, 15A yellow) and anti-theft module (slot 11, 10A red). Probe connectors with a fine test light–dim illumination here indicates voltage drop, often caused by inadequate grounding at G401.
Reassembly requires reconnecting all harness plugs in reverse order. Pay special attention to the two-wire connector near the brake pedal–it carries CAN bus signals and requires firm seating. Tighten all grounding bolts to 12 Nm, then reconnect battery power. Cycle ignition to full accessory mode to validate repairs; fluctuating dash lights suggest unresolved parasitic draws, typically resolved by removing fuses sequentially to isolate the culprit.
