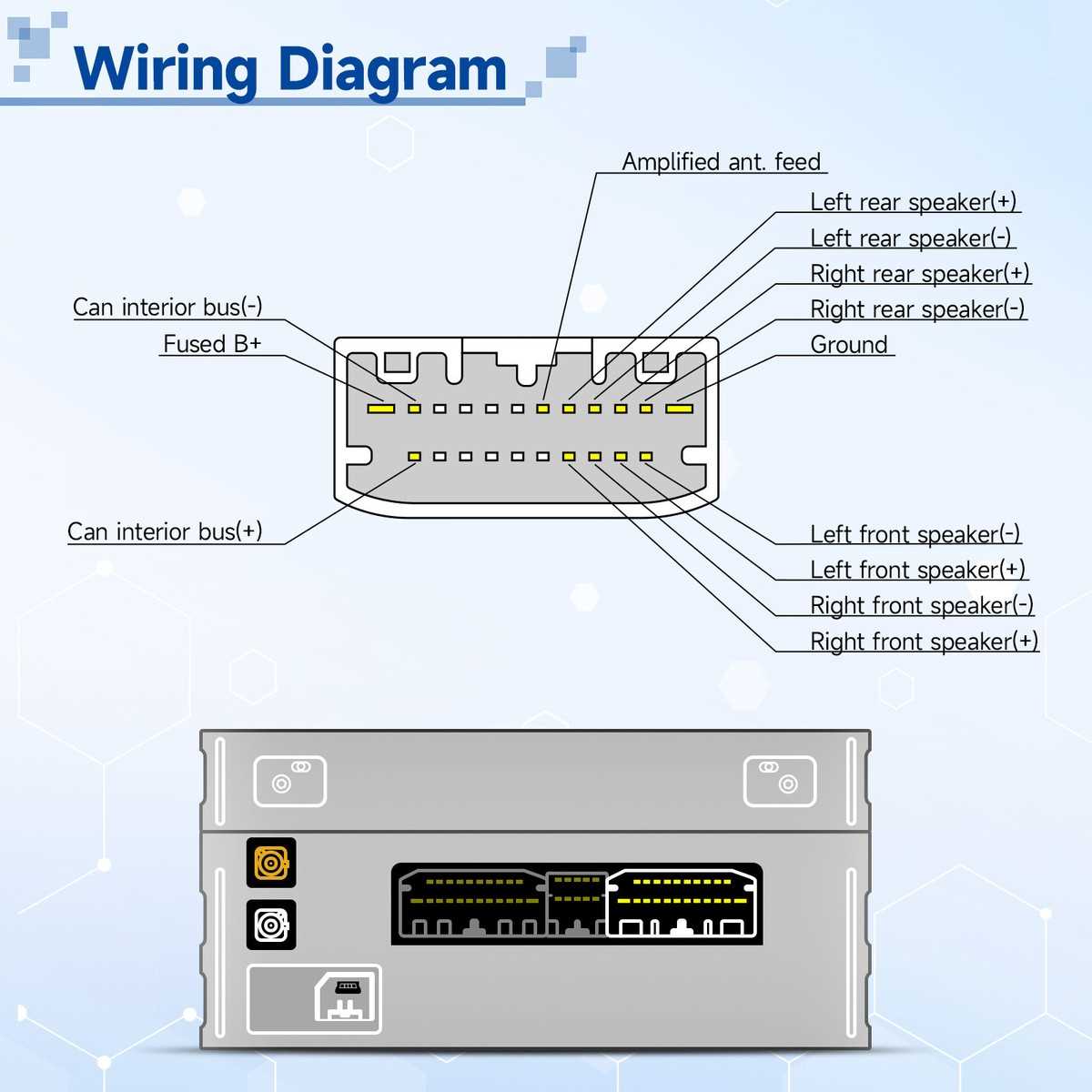

To resolve connectivity issues in a mid-2010s release of this Japanese sedan’s infotainment setup, begin by identifying the fuse box located beneath the instrument panel on the driver’s side. Remove fuse #15 (10A) to disconnect power from the head unit temporarily–this prevents accidental shorts during inspection. The wiring harness for the audio system connects via a 20-pin and 16-pin connector at the rear of the unit; refer to the vehicle’s service manual for pin assignments, specifically pages 8-12 covering speaker outputs and ground references.
Color-coded wires follow Mitsubishi’s standard: purple (right front speaker +), gray (right front speaker –), white (left front speaker +), and black/white (left front speaker –). Verify continuity using a multimeter; readings should show 4-8 ohms across each speaker pair. If resistance exceeds this range, inspect for frayed wires near the door hinge areas–common points of failure in this model due to repeated stress.
For aftermarket upgrades, the constant 12V line (red wire) must be spliced directly to the battery’s positive terminal with an inline fuse holder containing a 15A fuse. Avoid splicing into the ignition-switched circuit (yellow wire) unless necessary, as this can cause premature battery drain. Ground the system to the chassis near the original mounting bracket, ensuring no paint or corrosion interferes with conductivity.
If the factory amplifier is retained, connect the blue/white remote turn-on wire to the aftermarket unit’s corresponding output to maintain power antenna or amplifier functionality. Failure to do so may result in silent operation, even if the head unit appears functional. Always isolate circuits before testing to prevent damage to vehicle electronics.
Electrical Connection Guide for Mitsubishi Sedans: Aftermarket Audio System
Begin by locating the factory harness behind the dashboard–identify the 16-pin ISO connector (white or black) on the vehicle’s harness side. Pin 1 (constant 12V) and Pin 4 (switched 12V, ignition-controlled) must be connected to the aftermarket unit’s red and yellow wires, respectively. Use a multimeter to verify voltage before splicing; incorrect connections can damage the head unit or fuse the vehicle’s circuitry. Avoid tapping into the vehicle’s accessory wire (Pin 7, blue/white stripe) unless integrating steering wheel controls–this requires a dedicated adapter.
Grounding is critical. Attach the aftermarket system’s black wire to a bare metal surface near the factory grounding point (typically a bolt behind the glovebox or under the driver’s kick panel). Scrape off paint or corrosion for a solid connection; poor grounding causes static, signal interference, or intermittent power loss. For speaker outputs, match the vehicle’s wires by color: front left positive (gray), front right positive (white), rear left positive (green), and rear right positive (purple). Negative wires follow a darker twin-color stripe (e.g., gray/black). Confirm continuity with a probe to prevent phase cancellation.
If retrofitting an amplifier or subwoofer, splice the RCA outputs from the new head unit into the vehicle’s existing harness–Pin 12 (purple) and Pin 13 (green) carry low-level signals to the OEM amp. Bypass the factory amplifier by wiring RCA cables directly to an external amp, but ensure the aftermarket unit provides sufficient preamp voltage (2V or higher). For vehicles with hands-free Bluetooth, retain the microphone by tapping into Pin 3 (pink) of the factory harness. Always secure connections with solder and heat-shrink tubing to prevent oxidation.
Finding the Audio System Cable Clusters in Your Mitsubishi Sedan
Start by removing the lower dashboard trim panel beneath the climate controls. Use a plastic prying tool to gently release the clips securing the panel–there are three along the top edge and two on each side. Once detached, you’ll expose the rear of the head unit and its main connector block, labeled C-201 in service manuals. This cluster handles power, speaker outputs, and antenna feed.
Trace the secondary harness near the passenger-side footwell. Behind the removed trim, locate C-202, a smaller 12-pin connector responsible for auxiliary inputs, illumination, and ground signals. Avoid tugging on adjacent cables–these often include airbag sensors and CAN bus lines, which require caution. If working with aftermarket upgrades, confirm pin assignments here first to prevent module errors.
Key Connector Locations
- C-201 (Primary): 24-pin block, color-coded–red/white (constant 12V), yellow (switched power), blue (antenna trigger), and paired speaker wires (striped/non-striped for polarity).
- C-202 (Auxiliary): Includes gray (illumination), orange (dimmer), and brown/black (ground). Check for corrosion if experiencing intermittent audio dropouts.
- Satellite Tuner Plug: Hidden behind the glove box if equipped; a 6-pin mini-plug for satellite receiver compatibility.
For vehicles with the premium audio option, an additional amplifier harness sits behind the rear seat backrest. Disconnect the battery before probing–this cluster includes high-current feeds (orange/black, 20A fuse) that can arc if mishandled. Label all connections before unplugging; manufacturers use non-standard color schemes (e.g., Mitsubishi often swaps purple and violet).
If diagnostics reveal faults, probe the ignition-switched wire (yellow, C-201) with a multimeter while cycling the key. A reading below 11.5V suggests a failing fuse (#19, 10A, under-hood box) or corroded splice near the under-console harness grommet. Re-seal all trimmed areas with butyl tape post-installation to prevent moisture ingress.
Decoding Harness Colors and Connector Pinouts for Vehicle Audio Systems
Locate the aftermarket harness adapter matching your model’s factory plug–typically a 16-pin Molex connector–for immediate color-function correlation. The constant 12V power lead (usually yellow) must connect directly to the fuse box’s hot-at-all-times circuit, avoiding ignition-switched sources that drain memory settings. Verify with a multimeter: probe the pin while the key is off; consistent voltage confirms correct mapping.
Ground wires (black or black-white stripe) demand clean chassis contact–sand paint and rust from attachment points before securing, as poor grounding creates buzzing or intermittent function. For amplifier-trigger outputs (blue or blue-white stripe), connect only to aftermarket units rated for 200mA or less; exceeding this draws excessive current, risking module damage or blown fuses in the vehicle’s CAN bus network.
Speaker wires follow a polarity-sensitive pattern: gray (front left positive), gray-black stripe (front left negative), white (front right positive), white-black stripe (front right negative), and similarly for rear channels with green and purple pairs. Swap polarity at any single speaker and phase cancellation distorts audio, reducing bass response by up to 50% in testing.
Illumination control (orange or orange-black stripe) adjusts display brightness in sync with headlights; match the dimming module’s resistance characteristics to avoid flickering–aftermarket dimmers should mimic the OEM’s 10kΩ pot curve. Parking brake safety circuits (light green or brown) require grounding to enable video functions; bypassing this trips dashboard error codes in vehicles with lane-keep or collision alerts.
For steering wheel controls, isolate resistance values per button press using a multimeter: volume up/down typically registers 0Ω–2.2kΩ, while mode/seeking spans 4.7kΩ–10kΩ. Aftermarket interfaces must replicate these ranges precisely; generic adapters often misread inputs, causing erratic operation or unresponsive buttons.
Data communication lines (pink, purple, or tan) carry CAN/LIN bus signals between the head unit, climate controls, and telematics modules. Splicing into these wires without a CAN bus simulator causes system-wide errors–use a dedicated bypass module designed for your platform’s protocol (e.g., Mitsubishi’s MUT-III standard).
Before finalizing connections, test each wire’s function individually: power the unit with only the yellow and black wires connected to ensure no parasitic draw. Then, add speakers one channel at a time, verifying sound clarity and balance. Finally, integrate the illumination and accessory wires, confirming display behavior mirrors factory settings under all lighting conditions.

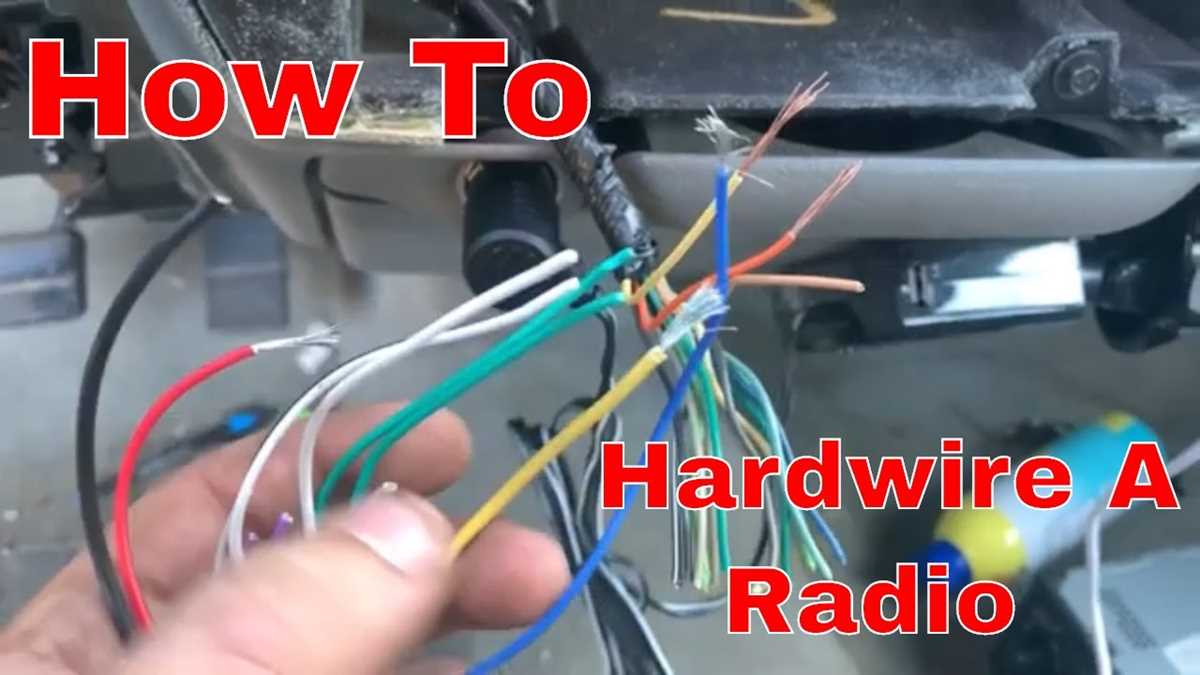

Step-by-Step Guide to Connecting Aftermarket Stereo to Your Mitsubishi Audio System
Start by identifying the factory harness behind the existing head unit. The OEM connector for this model typically includes 12–16 wires, color-coded for specific functions. Use a multimeter set to DC voltage to verify each wire’s purpose–probe the harness with the ignition on to confirm constant power (yellow), switched power (red), ground (black), and speaker outputs (various colors). Avoid relying solely on online pinouts; slight variations exist between trim levels and market regions.
Acquire a compatible wiring adapter harness designed for this vehicle’s year group. Brands like Metra, Scosche, or Axxess offer plug-and-play solutions that match the OEM connector and aftermarket stereo’s wiring. Ensure the adapter includes speaker leads, power inputs, and–if needed–an amplifier turn-on wire. Verify compatibility with your new stereo’s wiring harness before cutting or splicing any cables.
Soldering and Heat-Shrink Connections
Strip 6–8mm of insulation from each wire, then twist the corresponding strands tightly. Apply rosin-core solder to prevent corrosion; avoid acid-core solder, which damages conductivity over time. Slide heat-shrink tubing over the joint before soldering, then reposition it post-solder to cover the exposed wire fully. Use a heat gun to seal the tubing–electrical tape degrades within months under dashboard temperatures.
- Constant 12V (yellow): Typically supports memory functions like presets.
- Switched 12V (red): Powers the unit only when ignition is on; mistakenly splicing this to constant power drains the battery.
- Ground (black): Secure this to a bare metal chassis point; paint or rust weakens the connection.
- Illumination (orange): Dimmer wire; requires resistor integration if the new stereo’s dimming function behaves erratically.
- Parking brake (light green): Bypassing this wire may disable video playback unless a relay or resistor network is installed.
Final Checks Before Mounting
Reconnect the battery, then power on the new head unit. Test all functions–FM/AM reception, Bluetooth pairing, USB input, and steering wheel controls if retained via an interface module. If static distorts audio, recheck speaker wires for shorts; a 1-ohm test across positive and negative leads indicates a proper connection. Secure excess wiring with zip ties away from moving components like pedals or the HVAC assembly to prevent rattling or abrasion.
