Locate the main fuse block under the dashboard–identified by a black plastic cover labeled with a VIN-derived serial number. Trace the primary ignition circuit (22-gauge orange wire) from the ignition switch to the ECM relay, ensuring zero continuity breaks before proceeding. Disconnect the battery ground prior to probing any terminals to prevent voltage spikes. Use a 10megaohm impedance multimeter for accuracy when testing sensor resistances, which should read 1.2k–1.8k ohms at 20°C for the coolant temperature sender.
Inspect the CAN bus network by verifying twisted-pair integrity between the instrument cluster and engine control module. A single frayed strand can corrupt data transmission–replace damaged sections with shielded 18-gauge wiring and secure with OEM-specific solder sleeves. The alternator exciter circuit (16-gauge red/white wire) must sustain 13.8–14.4V DC under load; deviations indicate a faulty voltage regulator or corroded B+ terminal connection. Clean all battery post clamps with a wire brush and apply dielectric grease to prevent oxidation.
Refer to the schematic node labeled “J1939” for ABS fault diagnostics. Check the wheel speed sensor signals–they should pulse between 0.3V–0.8V AC when the wheel rotates at 10 RPM. For trailer systems, confirm the 7-way connector pins match SAE J560 specifications: pin 1 (white) carries ground, pin 4 (green) delivers auxiliary power, and pin 7 (blue) handles anti-lock brake feedback. Replace any corroded pins immediately–even minimal resistance causes intermittent faults.
When rewiring auxiliary lighting, use marine-grade heat-shrink tubing on splices to prevent moisture ingress. The low-beam circuit (14-gauge brown wire) should draw 5.8–6.2 amps per bulb; excessive current suggests a short or improper relay installation. Test all relay coils for 85–120 ohms resistance. If readings exceed this range, verify the fuse rating (typically 20A for lighting circuits) hasn’t been altered from the manufacturer’s default setting.
Electrical Schematic Guide for Heavy-Duty Truck Models: Key Insights
Begin troubleshooting by isolating the power distribution module (PDM) under the driver’s dash panel–pin 17 (red/black) should deliver 12V+ when the ignition is activated, while pin 8 (brown/white) grounds the circuit. Use a multimeter set to DC voltage, probing these points before proceeding further. If readings deviate, inspect the 30A fuse F1-19 in the under-hood junction box, as corrosion or a loose connection here often disrupts the entire dash and ECM feed.
Critical Harness Connections
- Engine compartment harness (black cover) splices at SP-107 to the fuel pump solenoid–check for chafing near the frame rail bend, a common failure point.
- Instrument cluster connector C3 (gray, 48-pin) requires pin 22 (yellow/black) for tachometer signal; verify continuity to the engine control module (ECM) via the C1-66 terminal.
- Air conditioning clutch relay (K15) relies on pin 85 (blue/white) from the body control module; test for 12V+ activation during compressor engagement.
For lighting circuits, the headlamp switch output (pin 1, dark green) branches to the high-beam relay coil (pin 86) and trailer marker lamp feed (pin 4, purple) simultaneously. Low-voltage readings here (
Finding Key Electrical Link Junctions in a 2015-Model ProStar Truck

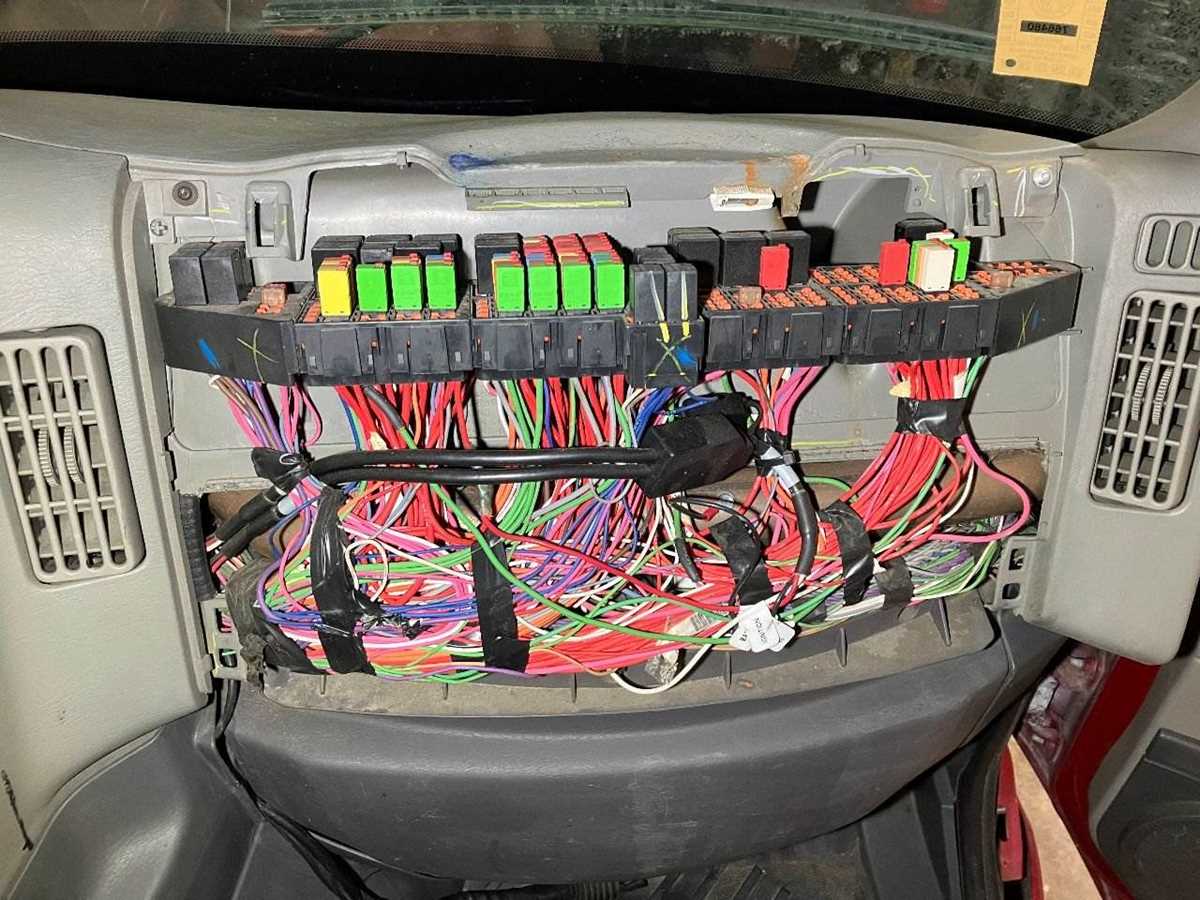

Begin underneath the driver-side dashboard adjacent to the pedals where the central bundle splits into three primary plugs. The uppermost connector (black, 24-pin) feeds the instrument cluster and body controller modules–trace the harness upward along the A-pillar trim to verify continuity without removing panels. Label each terminal position using masking tape before disconnecting any plug to prevent misalignment during reassembly.
Engine Compartment Connection Points
Behind the headlamp assembly on the passenger side sits a gray 12-pin junction serving the front lighting circuits. Rotate the retaining clip counterclockwise to release the plug, then inspect terminals for corrosion–clean with electrical contact cleaner if needed. The powertrain control module harness branches into two white 48-pin connectors near the brake master cylinder; cross-reference pinouts against repair manual section 7-3 before probing live circuits.
Locate the mid-frame connector cluster beneath the cab step, secured by a single T20 Torx bolt. This 32-way bulkhead distributes signals to ABS sensors and trailer brake valves–use a multimeter to confirm 0.5V signal voltage across sensor wires when wheels rotate freely. Replace damaged harness sections with OEM-spec shielded twisted-pair cable to avoid EMI interference in safety-critical circuits.
Inside the sleeper compartment, remove the lower bunk panel access cover to reveal the blue 16-pin HVAC control plug and red 10-pin auxiliary power junction. Disconnect battery negative first before separating these plugs to prevent short circuits–testing requires probing the auxiliary circuit for steady 12.6V DC output from the stand-by battery regulator during key-off conditions.
Decoding Color Markings for Powertrain and Frame Conductors
Start by locating the main engine harness connector near the ECM–most factory oxygen sensors and injectors follow a dual-stripe pattern. The primary stripe for fuel system conductors is orange (ORG), paired with secondary stripes like black (BLK) for ground returns or white (WHT) for signal return paths. For turbocharger wastegate solenoids, look for light blue (LT BLU) paired with dark green (DK GRN); these indicate PWM-controlled circuits. Verify continuity with a multimeter–resistance should read under 0.5 ohms for intact conductors.
Chassis wiring avoids the striped convention but uses solid colors with alphanumeric labels. ABS wheel speed sensor leads are universally brown (BRN) on pin A and gray (GRY) on pin B–cross-reference with the OEM pinout to confirm polarity. For trailer brake outputs, the red (RED) wire carries +12V while purple (PPL) serves as the switched output. Use heat-shrink tubing to insulate splices; adhesive-lined variants prevent corrosion in high-moisture zones like wheel wells.
- Yellow (YEL): Ignition-switched power (key-on 12V)
- Pink (PNK): Constant 12V battery feed (fused at 30A)
- Dark blue (DK BLU): High-current alternator sense
- Violet (VIO): Data link bus (J1939 CAN-H)
- Tan (TAN): Data link bus (J1939 CAN-L)
When tracing lighting circuits, note that marker lamps split into amber (AMB) for front/side and red (RED) for rear. Back-up lamps use white (WHT) for switched power and black (BLK) for ground–test with a non-powered probe to avoid blowing fuses. For auxiliary circuits like PTO, dark green (DK GRN) carries the control signal while brown (BRN) handles ground. Label every conductor with vinyl sleeves before disconnecting battery terminals to prevent diagnostic faults.
Common failure points include corroded splice blocks behind the glovebox (chassis wiring) and chafed insulation near the exhaust manifold (engine wiring). Use dielectric grease on Deutsch connectors and trim excess wire length to no less than 15 cm beyond the splice; shorter leads risk breakage from vibration. For aftermarket additions, match AWG gauge (minimum 14 AWG for lighting, 10 AWG for high-draw circuits) and avoid daisy-chaining grounds–dedicate a separate path to the chassis rail.
Tracing the Power Distribution for Cab and Sleeper Circuits
Begin by locating the primary fuse panel beneath the driver-side dash. Pull the cover and identify the 30A “Cab” and 20A “Sleeper” fuses–marked in bold on the legend. These fuses feed separate relays, which you’ll find mounted behind the panel on a vertical aluminum bracket. Use a multimeter to confirm 12.4V+ at the relay coil terminals (pins 85 and 86) before proceeding.
Follow the red #10 AWG wire from the “Cab” fuse to the first junction block under the dash. Split the circuit into three branches: instrument cluster (yellow/red tracer), HVAC blower (solid orange), and auxiliary outlet (blue/white tracer). Each branch should read 12.2V-13.8V at idle. If voltages drop below 12V, inspect the inline 15A mini-fuse holder hidden behind the glove box; corrosion here mimics short-circuit symptoms.
| Circuit | Wire Gauge | Voltage (Idle) | Common Failure Points |
|---|---|---|---|
| Instrument cluster | #14 | 12.2V | Dash bulkhead connector (pins 12-15) |
| HVAC blower | #12 | 13.5V | Firewall grommet (chafing) |
| Aux outlet | #10 | 13.8V | Left kick panel (loose ground) |
For sleeper circuits, trace the 20A fuse output (violet #12 wire) to the overhead console junction. Two sub-circuits branch here: the dome light (white/black tracer) and the roof vent fan (solid brown). Probe the vent fan motor plug–terminal “A” should show battery voltage when switched on. If not, remove the vent assembly; the black ground wire often frays where it routes through the headliner.
Check power distribution at the battery box relay. The sleeper’s main feed (orange #8 wire) passes through a 60A mega-fuse before reaching the relay. Use a non-contact thermometer to scan the relay body; temperatures above 140°F indicate internal contact degradation. Replace the relay if readings exceed this threshold–no exceptions.
Ground paths converge at G102, a stud behind the cab’s right rear pillar. Verify resistance between the stud and chassis; values above 0.5Ω signal corrosion. Clean the stud with a wire brush and re-crimp ring terminals–solder alone fails under vibration. Photograph connections before disassembly; incorrect reassembly trips the body control module into fault mode.
