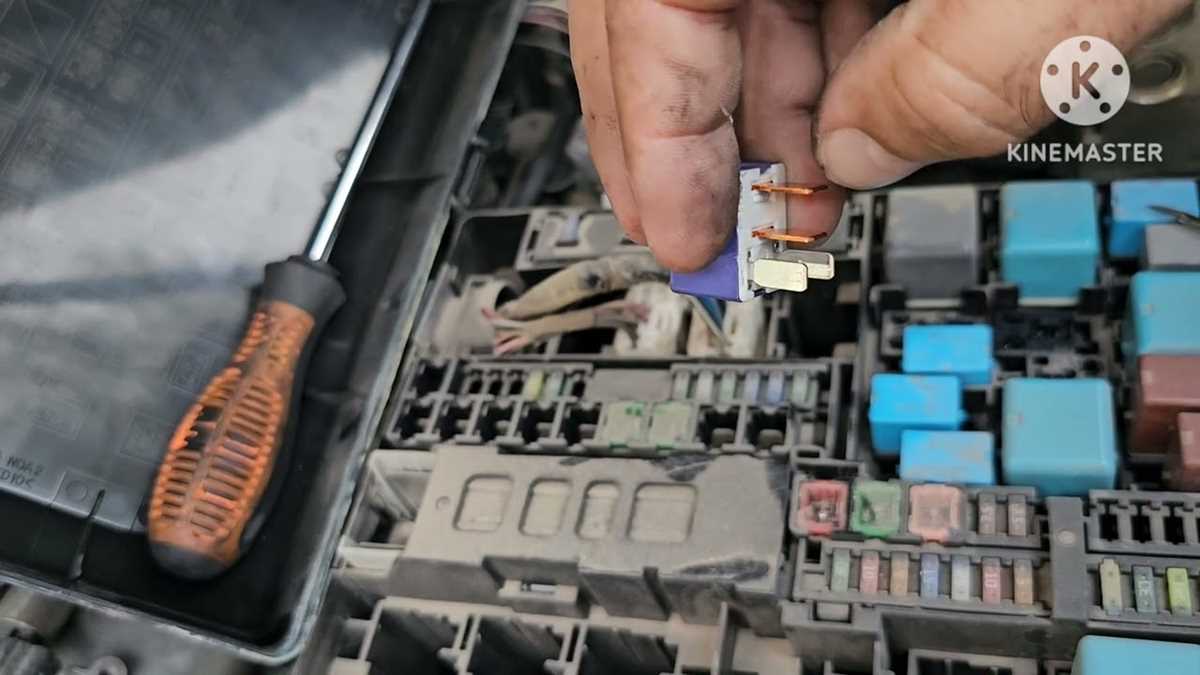

Begin troubleshooting with the engine bay fuse block located near the driver-side firewall. Identify fuse #30 (15A) for the ignition system; this powers critical sensors like the MAF and throttle position. Use a multimeter set to 20V DC to verify voltage–red probe to the fuse terminal, black to chassis ground. Readings below 11.8V indicate corrosion or a faulty relay; pull the EFI main relay and inspect contacts for oxidation.
For the brake light circuit, trace wires from the pedal switch (gray connector, pin 2) along the driver-side kick panel. The harness splits near the rear axle, where rodents often chew insulation. Look for orange/white striped wiring–this carries the signal to the tail lights. Strip damaged sections and solder with heat-shrink tubing rated for 60V to prevent future shorts.
Access the instrument cluster wiring by removing the dash bezel screws (Torx T20). The green/blue wire (pin 17 on connector C) controls the fuel gauge. Test continuity back to the sender unit–resistance should drop from 33Ω (full) to 240Ω (empty). If readings fluctuate, replace the sender; the OEM part (83380-0C010) includes a float arm calibrated for E-85 compatibility.
For the 4WD actuator, locate the transfer case module behind the radio. The yellow/black wire (pin 8 on connector T) supplies 12V when engaged. Use a test light to confirm power flow–if absent, check the DLC3 port (pin 1) for OBD-II communication errors. Flash codes P2725 or C1880 indicate a failing actuator motor, requiring the 65560-0C020 assembly.
When rewiring aftermarket accessories, always tap into the alternator B+ terminal (red/green wire, 8mm nut) for 13.5V constant power. Avoid splicing into the starter solenoid circuit–it risks voltage spikes damaging sensitive electronics. For ground connections, use the rear passenger-frame rail mounting point (M10 bolt); sand paint to bare metal before securing lugs with dielectric grease.

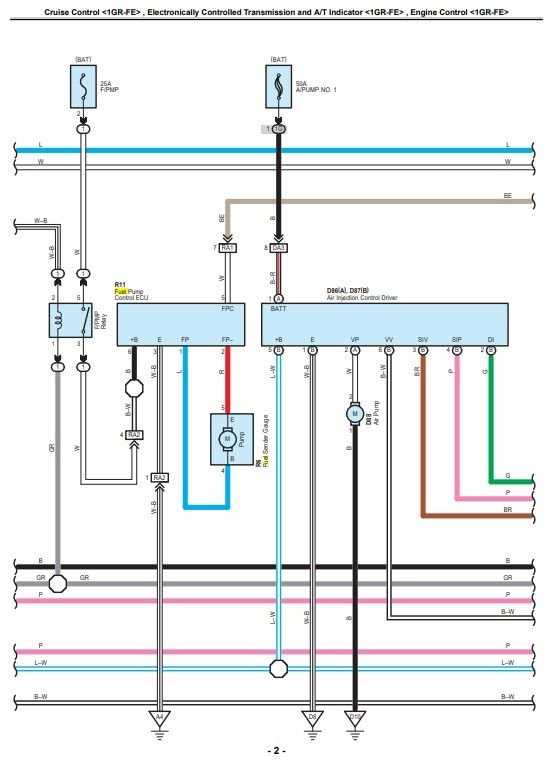

Electrical Blueprint for the 2014 Full-Size Pickup: Hands-On Reference
Locate the main fuse block under the dashboard on the driver’s side–remove the lower knee bolster panel to access it. Pin 15 on connector C of the fuse box delivers 12V ignition-switched power to the ECM; verify this with a multimeter set to DC volts before assuming any fault in the powertrain computer.
Trace the white-black (W-B) wire from the left rear tail lamp socket back to splices SA1 and SA2 near the spare tire well. These junctions feed both trailer tow circuits and rear lighting; corrosion here disables brake lamps and turn signals simultaneously. Clean with electrical contact cleaner and apply dielectric grease during reassembly.
The 4WD selector switch wiring harness terminates at connector R11 in the engine bay, adjacent to the brake master cylinder. Pins 6 (red-yellow) and 8 (green-black) carry ground and VSS signals respectively. Swap a known-good switch first if transfer case engagement fails, assensor malfunction is less common than connector oxidation.
Inspect the orange (O) wire running from the alternator’s S terminal to the battery positive–this sense line ensures proper voltage regulation. Any voltage drop above 0.2V at 2,000 RPM indicates a compromised connection at the starter solenoid or fusible link FL2, rated 140A, located behind the battery tray.
For the infotainment system, focus on connector I12 behind the glove box. Pin 3 supplies constant 12V (red), pin 5 ignition (pink), and pin 7 ground (black); mismatched voltages here cause touchscreen freezes. Bypass заводской harness with a temporary jumper to isolate faulty pin connections.
When diagnosing intermittent horn operation, check the dark blue (D-B) wire at the horn relay socket–this is often overlooked. The horn pad itself receives ground through the clockspring, so wiggle-test the yellow (Y) wire at the steering column connector C2 while pressing the pad to reveal broken strands.
How to Find the Original Electrical Blueprint for Your Full-Size Pickup
Start with the official service manual from the manufacturer. Download the PDF version from the automaker’s technical portal using your VIN for exact accuracy–generic scans often omit critical pin assignments or splice points. The manual section labeled “Electrical Troubleshooting” or “System Circuit Descriptions” contains detailed schematics, including fuse box layouts, ground locations, and connector pinouts. Look for document identifiers like “EWD” (Electrical Wiring Diagram) followed by a revision number; later editions correct earlier errors.
Visit an online repair database that specializes in late-model trucks. Platforms such as Mitchell1 or AllDataDIY offer subscription-based access to factory-grade schematics. Filter results by model year suffix and trim level–differences in engine size (e.g., 4.6L vs. 5.7L) affect sensor wiring and harness routing. Pay attention to color-coded wire labels; these correspond to the actual insulation hues, which simplify tracing circuits under the dash or in the engine bay.
Inspect the fuse block cover beneath the instrument panel. Many manufacturers print abbreviated circuit maps directly on the underside. These mini-diagrams show fuse ratings, relay positions, and power distribution nodes, serving as a quick reference when probing circuits with a multimeter. For more intricate systems like trailer brake controllers or aftermarket audio, locate the trailer wiring module or amplifier connector–these often have dedicated pages in the EWD.
Check the glove compartment or under-seat storage for a physical booklet. Early vehicles included a condensed wiring guide that maps major systems like lighting, ignition, and charging. While less detailed than digital versions, these booklets include connector terminal views–critical when replacing a damaged harness or installing a backup camera. Cross-reference page numbers with the digital manual to avoid outdated illustrations.
Extract schematics from OEM software tools like Techstream or Toyota’s proprietary diagnostic suite. After connecting to the OBD-II port, navigate to the “Customize” or “Utility” menu where selectable diagrams appear alongside live data. This method ensures real-time accuracy, especially for electronically controlled functions like adaptive cruise or lane-keep assist, where wire paths differ from pre-2015 revisions.
Join an owner forum dedicated to your vehicle platform. Veteran members frequently upload scanned excerpts from dealership training materials or internal bulletins that highlight unique modifications in regional markets (e.g., cold-weather packages). Use the forum search function with keywords like “ECM splice” or “ground strap location” to bypass generic threads. Archive attachments often include high-resolution snippets of difficult-to-find pages.
Compare multiple sources before cutting or splicing any wires. A single mislabeled wire gauge or incorrect connector pin can disable safety systems. Use a highlighter on printed schematics to mark verified paths, and confirm continuity with a meter before finalizing repairs–especially near high-current circuits like the starter or alternator, where errors risk costly shorts.
Locating Critical Electrical Bundle Junctions Under the Hood
Begin with the main power distribution module mounted near the battery–this black rectangular box contains relays and fuses controlling primary circuits. Trace the thickest red cable exiting its left side; it splits into two branches: one feeds the alternator’s B+ terminal via a fusible link, while the other routes to the starter solenoid. Label these branches with colored adhesive flags to simplify future diagnostics, as corrosion often targets these high-current junctions.
Inspect the ignition coil pack harness–three thin wires (black/white strip, red/blue strip, and solid blue) connect to the coil’s lower connector. Disconnect the plug by pressing its tab before testing resistance between terminals with a multimeter; values should read 0.5–1.5 ohms per coil. Failure to meet this range indicates internal shorting, requiring replacement of the entire assembly rather than splicing individual wires.
The engine control unit harness nests behind the intake manifold–its 68-pin connector groups sensors into distinct clusters. Pins 12–18 correlate to the mass airflow sensor, where a loose connection triggers erratic idle. Clean the contacts with electronic cleaner and dielectric grease, ensuring proper seating by hearing a faint click when the locking tab engages.
Follow the ground straps–two braided cables bolted to the passenger-side strut tower and driver-side cylinder head. Remove the bolts, sand the mounting surfaces to bare metal, then re-secure with star washers to prevent grounding issues that mimic fuel pump failure. Check continuity from the strap’s end to the battery negative terminal; resistance exceeding 0.2 ohms necessitates replacing the cable.
Locating and Verifying Trailer Brake Controller Circuits
Begin by disconnecting the vehicle’s battery to prevent accidental shorts while probing connections. The brake controller harness typically taps into the factory harness near the rear of the cabin or under the dashboard, often bundled with the trailer tow package leads. Look for a 4-pin or 7-pin connector–most aftermarket units splice into the blue wire (brake output), red wire (power input), black wire (ground), and sometimes a purple wire (reverse signal).
Use a multimeter set to continuity mode to verify each wire’s function before making connections. Probe the blue wire at the rear connector while an assistant activates the brake pedal–it should show 12V output during braking. If voltage is absent, trace the wire back to the brake controller relay or fuse box, where a blown fuse or loose terminal may interrupt the signal. Check the red wire for steady 12V supply from the battery; a drop below 11V suggests a weak connection or undersized wire gauge.
Ground integrity is critical–poor grounding causes erratic braking or complete failure. Attach the controller’s black wire directly to the chassis near the mounting location, avoiding painted surfaces. For vehicles with frame-mounted tow packages, use a wire brush to remove corrosion from grounding points before securing the connection with a star washer. If the controller flickers or behaves unpredictably, relocate the ground to a dedicated engine or frame point.
For integrated systems with a factory tow module, the wiring may be pre-terminated but require additional pins. Compare the pinout with the manufacturer’s documentation–common mismatches include swapped brake and power wires or missing reverse signal. Some models use a fused ignition circuit for controller power; locate this in the under-dash fuse panel and verify it remains live with the key in the “ON” position. Replace any mismatched connectors with weatherproof equivalents to prevent moisture-induced shorts.
Troubleshooting Common Issues
- No brake output: Test the brake switch input at the controller by probing the blue wire while pressing the pedal. If voltage appears at the controller but not the trailer plug, inspect the wire run for breaks or pinched sections, especially near suspension components or frame rails.
- Intermittent braking: Check for loose terminals at the trailer connector or controller. Wiggle each wire while monitoring voltage–any fluctuation indicates a weak crimp or cold solder joint. Re-crimp or solder these connections.
- Excessive amp draw: Verify the red wire’s gauge matches the controller’s current rating (typically 20-30 amps). A thinner wire overheats under load, risking melted insulation or fires. Upgrade to 12-gauge wire if necessary.
For aftermarket controllers, avoid splicing into the factory brake light circuit (often green or yellow) unless specifically designed for proportional braking. Direct connection to the brake switch (or a dedicated relay) ensures cleaner signal control. Use dielectric grease on all connectors to prevent corrosion, particularly in vehicles operated in humid or salty environments. If the controller includes a diagnostic feature, cycle through error codes to identify faults like open circuits or sensor failures.
Test the final setup with a trailer attached on a level surface. Gradually apply the brakes while monitoring the controller’s display–it should show smooth, proportional voltage increases up to 12V. Sudden spikes or drops indicate internal faults or wiring issues. For adjustable controllers, set gain levels to 60-80% of maximum to balance braking power and wheel lockup risk. Recheck all connections annually or before long trips, particularly after off-road use where vibration loosens terminals.
