Begin with the factory harness adapter. Locate the OEM plug on the vehicle’s rear dashboard panel–it’s a 16-pin rectangular connector labeled “C1” on most schematics. Match this to a compatible Metra 70-1002 adapter for immediate compatibility with aftermarket units. Avoid splicing unless you verify fuse ratings on wires 4 (pink, 12V constant) and 5 (yellow, illumination) to prevent shorts.
Trace the speaker outputs next. The vehicle uses a four-channel setup: front left (gray/violet), front right (gray/brown), rear left (gray/black), rear right (gray/light green). Cross-reference these colors with your unit’s harness–mismatches cause phase cancellation. If resistance checks show
Ground connections demand attention. The chassis ground (black, labeled “G500” in service manuals) must be scraped clean of paint and secured with a stainless-steel bolt. Corrosion here causes intermittent cuts or buzzing at >75% volume. For amplified systems, run a separate 10-gauge wire directly to the battery, bypassing the factory fuse box.
Antenna integration requires a $15 adapter–a Ford/Mopar-to-ISO converter–if your new head unit lacks a motorized mast input. Without this, seek sig nal degrades >500 MHz. Verify the power antenna wire (blue/white) shows 12V when the key is in ACC position; if not, check the BCM module for blown fuses.
Steering wheel controls need a PAC RP4-CH11 harness. Skipping this step risks damaging the CAN bus. Program buttons individually–volume, track skip, and voice commands use discrete resistance values, so rely on the provided chart rather than trial-and-error.
Understanding Your Pickup’s Audio System Connections
Locate the C1 harness behind the factory head unit–pin 12 (light green) carries constant 12V power, while pin 5 (gray) delivers accessory voltage. Ground connections (pin 8, black) must terminate directly to the chassis using a 10-gauge wire to prevent signal noise in high-power amplifiers. If retrofitting aftermarket components, splice into these circuits rather than tapping the fuse box to avoid voltage drops under load.
Speaker outputs follow an A/B configuration: front left tweeter (pin 1, purple/white) and woofer (pin 2, purple) share a single pair, requiring a crossover if separating frequencies. Rear door speakers (pins 3–6, tan/gray pairs) operate at 4 ohms but lack dedicated tweeters–aftermarket coaxial replacements should match this impedance to prevent head unit overheating. The subwoofer pre-out (pin 10, dark green) outputs a low-pass filtered signal; connect this directly to an amplifier with a 2V sensitivity setting to avoid distortion.
For vehicles equipped with Uconnect, the CAN bus (pins 13–14, orange/white and white) handles metadata and steering wheel controls. Interrupting this circuit disables voice recognition and navigation–use a bypass module like the Metra ASWC-1 for aftermarket radios, ensuring the module’s yellow wire connects to pin 12 of the C1 harness for proper memory retention during ignition cycles.
Finding the Audio System Connector in Your Pickup Truck
Start behind the dashboard on the driver’s side, directly beneath the climate control module. A black plastic bracket secures the main harness; release two 7 mm screws to pivot it downward. The 24-pin connector sits flush against the firewall, wrapped in gray corrugated tubing.
Trace the orange antenna lead–a thin coaxial cable–along the upper speaker grille. It merges into the main harness bundle near the fuse block. Follow this bundle downward; a 12-pin rectangular plug with beige clips identifies the audio interface.
Key Landmarks for Access
Locate the HVAC blower resistor pack first–its removal reveals a recessed cavity where the harness routes. A white zip tie grouping holds the wires together; snip it without damaging the adjacent CAN bus lines (twisted green and purple pairs).
Behind the glovebox hinge, a secondary 8-pin plug connects to the amplifier. Disconnect it by pressing both sides of the latch simultaneously. This exposes the rear channel outputs for rear speakers.
Pull the lower dash panel gently–no clips break if you angle it 45 degrees outward. The harness exits the firewall through a rubber grommet; feel for a small rectangular connector labeled “AMP” in molded text.
Harness Routing Avoidances
Avoid yanking the steering column tilt lever linkage–it obscures the harness’s upward path. Instead, detach the OBD-II port bracket; the connector routes immediately beneath it, held by a single T15 screw.
Check the kick panel on the passenger side. A forgotten ground strap–bare copper braid bolted to the chassis–often interferes with harness visibility. Remove it temporarily to see the subwoofer amplifier leads.
Behind the ashtray housing, a silver foil-wrapped bundle contains auxiliary interfaces for satellite tuners. Peel back the foil carefully; the main harness connector is the larger, square-shaped plug with a red locking tab.
Decoding Cable Shades and Their Electrical Roles
Start by isolating the harness behind the center console. Locate the dark green wire–this carries amplified audio signals to the right rear speaker. Pair it with the gray wire, which serves as the left rear speaker’s positive lead. Cross-check with a multimeter: expect 4–8 ohms of resistance between these two cables when the circuit is intact.
Critical Power and Ground Leads
Trace the red cable back to the ignition-switched power source–it delivers 12 volts only when the key is turned to “ACC” or “ON”. Verify with a no-load voltage test; readings below 11.5 volts indicate a weak fuse or corroded junction. The black wire is the primary chassis ground; secure it directly to a bare metal surface free of paint or sealant to prevent intermittent drops.
Label the violet stripe cable as the memory retainer; it feeds constant 12 volts from the battery, ensuring presets and clock remain stored. Confirm continuity with the orange stripe wire–this is the illumination circuit, dimming radio lights in sync with dashboard brightness.
Yellow cables typically handle antenna motor control, while brown or light brown stripes denote left and right front speaker leads respectively. Use tone testing: a 1 kHz sine wave should produce equal sound levels between the brown and its matching negative (usually white stripe). Any imbalance points to a faulty cable or speaker coil.
Step-by-Step Guide to Accessing the Factory Audio System Harness

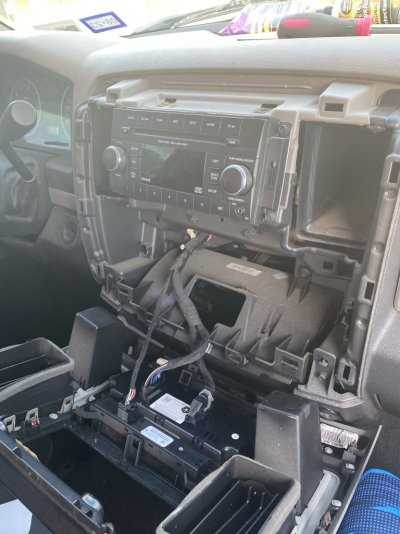

Disconnect the vehicle’s negative battery terminal first–this prevents electrical shorts or accidental airbag deployment. Locate the dashboard’s lower trim panel beneath the climate controls; it’s secured by plastic clips. Use a trim removal tool or flathead screwdriver wrapped in tape to pry the panel without scratching surfaces. Work methodically from the outer edges inward to release hidden clips.
Remove the exposed screws holding the head unit in place–typically four 8mm or 10mm bolts. Slide the unit forward carefully; if resistance occurs, check for additional retaining clips near the top corners. Gently tilt the back of the unit upward to expose the rear harness connector. Press the release tab on the plug and pull it free from the harness with a firm, steady motion–avoid yanking wires.
- Identify pin assignments immediately using a multimeter: ground (black), constant 12V (yellow), accessory power (red), and speaker wires (color-coded pairs).
- Verify voltage on the constant 12V wire–it should remain live even with the key off.
- Label each wire with masking tape before splicing or replacing components to avoid confusion.
Reattach the harness only after confirming compatibility with aftermarket equipment. Align the connector’s grooves properly before pressing firmly until the tab clicks. Test all functions–volume, station presets, and steering wheel controls–before reassembling dashboard panels. If static or power issues persist, recheck ground connections and splice integrity.
Solving Installation Problems with Third-Party Audio Systems
Check the constant power lead first–use a multimeter to verify it reads 12V when the ignition is off and the battery is connected. If the reading fluctuates or drops below 11.5V, trace the wire back to its fuse box origin; corrosion or a loose terminal is often the cause. Replace any suspect connectors with gold-plated crimp fittings to prevent oxidation.
Ground loops create a distinct hum, typically at 60Hz or 120Hz. Locate the chassis ground point less than 18 inches from the head unit’s ground wire and sand the mounting surface to bare metal. Secure with a star washer and a #10 or larger stainless-steel bolt. Avoid daisy-chaining grounds through seat frames or door hinges–these introduce resistance and interference.
Static during transmission switches suggests antenna amplifier problems. Disconnect the antenna cable at the back of the unit and test signal strength by touching the inner conductor to a grounded metal surface; if static persists, the coaxial cable’s shielding is compromised. Replace the entire run with RG-58 or better coax, ensuring the outer braid makes 360-degree contact at both ends.
Signal Wire Color Codes & Common Mismatches
| Factory Wire | Aftermarket Pinout | Typical Issue |
|---|---|---|
| Dark Green/Red | Front Left (+) | No audio on left channel |
| Dark Blue/White | Remote Turn-On | Amplifiers not powering up |
| Light Blue | Telephone Mute | Constant muted output |
| Yellow/Black | Illumination (-) | Dash lights not dimming |
Speaker polarity swaps manifest as flat imaging and weak bass. Use a 9V battery to identify positive and negative leads–when touched to the terminals, the speaker cone should push outward; if it pulls in, reverse the wires. Keep runs under 25 feet to prevent high-frequency roll-off and use 18-gauge or thicker oxygen-free copper wire for lengths exceeding 15 feet.
Steering-wheel control retainers frequently lose functionality when the data bus wire is improperly crimped. Tap into the CAN-H and CAN-L lines with solder-and-heat-shrink splices rather than vampire clips. Confirm compatibility with the aftermarket interface module by checking for firmware updates–many adapters require v3.2 or later to support full button mapping.
Back-up camera feeds that flicker or appear monochrome often suffer from insufficient voltage. The camera should receive a stable 6V–8V; drop a 12V-to-6V regulator in-line if the harness taps into the reverse light circuit. Route the RCA cables at least 6 inches away from power wires and zip-tie every 12 inches to prevent induced noise.
