Start by locating the fusebox layout under the dashboard on the driver’s side–marked as “Panel K” in official service documentation. Pin numbers T32/1 through T32/32 correspond to power windows, while T73/1 handles the ignition coil signal. Use a 10A fuse for the radio circuit (terminal J317) to prevent overloading.
For the headlight assembly, trace wire GRA-2.5 BK/YE (black/yellow stripe) from the multifunction switch to connector C107. Ground points G6 (near the battery) and G112 (behind the glovebox) are critical–verify resistance doesn’t exceed 0.3 ohms before proceeding. The BCM (J519) manages lighting delays; replace relay J387 if interior lamps remain lit beyond 30 seconds.
Check CAN bus connections at T16/6 (high) and T16/14 (low) with a scope meter–voltages should oscillate between 2.5–3.5V. If the ABS module throws code 00287, inspect wire 0.35 GR/YE (gray/yellow) from sensor G44 to control unit J104. Corrosion at connector T32/17 often causes intermittent faults.
For HVAC controls, ensure wire 0.5 BN/WH (brown/white) carries 12V to blower motor V42. Resistance between N24 and G62 should read 1,500–2,500 ohms at room temperature. Replace temperature sensor if values deviate.
Always cross-reference circuit numbers (e.g., 30 for constant power, 15 for ignition-switched) with the vehicle’s VIN-specific manual. Use deutzsche-terminal crimp connectors for repairs, avoiding solder-only joints in high-vibration zones like the engine bay.
Volkswagen Sedan Electrical Blueprint Reference

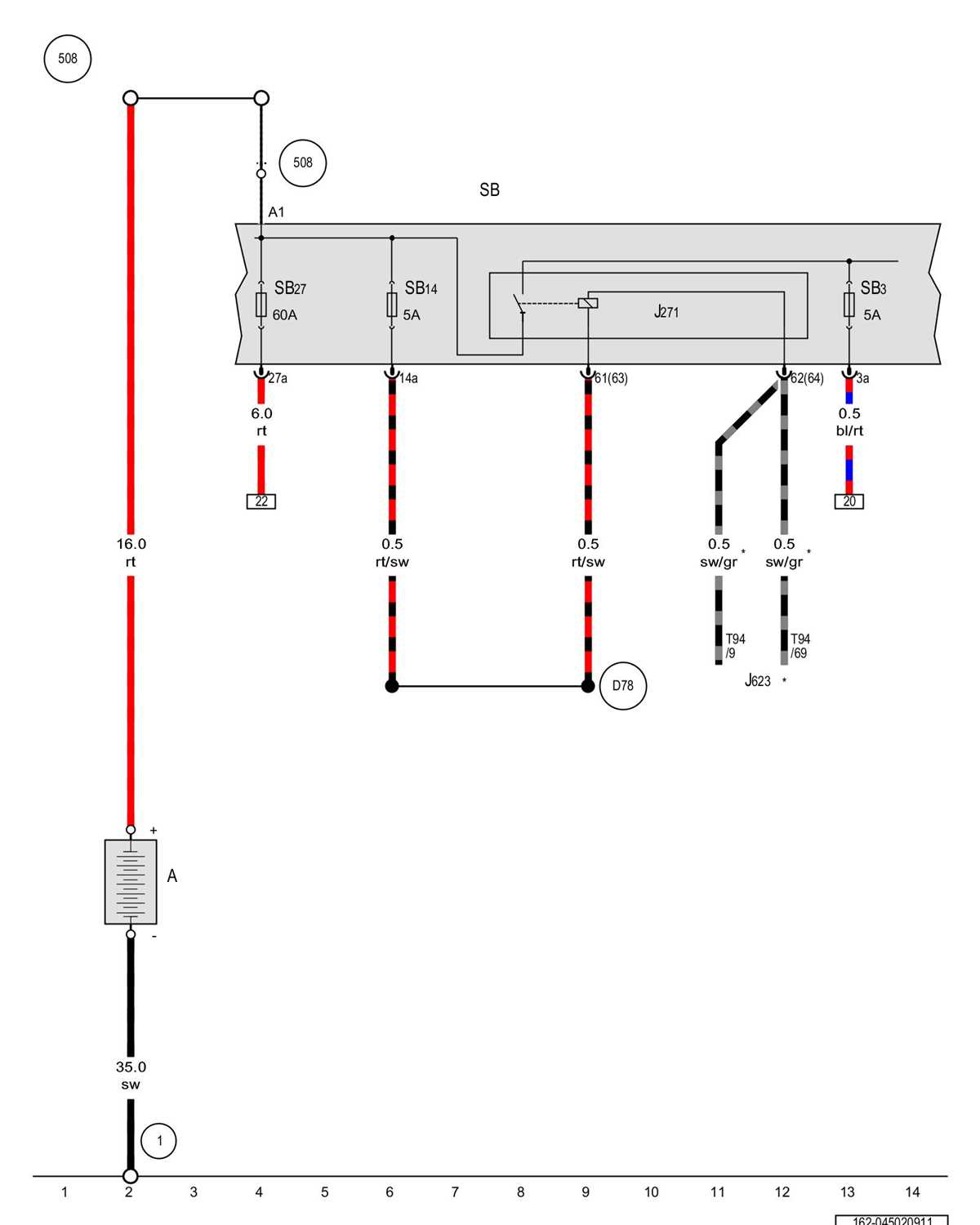

Locate the central fuse box under the dashboard on the driver’s side–remove the plastic cover by pressing the retaining clips at the top. Pinout details for terminal 30 (constant power), 15 (ignition-switched), and 50 (starter) are silkscreened on the back of the cover; cross-reference these with the legend in the service manual section 97-10-00 for exact wire gauge and color codes. All red/black striped leads correspond to fuse positions marked in row C, while solid yellow wires trace back to the battery junction post via a 10 mm bolt.
- Ground distribution points G101 (left fender) and G303 (behind the center console) use M6 bolts; torque to 10 Nm to prevent voltage drop.
- BCM connector T32b contains 32 pins–pins 4, 12, and 28 deliver CAN-H (orange/violet) and CAN-L (orange/brown) signals at 500 kbps; termination resistors (120 Ω) sit inside the instrument cluster.
- Headlight harness connector T10a on the back of the left headlamp carries separate PWM feeds for low beam (pin 8), high beam (pin 3), and turn signal (pin 1), each fused at 10 A.
- OBD-II port pins 6 (CAN-H) and 14 (CAN-L) must show 2.5 V ± 0.2 V DC offset when measured with a scope grounded to pin 4; deviations indicate a broken shield or missing termination.
For rear tail-light diagnosis, disconnect the 7-pin connector T7a near the hatch hinge. Pins 1 and 4 supply brake/tail lamp circuits fused at 5 A each; swapping the bulbs to a dual-filament type without updating the BCM coding (VCDS address 09, byte 4, bit 7) triggers bulb-out warnings. Always probe with a 10 MΩ meter set to DC volts to avoid phantom faults flagged by the body control module.
Finding Ground Connections in the Volkswagen Sedan’s Electrical Network
Begin with the engine compartment. The primary earth point, G1, sits adjacent to the battery tray on the left strut tower. Use a 10mm socket to remove the bolt securing the thick black cable from the negative terminal–this link serves as the foundation for multiple circuits. Check for corrosion; clean with a wire brush if oxidation is visible. G2, a secondary ground, lies beneath the windshield washer reservoir, connected via a smaller stud–verify its tightness with a 7mm wrench.
Inside the cabin, the instrument cluster relies on G3, located behind the dashboard on the driver’s side firewall. Access requires removing the lower dash panel; look for a single-wire lug bolted to a metal tab. This point often develops resistance due to vibration–ensure the connection is free of paint or debris. Another critical earth, G4, is found under the driver’s seat, attached to the chassis rail near the seat belt tensioner. Corrosion here can cause intermittent electrical faults in door controls and seat heaters.
For rear systems, G5 is positioned near the left taillight assembly. Remove the plastic cover inside the trunk to expose a black wire bundle grounded to the body via a self-tapping screw. This connection affects turn signals and brake lights–test continuity with a multimeter if lights flicker. G6, linked to the fuel pump, rests under the rear seat cushion, accessed by lifting the carpet. A faulty ground here may trigger false fuel level readings or pump failure.
Use this reference table to map ground points to affected systems:
| Ground Point | Location | Associated Systems | Common Issues |
|---|---|---|---|
| G1 | Left strut tower | ECU, ignition coils, alternator | Stalling, erratic sensor signals |
| G3 | Driver’s side firewall | Instrument cluster, HVAC controls | Flickering gauges, blower motor failure |
| G4 | Under driver’s seat | Power windows, seat adjustments | Slow window operation, seat heater malfunctions |
| G5 | Left rear taillight area | Exterior lights, trunk release | Dim taillights, trunk latch failure |
When troubleshooting, prioritize grounds before replacing components. A loose G1 can mimic a faulty battery or starter–retighten the bolt before assuming hardware failure. For G2, apply dielectric grease after cleaning to prevent future corrosion. Always disconnect the battery before servicing grounds to avoid short circuits.
Tools needed: 7mm and 10mm sockets, wire brush, multimeter, dielectric grease. For G3 and G4, a flashlight and trim removal tool expedite access. Check for frayed wires or heat damage near lugs–replace if insulation is cracked. If resistance exceeds 0.5 ohms on any ground, investigate the connection path from the component to the earth point.
Symptoms of poor grounding include intermittent failures, dim lights, and slow motor operation. Compare measured voltages at the component against the ground point; a voltage drop over 0.1V indicates resistance. Replace corroded lugs with OE-spec terminals–aftermarket alternatives may not provide sufficient clamping force. For G5, ensure the screw is threaded into bare metal, not painted surfaces.
Final verification: Reconnect the battery, then probe each ground with the multimeter’s positive lead on the component and negative on the ground stud. Voltage should match the battery’s–deviations signal unresolved resistance. Document each repair; some grounds share paths, and a single weak link can affect multiple systems.
Locating Interior Light Fuse Terminals
Begin by removing the fuse panel cover beneath the dashboard on the driver’s side–typically secured by two plastic clips. Use a flashlight to inspect the label molded into the cover; fuse slots for dome, trunk, and vanity lights are marked SC12, SC22, and SC8 respectively. A 15-amp mini fuse (color-coded blue) feeds these circuits; verify continuity with a multimeter set to 200 ohms before reinserting.
Trace the wiring bundle behind the panel–white with a blue stripe for dome illumination, red with yellow stripe for cargo area, and solid brown for mirror lights. Connect a test light to the positive terminal of a known good fuse slot while activating each switch; the bulb should glow steadily at all connection points along the path. If dim, check for corrosion at the T-tap connector near the A-pillar–clean with dielectric grease and a 1000-grit abrasive pad.

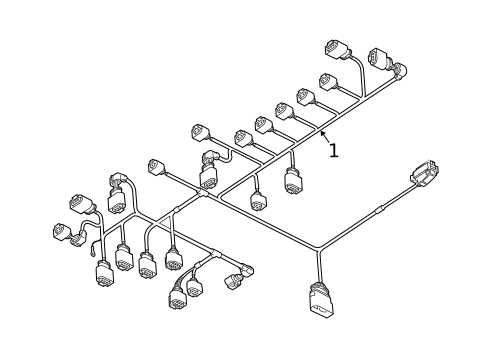

Mapping Powertrain Control Unit Connector Pathways

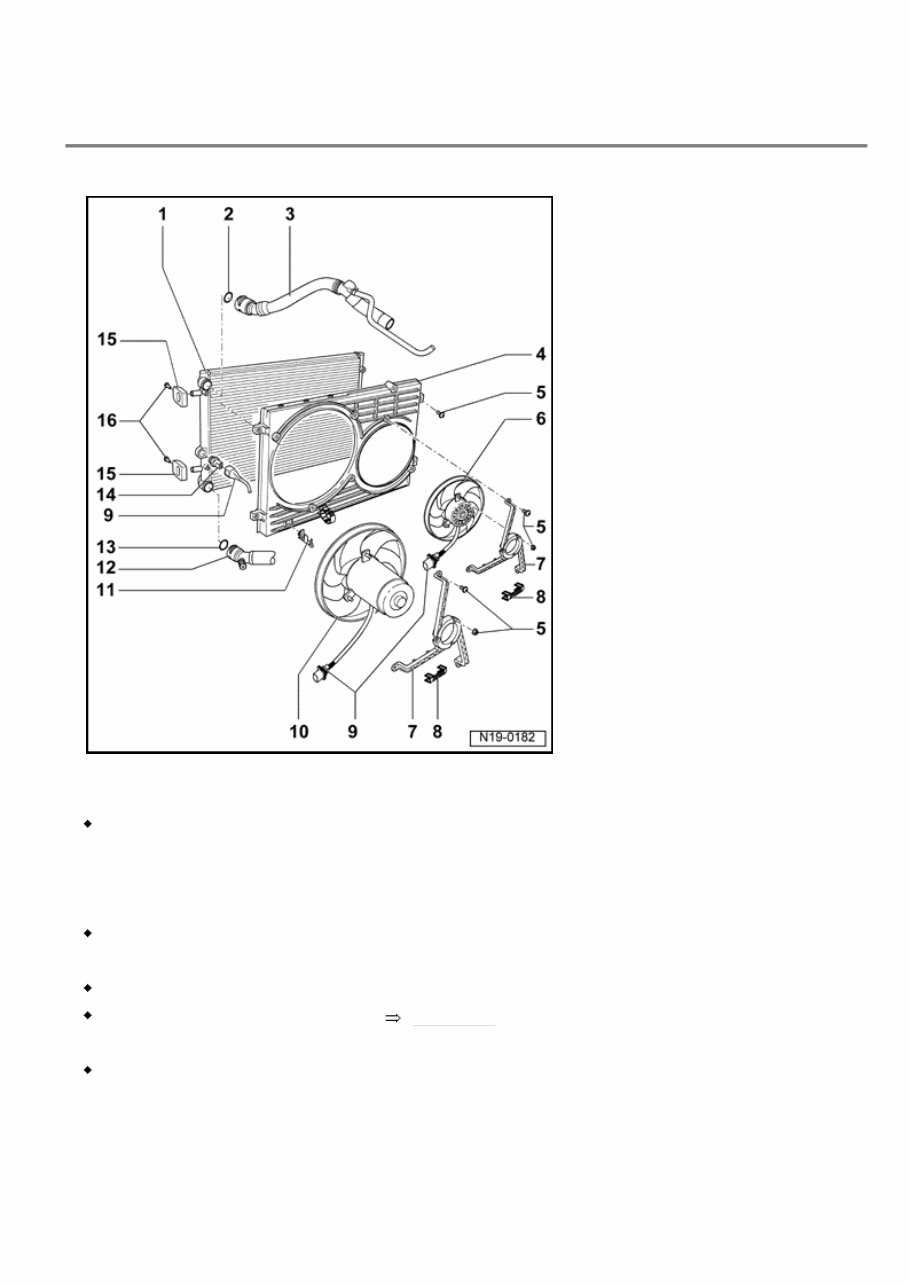

Locate the PCU’s primary harness at the firewall bulkhead on the driver’s side, where it exits the cabin through a grommet adjacent to the brake master cylinder. Follow the 48-pin connector bundle (black sheath) downward along the engine bay’s inner fender, securing clips every 15 cm to prevent chafing against the alternator bracket. At the lower radiator support, split the harness into two branches: the first routes beneath the intake manifold toward the coolant temperature sensor (TPS pin 37), while the second diverges left to the throttle body (TPS pin 41) via a smaller 8-pin sub-harness. Use a multimeter to verify continuity between the PCU’s C2 connector (pins 1–48) and each sensor terminal before tracing further.
Key Chassis Ground Reference Points
Attach a ground lead to the negative battery terminal and trace the main ground strap to the engine block stud (M10x1.25, 17 Nm torque) below the ignition coil pack. Confirm the PCU’s chassis ground (C1 pin 2) connects to this stud through a braided cable, then follow its path along the transmission bellhousing to a secondary ground point on the left strut tower (M8 bolt). Disconnect the battery before probing; corrosion at these junctions often mimics sensor failures. For hidden splices near the ABS module, release the fender liner clips and inspect the harness’s adhesive loom repairs with a boroscope–factory tape degrades at 120°C ambient temperatures.
Understanding Driver Door Harness Color Standards and Purposes
Begin troubleshooting by matching the pinout labels on the door control module connector to the corresponding color codes below. The driver-side harness uses these consistent identifiers for power, ground, and signal lines, which vary slightly between base trim and premium packages.
- Violet/White (V/W) – Central locking actuator, 12V trigger. Activates all four door locks via relay; expect ~0.8A draw during operation. Verify voltage drop across this line when locks engage sequentially.
- Brown/Yellow (BR/Y) – Speaker feed (negative). Ground reference for tweeter; resistance should read ≤0.5Ω when tested from this wire to chassis.
- Red/Blue (R/B) – Window motor up command. 100ms 12V pulse from switch; scope the pulse width to detect faulty switch contacts.
- Black/Red (B/R) – Permanent battery positive. Supplies memory for mirror positions and window auto-down feature; must hold ≥11.8V after ignition is cycled off.
- Green/Black (G/B) – Courtesy light output. Switched ground; check for continuous path when doors open or remote unlock is activated.
Locate the module behind the lower trim panel, near the latch mechanism. Remove the plastic cover using a T20 screwdriver to expose the multi-way connector housing the wires above. Probe with a multimeter set to DC voltage–never continuity mode–while pressing each switch to measure real-time signals without damaging sensitive circuits.
Inspect the door hinge area for chafing; wires here are vulnerable to abrasion from repeated opening cycles. Secure any exposed conductors with split-loom tubing and nylon ties routed away from sharp metal edges. If corrosion is visible on brass terminals, apply dielectric grease before reconnecting to prevent future oxidation.
For window regulators experiencing intermittent failures, focus on the Pink/Green (P/G) and Yellow/Brown (Y/BR) lines. These carry the motor’s down and up commands respectively. Back-probe the connector with ignition ON and trace the voltage path: a healthy circuit will show battery voltage toggling between the two lines while the switch is pressed. Persistent voltage on both simultaneously indicates faulty regulator brushes or motor binding.
Addressing power mirror adjustments requires confirming the Gray/White (GR/W) and White/Green (W/G) actuator lines. Each mirror motor has two dedicated wires; polarity reversal dictates direction. Test by applying a temporary 12V source directly to the wires at the connector–listen for a faint humming sound. Silent or sluggish movement signals internal gear failure.
Safety circuit integrity is non-negotiable: the White/Black (W/B) wire serves as the crash sensor input. Grounding this wire (normally open) triggers the door lock solenoid to disengage after an airbag deployment event. Always reconnect this wire last during reassembly, and confirm no accidental grounding during installation.
