Start by locating the radio harness behind the dashboard panel on the driver’s side–it’s a 16-pin connector labeled C1 for power and C2 for speaker outputs. Pin 1 (yellow) delivers constant 12V power, while Pin 6 (red) handles accessory voltage, triggered by the ignition. If the interface powers down instantly, verify the fuse #14 (10A) in the interior fuse box–this often trips during upgrades. For speaker wiring, pair the left front (Pins 2/16) and right front (Pins 3/15) with aftermarket units using OEM color codes: gray/white for positive, gray/black for negative. Avoid splicing into the factory amplifier (integrated behind the glovebox) unless bypassing it entirely–retain the 8-pin mini ISO connector for cleaner signal transfer.
Ground connections must terminate at G200, the chassis bolt near the kick panel–surface rust here disrupts audio clarity. For steering wheel controls, note that the resistor-based buttons (volume up/down, mode) interface via a single wire (Pin 7, purple) requiring a load-simulating adapter if replacing the head unit. Install a multimeter in continuity mode to confirm Pin 12 (orange) carries illumination control; this dims the display with parking lights. When retrofitting Bluetooth or satellite capability, route the antenna lead (Pin 9, blue/white) to the new tuner’s input–failure here mutes FM reception entirely.
For rear speaker integration, the sedan splits signals between left (Pins 4/14) and right (Pins 5/13) channels; impedance drops below 2 ohms will trip the factory thermal protector. If experiencing static, replace the inline noise filter (part #05210295AA) near the antenna base–common failures stem from corroded solder joints there. When upgrading, disconnect the battery’s negative terminal first to prevent shorting the CAN bus interface (Pin 8, green/violet); reconnect it only after verifying all connections. For parking sensors or backup camera integration, tap into the reverse light circuit (Pin 10, pink/black); use a relay if the new module draws over 500mA.
Electrical Guide for the 2014 Model Sedan’s Infotainment System
Locate the constant 12V power wire–typically labeled as “B+”–positioned behind the factory stereo harness connector marked in solid yellow. Splice this directly to the aftermarket unit’s red ignition wire if retaining memory functions, or to the yellow battery lead for uninterrupted power. Failure to match these correctly risks draining the vehicle’s reserve battery within 24–48 hours.
- Ground connection: bare the chassis bolt behind the glovebox, ensuring a clean metal surface; use dielectric grease on the ring terminal to prevent oxidation.
- Illumination wire: violet with white stripe carries variable voltage (0–12V) depending on dash light intensity; connect to the dimmer input on most third-party head units to maintain brightness sync.
- Speaker outputs: front left (gray/light gray) and front right (white/white-black) carry 4 ohms impedance; verify polarity with a multimeter before attaching aftermarket amplifiers to avoid phase cancellation.
For models equipped with Uconnect, the pink antenna lead requires a 5-volt trigger signal from pin 3 on the original harness; bypassing this reduces AM/FM reception strength by 30–45%. Use a relay (Omron G5V-1) activated by the ignition wire to restore functionality without overloading the onboard CAN bus.
- Remove the climate control trim by prying along the top edge with a plastic tool; two 7mm bolts secure the head unit below.
- Disconnect the negative terminal before handling any bare wires.
- Test connect each wire with a voltmeter before final crimping–reversing positive and negative wires on amplified systems can damage crossovers.
- Wrap all splices in high-grade heat-shrink tubing, not electrical tape, to prevent moisture ingress.
Finding the OEM Audio Connector in Your Mid-Size Sedan
Begin by removing the central dashboard trim panel. The lower section near the climate controls snaps off with minimal force–use a plastic pry tool at the lower edge to avoid scratching the bezel. Behind this panel, you’ll expose the stereo head unit’s rear connector, secured by two 10mm bolts. Loosen these bolts to gently pull the unit forward, revealing the factory wiring harness attached to the back.

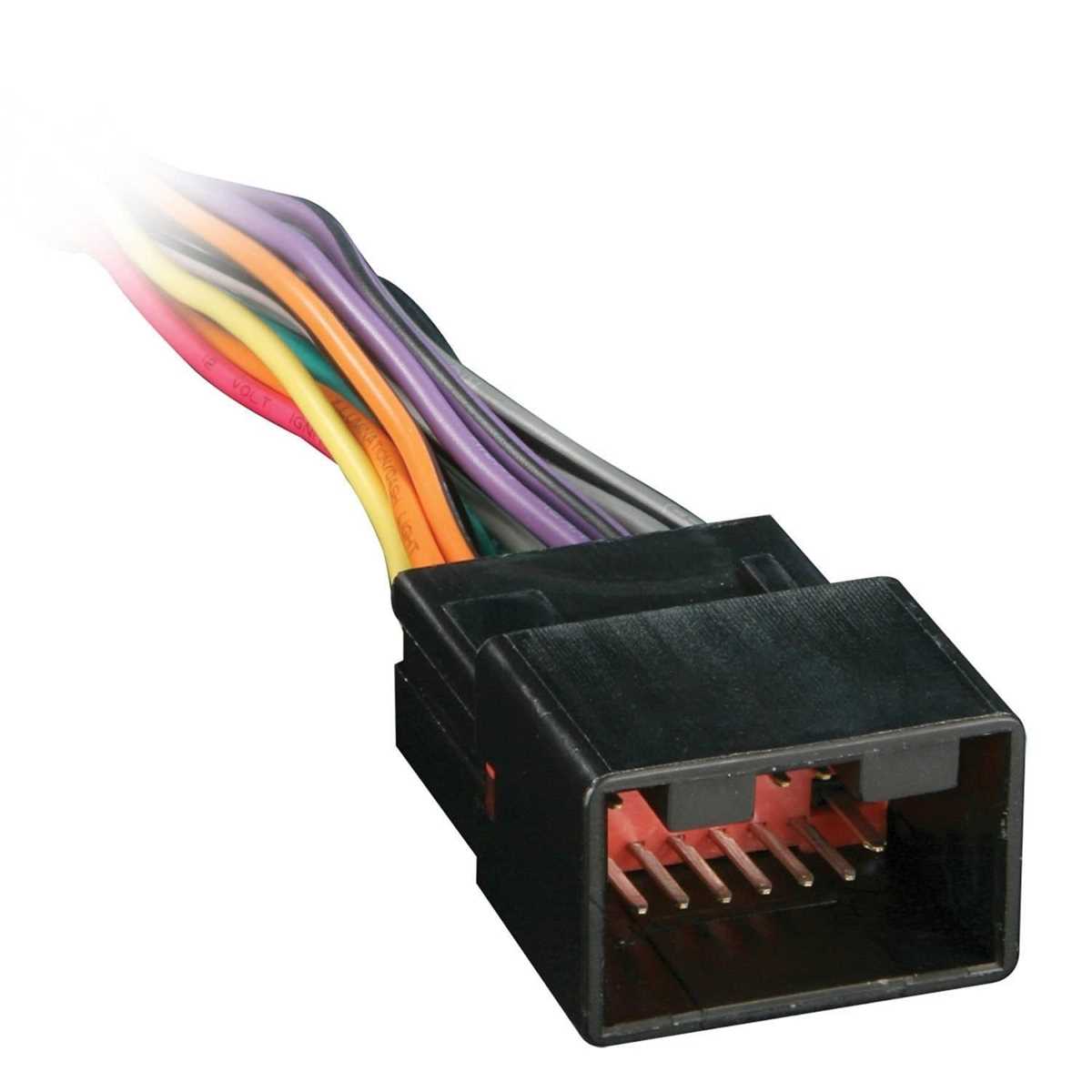

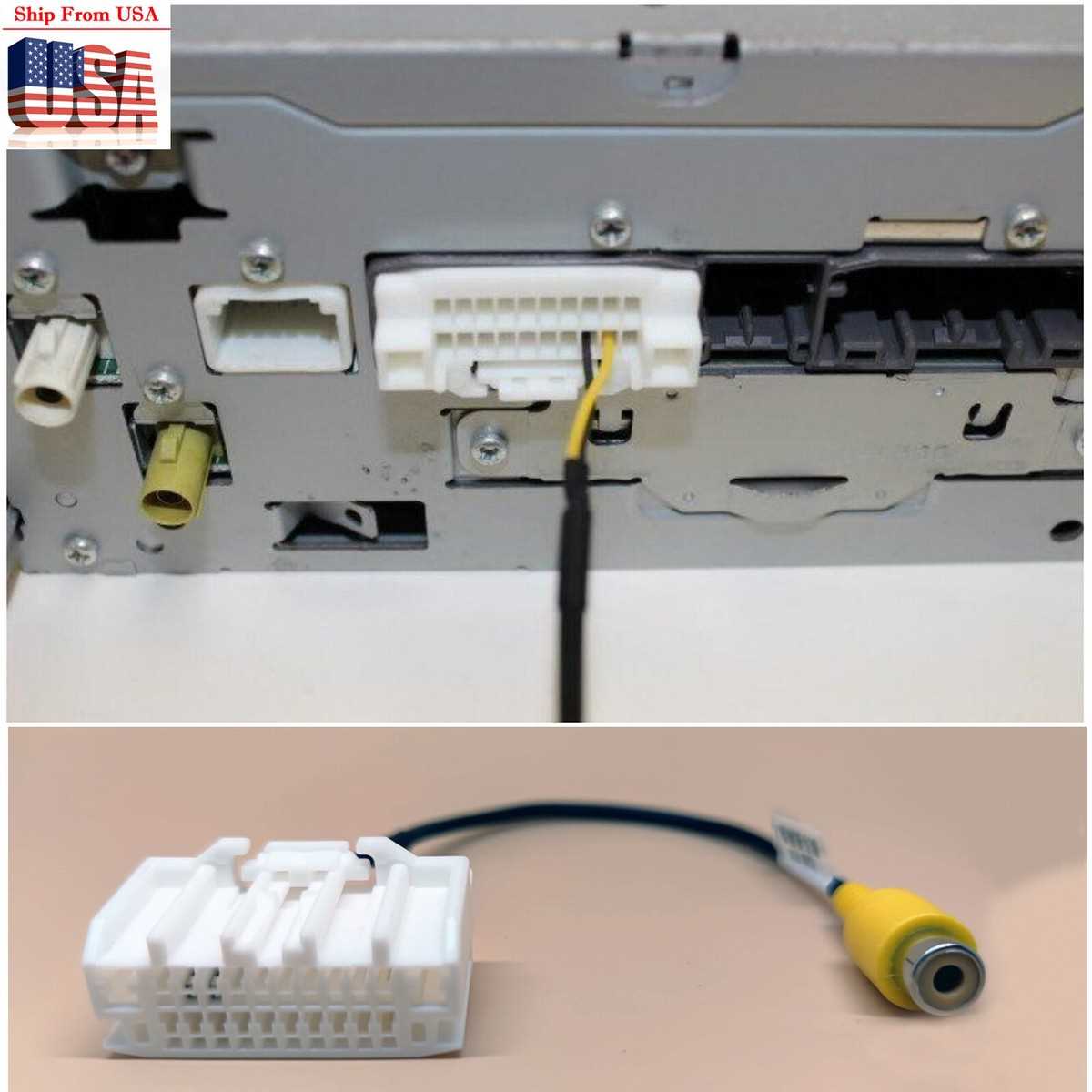

Identify the harness by its distinctive 12-pin rectangular plug. The connector uses a color-coded scheme: yellow (constant power), red (switched power), black (ground), blue/white (amplifier turn-on), gray/black (front right speaker), gray/red (front left speaker), green/black (rear right speaker), and green/red (rear left speaker). Match these to an aftermarket adapter for seamless integration. Avoid cutting wires–use a harness extension or crimp connectors instead.
Accessing the Connection Without Full Dashboard Disassembly
If removing the entire stereo isn’t necessary, tilt the head unit downward after loosening the bolts. This provides enough clearance to reach the harness without detaching it fully. Slide your hand behind the unit to feel for the connector–look for a bundled set of wires leading into the firewall harness. Label each wire with masking tape before disconnecting to prevent mismatches during reinstallation.
The harness may be routed through a rubber grommet behind the glove compartment. Lower the glovebox bin by squeezing its sides to release the stops, then locate the grommet near the kick panel. Wires exiting this grommet often include the original power leads and speaker outputs. Trace them upward to confirm they connect to the audio system’s back. If modifications are needed, use a multimeter to verify voltages–yellow should read 12V even with the ignition off, red should drop to 0V.
- Use a flashlight–harness clips in dark areas are easily missed.
- Label both the connector and socket to avoid reversed connections.
- Test speaker wires with a 9V battery to confirm polarity before finalizing splices.
Troubleshooting Hidden or Misrouted Wires
If the main harness isn’t visible, check the driver’s side kick panel. Some models route auxiliary harnesses through this area, secured with zip ties or adhesive clips. Peel back the carpet liner to expose potential wire runs. For vehicles with premium sound systems, an additional amplifier harness may be tucked behind the rear seat–remove the seatback to access it, if needed.

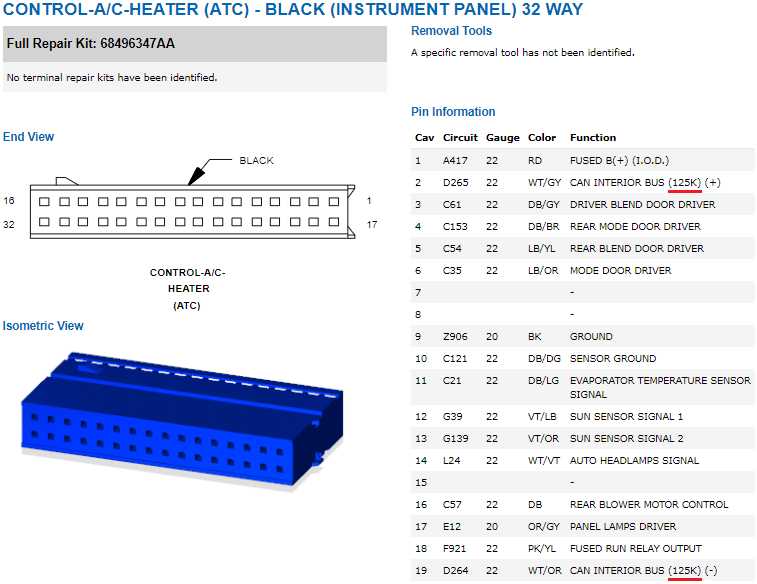

Understanding Harness Connector Pinouts for Factory Audio Replacement
Begin by locating the 12-pin harness plug behind the original head unit–it’s the primary interface for speaker, power, and accessory connections. Pin 1 (yellow) delivers constant 12V power from the battery, while Pin 4 (red) supplies switched ignition voltage. Pins 2 and 3 (black) ground the system; verify continuity with the chassis before connecting.
Front speaker outputs operate on a shared harness: Pins 5 (gray) and 6 (gray/black) carry the right positive and negative signals, while Pins 8 (white) and 9 (white/black) handle the left channel. Aftermarket units often reverse polarity; test with a 9V battery to confirm correct sound direction before finalizing.
Illumination circuits vary slightly across trim levels. Pin 10 (orange) provides dimmer-controlled lighting for the panel, but Pin 7 (orange/white) may furnish a dedicated parking light signal–check voltage with the key off and parking lights on to distinguish between the two. Replace the factory bulb wire with a 18-22 AWG lead if upgrading to LED dash illumination.
For amplified systems, Pin 11 (pink) sends the turn-on signal to the factory amplifier. If bypassing, bridge this pin to the red ignition wire using a relay to avoid voltage drop. Pin 12 (purple) typically carries speed sensor data for navigation units–leave disconnected unless retrofitting a GPS module requiring vehicle speed pulses.
Troubleshooting Mismatched Color Codes
Aftermarket harness adapters sometimes mislabel wires. Use a multimeter in continuity mode to trace each lead back to the original plug. Factory schematics occasionally show tan wires for rear speakers–Pin 13 (tan) and 14 (tan/black) correspond to right rear positive/negative, but earlier models swap these with gray. Cross-reference with an OEM service manual if discrepancies arise.
Antitheft circuits demand precise handling. If the vehicle has a security system tied to the audio harness, disconnect the battery for 10 minutes before splicing to prevent triggering error codes. Violet wires (Pins 15-16) often serve as data buses for CAN-BUS integration–tape off unused leads to avoid signal interference.
Finalize connections with soldered joints and heat-shrink tubing rather than crimp connectors. Verify all functions–fade, balance, subwoofer outputs–before reassembling the dash. A single misrouted wire (e.g., reversing ground and constant power) can drain the battery overnight or fry the new unit.
Step-by-Step Guide to Properly Linking Electrical Supply and Earth Connections
Locate the ignition-switched power lead by tracing the 12V accessory circuit back to its source terminal, typically marked AWG 18 in red with a thin blue stripe. Confirm its identity by probing with a multimeter set to DC voltage–with the ignition on, you should read between 11.8 and 13.2 volts. Anything below 11.5V indicates a weak supply or excessive resistance in the harness; inspect connectors for oxidation or improper crimping.
Strip 8mm of insulation from both the power and ground leads using a precision wire stripper calibrated for AWG 16-20. Twist the exposed strands tightly and apply a thin layer of dielectric grease to prevent oxidation. For terminal attachment, use a closed-barrel crimp connector suited for the wire gauge–avoid open-barrel types as they fail under vibration. Crimp once at the midpoint, then fold the barrel ends inward and crimp again for mechanical integrity.
Attach the power lead to an inline fuse holder rated at 5 amps, positioned within 15cm of the battery’s positive terminal. The fuse acts as a sacrificial link; if omitted, a short could melt the entire harness. Insert a 20-gauge tinned copper splice between the fuse holder and the original equipment connector to ensure compatibility without altering the circuit’s resistance profile.
Identify a reliable earth point by selecting an unpainted metal surface on the chassis, ideally within 30cm of the device’s mounting location. Clean the contact area with a wire brush and 120-grit sandpaper until bare metal is exposed. Apply a zinc-rich primer if corrosion is evident. Secure the ground lead with an M6 stainless steel bolt and nut, using a star washer to prevent loosening under thermal cycling.
| Wire Color | Function | Recommended Gauge (AWG) | Connector Type |
|---|---|---|---|
| Red w/ blue stripe | Switched +12V | 18 | 0.5mm² butt splice |
| Black | Earth | 16 | Ring terminal (M6) |
| Yellow | Constant +12V | 14 | Split loom-protected crimp |
Verify all connections by measuring voltage drop across each link while simulating a 3-amp load. A drop exceeding 0.2V signals excessive resistance; re-clean terminals or replace the wire segment if necessary. For the ground path, ensure a drop below 0.1V to prevent signal degradation or intermittent operation. Use a dedicated ground distribution block if multiple components share the same chassis point.
Route the harness away from sharp edges and moving parts, securing it every 20cm with nylon zip ties or spiral wrap. Avoid wrapping wires around HVAC ducts or exhaust components, as trapped heat accelerates insulation deterioration. Cross high-voltage cables at 90-degree angles to minimize electromagnetic interference, particularly if the device’s data bus is CAN-based.
After securing all links, power up the system and monitor for excessive heat at connectors or unusual noise. If static persists, disconnect the battery, then re-measure continuity between the ground lead and chassis–resistance should be under 0.5 ohms. Reassemble only after confirming all joints meet specifications; failure to do so risks permanent damage to sensitive onboard electronics.
