Begin by locating fuse box BJB (Battery Junction Box) under the hood on the driver’s side. Pin 1 on connector C1391E (black 24-pin block) delivers constant +12V from fuse F57 (30A) to the ignition relay coil. Cross-reference this with the driver door module circuit–trace wire VK/OG (violet/orange stripe) from pin 12 on C344a to ground point G101 beneath the dash. Verify continuity before proceeding.
For the instrument cluster, focus on pins 1, 3, and 5 of connector C2280b (gray 18-pin). Wire DB/YE (dark blue/yellow stripe) at pin 3 carries CAN high signals–use a scope to check for 2.5V–3.5V pulses at 500kbps. If absent, inspect the gateway module or terminator resistors at RCM (Restraint Control Module), where resistance should measure 120Ω between pins 6 and 14 of C174a.
Headlight circuits require separate validation. Low-beam output runs from pin 2 of C182a (light blue/yellow stripe) through the multifunction switch to ground at G103. High-beam output diverges at pin 4, with a 10A fuse (F63) in series. Replace any corroded splice joints at S108 near the radiator support–crimp failures here mimic bulb failure.
Engine bay sensors rely on shared power routes. The IAT (Intake Air Temp) sensor draws from pin 8 of PCM connector C175b (dark green/white stripe). Throttle Position Sensor grounds at pin 3 of C138b (black). If readings fluctuate, tap into the red/light green wire at splice S112–voltage should stabilize at 5V±0.2V with key-on-engine-off.
Parking brake and rear lighting faults often originate at the RJB (Rear Junction Box). Pin 1 of C136d feeds left tail light via fuse F59 (10A). Right-side circuits share ground at G102–inspect for voltage drop over 0.5V under load. Trailer harness adapters frequently disrupt this node; isolate by removing connector C136d entirely during diagnostics.
Ford Pony Car Electrical Schematic: Hands-On Reference
Begin by locating the main fuse box under the right-side dashboard panel. Remove the plastic clip retainers using a trim tool–avoid prying near the wires. Label each fuse with masking tape and note its amp rating directly on the tape before removal. The central distribution module handles circuits for the fuel pump, ignition coils, and engine sensors.
Trace the engine bay harness starting at the bulkhead connector. The 68-pin plug contains all primary powertrain signals; verify continuity with a multimeter before suspecting controller faults. Pin assignments for critical sensors follow:
| Connector Pin | Signal Name | Expected Voltage (KOEO) | Verification Points |
|---|---|---|---|
| 31 | Throttle Position Sensor | 0.5–1.1V | Measure at idle and wide-open throttle |
| 47 | Mass Air Flow Sensor | 0.6–1.4V | Check sensor reference voltage first |
| 58 | Camshaft Position Sensor | Toggle 0–5V | Verify signal waveform scope |
| 63 | Oxygen Sensor Heater | Battery voltage | Confirm ground path intact |
Aftermarket alarm installations often splice into the ignition harness near the steering column. Common interference points include the purple/white starter relay wire and the red/light blue constant power lead. Use T-taps sparingly–solder and heat-shrink all connections rated above 15 amps.

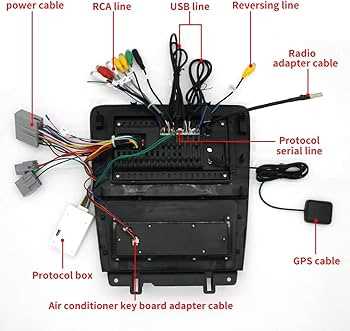

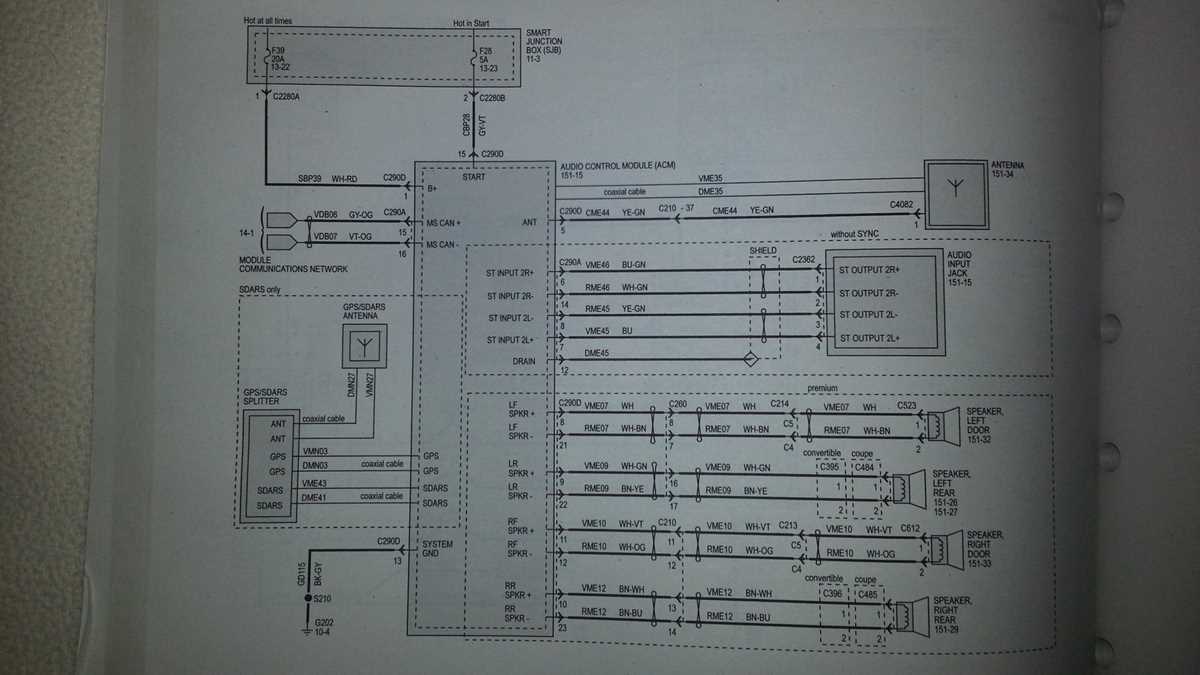

Radio harness interfacing requires attention to the factory amplifier integration. The rear speaker wires carry data for the SYNC module; cutting them triggers error codes B1003 and U0155. Use a wiring interface adapter (Metra 70-1768 or equivalent) instead of direct splicing.
Inspect the ground distribution block mounted on the driver-side strut tower. Corrosion at these studs mimics intermittent sensor failures. Clean with a wire brush and apply dielectric grease before reassembling. Common symptoms include erratic fuel gauge readings and flickering interior lights.
Check the alternator output at the battery post and the junction near the under-hood fuse box. Voltage should read 13.8–14.4V at 2,000 RPM with all accessories off. Lower readings indicate either a faulty alternator or a parasitic draw exceeding 50 milliamps after module sleep.
ISC actuator troubleshooting focuses on the black/orange and black/yellow wires. The motor should audibly adjust idle speed during KOER self-test. If silent, verify 12V supply on the pink wire and proper grounding through the engine block.
Heated seat circuits share a relay with the rear defroster on the smart junction panel. The tan/light green control wire triggers a 20-amp fuse–burnt connectors here often cause melted dash switches. Replace the relay socket if discoloration appears on the contacts.
Pinpointing Critical Electrical Connector Hubs Beneath the Engine Bay
Begin by identifying the central junction near the driver-side strut tower–this cluster consolidates power distribution for the engine control module, sensor arrays, and ignition coils. Trace the thickest cable loom (typically 12–16 AWG) from the battery’s positive terminal; it splits into two primary branches: one feeds the under-hood fuse box, while the other routes to the alternator’s B+ post. Label these pathways to prevent confusion during later diagnostics.
Locate the intake manifold-mounted sensor harness by following the thin, twisted pair cables (often shielded) extending from the throttle body. This bundle terminates in a 6–8 pin connector secured with a locking tab; release it by pressing downward on the tab while pulling upward with a gentle rocking motion. Avoid excessive force–these connectors house delicate pins for the mass airflow and manifold pressure sensors.
Airflow and Cooling System Interface Points
The radiator fan assembly connects via a dual-pin plug (14–18 AWG) situated adjacent to the coolant reservoir. Check for corrosive buildup; oxidized terminals here disrupt engine temperature regulation. Immediately forward of this, a separate 4-pin harness links the low-speed and high-speed fan relays–verify continuity using a multimeter before assuming faults upstream.
Inspect the wiring harness tied to the hood latch switch, found beneath the front lip of the engine cover. This single-pin connector (18–22 AWG) grounds when the hood is closed, silencing interior alerts–misalignment here triggers false security system warnings. Probe the wire’s continuity to chassis ground if erroneous chimes persist.
Hidden Power Distribution Nodes
Examine the starter solenoid’s single heavy-gauge cable (4–6 AWG) originating beneath the air intake duct. This lead carries ignition current directly from the battery and should exhibit zero voltage drop under load; corrosion at this junction mimics starter failure symptoms. Adjacent, a smaller 8-pin harness interfaces with the transmission control module–insulate this connection during pressure washing to prevent water intrusion.
Lastly, track the grounds. A trio of braided straps bolt to the firewall near the brake master cylinder: one serves ignition circuits, another chassis electronics, and the third powertrain components. Clean these attachment points to bare metal, re-secure with star washers, and apply dielectric grease to thwart future oxidation.
Decoding the Instrument Cluster Circuitry for Trouble-Shooting
Locate pin 24 on the cluster’s backplane connector–this terminal feeds the tachometer signal from the PCM. Probe it with a multimeter set to DC volts while cranking the engine; readings below 0.5V indicate a broken circuit or faulty ECM output. Cross-reference the live voltage against the service manual’s reference waveform charts–discrepancies often trace back to corroded splices at splice S105 beneath the driver-side kick panel or a failed ignition coil trigger.
Verifying Illumination Logic Without Power
Ground pin 18 of the cluster harness while the ignition is off; all gauge backlighting should illuminate at full brightness. If segments fail to light, check fuse F15 under the hood junction block and inspect the dimmer rheostat wiring–frayed strands at connector C2212 between the dash and headlight switch are common failure points. Use a 10A test light to confirm continuity between the rheostat output terminal and ground; intermittent flickering confirms a broken track inside the switch assembly, not a defective bulb.
Power Flow Analysis for Powertrain Control Unit Circuits
Locate fuse F54 (15A) in the under-hood distribution box as the primary supply line for the ECM. Verify voltage presence at pin 85 of connector C2541 using a multimeter set to DC 20V range–readings should stabilize between 11.8-14.5V with the ignition in RUN position. Trace the red/yellow conductor from the fuse panel to the ECM, ensuring no chafing near the strut tower or firewall grommet where abrasion often occurs. Intermittent voltage drops typically indicate corrosion at splice S122 beneath the driver-side kick panel; disassemble insulation tape to inspect for green oxidation or brittleness in the copper strands.
Secondary power originates from ignition relay K21, delivering switched voltage via the light blue/orange wire to ECM pin 37 (C2541). Test continuity from relay terminal 87 to the connector while cycling the key–proper operation yields a click from the relay and immediate voltage rise. If absent, probe relay socket terminal 85 for chassis ground reference and terminal 86 for 0.5-1.2V control signal from the integrated power module during cranking. For parasitic draw issues, disconnect the battery and measure current at ECM pin 72 (C2540); readings above 50mA necessitate load testing each downstream actuator circuit individually.
