Begin by locating the harness connector behind the dashboard panel on the driver’s side. The pinout follows this configuration: pin A (yellow) carries constant 12V, pin B (red) supplies switched power, pin C (black) grounds the system, and pin D (blue/white) activates the amplifier. Verify connections with a multimeter before securing them to prevent short circuits.
Replacement harnesses often omit the illumination wire (orange), which dims the display in sync with your vehicle’s lights. If missing, splice it directly to the instrument cluster’s dimmer circuit–typically a thin wire with a stripe–using heat-shrink tubing for insulation. Avoid taping splices; vibrations loosen them over time.

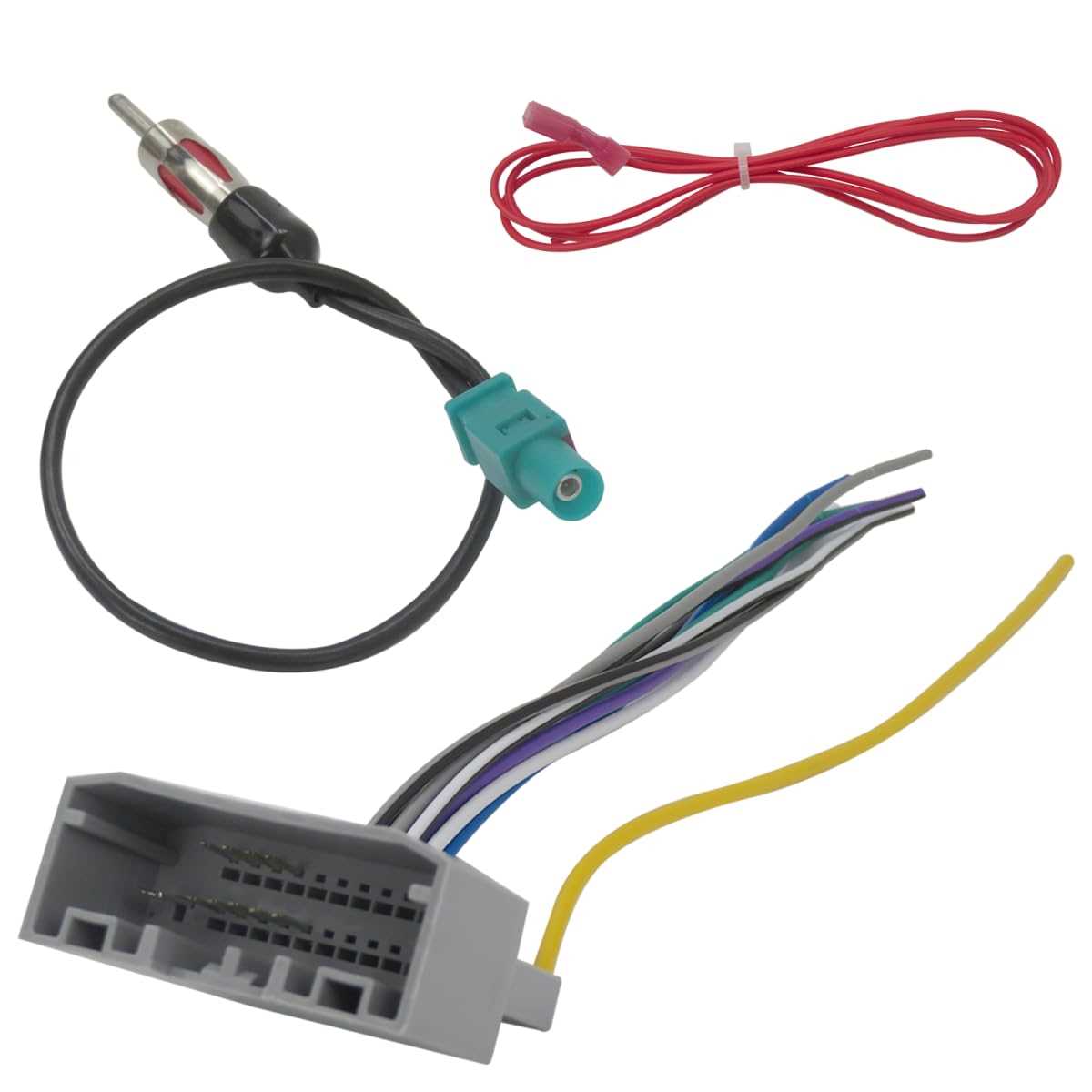

Factory antenna connections require an Fakra adapter for aftermarket units. The original plug uses an internal amplifier, so an inline noise filter (100Ω resistor) may be necessary if static persists. Check the fuse box for a 10A accessory fuse labeled “radio” before testing–blown fuses indicate a short in the circuit.
Steering wheel controls rely on a resistor network. Aftermarket adapters (e.g., Metra ASWC) simplify integration, but manual wiring requires matching the resistance values: 220Ω for volume up, 470Ω for volume down, and 0Ω for mode switching. Label each wire with masking tape to avoid misconnections.
Speaker wiring follows an atypical color scheme: front left (+) is light green, (-) is dark green; rear left (+) is gray, (-) is gray/black. Twist positive and negative wires together at the terminal to reduce interference. Subwoofer outputs (if equipped) use a purple/white pair–connect these last to preserve bass response.
Understanding the Compact SUV’s Audio Connector Layout
Locate the aftermarket harness adapter behind the factory stereo unit–it’s secured by four Torx T20 screws on the dashboard trim. Cut the ignition-switched 12V wire (solid violet, pin 4 on the 14-pin block) and splice it to the red accessory input on your new receiver to prevent parasitic battery drain. The factory amplifier (Renegade trim) requires a bypass module or direct connection to the four gray RCA pre-outs (front left/right: pins 1/6, rear left/right: pins 3/8) to avoid signal attenuation; failure to address this results in underpowered door speakers (4 ohm, 20W RMS).
| Connector Pin | Wire Color | Function | Compatible Aftermarket |
|---|---|---|---|
| 1 | Light blue/white stripe | Antenna trigger | Power Antenna output (blue) |
| 5 | Brown/yellow stripe | Front right speaker (+) | Orange/white (high-level) |
| 7 | Pink | Illumination (-) | Brown (grounded dimmer) |
| 10 | Gray/red stripe | Rear left speaker (-) | Black/light green (low-level) |
Ground the chassis harness to the passenger-side kick panel bolt (10mm) rather than the stereo cage–this reduces alternator whine in amplified setups. Test speaker polarity with a 9V battery before finalizing connections; reversed leads in the rear door woofers (6×9, 60Hz–20kHz frequency response) create phase cancellation during bass-heavy playback.
Finding the Audio System Connector Points in Your Vehicle
Begin by removing the center console trim panel below the climate controls. Use a trim removal tool to pry off the panel gently, starting from the bottom edge near the cupholders. There are four clips securing it–two on each side–and one snap fastener at the rear. Disconnect any electrical connectors attached to switches before fully removing the panel.
The primary harness plugs lie behind this panel, mounted to the backside of the metal dashboard support beam. Look for a white 12-pin connector, a black 8-pin connector, and a smaller blue 4-pin plug. The white connector handles power, ground, and illumination; the black manages speaker outputs; the blue carries antenna and auxiliary signals.
Trace the wires from the back of the factory head unit to locate the secondary harness connection. It sits to the left of the climate control module, concealed behind a rectangular plastic cover held by two screws. Remove the screws with a T20 Torx driver to expose the multi-pin plug linking the head unit to the main harness.
If additional connections are needed for aftermarket upgrades, check the passenger-side kick panel. Pull back the carpet to reveal a junction box containing a spare harness with labeled wires for power windows, door locks, and audio inputs. This box often includes unused lines that can be tapped for custom installations.
Identifying Cable Colors and Functions
The white 12-pin connector follows this color scheme: yellow (constant 12V), red (switched 12V), black (ground), orange with white stripe (illumination), gray (dimmer), and purple (accessory). The black 8-pin connector uses pairs of wires for each speaker–front left (gray/gray-black), front right (white/white-black), rear left (green/green-black), rear right (violet/violet-black).
For steering wheel controls, locate the beige 6-pin connector near the instrument cluster. The blue 4-pin plug carries the antenna lead (solid blue) and auxiliary input (blue with white stripe). If your vehicle has a factory amplifier, a separate 10-pin connector (usually brown) will be present behind the glove box, containing pink (left front +), pink-black (left front -), and similar pairs for other channels.
Troubleshooting Hidden Connections
If certain wires are missing or damaged, inspect the fusebox under the dashboard. Some models route power through fuse #16 (10A) for the head unit and fuse #22 (15A) for the amplifier. Verify continuity with a multimeter–expected resistance should be below 0.5 ohms for speaker wires and near infinite for power lines against ground.
For vehicles equipped with a navigation system, an additional gray 16-pin connector will be located behind the glovebox. This harness includes CAN bus wires (orange and purple) for data communication between modules. When splicing into these, use T-taps rated for 20-gauge wire to avoid signal disruption.
Identifying Wire Colors and Their Functions for Aftermarket Stereo Installation
Start by locating the yellow 12V constant power line–this wire maintains memory for presets and clock settings even when the ignition is off. Confirm its function with a multimeter (12V DC) before connecting it to the new head unit’s corresponding terminal. Avoid splicing into the red accessory wire unless the vehicle lacks a dedicated memory circuit, as this can drain the battery over time.
Trace the solid red wire, which supplies power only when the ignition is in the “ACC” or “ON” position. This feed activates the stereo during engine runtime and should be paired with a 10A fuse no more than 18 inches from the connection point. Mistaking it for the yellow wire will prevent the unit from retaining settings after shutdown.
- Black: Ground–attach directly to the vehicle chassis using a ring terminal for corrosion-resistant contact. Scrape away paint or undercoating at the attachment site for maximum conductivity.
- Blue/white stripe: Amplifier turn-on lead–connect to the new unit’s remote output to trigger external amps or powered antennas. Size this wire at 18AWG or thicker if running multiple accessories.
- Orange (or orange/white): Illumination dimmer control–this wire adjusts display brightness in sync with dash lights. Test with a 12V probe during night driving to ensure proper dimming behavior.
Speaker Wire Identification
Match the following pairs to their respective speaker outputs on the new head unit, verifying polarity with a 9V battery test:
- Gray (+) / Gray/black (-): Front right door speaker
- White (+) / White/black (-): Front left door speaker
- Purple (+) / Purple/black (-): Rear right speaker
- Green (+) / Green/black (-): Rear left speaker
Strip no more than 3/8 inch of insulation from each speaker wire to prevent shorting, and use butt connectors or solder+shrink tubing for connections rated to at least 8AWG handling capacity. Twisted pairs reduce noise interference in longer runs.
Antenna and Auxiliary Wires
The solid pink wire (not to be confused with pink/light blue) typically serves as the powered antenna lead–connect it to the new unit’s “ANT” terminal if retaining the factory mast. For vehicles with a separate amplifier, the brown wire may carry low-level preamp signals; bypass it by running RCA cables directly from the stereo to aftermarket amps to avoid signal degradation. Use a wiring harness adapter with labeled connections to simplify future upgrades.
How to Safely Remove the Stock Audio System Connections
Unplug the negative terminal of the vehicle’s battery before touching any connectors. This prevents short circuits and protects onboard computer modules. Locate the 10mm bolt on the battery’s negative post–standard wrenches will not fit due to size constraints; use a socket wrench instead. Wait at least 10 minutes after disconnection to allow capacitors in the sound processor to discharge fully.
Remove the dash trim panels surrounding the stereo unit. Start with the center console cover, prying gently with a flat trim tool at the designated clip points–marked by small indentations on the underside. Work clockwise around the faceplate, releasing each clip before attempting to lift the panel. Avoid pulling at an angle; uneven force can snap the plastic retainers, which are not repairable without replacement parts.
Disconnect the antenna cable first–it’s the single coaxial connector at the rear of the head unit. Press the release tab on the side while pulling straight out; twisting or wiggling can damage the internal pins. Next, detach the main harness plug by squeezing the locking tabs on either side simultaneously. If the plug resists, check for a secondary release near the base–some models require an additional push on a hidden latch.
Label each wiring adapter before removal. Use masking tape or a permanent marker to note speaker polarity, amplifier triggers, and illumination wires. The illumination line is typically orange or gray with a stripe–mislabeled connections can result in dash light malfunctions. For vehicles with integrated climate controls, ensure the temperature sensor plug (a small white connector) is set aside carefully; replacement sensors cost over $120 if lost.
Check for hidden screws securing the stereo chassis. Some trims conceal a single Torx T20 bolt behind the faceplate or inside the glovebox–removing it releases the mount bracket. Without this step, the unit may appear loose but won’t slide out fully. If resistance persists, verify no side-mounted support clips remain engaged; these are often obscured by wiring bundles or sound-deadening material.
Store all fasteners, brackets, and adapters in a labeled container. Bolts from different sections may appear identical but serve distinct purposes–mixing them risks improper reassembly. For systems with built-in theft-deterrent features, reconnect the battery briefly after removal to reset error codes before final storage. Failure to do so can trigger false alarms or immobilizer faults during reinstallation of aftermarket components.
