Begin by locating pinout guides specific to the 2.4L engine variant–these circuits differ significantly from V6 configurations. Use a multimeter to verify ground points first, as corroded connections often disrupt signal flow in primary modules like the ECM and TIPM. Ignore generic schematics; focus on revised OEM documentation for accurate fuse ratings and relay placements.
Trace the CAN bus lines: the orange and white wires (pins 29 and 30 on the DLC) must show 2.5V with key-on-engine-off. Deviations indicate a short or open circuit requiring immediate splice repair. For the instrument cluster, check the amber wire (pin 12) for variable voltage (0-5V) during self-tests–fluctuations confirm sensor integrity.
Isolate the BCM-controlled circuits early. Probe the dark blue wire (pin C2) at the headlamp switch for 12V during operation; failure here cuts power to fog lights and DRLs. For trailer wiring, the grey connector under the rear bumper houses the 4-pin harness–verify each terminal with a load test (turn signals: 6-8 ohms, brake lights: 1.5-3 ohms).
Skip aftermarket manuals; they omit critical revisions like the updated alternator field circuit (purple wire, pin D) introduced in later production runs. Route repairs through original harness sleeves to prevent chafing–exposed wiring near the front sway bar mounts causes intermittent faults. Keep a copy of TSB #21-006-12 for confirmed updates on splice kits and terminal replacements.

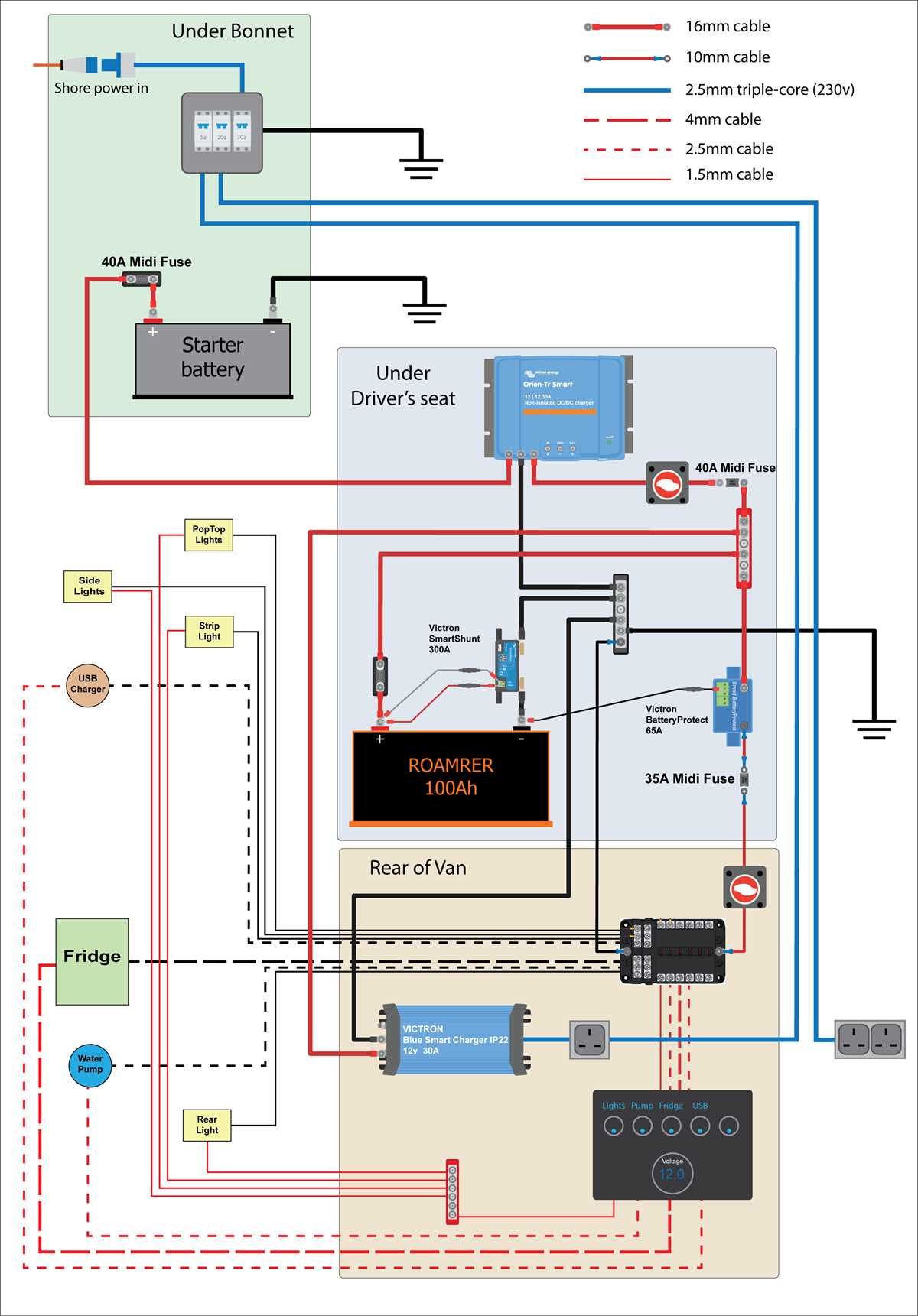

Mastering the Electrical Layout: A Hands-On Approach
Locate the main fuse box under the driver’s side dashboard–labelled with a color-coded reference. Each fuse corresponds to a specific circuit: red (10A) for the lighting cluster, yellow (15A) for the ignition module, and blue (20A) for the HVAC blower. Verify continuity with a multimeter before replacing; a reading below 0.5 ohms confirms integrity. Disconnect the negative terminal first to prevent accidental shorts if probing live circuits.
Trace the CAN bus network using the orange/white and gray/white twisted pair–these carry signals between the ECM, TCM, and ABS. Use a diagnostic scanner (OBD-II, mode 09) to cross-check voltage levels; normal range is 2.3V to 3.6V. If flickering dash lights occur, inspect the splice at connector C305 (behind the glove box) for corrosion–apply dielectric grease after cleaning.
For the power window circuit, examine relay K11 (located in the under-hood fuse block) if windows operate erratically. Swap with a known-good relay (e.g., K12 for the horn) to isolate failures. Check the purple/white wire at the door switch for voltage drop–should be battery voltage (±0.3V) when the switch is activated. Replace frayed wires with 18-gauge automotive-grade copper, soldering and heat-shrinking each joint.
Finding the Right Electrical Layout for Your Vehicle by Model and Trim Level
Begin by identifying the exact make, model variant, and trim configuration of your car. Manufacturer-specific portals like AlldataDIY, Mitchell 1, or Chilton provide OEM-accurate schematics, but access requires a subscription. For Honda, Acura, or Lexus, check TechInfo (service.honda.com, www.acura-tech.com, or www.lexus-tech.eu); Ford and Lincoln owners should use Motorcraft (www.motorcraftservice.com); GM brands (Chevrolet, GMC, Cadillac, Buick) offer documentation via ACDelco (www.acdelcotds.com). Toyota and Scion schematics are available through Toyota Technical Information System (TIS, techinfo.toyota.com). Nissan and Infiniti diagrams are hosted on Nissan TechInfo (www.nissantechinfo.com). For European marques–Volkswagen, Audi, BMW, Mercedes-Benz–consult ErWin (erwin.audi.com, erwin.bmw.com, mbusa.com/mercedes/en/service/star-technik) or ELSA (for VW Group). Hyundai and Kia schematics can be found on HyundaiTechInfo (www.hyundaitechinfo.com) and Kia Tech Info (www.kiatechinfo.com).
If subscriptions are not an option, third-party manuals like Haynes, Clymer, or Bentley Publishers sell print and PDF formats with color-coded layouts–though these may lack late revisions. Free alternatives exist but require scrutiny: forums (LS1Tech for GM, Ford-Trucks for F-Series, Honda-Tech for Civics/Accords), YouTube tutorials (search: “[make] [model] [trim] fuse block” or “harness routing”), and enthusiast sites (OEMCarSchematics.com, The12Volt.com). Verify the file’s source–factory diagrams include specific identifiers like connector pinouts (e.g., C101, G5), wire gauge (AWG), and color codes (e.g., YEL/BLK for ground strap). Cross-reference against the vehicle’s build sheet (often in the glovebox or door jamb) to confirm options like navigation, heating pads, or turbochargers, which alter circuits. For hybrids or EVs, focus on high-voltage cables (orange insulation) and traction battery schematics, typically segmented from the 12V system.

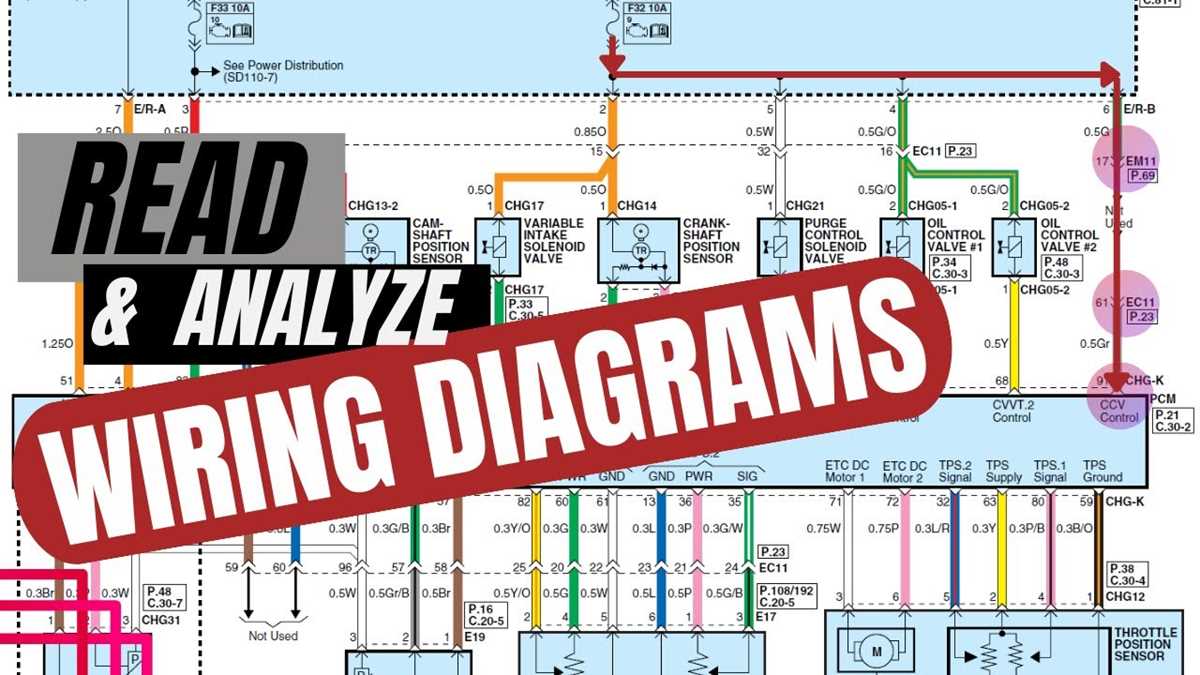

Decoding Color Standards and Notation in Automotive Electrical Blueprints

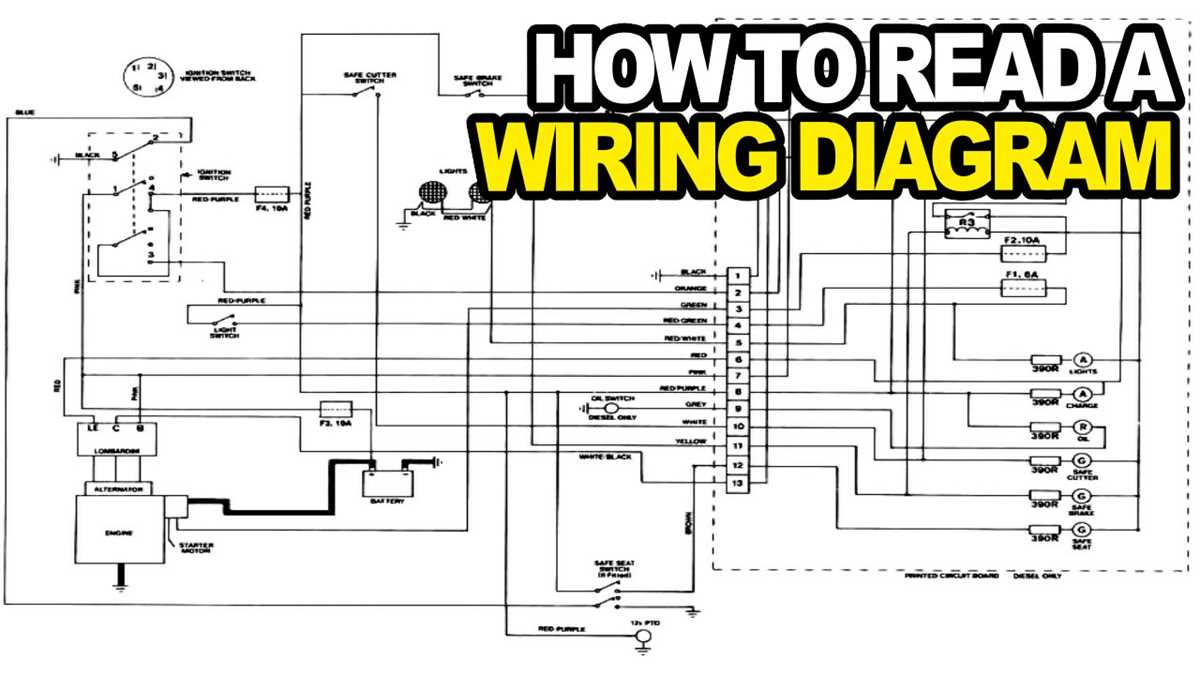

Begin by locating the legend–usually positioned in the corner or along the edge of the schematic. Manufacturers use a consistent three-part color notation: primary hue (base color), stripe identifier (tracer), and an optional suffix indicating wire gauge or special function. For example, a “YEL/BLK” marking denotes a yellow wire with a black stripe, while “GRY-18” specifies a gray wire sized at 18 AWG. Cross-reference these abbreviations with the provided key; discrepancies often point to aftermarket modifications or regional variances.
| Code | Primary Color | Tracer Color | Typical Function |
|---|---|---|---|
| RED | Solid red | N/A | Constant 12V power (fused) |
| PPL/WHT | Purple | White | Fuel injector control |
| ORN/BLK | Orange | Black | Ignition-switched output |
| DK GRN | Dark green | N/A | Ground (-) return |
| WHT-16 | White | N/A | 16 AWG headlight circuit |
Symbols adjacent to color codes carry equal weight. A dot within a circle marks a splice joint–verify this point physically with a multimeter set to continuity mode. Dashed lines signify internal switches or relays; solid lines denote external harness connections. Arrows at conductor ends indicate direction of current flow, but always validate with a voltage drop test between source and load. Schematics from this model year split ground paths into chassis (bare or green) and signal (black) returns–mixing these risks introducing electrical noise or component damage.
Faulty circuits often trace back to misread tracers. A “TAN/YEL” wire powers the vehicle speed sensor, while “TAN/BLU” feeds the transmission control module. Swapping these leads to erroneous speed readings or limp-mode activation. Use a wiring repair manual’s color plates for visual confirmation; digital schematics may render tracers inaccurately. For splices, strip insulation back precisely 12 mm, twist strands clockwise, and apply heat-shrink tubing with adhesive lining–avoid solder-only joints as vibration causes fatigue fractures.

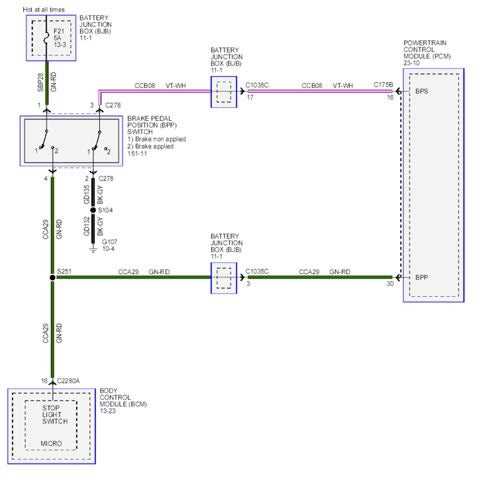

Connector pinouts use alphanumeric labels (e.g., “C201-A5”). The first segment (“C201”) identifies the connector housing, while the suffix (“A5”) specifies the cavity. Male terminals carry current; female terminals receive unless marked otherwise. Test each terminal with a backprobing tool–never pierce insulation–while the circuit is live to avoid shorting adjacent pins. Look for gouged plastic or discoloration; these indicate terminal push-out or overheating. Replace connectors showing these symptoms–repairs with crimp splices degrade signal integrity over time.
Electronic modules rely on twisted pair conductors for data buses. CAN networks typically use “YEL” and “GRN” pairs; LIN buses employ a single “PNK” wire with a 1 kΩ resistor at the master node. Probe these with a scope set to 1V/div–signal waveforms should alternate cleanly between 0 and 5V without noise spikes. Shielded cables (identified by a foil wrap symbol) require grounding the outer braid at one end only; dual grounding induces ground loops. Follow the twist pattern when routing repairs–minimum 12 turns per meter–to maintain EMI immunity.
Fuses and relays integrate into the schematic via numbered symbols. Fuses show rated amperage (e.g., “15A”) above or below the symbol; relays list coil and switch ratings separately (“30/500mA”). Use a test light to verify fuse integrity–darkening on the glass indicates a blown element. For relays, energize the coil (terminals 85/86) and listen for a click, then measure continuity across 30/87. Silent relays often suffer from corroded contact plates–clean with contact spray or replace if resistance exceeds 5Ω. Always replace fuses with the identical amp rating–aftermarket “upgrades” compromise overcurrent protection.
Ground distribution diagrams appear as separate sheets. Look for star-point symbols linking multiple paths to a single chassis stud. Corroded ground joints manifest as intermittent faults–clean mating surfaces with a wire brush down to bare metal, apply dielectric grease, and torque fasteners to 10 Nm. Signal grounds (black wires) should tie into the engine block or firewall, not the battery negative terminal. Verify each ground path with a voltmeter in resistance mode–readings above 0.1Ω indicate corrosion or loose connections. Never splice ground wires; extend them to the nearest acceptable attachment point using OEM-specified terminals.
Step-by-Step Electrical Circuit Troubleshooting for Vehicle Models
Begin by isolating the faulty circuit using a multimeter set to continuity mode. Connect the probes to both ends of the suspected harness segment–if the reading shows no continuity, the path is broken. Check for visible damage along the cable run, focusing on areas near sharp edges, heat sources, or moving parts where chafing often occurs. Replace any compromised insulation with heat-shrink tubing to prevent future failures.
Identify common failure points in the vehicle’s electrical system: fuse boxes, ground connections, and connector pins. Corrosion on ground terminals can mimic open circuits–clean them with a wire brush and apply dielectric grease. For connectors, inspect each pin for bending or oxidation; use a small pick to realign bent pins and a contact cleaner for oxidation. Avoid pulling wires directly by their terminals to prevent internal damage.
If the issue persists after visual checks, perform a voltage drop test. With the circuit under load, probe the positive and negative sides of each connection point. A drop exceeding 0.2V indicates resistance–this often signals a loose connection or partial break. Trace the route back to the power source, testing each junction until the defective link is found.
For intermittent faults, flex cables gently while monitoring with a multimeter. Pay attention to sections near hinges, under seats, or inside door jambs where repeated movement weakens strands. Splices in these areas should be reinforced with solder and adhesive-lined shrink tubing to ensure durability. Avoid twisting wires during reinstallation to prevent stress fractures.
When dealing with high-current circuits (e.g., starter, alternator), use a dedicated 10-gauge test lead to bypass suspected segments. Connect one end to the power source and the other to the load–if functionality returns, the original path has a hidden defect. Always route replacement cables away from rotating components and sharp металла to avoid abrasion.
Advanced Diagnostic Techniques
For complex issues like CAN bus errors or sensor malfunctions, use an OBD-II scanner with live data capabilities. Compare readings from adjacent sensors to isolate inconsistencies. If a sensor’s signal flatlines, check its power supply and ground first–many false negatives originate from poor reference voltage rather than sensor failure. For resistance checks, disconnect the sensor and measure impedance; deviations from spec (typically 200–1200 ohms) confirm internal damage.
When repairing circuit boards or control modules, use a low-wattage soldering iron (25–30W) and rosin flux to avoid heat damage. Remove oxidation from component leads with fine sandpaper before reheating. For surface-mount components, stabilize them with tape during soldering to prevent lifting traces. Replace blown diodes or transistors with exact equivalents–substitutes may fail under load.
Document each repair step, noting wire gauge, connection types, and routing paths. Label all splices with heat-shrink markers to simplify future diagnostics. Store unused harness segments in moisture-resistant containers to prevent corrosion during long-term storage.
